Dongfeng 4x2 Truck With XCMG Loading Crane Lorry
Views: 1640 Author: Dong Runze Special Vehicle Equipment Publish Time: 2017-09-11 Origin: Dong Runze Special Vehicle Equipment
Dongfeng 4x2 Truck With XCMG Loading Crane Lorry
DONGFENG 145 4*2 Truck-mounted Crane 6.3 Ton
US $31600-33900 / Set
1 Set (Min. Order)
Rated Loading Capacity: 7000kg
Application: construction and so on
Condition: New
DongFeng 145 crane truck(5 tons crane)
US $33100-42000 /
Crane Truck,25T Mobile Crane Truck,16T Crane Truck,14T Hydraulic Truck Crane,12T Truck Loading Crane,10T Truck With Crane,10T Loading Crane,8T Mobile Crane,6.3T Crane Vehicle,5T Tipper Mounted Crane,4T Boom Truck Crane,3.2T Lorry Mounted Crane,3.2T Dumper Loading Crane,2T Truck Mounted Crane
DongFeng 145 crane truck(5 tons crane)
Item | unit | parameter | |||
Vehicle model | DRZ5110JSQT3 Truck With Crane | ||||
Chassis model | EQ1110GLJ3 | ||||
Overall dimensions | mm | 8000×2495×3350 | |||
Fact loading | kg | / | |||
Mass in working order | kg | Appro×7300 | |||
Body internal dimensions | mm | 4700×2294×600 | |||
Wheel base | 4700 | ||||
F/R track base | 1900/1800 | ||||
Approach/departure angle | ° | 31/22 | |||
Exhaust/kw | ml/kw | 5900/125 | |||
Max speed | km/h | 90 | |||
Tire specification | 9.00-20 | Engine type | B170-33 | ||
Traction system | 4×2 | transmission | 6-speed with over drive | ||
Number of axles | 2 | Electric system | 24v | ||
Operation control system | Electrically hydraulic control | Allowable passengers in cab | 3 | ||
Equipment | SQ5SA2/SQ5SK2Q/SQ5SK3Q Hydraulic valve is universal in the worldon the safe side;three point floating type to protect crossbeam of the truck;all hydraulic pressure and 360°turning;new H-shape type; high precise drawn tube;24°tie-in. | ||||
Engine | DongFeng Cummins Environmental Protection,supercharge,diesel engine | ||||
Production cycle | 10-15 days | ||||
Warranty | 12 month,from the date of supply | ||||
FOB Shanghai | $ | FOB/DAF/CNF/CIF | $ | ||
DongFeng 145 crane truck(6.3 tons crane)
Production Notes:
1 360D rotation 6.3 ton straight crane
2 Convenient to use
3 High quality,Low price
4 Dongfeng 145 4*2 truck chassis with 190hp
Technical Parameter of DONGFENG 145 4*2 Truck-mounted Crane 6.3 Ton
Main Technical Parameter | |||
Product Name | DONGFENG Truck-mounted Crane | Overall Dimension(L*W*H)(mm) | 8000×2495×3350 |
Wheelbase(mm) | 4700 | Compartment Dimension(L*W*H)(mm) | 4700×2294×600 |
F/ R suspension(mm) | 1250/2050 | Front/Rear tread(mm) | 1900/1800 |
Number of Axles | 2 | Curb weight(kg) | 6900 |
Approach/ departure angle (° ) | 31/22 | Max Speed (km/h) | 90 |
Cab capacity | 3 | Cab Type | Flat proof, one and half row |
Chassis Parameter | |||
Chassis Model | EQ1110GLJ3 | Chassis manufacturer | DONGFENG Motor Co., Ltd |
Gear Box | DONGFENG 6 shift | Transmission type | Manual |
Steering Type | LHD/RHD | Traction Type | 4*2 |
Brake System | Air brake | Number of Tire | 6 with a spare |
Leaf Spring number | 8/11+8 | Tire size/type | 9.00-20 |
Engine parameter | |||
Engine Model | B170-33 | Engine manufacturer | DONGFENG |
Fuel type | diesel | Displacement(ml) | 5900 |
Emission stand | Euro 3 | Power(kw) | 125(170hp) |
Operation System | Electrically Hydraulic Control | Electric system | 24V |
Equipment & Performance | 1 .Equipped with straight arm SK6.3S2Q 3 arms Crane, optional other | ||
2. Max lift quality:6300kg, Max Lifting Moment:15.75(T.M) | |||
3. Work radius:9m, Max lift height:11m, span:5.6m | |||
4.Operate left or right, up or down, and 360° rotation ,reliable quality, long service life, work fast | |||
5. H- type front hydraulic outrigger | |||
6. Designed different form truck of crane as per the customer’ request ,as water truck with crane | |||
Warranty | 12 months, from the date of supply | ||

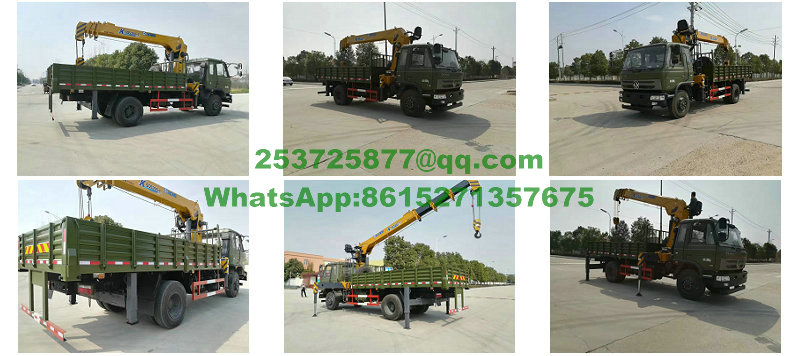

More Picture of DONGFENG Truck-mounted Crane :
