Dongfeng 4x2 Double Row Dredging Cleanout Truck

Share to:

Dongfeng 4x2 Double Row Dredging Cleanout Truck

Availability:

Quantity:



Inquire Add to Basket

Product Description

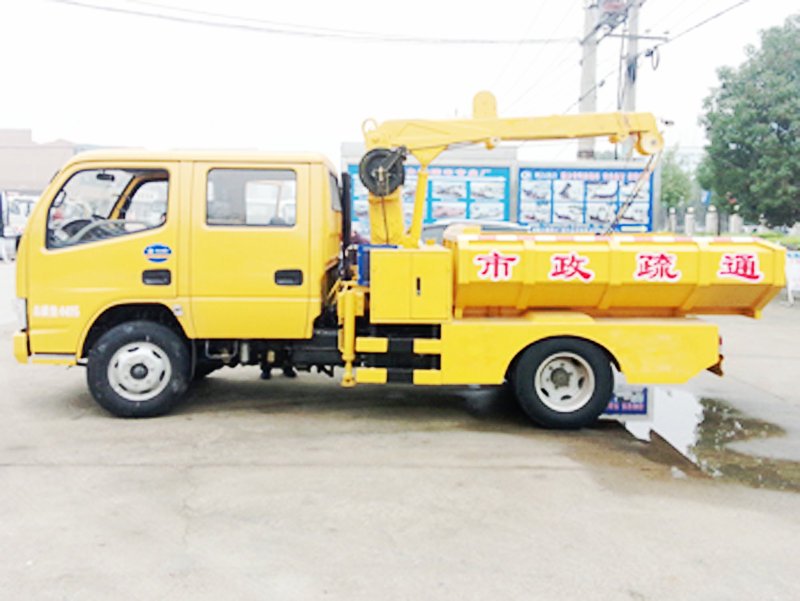

Dongfeng 4x2 double row Dredging cleanout truck
Dredging mud truck with crane sludge truck tipper truck mounted mud grab crane

Description

Technical Parameters
Total Mass(kg)	9400	Curb Weight(Kg)	5805
Rated Quality(kg)	3400	Chassis Model	EQ1090
Approach/ Departure Angle	22/13	Front /Rear Overhang	990/1500
Dimensions(mm)	726023502800	compression volume	8CBM
Number of axes	2	Maximum speed(km/h)	95
Tire Specifications	8.25-16,7.50-16,8.25R16,7.50R16	Number of Tires	6
Front track(mm)	1831	Rear track(mm)	1640
Wheelbase(mm)	3800	Number of spring	11/9+7
Emission standards	Euro 3	Type of fuel	Diesel
Engine Parameters
Engine Model	CY4102E3C	Engine Manufacturer	Chaoyang engine power co., LTD.
Engine displacement	3856ml	Engine Power	91(kw)
Brief Description	1. Volume:8CBM,made by carbon steel plate
	2. Types of collect garbage:barrel collecting,bucket collecting,box collecting.
	3. Equipped with two sets of hydraulic operation systems.

tipper truck with crane ,dump truck with crane ,

1. hydraulic system working pressure 10mPa

2. grab range and volume of work: 1200mm @0.08m3 ;small grab grab diameter of 700 mm @0.03m (as order you must provide three sizes, scenting the well diameter, size of manhole diameter at the bottom and catch basin depth, easy custom manipulators of our factory, the efficiency of the manipulator to achieve the best results).

3. grab the maximum working depth of 8M limits depth 12m

4. grab bucket rotation 180 degrees

5. dump compartment length x width x height 2470mmx1976mmx590 mm (car design for the slope at the back, prevent sewage pollution in transit road)
