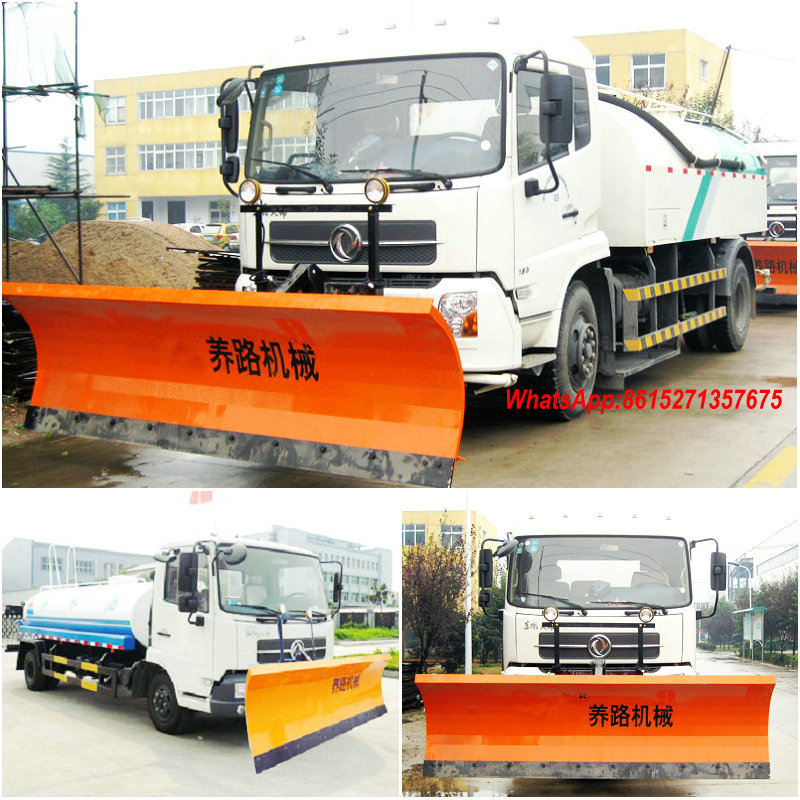

Dongfeng 4*2 Multifunctional Snow Sweeper
| Quantity: | |
|---|---|
Description
| Technical parameters | ||||
| The total mass(kg) | 11050 | Curb Weight(kg) | 10855 | |
| Rated quality(kg) | xx | Chassis Model | DFL1120 | |
| Approach /departure angle | 20/10,20/12(°) | Front/rear overhang | 1430/2860, 1430/2560 | |
| Dimensions(mm) | 9600,9200x2480x3620 | Number of spring | 7/9+6, 8/10+8 | |
| Number of axes | 2 | Maximum speed | 90 | |
| Tire Specifications | 9.00-20, 9.00R20, 255R70R22.5 | Number of tires | 6 | |
| Front track | 1880 | Rear track | 1800 | |
| Wheelbase | 5000 | Axle load | 4400/8095 | |
| Emission Standards | Euro3/Euro4 | Type of fuel | Diesel | |
| Engine parameters | ||||
| Engine Model | B190 40 | Engine Manufacturer | Dongfeng cummins engine co., LTD | |
| EngineDisplacement | 5900 ml | Engine power | 125 kw | |
| Chassis | 1. Dongfeng 4x2 chassis, flat cab with sleeper, left/right hand drive/AC; | |||
| Brief Description | 1. Adopt with multi-functional connection frame, suitable for 5 tons or higher truck, does not affect the other main functions; | ||
| 2. Independent hydraulic control system, just need to connect the truck battery, can control the rise and fall of snow shovel and deflection; | |||
| 3. Blade can be adjusted automatically along with the cross slope degree of road surface; | |||
| 4. Upside of the shovels is inergral which under the flap avoidance mechanism and biggest obstacle height is not less than 200meters | |||
| 5. The blade is made of solid wear-resistant material. | |||
