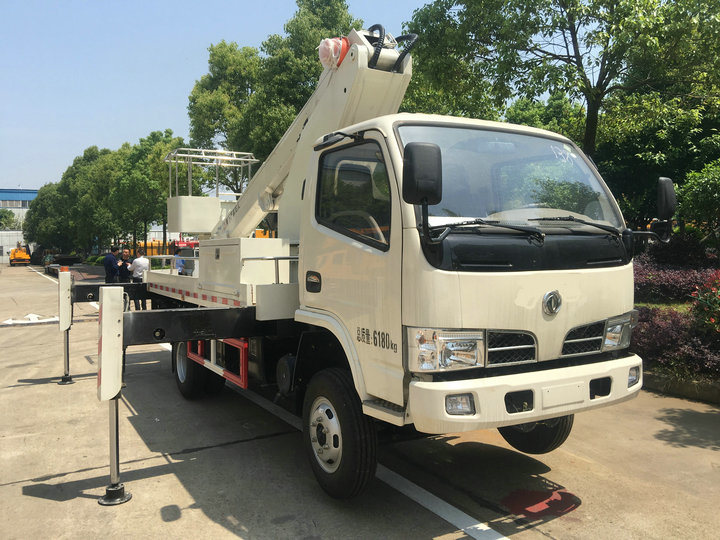

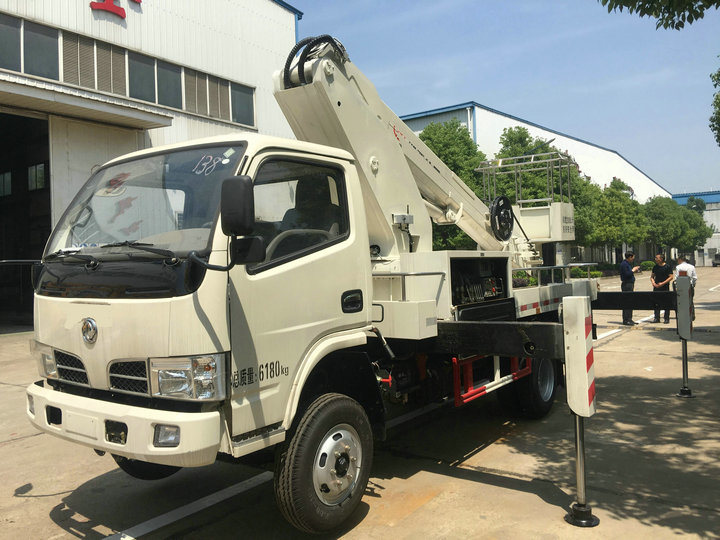

Dongfeng 20m Telescopic Aerial Platform Truck
| Quantity: | |
|---|---|
- Shanghai, China
- 1000
- T/T
Dongfeng 20m Telescopic Aerial Platform Truck
Dongfeng Offroad 4x4 Aerial Platform Truck
fully Hydraulically Operate Arial Work Platforms
Max operation height 16m,18m,20m
max operation radius 5.7m, 6.3m,7m
max working platform rating loading=200kg,
4x4 Off Road
Aerial Working Platform High Altitude Working Truck for Street Lamp Maintenance Function:
Telescopic beam lifter truck (also called aerial telescopic platform truck, hydraulic aerial cage, overhead working truck, truck platform, beam lifter vehicle, truck mounted insulated aerial lift, telescopic boom truck, high-altitude operation truck) is ideal for maintenance of traffic lights, street lights, landscaping trees, cleaning/setting signboard and other high aerial works.
Features:
---- The working cage can be made of steel structure or reinforced fiberglass.
---- Dongfeng chassis ensures perfect driving performance.
---- Dongfeng Chaoyang engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Nice shape, rational structure.
---- Massive, durable, long service life.
Specification:
Dongfeng 20m Telescopic Aerial Platform Truck
boom trucks aerial bucket truck

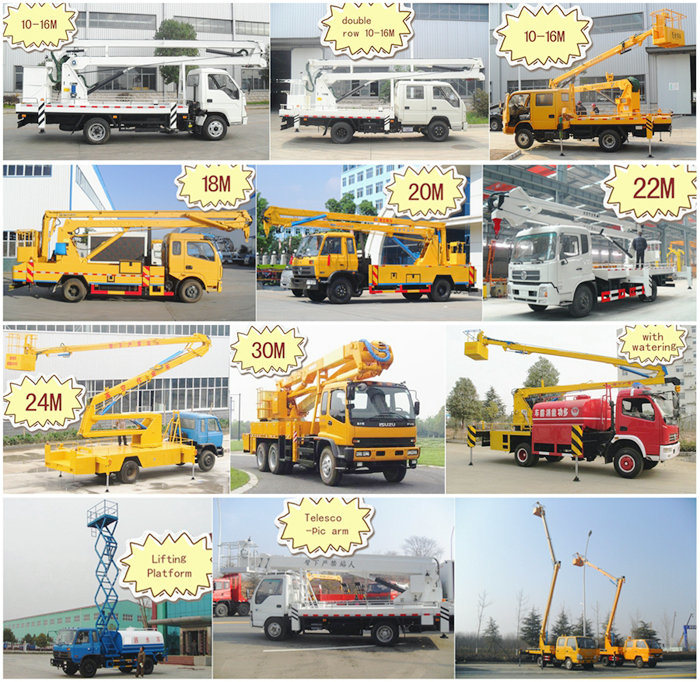

aerial work platforms are available of 8m-12m, 14m-16m, 18m, 20m-22m, 24-26m. Insulated cage is optional.
Features:
---- Working cage can be made of steel structure or reinforced fiberglass (insulated cage);
---- Working cage can rotate 90 degree in left and right;
---- 4pcs outriggers and front support improve operation stability and safety;
---- Safety Devices are available, such as relief valves, balance valves, double-way hydraulic locks, motor emergency system etc.;
---- Wireless remote control system is available.
Aerial work truck refers to a special vehicle which work at high altitude (more than three meters), use a hydraulic or electric system multivessel hydraulic cylinders, can do up and down lifting operations, transport staff and equipment to the site, conduct high altitude operations, it is a modern advanced mechanical species equipment.
Aerial work truck is specially designed and produced for aerial work or operation, such as repairing road lights, maintain high buildings, windows, hanging ad boards, power grid maintenance, etc.
Dongfeng 20m Telescopic Aerial Platform Truck EURO 5
| SPECIFICATIONS FOR DONGFENG 20M HIGH ALTITUDE OPERATION TRUCK AERIAL PLATFORM VEHICLE | |||
| Product Name | DongFeng 20m high altitude operation truck aerial platform vehicle | Product Model NO. | DRZ5080JGK20E5 |
| Function | High altitude Operation | ||
| General Situation of Vehicle | |||
| Overall Dimension(MM) | 8100×2320×3350 | Curb Weight(Vehicle) (KG) | 7640 |
| Dimension of Loading space (MM) | / | Loading Capacity(KG ) | 195 |
| GVW.(KG) | 7835 | Fuel Type | Diesel |
| Transmission Type | Manual | Condition | New |
| Maximum Speed (KM/H) | 103 | Cab | 3 Persons |
| Chassis Specification | |||
| Chassis Brand | Dongfeng | Chassis Model NO. | EQ1080SJ8BDC |
| Driver's Seat Direction | Left Side Drive/Right Side Drive | Drive Form | 4*2 |
| Steering System | Steering wheel | Brake System | Air braking |
| Gear Box | 5-Speed | ABS | Include |
| Electric System | 24V | Axle Load(KG) | 3300/4975 |
| NO. of Axles | 2 | Tyres Specification | 7.50R16 |
| Whee Base(MM) | 3800 | NO. of Wheels | 6 |
| Overhang F/R (MM) | 1130/2460 | NO. of Spring Leaf | |
| Engine Specification | |||
| Engine Model NO. | YC4FA130-50 | Engine Power (KW/HP) | 95/130 |
| Displacement(ML) | 2982 | Emission level | Euro III |
| Type | |||

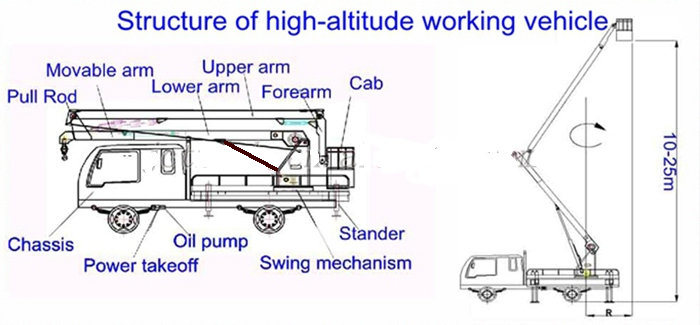

| Upper Body Configuration | Main material: carbon steel Q235, Upper body and chassis connection Way: Weld and bolt connection Max.Working Height : 20 M; Max Working Radius: 9M, 360° rotation; Prop Leg Max.Span : Lengthways :2430MM;Crosswise: front 1600MM, Rear:2780MM, adjustable; Load of aerial working platform ≤200 KG ,dimension of aerial working platform: 1080X610X1100MM; | ||
| Product Feature | 1.Three Foldable arms,arms is electrically controlled ,speed is adjustable; 2.Hydraulic Cylinders control the boom arm stretching, lifting or retracting ,and can be lockable; 3.Double station operation,up and down interlock; 4.Engine start and stop can be remote controlled; 5.Crane hook can be mounted if required ,and max. lifting height 11.5 M, Max lifting weight 1000 KG | ||
Telescopic aerial platforms 12m -14m-16m 4x4 all wheel drive offroad
Ask for better price
Cell /+8615271357675
The pictures are for your reference only.
Specification:
| Main parameters | Product model | DRZ5053JGKZ3 |
| Gross weight (kg) | 7640 | |
| Curb weight (kg) | 7445 | |
| Cab seats | 3 | |
| Number of axles | 2 | |
| Overall dimension(mm) | 7400x1980x3100 | |
| Wheel base(mm) | 3300 | |
| Max speed (km/h) | 85 | |
| Steering | Left hand drive or right hand drive | |
| Chassis parameters | Chassis model | EQ1060TJ20D3 |
| Brand | DongFeng | |
| Fuel | diesel | |
| Number of wheels (mm) | 6 | |
| Tire specification | 7.50R16 | |
| Engine displacement (ml) | 3856 | |
| Engine power (kw) | 96 | |
| Emission standard | Euro II | |
| Upper | High meters (m) | 16 |
| Max. Out reach (m) | 11 | |
| Max. lifting weight (kg) | 1000 | |
| Rotating speed | 0~2 r/min | |
| The whole boom outreaching time | ≤30 S |
| Articulated Boom Lift Dongfeng (14-16M) | ||
| General | Vehicle Brand | Dong run |
| Chassis Brand | Dongfeng | |
| Overall Dimension | 7650 x 1980 x 3150 mm | |
| GVW / Kerb Weight | 7,300 kg / 6,975 kg | |
| Cab | Cab Capacity | 2+3 persons allowed |
| Air Conditioner | With air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | Dongfeng engine | |
| Power | 95Ps (70KW) | |
| Displacement | 3856 ml | |
| Emission Standard | Euro III, IV | |
| Chassis | Drive Type | 4X2, left hand drive or right hand drive |
| Transmission | 5 forward gears & 1 reverse | |
| Wheelbase/No. of axle | 3300 mm / 2 | |
| Tyre Specification | 7.00-16 14PR, 7.00R16 | |
| Tyre Number | 6 tyres and 1 spare tyre | |
| Max Speed | 95 km/h | |
| Paint | Metallic paint | |
| Superstructure | Cage Rated Capacity | 200 kg |
| Working Height | 14m - 16 m | |
| Outriggers | 4pcs, H-type; Hydraulically extend and retract | |
| Slewing | 360° continuous rotation with base turntable | |
| Control | Control both on the ground and in the cage | |
| Emergency electrical/manual pump is equipped to operate the equipment in case of engine failure. | ||
| Emergency stop switches at base and operator's cage. | ||
| Optional | Insulated cage; Cargo box; Hoist hook with cables. | |
Similar Key Words: cost of aerial platform truck, truck mounted aerial work platforms for sale, aerial work platform price, aerial work platform trucks manufacturer, aerial truck with basket from China
PACKING & DELIVERY
Aerial platform truck 16m water tank and water pump ,Truck Mounted Aerial Work Platform water tank,Work Platform water tank truck,aerial bucket truck water tank,bucket truck with water tank ,Truck Mounted water tank Aerial Work Platform
Telescopic aerial platforms 12m -14m-16m 4x4 all wheel drive offroad
| Description of goods | Quantity | Unit price | Total Amount |
Telescopic aerial platforms Type - telescopic 12M /bucket capacity 200kg Dongfeng /wheelbase 3300 mm /4x4 Fuel - diesel engine CY4100Q/ 90HP Cabin - single (7pcs)7.50-16 tires Power steering, air brake Emission -EU3 | 1 | FOB$3**** CIF $4**** | FOB$3**** CIF $4**** |
Telescopic aerial platforms Type - telescopic 12M /bucket capacity 200kg Dongfeng /wheelbase 3300 mm /4x4 Fuel - diesel engine CY4100Q/ 90HP Cabin -double cabin (7pcs)7.50-16 tires Power steering, air brake Emission -EU3 | 1 | FOB$3**** CIF $4**** | FOB$3**** CIF $4**** |
single cabin & double cabin price deiffer $605 Height 14M price add $500;Height 16M price add $1000;4x2 & 4x4 price deiffer $2800 | |||
Telescopic aerial platforms Type - telescopic 14M /bucket capacity 200kg Dongfeng /wheelbase 3300 mm /4x4 Fuel - diesel engine CY4100Q/ 90HP Cabin - single (7pcs)7.50-16 tires Power steering, air brake Emission -EU3 | 1 | FOB$3**** CIF $4**** | FOB$3**** CIF $4**** |
Telescopic aerial platforms Type - telescopic14M /bucket capacity 200kg Dongfeng /wheelbase 3300 mm /4x4 Fuel - diesel engine CY4100Q/ 90HP Cabin -double cabin (7pcs)7.50-16 tires Power steering, air brake Emission -EU3 | 1 | FOB$3**** CIF $4**** | FOB$3**** CIF $4**** |
Telescopic aerial platforms Type - telescopic16M /bucket capacity 200kg Dongfeng /wheelbase 3300 mm /4x4 Fuel - diesel engine CY4100Q/ 90HP Cabin - single (7pcs)7.50-16 tires Power steering, air brake Emission -EU3 | 1 | FOB$3**** CIF $4**** | FOB$3**** CIF $4**** |
Telescopic aerial platforms Type - telescopic 16M /bucket capacity 200kg Dongfeng /wheelbase 3300 mm /4x4 Fuel - diesel engine CY4100Q/ 90HP Cabin -double cabin (7pcs)7.50-16 tires Power steering, air brake Emission -EU3 | 1 | FOB$3**** CIF $4**** | FOB$3**** CIF $4**** |
Telescopic aerial platforms 12m 4x2
| Description of goods | Quantity | Unit price | Total Amount |
Telescopic aerial platforms Type - telescopic 12M /bucket capacity 200kg Dongfeng /wheelbase 3300 mm /4x2 Fuel - diesel engine CY4100Q/ 90HP Cabin - single (7pcs)7.50-16 tires Power steering, air brake Emission -EU3 | 10 | FOB$3**** CIF $3**** | FOB$3**** CIF $3**** |
Telescopic aerial platforms Type - telescopic 12M /bucket capacity 200kg Dongfeng /wheelbase 3300 mm /4x2 Fuel - diesel engine CY4100Q/ 90HP Cabin -double cabin (7pcs)7.50-16 tires Power steering, air brake Emission -EU3 | 10 | FOB$3**** CIF $3*** | FOB$3**** CIF $3**** |
single cabin & double cabin price deiffer $605 Height 14M price add $500;Height 16M price add $1000;4x2 & 4x4 price deiffer $2800 | |||
Telescopic aerial platforms Type - telescopic 14M /bucket capacity 200kg Dongfeng /wheelbase 3300 mm /4x2 Fuel - diesel engine CY4100Q/ 90HP Cabin - single (7pcs)7.50-16 tires Power steering, air brake Emission -EU3 | 10 | FOB$3**** CIF $3**** | FOB$3**** CIF $4**** |
Telescopic aerial platforms Type - telescopic14M /bucket capacity 200kg Dongfeng /wheelbase 3300 mm /4x2 Fuel - diesel engine CY4100Q/ 90HP Cabin -double cabin (7pcs)7.50-16 tires Power steering, air brake Emission -EU3 | 10 | FOB$3**** CIF $3**** | FOB$3**** CIF $4**** |
Telescopic aerial platforms Type - telescopic16M /bucket capacity 200kg Dongfeng /wheelbase 3300 mm /4x2 Fuel - diesel engine CY4100Q/ 90HP Cabin - single (7pcs)7.50-16 tires Power steering, air brake Emission -EU3 | 10 | FOB$3**** CIF $3**** | FOB$3**** CIF $4**** |
Telescopic aerial platforms Type - telescopic 16M /bucket capacity 200kg Dongfeng /wheelbase 3300 mm /4x2 Fuel - diesel engine CY4100Q/ 90HP Cabin -double cabin (7pcs)7.50-16 tires Power steering, air brake Emission -EU3 | 10 | FOB$3**** CIF $4**** | FOB$3**** CIF $4**** |
all wheel drive offroad Aerial platforms
Truck mounted aerial platform, which will be used to clean pole mounted solar panels for street lights. So it requires a special arrangement of truck mounted water tank as well as water hose at the basket.
The pole height is 6M so aerial lift should be 8-10M.
Water tank capacity can be 3000Ltr
Truck may be medium light truck of 3.% ton.
