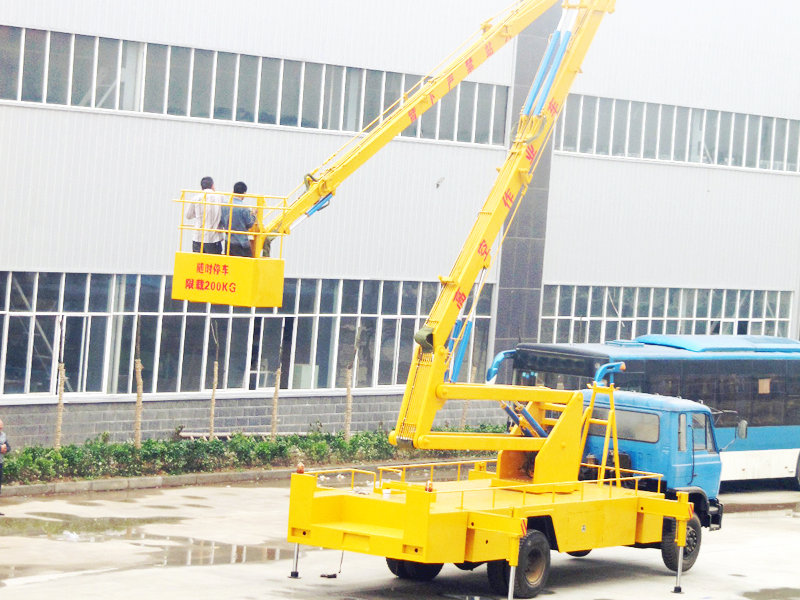

24 Meters Truck Fold Arm Type High Altitude Working Platform Aerial Description
The aerial working vehicle/platform series mainly include 10-24m aerial working vehicle series and 10-42m self-propelled aerial working platform series. These products mainly adopt the folding and extension type working arm structure, with advanced operation and control system and safety alarm device. They are widely applied to power, municipal construction, ship, airport, traffic, advertising, garden, communication and photography
|The total mass(kg)||10080||Curb Weight(kg)||9885|
|Rated quality(kg)||xx||Chassis Model||EQ1168VFJ1|
|Approach / departure angle(°)||23/14||Front/Rear overhang||1250/2050|
|Dimensions(mm)||9200,8530*2480*3610||Number of spring||9/10+8|
|Number of axles||2||Maximum speed||90|
|Tire Specifications||9.00-20,9.00R20||Number of tires||6|
|Front track||1920,1960||Rear track||1860|
|Emission Standards||Euro II/Euro III/Euro IV||Type of fuel||Diesel|
|Engine Model||YC6J160-46||Engine Manufacturer||Guangxi yuchai machinery|
|Engine Displacement(ml)||6494||Engine power(kw)||118|
|Modified Description||1. Basic equipment:1.height of working:20-25m,360°all rotation,three folding arms,single hydraulic cylinder,rated load of cage:200-250kg. |
2. 1 ton stretch hook,four hydraulic oil cylinder that are adjustable,without emergency power unit.
3. Equipped with two-way balancing valve,ectrical control operation,two sets of operating system. (1set platform pilot switch and 1 set pilot switch in the cab);
|Basic composition||chassis,PTO,gear pump,chassis parts,folding arms/telescopic arms, oil cylinder,pipeline system,working cage, rotating mechanism,hydraulic system,electrical system.|
|Application||Convenient moving,used in narrow roads and streets.Aerial work platform can be used in aloft working of electricity,street lamp,municipal administration,gardens,transportation and so on.|
Truck mounted aerial platform Function:
Articulated platform (also calledhydraulic boomlifter, overhead working truck, truck mounted aerial platform, aerial beam lifter, man lift truck, articulated basket platform, skylift, insulated aerial cage truck)is ideal for maintenance of traffic lights, street lights, landscaping trees, cleaning/setting signboard and other high aerial works.
---- The working cage can be made of steel structure or reinforced fiberglass.
---- Dongfeng chassis ensures perfect driving performance.
---- Cummins engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Nice shape, rational structure.
---- Massive, durable, long service life.
|Dongfeng 22m-24 MArticulated Platform|
|General||Vehicle Brand||Dong Run|
|Overall Dimension||9600 * 2500 * 3620 mm|
|GVW / Kerb Weight||15,825 kg / 15,500 kg|
|Cab||Cab Capacity||3 persons allowed|
|Air Conditioner||Air conditioner is optional|
|Engine Brand||Cummins engine|
|Power||190 Ps (40 KW)|
|Emission Standard||Euro III|
|Chassis||Drive Type||4X2, left or right hand drive|
|Transmission||6-speed front, 1 reverse|
|Wheelbase/No. of axle||4700 mm / 2|
|Tyre Number||6 tyres and 1 spare tyre|
|Max Speed||80 km/h|
|Superstructure||Working Cage||200 kg capacity, anti-slip floor|
|Slewing||360° continuous rotation with base turntable|
|Control||Control both on the ground and in the cage|
|Emergency electrical/manual pump is equipped to operate the equipment in case of engine failure.|
|Emergency stop switches at base and operator’s cage.|
|Optional||** Hoist hook with cables can be equipped for the function of a crane.|
