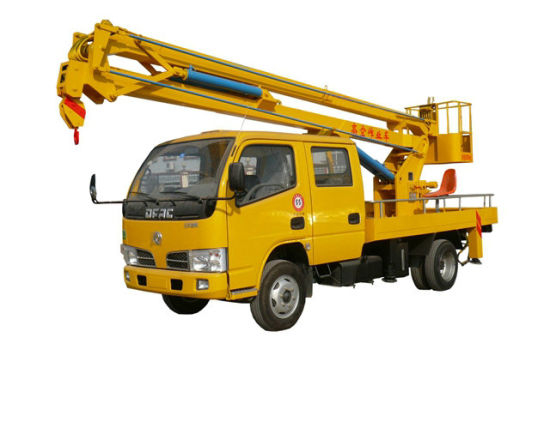

Dongfeng 16m Telescopic Aerial Platform Truck Fully Hydraulically Operate 3 Boom Option 4x2.4x4 LHD .RHD boom trucks aerial bucket truck

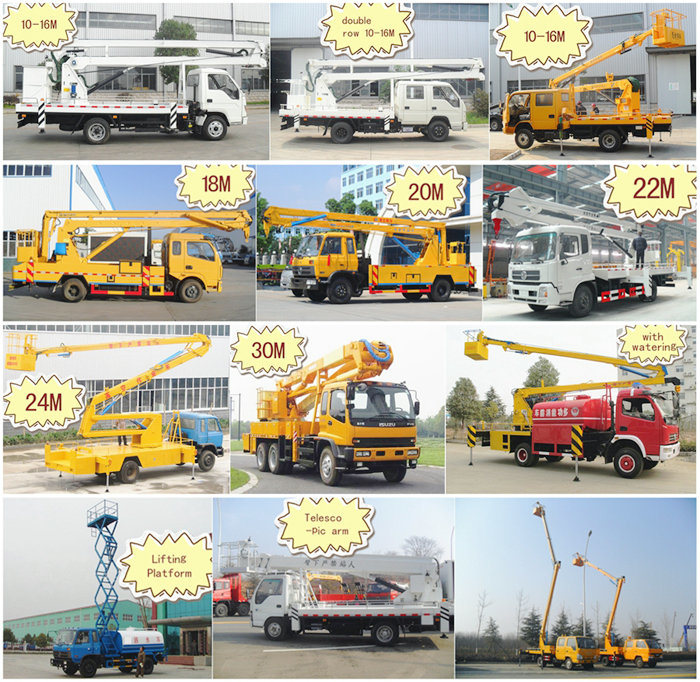

aerial work platforms are available of 8m-12m, 14m-16m, 18m, 20m-22m, 24-26m. Insulated cage is optional.
Features:
---- Working cage can be made of steel structure or reinforced fiberglass (insulated cage);
---- Working cage can rotate 90 degree in left and right;
---- 4pcs outriggers and front support improve operation stability and safety;
---- Safety Devices are available, such as relief valves, balance valves, double-way hydraulic locks, motor emergency system etc.;
---- Wireless remote control system is available.
fully Hydraulically Operate Arial Work Platforms
Max operation height 12m,14m,16m
max operation radius 5.7m, 6.3m,7m
max working platform rating loading=200kg,
Aerial Working Platform High Altitude Working Truck for Street Lamp Maintenance Function:
Telescopic beam lifter truck (also called aerial telescopic platform truck, hydraulic aerial cage, overhead working truck, truck platform, beam lifter vehicle, truck mounted insulated aerial lift, telescopic boom truck, high-altitude operation truck) is ideal for maintenance of traffic lights, street lights, landscaping trees, cleaning/setting signboard and other high aerial works.
Features:
---- The working cage can be made of steel structure or reinforced fiberglass.
---- Dongfeng chassis ensures perfect driving performance.
---- Dongfeng Chaoyang engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Nice shape, rational structure.
---- Massive, durable, long service life.
Specification:
Ask for better price
Cell /+8615271357675
The pictures are for your reference only.
Specification:
Main parameters | Product model | DRZ5053JGKZ3 |
Gross weight (kg) | 7640 | |
Curb weight (kg) | 7445 | |
Cab seats | 3 | |
Number of axles | 2 | |
Overall dimension(mm) | 7400x1980x3100 | |
Wheel base(mm) | 3300 | |
Max speed (km/h) | 85 | |
Steering | Left hand drive or right hand drive | |
Chassis parameters | Chassis model | EQ1060TJ20D3 |
Brand | DongFeng | |
Fuel | diesel | |
Number of wheels (mm) | 6 | |
Tire specification | 7.50R16 | |
Engine displacement (ml) | 3856 | |
Engine power (kw) | 96 | |
Emission standard | Euro II | |
Upper | High meters (m) | 16 |
Max. Out reach (m) | 11 | |
Max. lifting weight (kg) | 1000 | |
Rotating speed | 0~2 r/min | |
The whole boom outreaching time | ≤30 S |
Articulated Boom Lift Dongfeng (14-16M) | ||
General | Vehicle Brand | Dong run |
Chassis Brand | Dongfeng | |
Overall Dimension | 7650 x 1980 x 3150 mm | |
GVW / Kerb Weight | 7,300 kg / 6,975 kg | |
Cab | Cab Capacity | 2+3 persons allowed |
Air Conditioner | With air conditioner | |
Engine | Fuel Type | Diesel |
Engine Brand | Dongfeng engine | |
Power | 95Ps (70KW) | |
Displacement | 3856 ml | |
Emission Standard | Euro III, IV | |
Chassis | Drive Type | 4X2, left hand drive or right hand drive |
Transmission | 5 forward gears & 1 reverse | |
Wheelbase/No. of axle | 3300 mm / 2 | |
Tyre Specification | 7.00-16 14PR, 7.00R16 | |
Tyre Number | 6 tyres and 1 spare tyre | |
Max Speed | 95 km/h | |
Paint | Metallic paint | |
Superstructure | Cage Rated Capacity | 200 kg |
Working Height | 14m - 16 m | |
Outriggers | 4pcs, H-type; Hydraulically extend and retract | |
Slewing | 360° continuous rotation with base turntable | |
Control | Control both on the ground and in the cage | |
Emergency electrical/manual pump is equipped to operate the equipment in case of engine failure. | ||
Emergency stop switches at base and operator's cage. | ||
Optional | Insulated cage; Cargo box; Hoist hook with cables. |
Similar Key Words: cost of aerial platform truck, truck mounted aerial work platforms for sale, aerial work platform price, aerial work platform trucks manufacturer, aerial truck with basket from China
www.truckinchina.com
PACKING & DELIVERY

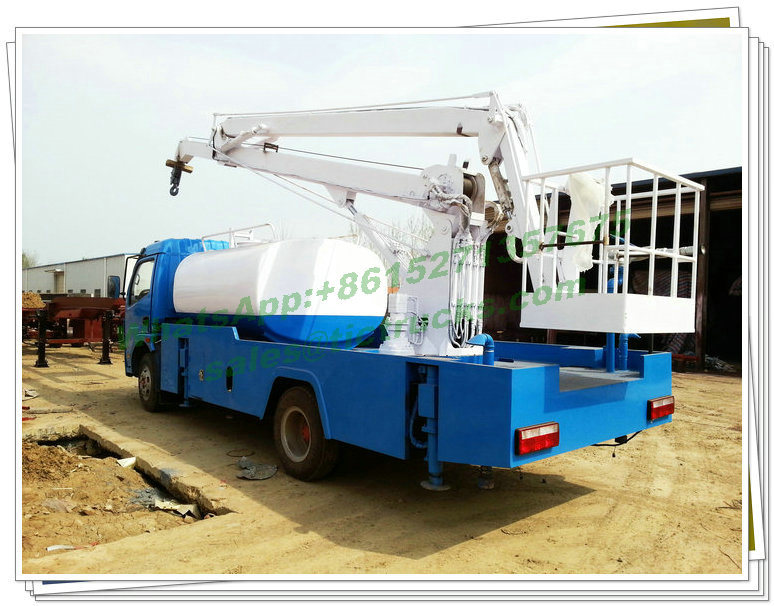

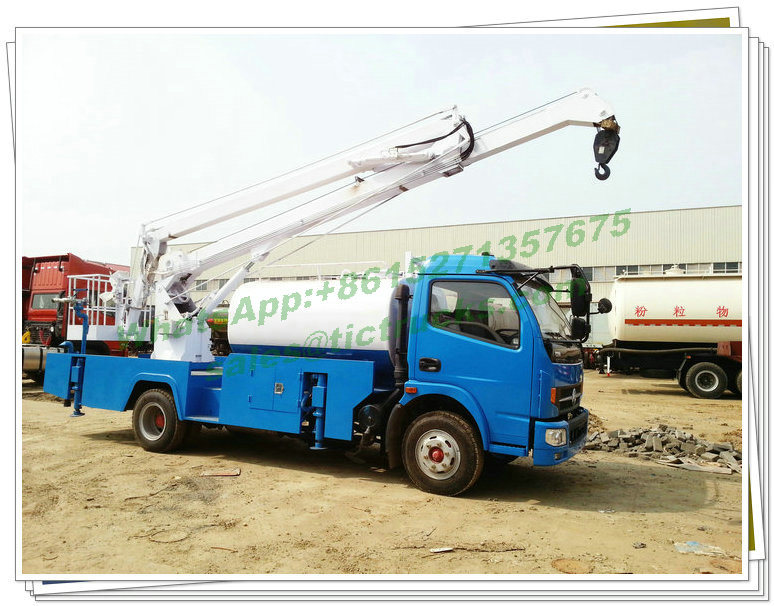

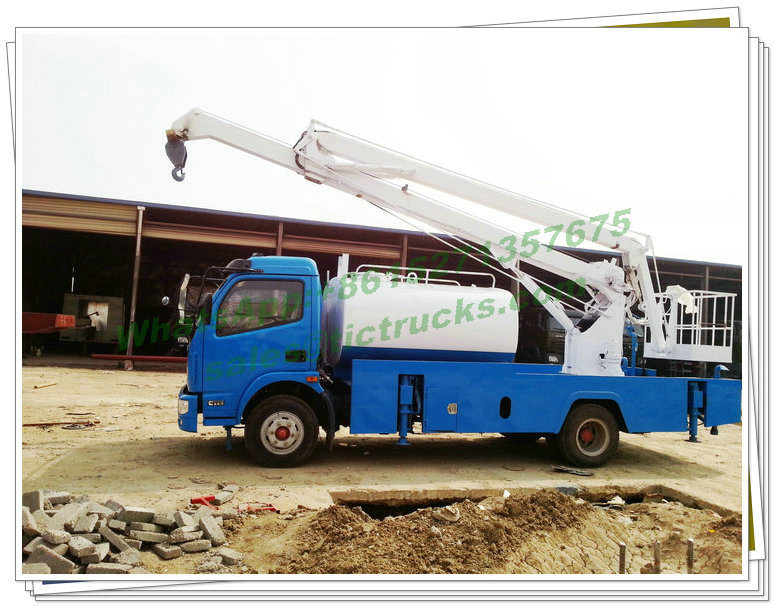

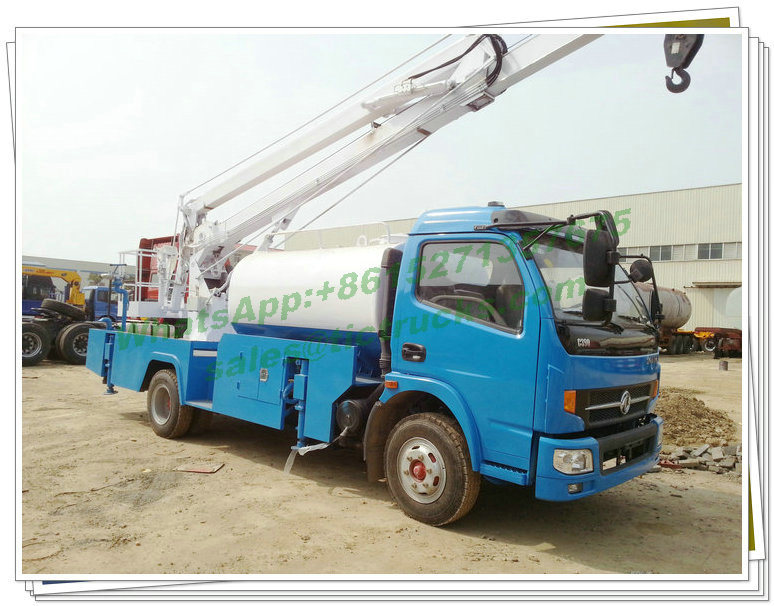

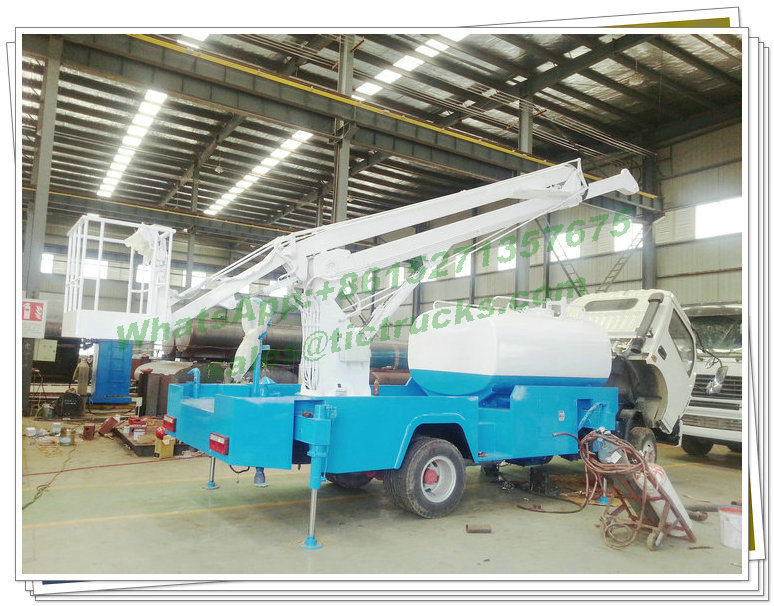

Aerial platform truck 16m water tank and water pump ,Truck Mounted Aerial Work Platform water tank,Work Platform water tank truck,aerial bucket truck water tank,bucket truck with water tank ,Truck Mounted water tank Aerial Work Platform
Truck mounted aerial platform, which will be used to clean pole mounted solar panels for street lights. So it requires a special arrangement of truck mounted water tank as well as water hose at the basket.
The pole height is 6M so aerial lift should be 8-10M.
Water tank capacity can be 3000Ltr
Truck may be medium light truck of 3.% ton.
