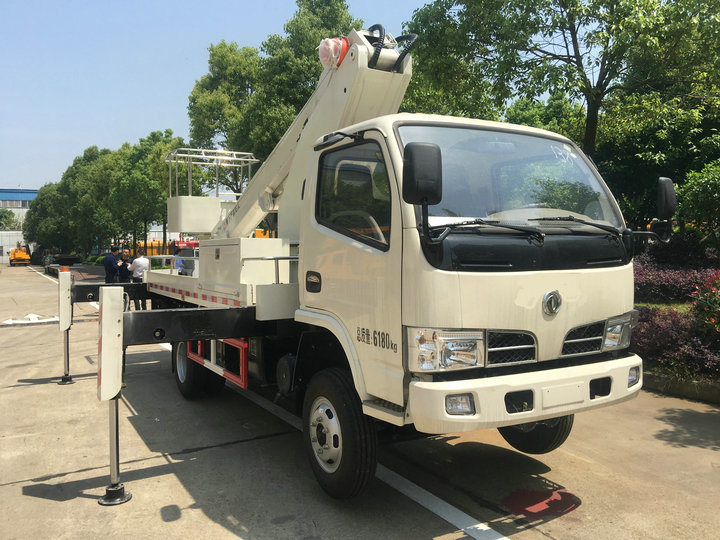

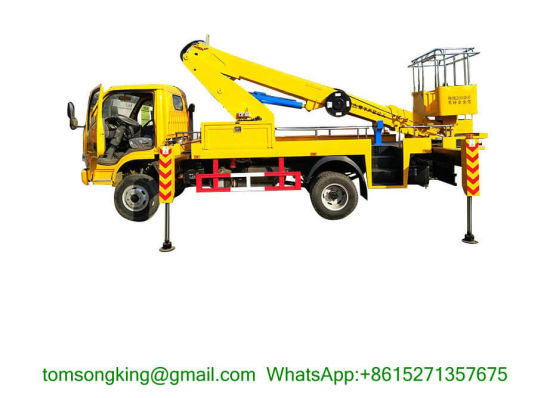

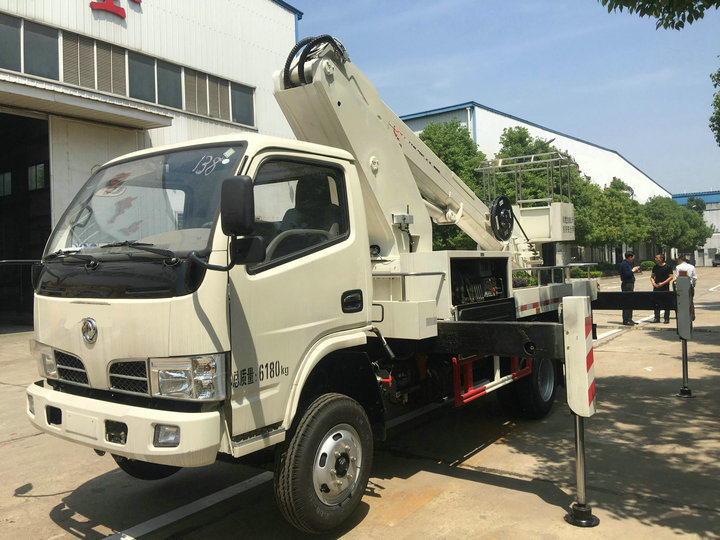

Dongfeng Offroad 4x4 Aerial Platform Truck
fully Hydraulically Operate Arial Work Platforms
Max operation height 12m,14m,16m
max operation radius 5.7m, 6.3m,7m
max working platform rating loading=200kg,
4x4 Off Road
Aerial Working Platform High Altitude Working Truck for Street Lamp Maintenance Function:
Telescopic beam lifter truck (also called aerial telescopic platform truck, hydraulic aerial cage, overhead working truck, truck platform, beam lifter vehicle, truck mounted insulated aerial lift, telescopic boom truck, high-altitude operation truck) is ideal for maintenance of traffic lights, street lights, landscaping trees, cleaning/setting signboard and other high aerial works.
---- The working cage can be made of steel structure or reinforced fiberglass.
---- Dongfeng chassis ensures perfect driving performance.
---- Dongfeng Chaoyang engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Nice shape, rational structure.
---- Massive, durable, long service life.
Ask for better price
The pictures are for your reference only.
|Telescopic Bucket Truck (16 M)|
|General||Vehicle Brand||Dong Run Ze|
|Overall Dimension||7400 x 2300 x 3300 mm|
|GVW / Kerb Weight||5,810 kg / 5,485 kg|
|Cab||Cab Capacity||2+3 persons allowed|
|Air Conditioner||Air conditioner is optional|
|Engine Brand||Dongfeng Chaoyang engine|
|Power||95 Ps (70 KW)|
|Emission Standard||Euro III|
|Chassis||Drive Type||4X2,4x4 left hand drive or right hand drive|
|Transmission||5 - speed forward, 1 reverse|
|Wheelbase/No. of axle||3300 mm / 2|
|Tyre Number||6 tyres and 1 spare tyre|
|Max Speed||95 km/h|
|Superstructure||Cage Rated Capacity||200 kg|
|Working Height||16 m|
|Beam||The beam is articulated & telescopic extension type, hydraulic actuated and controlled|
|Slewing||Slewing range is continuous 235° (minimum) with a slewing speed of maximum 15° per second.|
|Control||Control both on the ground and remote control in cage|
|Safety Device||Relief valve, balance valve, double-way hydraulic lock, hand operated emergency hydraulic pump|
|Leveling System||Hydraulic stabilizer to level the vehicle on uneven ground|
|Optional||Insulated cage; Wireless remote control system |
PACKING & DELIVERY
Aerial platform truck 16m water tank and water pump ,Truck Mounted Aerial Work Platform water tank,Work Platform water tank truck,aerial bucket truck water tank,bucket truck with water tank ,Truck Mounted water tank Aerial Work Platform
Truck mounted aerial platform, which will be used to clean pole mounted solar panels for street lights. So it requires a special arrangement of truck mounted water tank as well as water hose at the basket.
The pole height is 6M so aerial lift should be 8-10M.
Water tank capacity can be 3000Ltr
Truck may be medium light truck of 3.% ton.
