Views: 1915 Author: Dong Runze Special Vehicle Publish Time: 2017-09-11 Origin: Dong Runze Special Vehicle

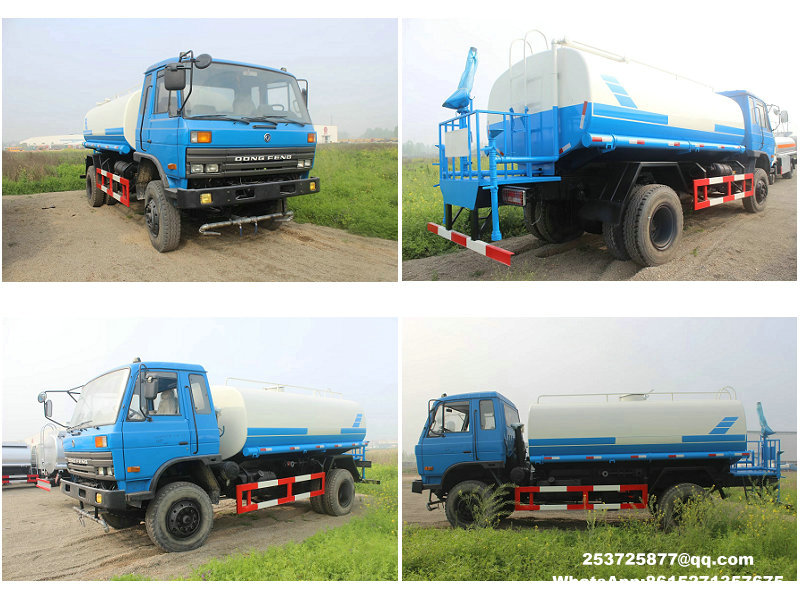

Product | Dongfeng 15Tons Potable Water Truck | |
Chassis type | EQ1141KJ | |
Cubage | 12-15. | |
Parameters | Overall dimension (mm) | 8020×2470×3050 |
GVW(kg) | 16000 | |
Kerb Mass(kg) | 7005 | |
Fuel Type | diesel | |
Fuel Consumption/100 km | ||
Engine | Type | B190 33 |
Displacement/Power(kw) | 5900cc/140kw(190hp) | |
Manufacturer | Dongfeng Cummins Engine Co.,Ltd | |
Chassis | Drive Type | 4×2 |
Wheelbase(mm) | 4500 | |
Front axle | 5 Ton | |
Rear axle | 10 Ton | |
Tire Type | 10.00-20 | |
Air-condition | Choose to fix | |
Watering system | pump | Self-priming centrifugal pump |
Special performance parameters | Watering width | ≥15 |
Watering gun range | ≥28 | |
Vertical suction range | ≥7 | |
Watering pressure | 250-450KPa | |
Watering | 0.2-2l/ | |
Pump lift | 90m | |
Suction time | <5min | |
Flow rate | 60 m3/h |
1.Water truck is also named Water Tanker truck, water sprinkler truck, Pesticide spraying Truck, water fire truck, Multifunction water truck, water spray vehicle Road Cleaning Truck
2.The water truck is suit to spray wash all kinds of road, trees, Lawn green, Building construction, high speed road.
3.With multifunction, spray, anti-dust, high-low level spray, Pesticide spraying, Fire Water, Guardrail Cleaning and so on.
4.The water truck also can transport water, drinking water, discharge water and emergency fire function.
The Specification of Dongfeng 10000L Water Tanker Truck:
Commodity | Dongfeng 145 Water Truck(Euro 3) | |
Chassis | EQ1108KJ 10000L Water Tanker Truck | |
Cubage(Litres) | 8000Litres to 10,000Litres | |
Vehicle | Overall dimension(L*W*H)mm | 7410×2470×2900 |
G V W(kg) | 10495 | |
Payload (kg) | 4500 | |
Kerb mass(kg) | 5800 | |
Approach/Departure Angle(°) | 17/15 | |
Front/Rear Suspension (mm) | 1205/2255 | |
Fuel Type | Diesel | |
Fuel consumption(L/100km) | 18 | |
Top speed | 90 | |
Engine | Model | ISDe160 30 / ISDe180 30 / B170-33 |
Exhaust/Power(kw) | 4500cc118kw / 4500cc,132KW,180hp,/5900CC 170HP | |
Manufacturer | Dongfeng Engine Co., Ltd | |
Type | 6-in-line water cool | |
Chassis | Drive type | 4×2 |
Wheelbase (mm) | 3950 | |
Tread(front/rear)mm | 1900/1800 | |
Front Bridge | 3.6 Ton | |
Rear Bridge | 9 Ton | |
Transmission | Double spoke wheel, with power steering | |
Gear box | Five forward gear, one reverse gear, mechanical transmission | |
Clutch | Uniwafer, dry screw spring clutch | |
Brake system | Air brake | |
Cab | One and half row longhead cab | |
Number of spring axles(front/rear) | 8/10+7 | |
Tire specification | 9.00-20 | |
Air condition | Chose to fix | |
Water pump | Self-sucking centrifugal pump | |
Water system performance | Water width | ≥15 |
Water monitor range | ≥28 | |
Vertical suction range | ≥7 | |
Pressure | 250-450KPa | |
Watering speed | 0.2-2(l/M2) | |
Pump lift | 90m | |
Priming time | <5min | |
Flow | 60 m3/h |
we are manufacturer for special tank truck, not trading company. factory directly sales! good quality withe competitive price!
outside dimension (L×W×H)mm | 7500×2500×3100 |
Kerb mass | 5,600Kg |
driving type | 4×2 |
Cabin | Flat head, double doors. A/C, |
Wheelbase | 3950mm |
Engine | |
Model | YC4D160-33 |
Hose power | 117KW/160HP |
Type | Diesel |
Guangxi Yuchai engine 4cylinder | |
Tyre | 9.00-20 |
Max Speed | 90Km/h |
Capacity of tank body | 7,200Litres |
Material of tank body | Carbon steel 4mm thickness |
Material: high quality carbon steel plate, anti-rust treatment. | |
Structure: welding, there is clapboard inner. | |
Equipment: 1 manholes, | |
Fire fighitng pump and pipeline system: | |
Model of Fire fighting pump: CB10/30 | |
Pressure: 1.0Mpa Flux: 30L/s Suction depth: ≥7m Suction time: ≤35s | |
PTO: sandwich PTO, splashing-type lubricate, can put out fire when driving. | |
Painting: | |
One anti corrosion and zinc-rich primer and final painting at customer’s choice of colour. | |
All steel parts are steel blasted before painting. | |
Accessories: | |
1.Siren included boll type | |
2. Serch Light | |
3. Fire Axe | |
4. Fire Hook | |
5. Jet& Spray Nozzle | |
6. Fire house(65mm20m/4nos) | |
7. suction pipe 4m 2nos, | |
8. Fire extinguisher 3kg | |
9. Hydraulic jack and wheel spanner | |
10. Outlet auto lock connector 2nos |
The capacity of tank body from: 3000Litres to 60,000Litres at our factory for your choice.
1. tank body is adopted an advanced automatic CNC vertical welding techniques and head arc butt welding technology, as well as the whole- steel forming a composite
water sprinkler, Fire Fighting Water Truck is also named Water Tanker truck, water sprinkler truck, Pesticide spraying Truck, water fire truck, Multifunction water truck, water spray vehicle
The water sprinkler is suit to spray wash all kinds of road, trees, Lawn green, Building construction, high speed road.
With multifunction, spray, anti-dust, high-low level spray, Pesticide spraying, Fire Water, Guardrail The water truck also can transport water, drinking water, discharge water and emergency fire function.
There is duckbill Nozzle or round Nozzle installing in the front of truck,
cylinder-shaped nozzle or shower shape Nozzle installing the rear of water truck, rear walk platform at rear of truck, there is water monitor installing at the walk platform.
Install Fire Pump and Fire Monitor
