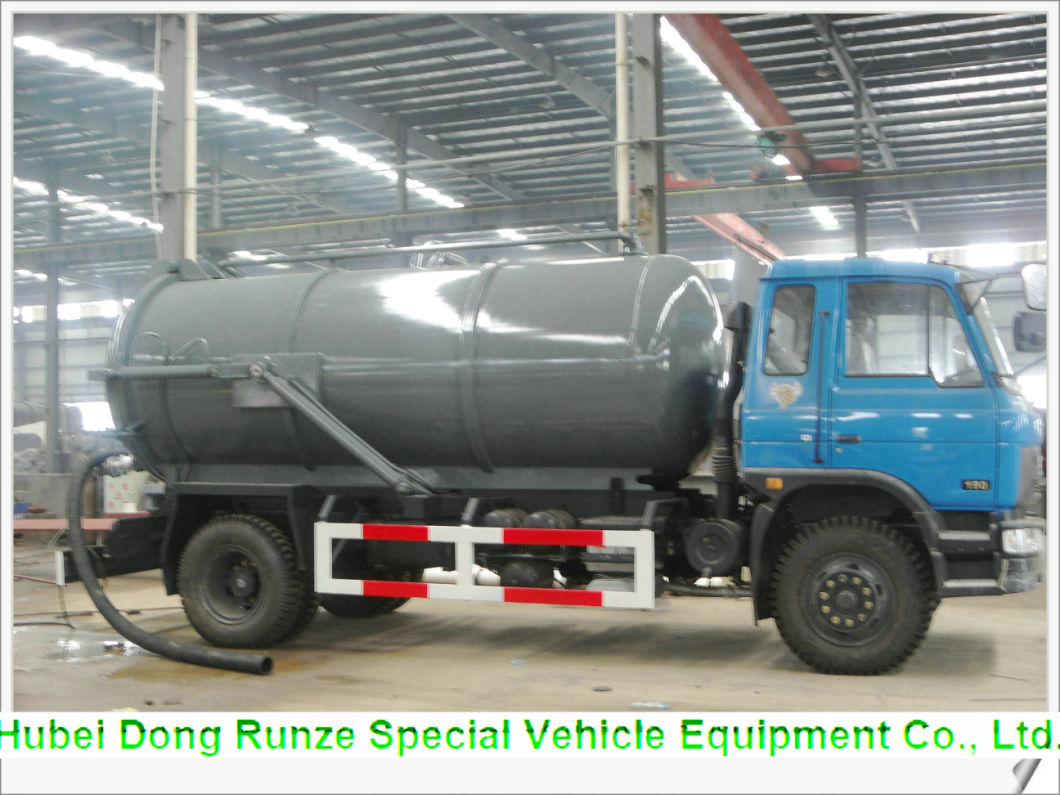

Diesel Vacuum Tanker Truck for Chemcial Factory Sucking Chemical Acid Waste, Tank Inside Lined PE 10000 Liter
https://youtu.be/p5ggKkUMzdY
| Quantity: | |
|---|---|
-
DRZ5160DFXW
-
DF
-
8705
-
Shanghai, China
-
800
-
T/T

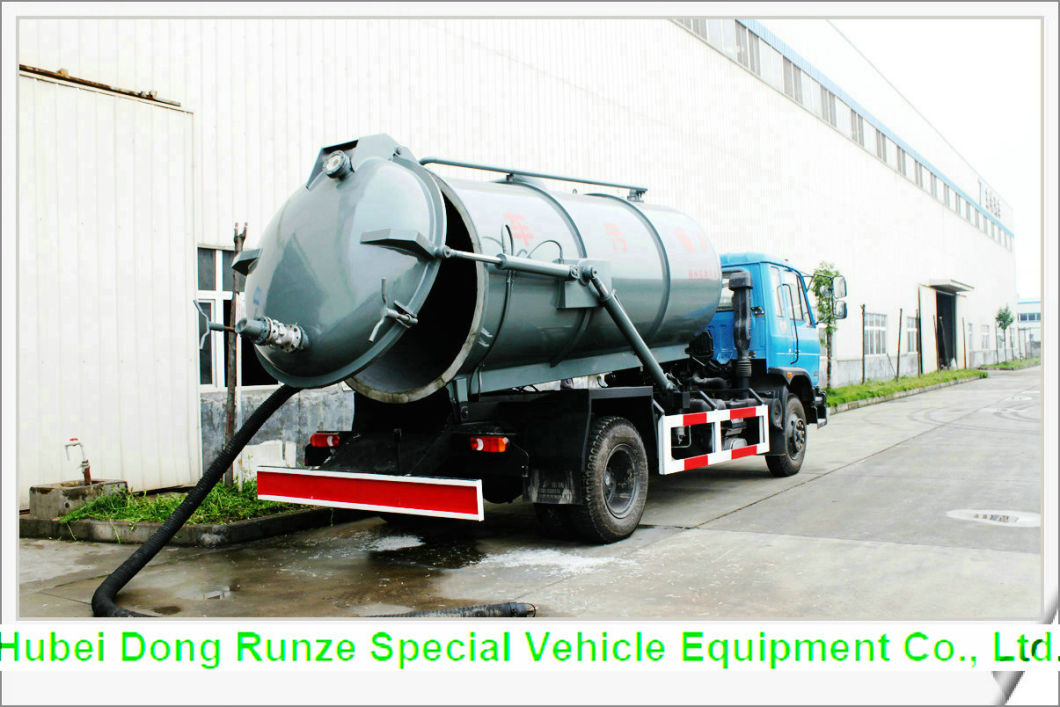

Diesel Vacuum Tanker Truck for Chemcial factory Chemical Acid Waste,

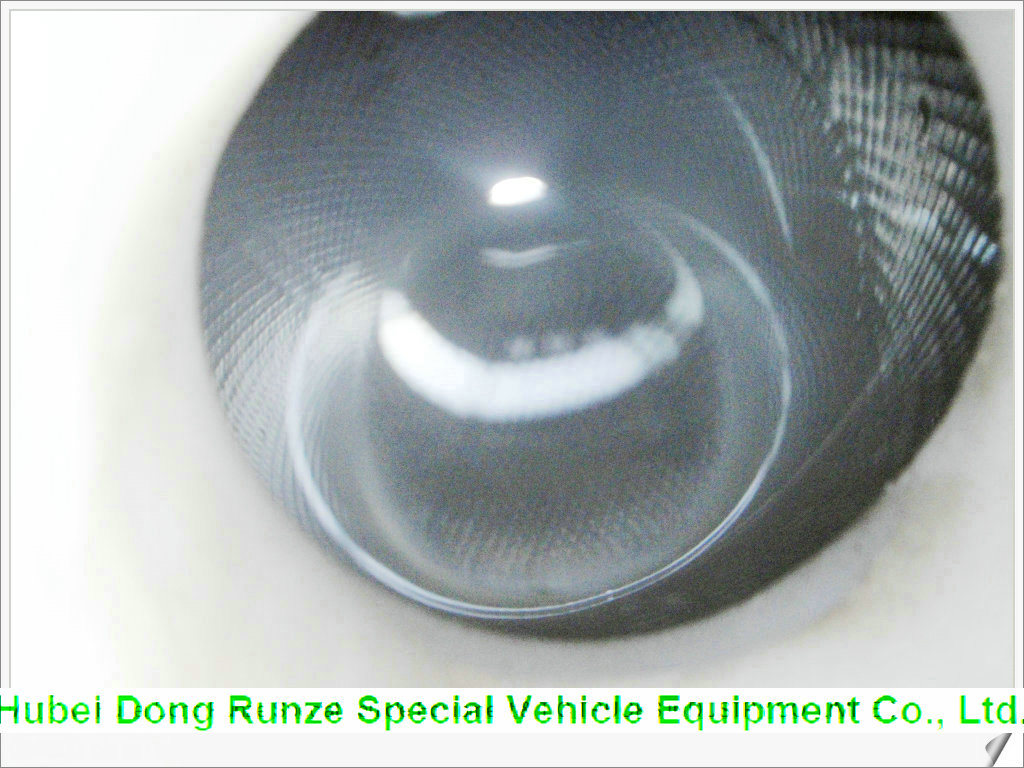

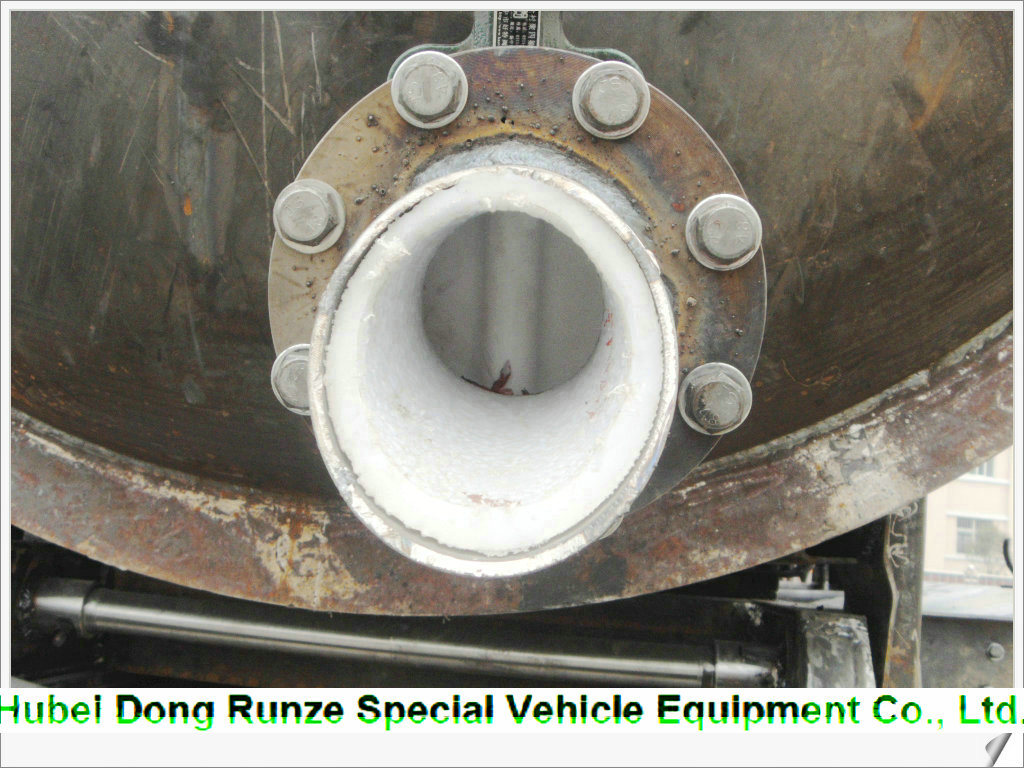

Tank Inside Lined PE 10000 Liter

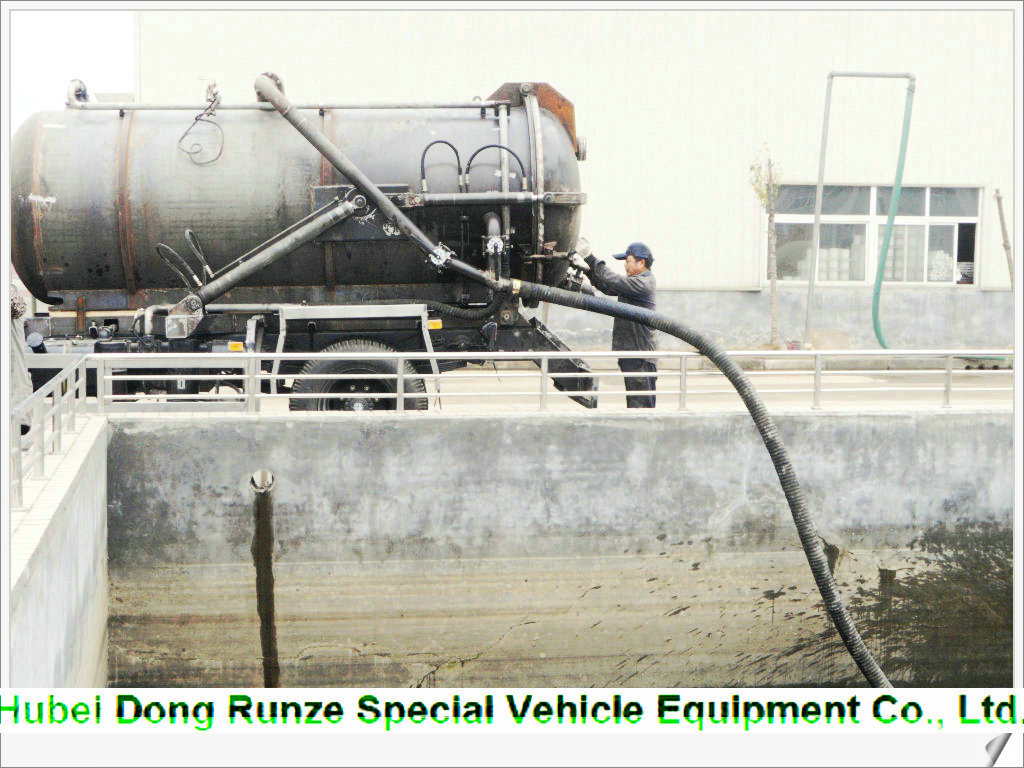

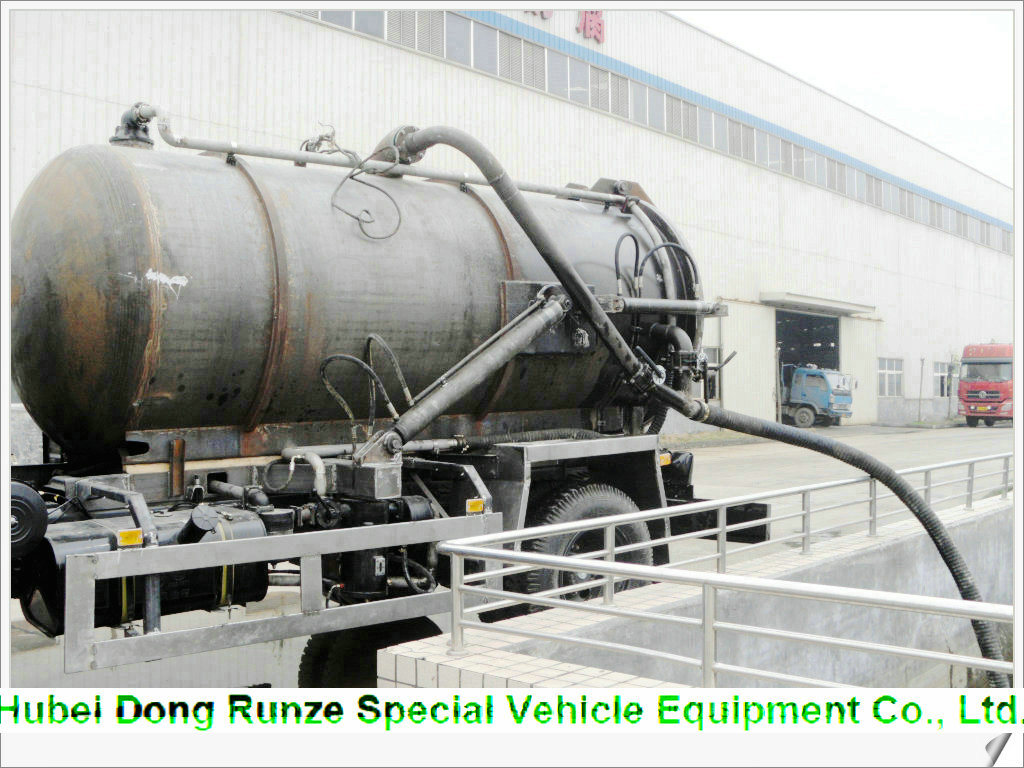

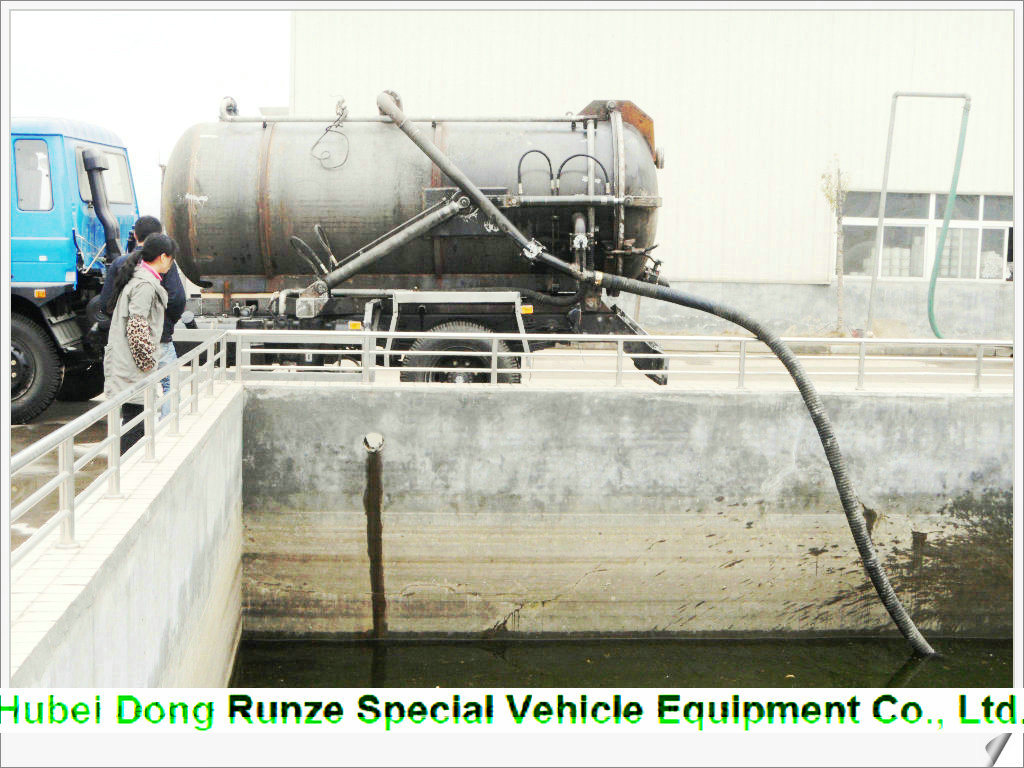

Diesel Vacuum Tank Truck 10000 Liter For Sucking chemical acid Waste, tank inside lined PE
Vacuum Sewage Suction Truck
Sewage Vacuum Truck
With air condition,
power steering.
Capacity of tank body:3000Litre --20000Liters
With vacuum pump
payment terms: TT
delivery days: 15-20days
Right Hand drive or left hand drive fecal suction truck
RHD OR LHD Truck
The pictures are for your reference only.
Detailed Product Description
Payment & Shipping Terms:
Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD 32000-38000 / Set |
| Packaging Details: | bulk,ro-ro,container |
| Delivery Time: | 25 days after receiving deposits |
| Supply Ability: | 50 sets per month |
Detailed Product Description
Tank Capacity: | 12000 L | Tank Material: | Q235 |
| Tank Shape: | Cylinder-shaped | Whole Tank Dimension: | 5200*1800 Mm |
| Whole Truck Dimension: | 8150*2500*3350 Mm | F/R Axle Load: | 1800/2695 Kg |
| Wheel Base: | 4500 Mm | Engine Power: | 180 Hp |
Description:

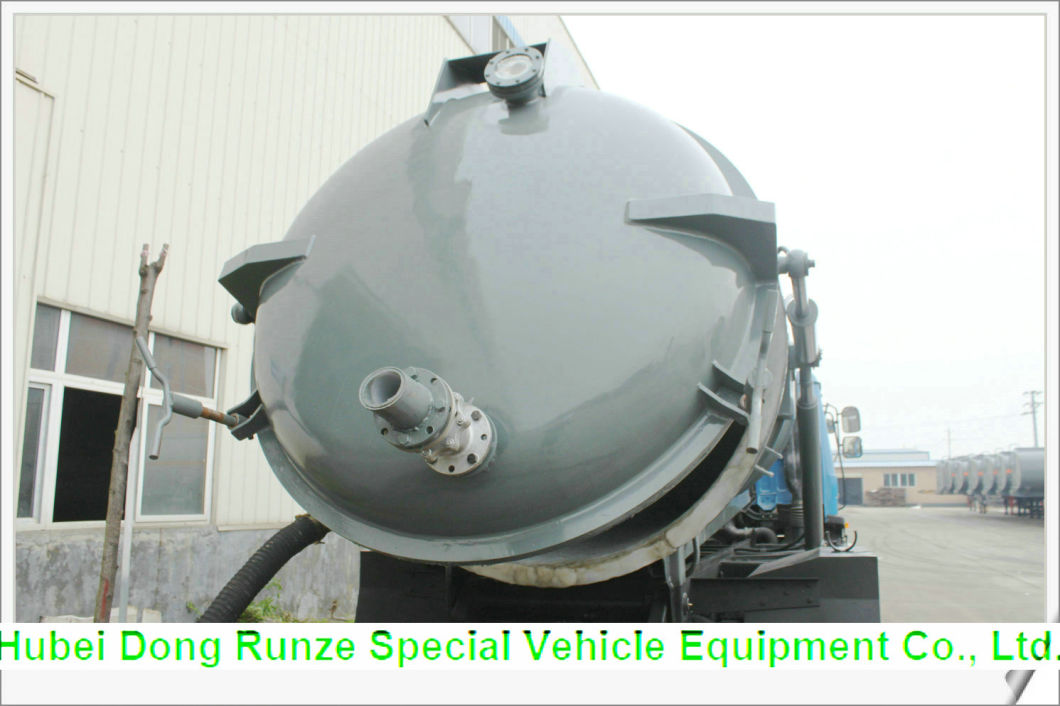

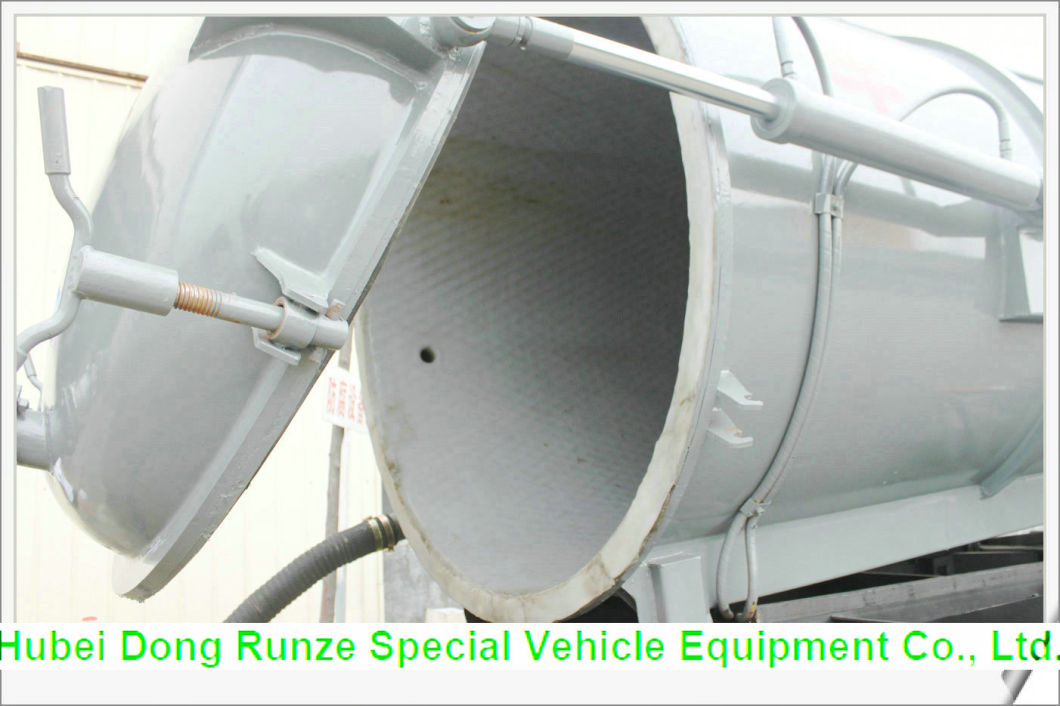

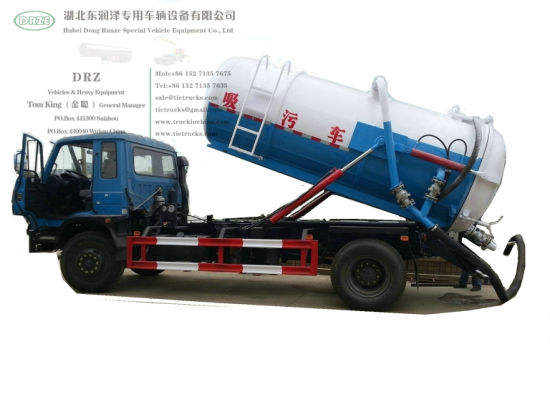

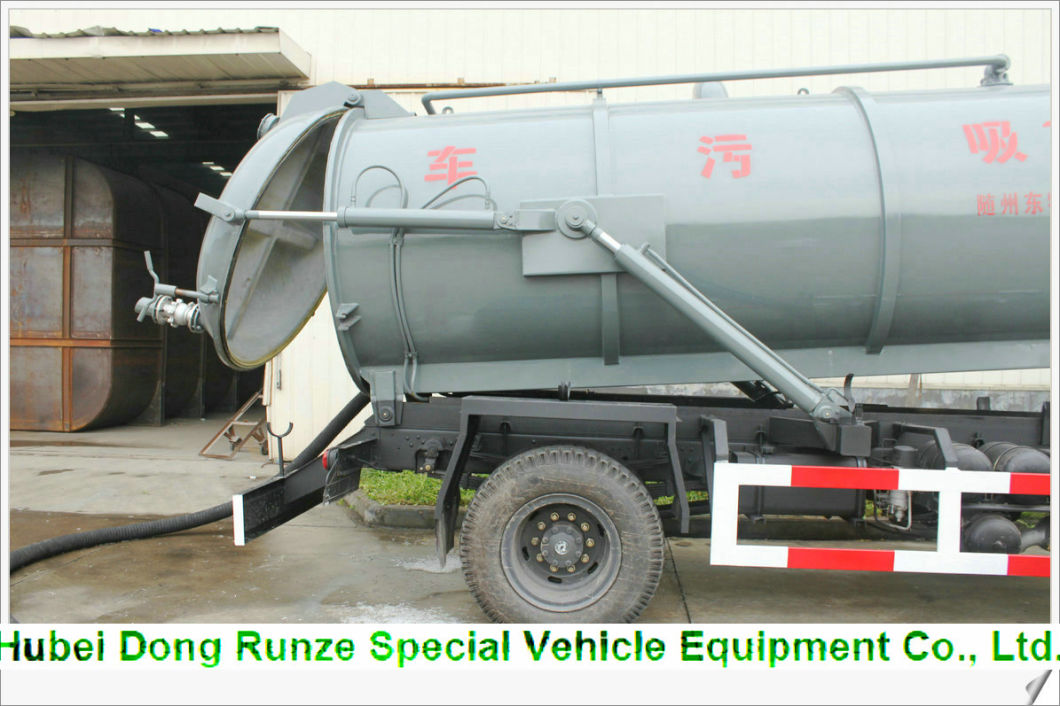

The truck is equipped with high-powered vacuum suction pump and high quality hydraulic system. With rear lid of the tank opened hydraulically, and double cylinders on both sides of the tank lifting up, the truck can dump the sewage directly through the rear lid out of the tank. Characterized by high vacuum, large capacity, high efficiency and good seal, the truck is widely used. Full tank pumping time: ≤ 5 min; suction width: ≥ 8 m.Very suitable for sucking sewer sediments, such as mud, silt, stones, bricks and other big objects.
Applications:
Rinsing underground sewage pipes, the collection and transportation of sludge and city life waste and building operations such as muddy water in liquid waste and other functions.
Competitive Advantage:
1. Equipped with special vacuum pump, power take off, transmission shaft, high pressure sewage tank, pipe network, sewage pipe for observing and cleanout equipment. Time for full suction < 5min
2. The Sewage Suction Trucks, special section, taking the force transmission device by rotary vane pumps, vacuum pump, ( with domestic leading technology big suction ) oil and gas separation device, hydrosphere separator, vacuum pressure gauge, pressure vessel, pipe system composition, and equipped with hand-washing facilities and visual dung tube.
3. The tanks bulbar and the horizontal sextant angle are greater than the material rest angle, ensuring the discharging speed.
4. The diesel engine ( air compressor unit ), providing compressed air.
Specifications:
Truck chassis specification | Item | unit | parameter | ||
Vehicle model | TIC 5160GQW4 | ||||
Chassis model | EQ1160ZZ4GJ | ||||
Overall dimensions | mm | 8150x2500x3350 | |||
GVW | kg | Appro×16000 | |||
Mass in working order | Appro×6805 | ||||
Wheel base | mm | 4500 | |||
Exhaust/hp | ml/hp | 4500/180 | |||
Max speed | km/h | 90 | |||
Tire specification | 9.00-20 | Engine type | ISDe180 40 | ||
Traction system | 4×2 | Number of Tires | 6 | ||
Number of axles | 2 | Electric system | 24V | ||
Operation control system | Electrically hydraulic control | Allowable passengers in cab | 3 | ||
F/R Axle load (kg) | 6000/10000 | ||||
Engine | The truck, diesel engine, water cooled, direct injection,180 horse power | ||||
Special function Specification | Tank Capacity(L) | 10000L~12000 | |||
Tank Dimension(mm) | 5200xΦ1800 | ||||

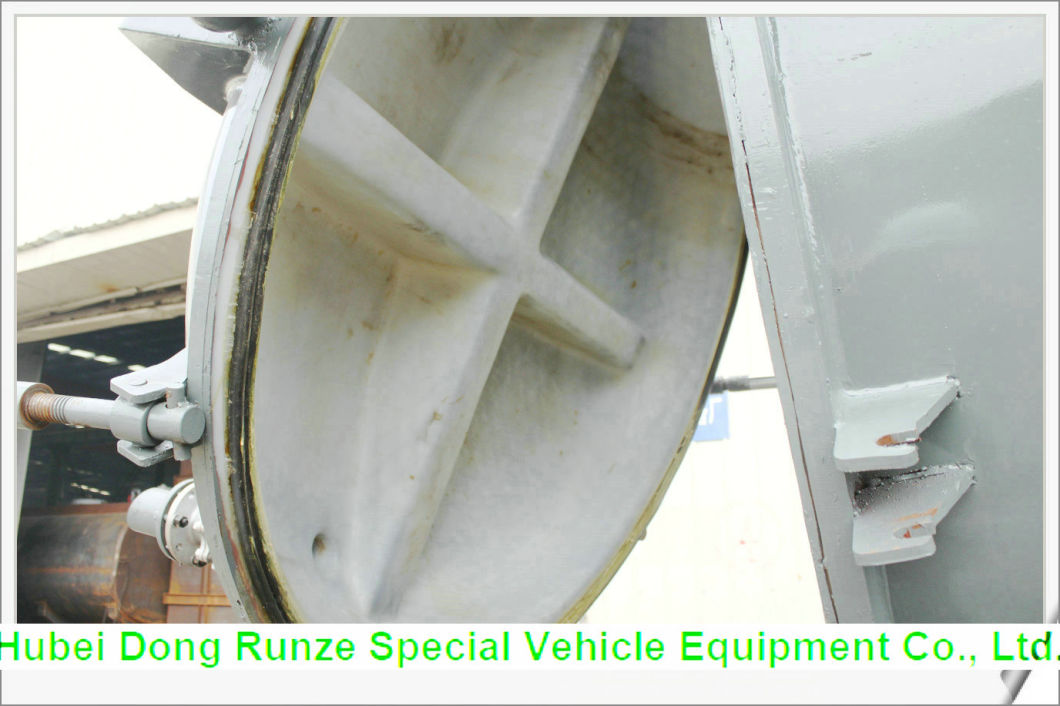

Equipped with high-power vacuum suction sewage pump. Tanker with lifting function, with double hydraulic cylinder, rear cover can hydraulic open with self-flowing valve. Equipped with power take off, transmission shaft, pipe network, sewage pipe for observing and cleanout equipment. | |||||
2. Packing and Shipping:
Truck is nude packing, shipping in container, in bulk , in ro-ro.
We will choose the best shipping type basis on truck volume, truck structure, Sail Schedule, clients' requirement for clients!
Website: www.truckinchina.com
Our advantage:
(1) We have own factory located in Suizhou---the special truck town of China.We can control every details----the development, the quality and the cost. As a result we can supply the quality goods with most competitve price.
(2) We are familiar with the whole Chinese special truck market. And we are clear the different advantage and different quality level for each factory. So we can consolidate the resource for the customers and supply the most suitable goods for them.
(3) There is a stronge professional team in our company including engineers and business executives. So we can provide the best solution and service for all customers.
If you have any other questions or there is anything we can do for you, pls feel freely to let me know. We are glad to provide the best service.
4. Our Service:
Left-hand drive, if you need Right-hand drives, please inform us, we will make special order for you.
We highly recommend this sewage suction tank truck. It's in an excellent condition and also with good quality and competitive price. Further information, pls feel free to cantact with me or visit our website, we will offer our best service.
If you have any requirements about special trucks, kindly let me know, I will do my best fo provide the most suitable type and competetive price for you.
Looking forward to receiving your inquiry!
CONTACT US
Cellphone: (+86)15271357675
Website: www.truckinchina.com
Road to Your Success
12000L vacuum tanker truck, Cesspool Emptying Truck, septic tank, septik truck, Sewage Tank, sewage tanker, Sewage Vacuum Truck,Vac Tank Truck, Vacuum Tank, Vacuum Tank Truck, Vacuum tanker
Categories: Vacuum Suction Truck, Fecal Suction Truck Tags: 10000Liters Vacuum suction Truck, 10cbm vacuum sewage suction truck, 10Wheels Vacuum Truck, 15000Liters Vacuum Suction Truck, 20000Liters Vacuum Truck, 20m3 Sewage Suction Dump Truck, 5-6CBM vacuum sewage suction truck wholesale good price, 5000Liters Septic Tank Truck, 5000Liters Sewage Suction Truck, 5000Liters Vacuum Truck, 6000Liters Dirty Water Suction Truck, 6000Liters Toilet Trucks, 6000Liters Vacuum Truck, 6000Ltrs Septic Vacuum Trucks, 8000Liters Sludge Trucks, 8000Liters Toilet Trucks, 8000Liters vacuum sewage suction truck, 8000Liters Vacuum Trucks, 8cbm Sludge Trucks, 8m3 sludge trucks, 8m3 Vacuum Sewage Suction Trucks, 8Tons Sludge Truck, Big Powerful Sludge Suction Truck, Cesspit Emptier best 5-6CBM sewage suction truck hot sale, Cesspit Emptier Truck, Cesspit Emptier Trucks, cheap price, China Cesspit Emptier Truck, China fecal Suction Trucks, China Hubei Sewage Suction Trucks, China Hubei Sludge Trucks, China Hubei Toilet Trucks, China Vacuum Truck, Dongfeng Cesspit Emptier, Dongfeng Sewage Suction Trucks, Dump Sewage Suction Trucks, Fecal Suction Truck, fecal tank truck, fecal truck, Good Price Vacuum Truck, High pressure jetting trucks, Hubei Runli Mini Sludge Suction Truck, Hubei Vacuum Truck, Bin Cleaning Truck, Cesspit Emptier, Cesspit Emptier Truck, cesspool truck, Cleaning Truck For Sales, Combination Vacuum Truck, Dongfeng Fecal Suction Truck, Drain Cleaning Truck, fecal sucking truck, fecal sucking truck fecal suction truck, fecal suction tank truck, fecal suction tanker truck, Fecal Suction Truck, Fecal Suction Truck For Sale, Fecal Suction Vehicle, Fecal Tank Truck, Fecal/Sewage Vacuum Suction Tanker Truck, Garbage Can Cleaning Truck, Gully Emptier Truck, High Pressure Cleaning Truck,
Diesel Vacuum Tanker Truck for Chemcial factory Chemical Acid Waste,
Tank Inside Lined PE 10000 Liter
Diesel Vacuum Tank Truck 10000 Liter For Sucking chemical acid Waste, tank inside lined PE
Vacuum Sewage Suction Truck
Sewage Vacuum Truck
With air condition,
power steering.
Capacity of tank body:3000Litre --20000Liters
With vacuum pump
payment terms: TT
delivery days: 15-20days
Right Hand drive or left hand drive fecal suction truck
RHD OR LHD Truck
The pictures are for your reference only.
Detailed Product Description
Payment & Shipping Terms:
Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD 32000-38000 / Set |
| Packaging Details: | bulk,ro-ro,container |
| Delivery Time: | 25 days after receiving deposits |
| Supply Ability: | 50 sets per month |
Detailed Product Description
Tank Capacity: | 12000 L | Tank Material: | Q235 |
| Tank Shape: | Cylinder-shaped | Whole Tank Dimension: | 5200*1800 Mm |
| Whole Truck Dimension: | 8150*2500*3350 Mm | F/R Axle Load: | 1800/2695 Kg |
| Wheel Base: | 4500 Mm | Engine Power: | 180 Hp |
Description:

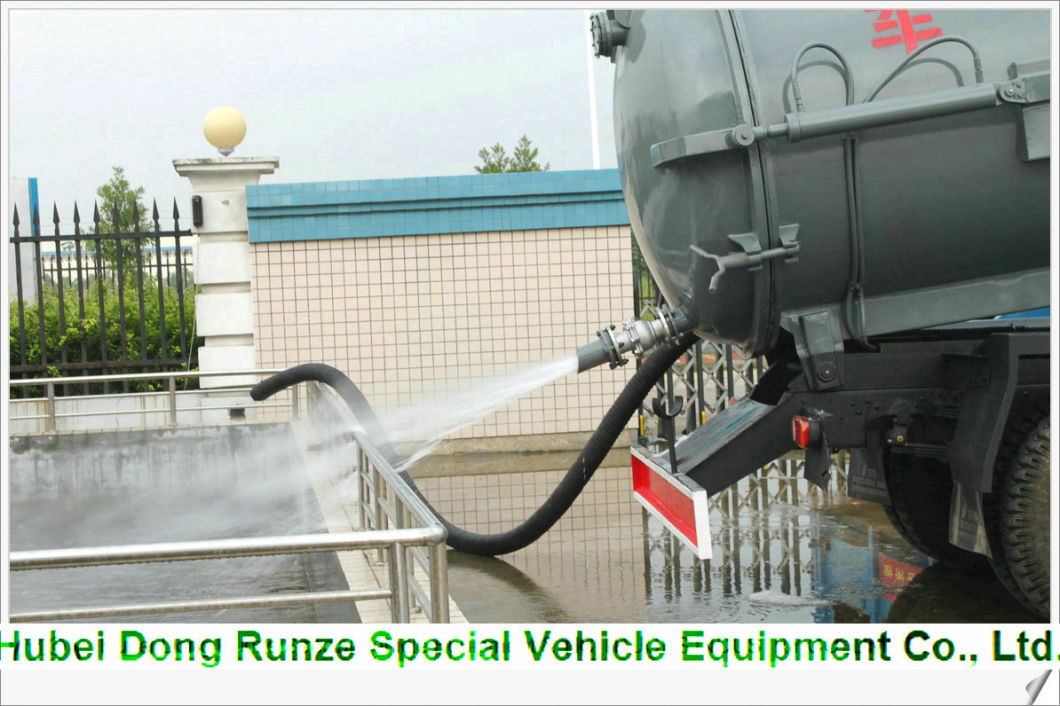

The truck is equipped with high-powered vacuum suction pump and high quality hydraulic system. With rear lid of the tank opened hydraulically, and double cylinders on both sides of the tank lifting up, the truck can dump the sewage directly through the rear lid out of the tank. Characterized by high vacuum, large capacity, high efficiency and good seal, the truck is widely used. Full tank pumping time: ≤ 5 min; suction width: ≥ 8 m.Very suitable for sucking sewer sediments, such as mud, silt, stones, bricks and other big objects.
