Df Water Tanker Truck (4000L Water Bowser Sprinkler Truck with Fire Pump)
Df Water Tanker Truck (4000L Water Bowser Sprinkler Truck with Fire Pump)
| Quantity: | |
|---|---|
-
Shanghai, China
-
10000
-
T/T

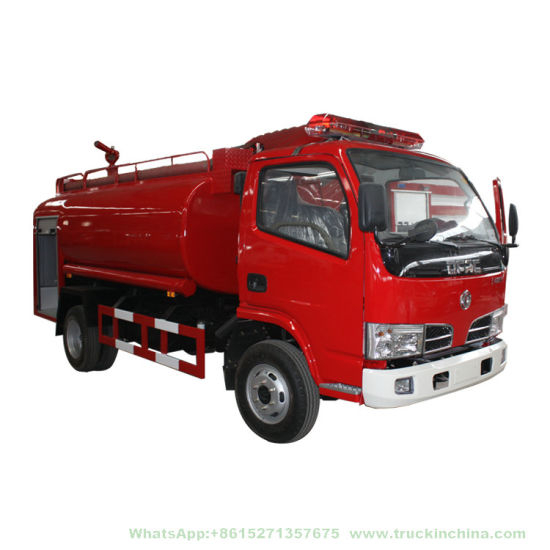

DF Water Tanker Truck (4000L Water Bowser Sprinkler Truck with Fire Pump )
Fire fighting water tank lorry truck
| Main information | ||
| Product Name: | Dongfeng Water Truck | |
| Itme No. | DRZ5070GSSL | |
| Chassis No. | EQ1060 | |
| Overall Size | mm | 6070×2020×2400 |
| Total Weight: | kg | 7495 |
| Curb weight: | kg | 3480 |
| Cab-by the number : | people | 2,3 |
| Approach/departure angle | ° | 28/16 |
| Front/rear suspension | mm | 1070/1700 |
| Number of axles | pcs | 2 |
| Wheelbase | mm | 3300 |
| Front / Rear tread | mm | 1750/1586 |
| Maximum speed | km/h | 90 |
| Tire Specification | 7.00-16 | |
| Function parameter | ||
| Water Tank Volume | cbm | 4 |
| Tank Material | Carbon Steel | |
| Basic Equipment | front and rear sprinkler, working platform | |
| Engine information | ||
| Model | CY4100 | |
| Brand | Dongfeng Chaochai | |
| power | kw/hp | 82 |
| Emission Level | Euro 3 | |

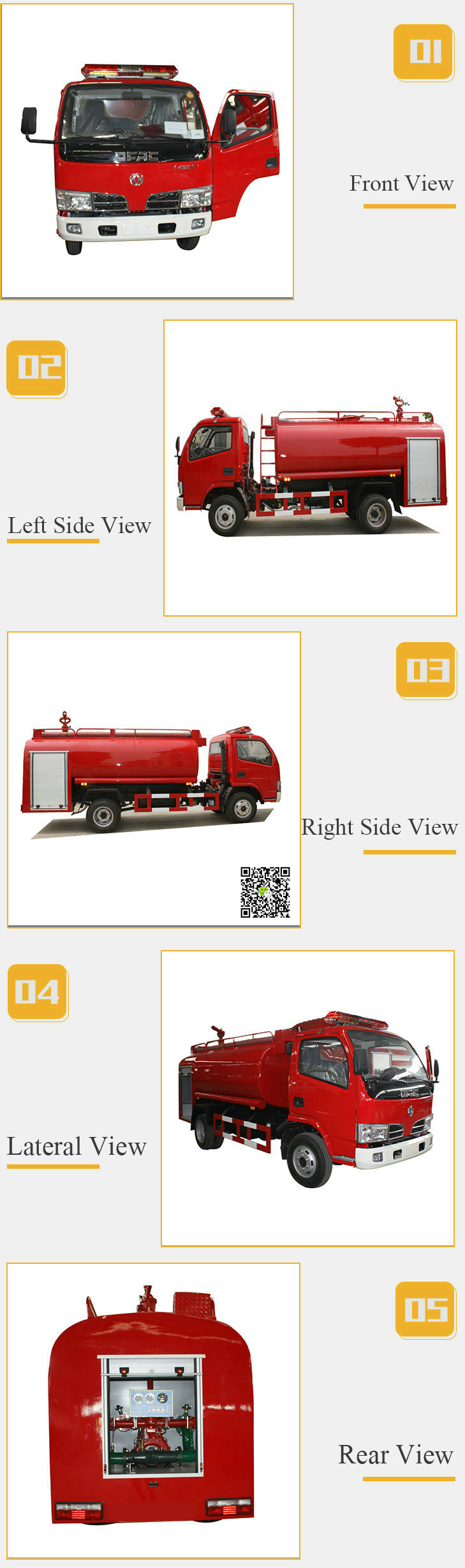

The pictures are for your reference only.
| Name | DRZ Fire Sprinkler Water Tanker Truck | ||
| Item | Specifications | Item | Specifications |
| Truck Parameter | |||
| Model | DRZ5070GSSE | Chassis Model | EQ1060GLJ |
| Gross Weight (kg) | 7300 | Overall dimensions (mm) | 5990 * 1960 * 2380 |
| Payload Weight (kg) | 4000 | Tank Volume(cbm/t) | 4 |
| Curb Weight (kg) | 3150 | Wheelbase (mm) | 3300 |
| Engine Parameter | |||
| Model | CY4100Q | Brand | Dongfeng |
| Power(hp/kw) | 82 / 60 | Emission Level | Euro 3 |
| Specification | |||
| Max speed (km/h) | 95 | Front Track (mm) | 1404 |
| Cab | 2 | Rear Track (mm) | 1458 |
| Leaf Spring | 6/8+4 | Front/Rear Overhang (mm) | 1032/1658 |
| Number of Tyres | 6 | Approach / DepartureAngle(°) | 16/13 |
| Tyre Specification | 7.00R16 | Axle Load (kg) | 2920/4380 |
| Number of axles | 2 | ||
| Special Function | |||
| Tank Capacity (L) | 4000 | ||
| Fire Monitor | Model:PS20, rate of flow:20L/S/1MPa,water range:≥45m | ||
| Fire Pump(Normal Pressure)middle-lower pressure is optional | 1. Normal pressure model::CB10/20,rate of flow200L/s, pressure:1.0MPa | ||
| 2.water diversion time ≤35s (7m absorbing depth) water ring sandwitch type full power PTO | |||
Similar Keywords: foam truck tanker, fire fighting tank truck, fire and rescue truck, fire appliance, fire engine, fire apparatus, fire truck tank, fire service truck, fire fighting vehicle
