Name: 4 axles, 8axles hydraulic detachable gooseneck lowboy trailer
Loading capacity: 120 ton,240ton

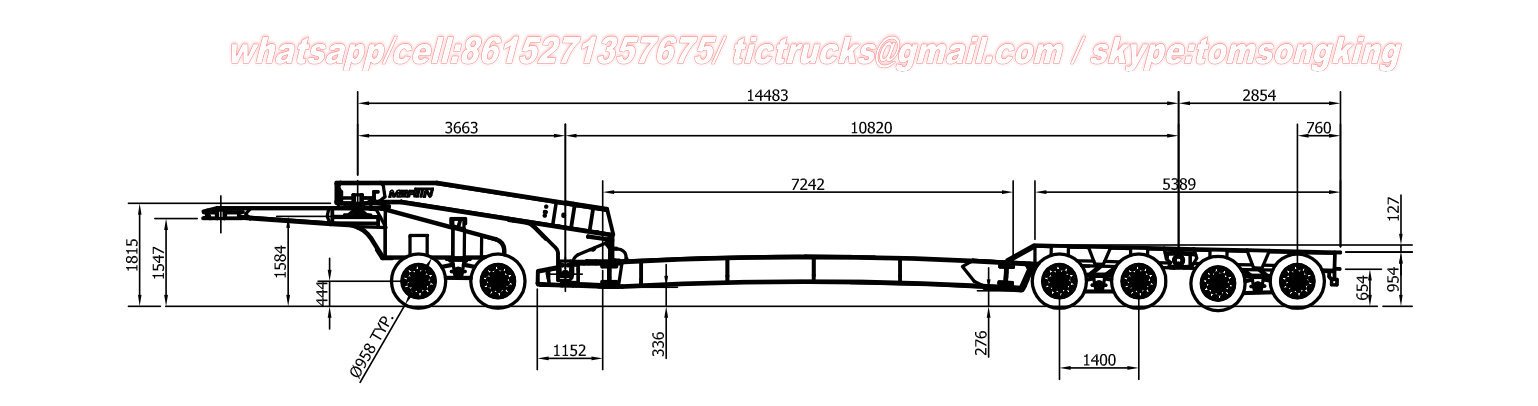

Overall dimension: 15000*4000*1500
Gooseneck: detachable gooseneck driven by hydraulic
Power: By PTO or by seperated diesel engine
Axle: 20T*4 , 30T*4, 40T*4 , 40T*4 ,
air bag suspension optional
tandem bogie axle optional
20T*6 , 30T*4 40T*6 , 40T*6,
optional with hydraulic suspension and hydraulic steering function
Tires: 275/70R22.5, 295/80R22.5, 315/80R22.5
4 axles LOW BED TRAILERS with 1 axle dolly trailer Hankook tires16+4 +4pieces 315/80R22.5
4 axles LOW BED TRAILERS with 2 axle dolly trailer Hankook tires 8+2 pcs 295/80R22.5 / ,16 +2 piece s 315/80R22.5
16 tires + 1 Spare tire; optional 32 tires + 2 Spare tire;
Frame: Q550 high tension steel
Kingpin: 2'' JOST Kingpin
Spare tire carrier: 1~2
Brake system: Wabco dual line pneumatic brake line
Accessories: whole set of standard tools and tool box
Light: Tail lamp, side lamp, brake lamp, etc, all LED
Surface: sandblasted
Painting: base coating + Surface painting
Electrical system: 12/24V, 7 socket (US, EU or Australian standard)

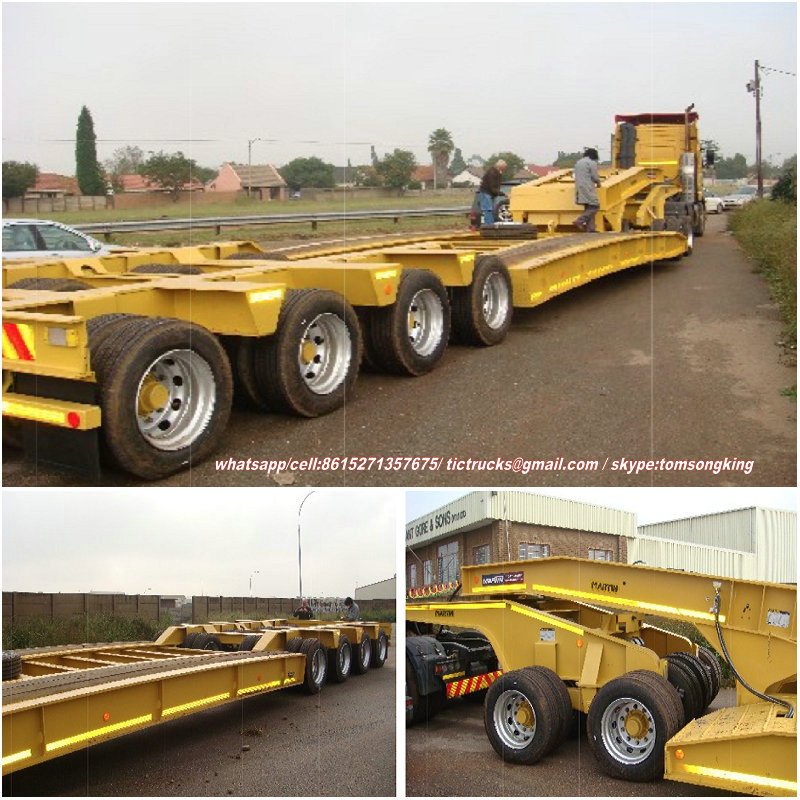

The detachable gooseneck lowboy trailer, that can also be called as modular trailer, adopts a pair of hydraulic cylinder at the front gooseneck, which can be separate from the trailer deck. The vehicle to load will enter the low deck from the front. It's normally used in heavy duty vehicle transporation. The axle normally adopts modular axle with hydraulic suspension and hydraulic steering. A dolly is normally used simultaneously to faciliate the trailer steering, as well as sharing the heavy load. Designed payload for this trailer is relatively higher than other type of low loader. It's widely used in construction sites, mining area, port opertaion, etc. The advanced loading solution makes the trailer has longer life span than those lowboy trailers with ramps at the rear.
Gooseneck separate from the deck
Hydraulic cylinder for gooseneck lifting
Hydraulic suspension and hydraulic steering
A dolly as option.
