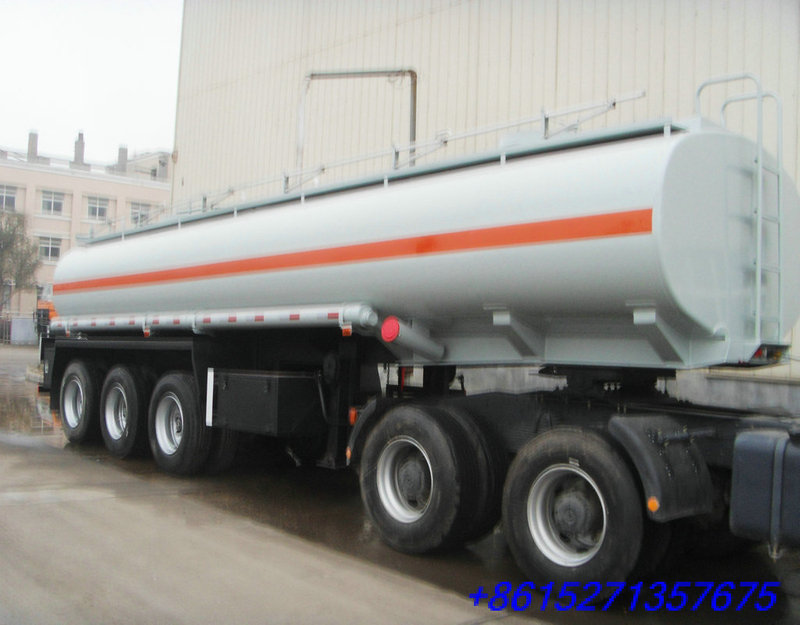

DTA9401GFWA rare sulfuric acid tanker trailer STRAIGHT SHAPE

Quantity:
  • DTA9401GFWA
DTA9401GFWA rare sulfuric acid tanker trailer Tanks effective volume: 19.95 cubic meters, medium name: rare sulfuric acid, the density: 1.63 tons/cubic meters
DTA9401GFWA rare sulfuric acid tanker trailer Tanks effective volume: 19.95 cubic meters , medium name: rare sulfuric acid, the density: 1.63 tons/cubic meters STRAIGHT SHAPE Specification  19,000 liter  tanker trailer specifications just for reference


         DIMENSIONS




         Tare  Weight




         8500kg




         Payload




         31500 kg




         Total  Weight




         40000kg




         Overall  Length




         Refer drawing 10000mm




         Overall  Width




         Refer drawing mm (maximum 2500mm)




         Overall  Height




         Refer drawing  3500mm




         Wheel track




         Refer drawing mm




         Wheel base




         Refer drawing mm




         STANDARD SPECIFICATION




         Main  Frame


       Heavy duty and extra durability designed; Opting for high tensile steel Q345B,welded by automatic Submerged-Arc processes 505mm Height, Top Flange 14mm,width 140mm; Middle Flange 6mm ;Bottom Flange 16mm,width 140mm






         Axle




         Three Units of BPW axles.




         Suspension




         3-axle spring Suspension




         Landing Gear




         Two-speed ,manual operation, heavy duty landing gear




         Wheel Rim




         Twelve units of 8.25or9.0wide x 10 stud (tubeless rim)




         Tyre




         Twelve units of 12R-22.5 tyres (tubeless)




         Spare Wheel Carrier




         two sets of spare wheel carrier including a riser




         Pneumatic Braking System




         30/30 spring brake chamber (S Cam); eliable local brand 40L air tank ;  reliable local brand standard coppery air-connector. With ABS




         Electrical  System




         24V 7-pin socket; reliable local brand standard red rear lights, orange turning lights, red rear reflectors, 3 orange side lights and 3 orange side reflectors each side 6, standard Cable.




         Tank




         19,000 litres capacity









         Shell baffles 6 mm  carbon steel









         Walkway and top tank; ladder end or side of tank




         Tank fittings




         Manhole covers top filler and with spillbox,



          Bottom coupling DN80 discharge system




         Painting




         Sand blasting before painting; two coats of primer, anti corrosion, two coats of finish painting; (black chassis, blue tank or as client requirement)




         Accessory




         One trailer tool box , One 200L water tank.









 DTA9407GHY chemical liquid tank semi-trailer .Tanks effective volume: 33 cubic meters, medium name: rare hydrochloric acid ( Dilute Hydrochloric Acid / Acid hydrochloric dilute/sparse chlorhydric acid / 30% HCL) , density: 1.05 tons/cubic meters  Customization, Cost and Control Built How You Want it, at a Price You Can Afford. for sale call:+86-152 -7135-7675
