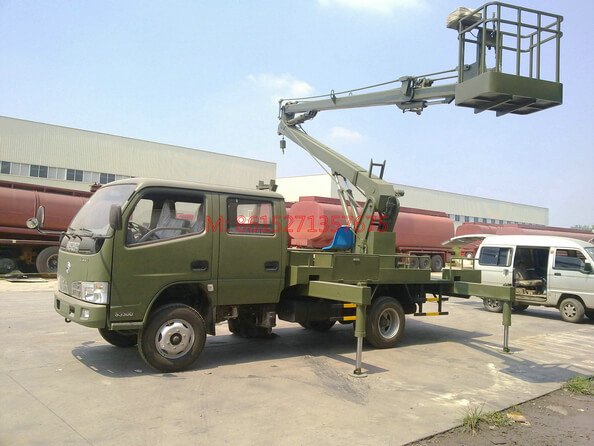

DTA5050JGK bucket lifting truck High platform truck, bucket lifting truck, aerial platform truck EXW USD $30000~35000
DTA5050JGK bucket lifting truck INSULATED BUCKET Aerial working platform bucket lifting truck Max Operating Height 14m INSULATED BUCKET MOUNTED TELESCOPIC BOOM LIFT TRUCKINSULATED BUCKET Aerial working platform
| Item | unit | parameter | |
| Vehicle model | DTA5050JGK | ||
| Chassis model | EQ1050NJ20D3 | ||
| Horse Power | ps | 100 | |
| Overall dimensions | mm | 5995×2000×2600 | |
| Fact loading | kg | ||
| GVW | Approx5494 | ||
| Mass in working order | Approx3200 | ||
| Wheel base | mm | 3300 | |
| F/R track base | 1490/1425 | ||
| Approach/departure angle | . | 19/15 | |
| Exhaust/hp | ml/kw | 2695/66.7 | |
| Max speed | km/h | 90 | |
| Tire specification | 7.00R16 | Engine type: CY4100-E3F 73KW 100HP | |
| Traction system | 4*2 | transmission | 5-speed with over drive |
| Number of axles | 2 | Electric system | 24v |
| Operation control system | Electrically hydraulic control | Allowable passengers in cab | 2+3 |
| Equipment | Max operation height 14m, max operation radius 5.7m, max working platform rating loading=200kg, working platform rating allowable Working platform dimension: 1100*570*1000mm, 360° turning(left or right), 4 H-shape legs Clients can choose hydraulic parts made in China or Italy, to be menntioned The hook can load 1 ton goods | ||
| Engine | yuchai diesel engine ,dongfeng chaoyang diesel engine | ||
| Production cycle | 25-30 days | ||
| Warranty | 12 month, from the date of supply | ||
Customization, Cost and Control Built How You Want it, at a Price You Can Afford. for sale call:+86-152 -7135-7675
