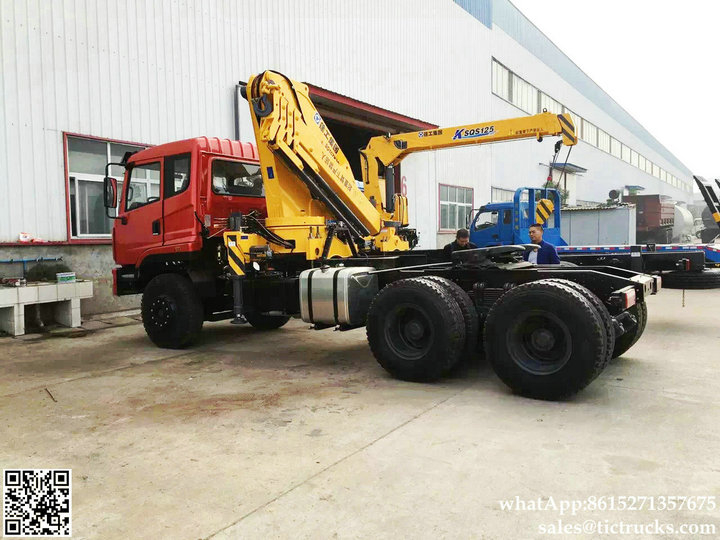

DRZ Tractor Truck Mounted Crane 10Tons Knuckle Boom
| Availability: | |
|---|---|
| Quantity: | |
tractor mounted crane 10Tons Euro 2, 3,4 ,5 for sale
Folding boom truck crane, Knuckle boom crane, Knuckle boom truck mounted crane
tractor mounted crane 10Tons Euro 2, 3,4 ,5 for sale
Folding boom truck crane, Knuckle boom crane, Knuckle boom truck mounted crane
10Tons Crane Truck tractor knuckle boom cranes sale low price
Specifications:
| Model | SQ10ZK3Q | Unit |
| Max. Lifting Moment | 20 | t.m |
| Max. Lifting Capacity | 10000 | kg |
| Recommend Power Needed At Recommend Oil Flow | 28 | kw |
| Max. Oil Flow of Hydraulic System | 40 | L/min |
| Rated Pressure Of Hydraulic System | 28 | MPa |
| Oil Tank Capacity | 160 | L |
| Rotation Angle | (360°) All Rotation | ° |
| Crane Weight | 3477 | kg |
| Installation Space | 1150 | mm |
| SQ10ZK3Q Lifting capability diagram | |||||
| Working radius (m) | 2 | 4.17 | 5.99 | 7.87 | 9.75 |
| Lifting capacity (kg) | 10000 | 4600 | 3050 | 2280 | 1700 |
| Stabilizer leg | Spread |
| Fixed | 2179mm |
| Single extension | 2256-3556mm |
| Double extension | 2212-4752mm |
| XCMG Knuckle Boom Truck Crane / 10 ton mobile crane For City Construction Quick Detail: Name: truck mounted crane Brand: XCMG Max. Lifting Capacity: 10 ton Max. Lifting Moment: 20 t.m Max. Oil Flow of Hydraulic System: 40 L/min Max. Lifting height: 13meters Crane Weight: 3477 kg Oil Tank Capacity: 160 L Description: Knuckle boom crane, help you loading goods on your truck. The crane will fold to compact size after working and will not affect the space of the carriage. The arms are driven by hydraulic, move fast, more effective. The arms can easy to reach narrow spaces like inside the workshop. More accessories like fork, grab bucket, can be attached for different goods loading. Truck Loader Crane is a type of machine can carry heavy weights and transport them. The truck with crane mounted can load and unload the freight itself and don't need to employ another crane. The loader crane can freely route in 360 degrees, raise and extend, make the loading simple and economic. Compare to the mobile crane, truck loader cranes are more convenient and effective. XCMG is the first company to develop newer design loader crane in China, shared more than 50% of the Chinese crane market for many recent years by the help of advanced design, good quality, attentive service and competitive price. Together we define your needs and make the crane to match your request in every detail. The lifting capacity of our loader cranes spans from 1 to 25 ton and outreach over 26 meters. Knuckle boom crane SQ10ZK3Q is lifting capacity is 10tons, moment is 20T.M. Applications: It can be applied on most common Commercial Truck-mounted Cranes. Range covers light to medium crane. With small mounting size and weight to save your payload, minimizing loading and unloading time, is the best choice of truck mounted crane facilities. Knuckleboom cranes have the ability to easily load and unload materials in just about any possible situation. Dimension Drawing: Optional parts: 1.Remote control equipment 2.Moment limited valve 3.High seat on column 4.JIB 5.Assisatant stabilizer leg Competitive Advantage: 1, Advanced development & analysis means make sure design is very reliable 2, Higher lifting capacity with tour connected bar mechanism 3, Flange telescopic boom coupling technology 4, Self-designed & developed slewing machine with greater drive force can meet varied requirements of working situation 5, The more symmetrical center design of hexagon boom make it has bigger anti-bending capacity 6, Float three-point bridge structure design can lower the accessional stress on the chassis frame when traveling |
Crane Truck,25T Mobile Crane Truck,16T Crane Truck,14T Hydraulic Truck Crane,12T Truck Loading Crane,10T Truck With Crane,10T Loading Crane,8T Mobile Crane,6.3T Crane Vehicle,5T Tipper Mounted Crane,4T Boom Truck Crane,3.2T Lorry Mounted Crane,3.2T Dumper Loading Crane,2T Truck Mounted Crane
10Tons Crane Truck tractor knuckle boom cranes sale low price
Specifications:
| Model | SQ10ZK3Q | Unit |
| Max. Lifting Moment | 20 | t.m |
| Max. Lifting Capacity | 10000 | kg |
| Recommend Power Needed At Recommend Oil Flow | 28 | kw |
| Max. Oil Flow of Hydraulic System | 40 | L/min |
| Rated Pressure Of Hydraulic System | 28 | MPa |
| Oil Tank Capacity | 160 | L |
| Rotation Angle | (360°) All Rotation | ° |
| Crane Weight | 3477 | kg |
| Installation Space | 1150 | mm |
| SQ10ZK3Q Lifting capability diagram | |||||
| Working radius (m) | 2 | 4.17 | 5.99 | 7.87 | 9.75 |
| Lifting capacity (kg) | 10000 | 4600 | 3050 | 2280 | 1700 |
| Stabilizer leg | Spread |
| Fixed | 2179mm |
| Single extension | 2256-3556mm |
| Double extension | 2212-4752mm |
| XCMG Knuckle Boom Truck Crane / 10 ton mobile crane For City Construction Quick Detail: Name: truck mounted crane Brand: XCMG Max. Lifting Capacity: 10 ton Max. Lifting Moment: 20 t.m Max. Oil Flow of Hydraulic System: 40 L/min Max. Lifting height: 13meters Crane Weight: 3477 kg Oil Tank Capacity: 160 L Description: Knuckle boom crane, help you loading goods on your truck. The crane will fold to compact size after working and will not affect the space of the carriage. The arms are driven by hydraulic, move fast, more effective. The arms can easy to reach narrow spaces like inside the workshop. More accessories like fork, grab bucket, can be attached for different goods loading. Truck Loader Crane is a type of machine can carry heavy weights and transport them. The truck with crane mounted can load and unload the freight itself and don't need to employ another crane. The loader crane can freely route in 360 degrees, raise and extend, make the loading simple and economic. Compare to the mobile crane, truck loader cranes are more convenient and effective. XCMG is the first company to develop newer design loader crane in China, shared more than 50% of the Chinese crane market for many recent years by the help of advanced design, good quality, attentive service and competitive price. Together we define your needs and make the crane to match your request in every detail. The lifting capacity of our loader cranes spans from 1 to 25 ton and outreach over 26 meters. Knuckle boom crane SQ10ZK3Q is lifting capacity is 10tons, moment is 20T.M. Applications: It can be applied on most common Commercial Truck-mounted Cranes. Range covers light to medium crane. With small mounting size and weight to save your payload, minimizing loading and unloading time, is the best choice of truck mounted crane facilities. Knuckleboom cranes have the ability to easily load and unload materials in just about any possible situation. Dimension Drawing: Optional parts: 1.Remote control equipment 2.Moment limited valve 3.High seat on column 4.JIB 5.Assisatant stabilizer leg Competitive Advantage: 1, Advanced development & analysis means make sure design is very reliable 2, Higher lifting capacity with tour connected bar mechanism 3, Flange telescopic boom coupling technology 4, Self-designed & developed slewing machine with greater drive force can meet varied requirements of working situation 5, The more symmetrical center design of hexagon boom make it has bigger anti-bending capacity 6, Float three-point bridge structure design can lower the accessional stress on the chassis frame when traveling |
Crane Truck,25T Mobile Crane Truck,16T Crane Truck,14T Hydraulic Truck Crane,12T Truck Loading Crane,10T Truck With Crane,10T Loading Crane,8T Mobile Crane,6.3T Crane Vehicle,5T Tipper Mounted Crane,4T Boom Truck Crane,3.2T Lorry Mounted Crane,3.2T Dumper Loading Crane,2T Truck Mounted Crane
