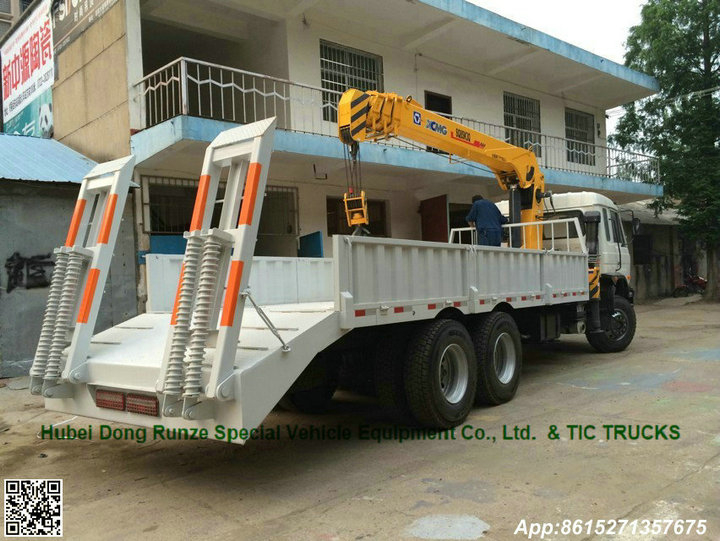

DRZ Lorry Truck with Telescopic Boom Crane And Hydraulic Ladder for Loading Excavator
| Quantity: | |
|---|---|
DRZ 6x4 lorry truck mounted crane XCMG cranes 8T telescopic boom Hydraulic ladder for loading excavator
Weichat:King253725877 WhatsApp:8615271357675 Skype:tomsongking
| Overall dimensions | mm | 11945×2500×3850,3750 | ||||
| Fact loading | kg | / | ||||
| Mass in working order | kg | Appro×12805 | ||||
| Body internal dimensions | mm | 8200×2294×550 | ||||
| Wheel base | 5370+1300 | |||||
| F/R track base | 1940/1860 | |||||
| Approach/departure angle | ° | 32/13 | ||||
| Exhaust/kw | ml/kw | 5900/155 | ||||
| Max speed | km/h | 85 | ||||
| Tire specification | 10.00-20 | Engine type | B210-33 | |||
| Traction system | 6×4 | transmission | 9-speed with over drive | |||
| Number of axles | 3 | Electric system | 24v | |||
| Operation control system | Electrically hydraulic control | Allowable passengers in cab | 3 | |||
| Equipment | Crane Type: SQ8SK;SQ8ZK,SQ10SK,SQ10ZK Hydraulic valve is universal in the world on the safe side;three point floating type to protect crossbeam of the truck;all hydraulic pressure and 360°turning;new H-shape type; high precise drawn tube;24°tie-in. | |||||
| Engine | DongFeng Cummins Environmental Protection,supercharge,diesel engine | |||||
| Production cycle | 15-20 days | |||||
| Warranty | 12 month,from the date of supply | |||||
Techinical data of the crane
| Crane model | SQ8SK3Q | Crane weight (KG) | 3300 |
| Max. lifting weight(KG) | 8,000 | Max lifting Moment(T.M) | 20 |
| Max oil plow of hydroulic systm(L/MIN) | 55 | Rated pressure of hydroulic system(mpa) | 27 |
| Oil tank capacity (L) | 160 | Installation space(mm) | 1150 |
| Max. working radius (m) | 12 | Max. working height (m) | 14 |
| Rishing angel | 0º-72º | Rotation angel | 370º |
| Engine model | Engine displacement | Engine power | Engine manufacturer | ||||
|---|---|---|---|---|---|---|---|
| 1 | YC6A260-40 | 7 255 cc | 7.3 L | 443 cu in | 191 kW | 260 hp | Guangxi Yuchai Machinery Co., Ltd. |
| 2 | ISDe270 40 | 6 700 cc | 6.7 L | 409 cu in | 198 kW | 269 hp | Dongfeng Cummins Engine Co., Ltd. |
| 3 | WP7.270E40 | 7 140 cc | 7.1 L | 436 cu in | 199 kW | 271 hp | Weichai Power Co., Ltd. |
| Performance | ||||
|---|---|---|---|---|
| Maximum speed | 90 km/h | 56 mph | ||
| ABS | have | |||
| Capacity | ||||
|---|---|---|---|---|
| Rated load capacity | 14825 kg | 14.8 t | 32,683 lbs | |
| Load factor (the ratio of the payload of a vehicle to its weight) | 1.50 | |||
| Weights and Ground pressure | ||||
|---|---|---|---|---|
| Curb weight | 9980 kg | 10 t | 22,002 lbs | |
| Gross vehicle weight rating | 25000 kg | 25 t | 55,000 lbs | |
| Axle load distribution | 7000 kg / 18000 kg (tandem axle) 7 t / 18 t (tandem axle) 15,000 lbs / 40,000 lbs (tandem axle) | |||
| Dimensions | ||||
|---|---|---|---|---|
| Overall length | 9650 mm / 9850 mm / 10450 mm / 11200 mm / 11900 mm | 31′8″ / 32′4″ / 34′4″ / 36′9″ / 39′1″ | ||
| Overall width | 2500 mm | 8′3″ | ||
| Overall height | 3110 mm / 3460 mm / 3680 mm | 10′3″ / 11′5″ / 12′1″ | ||
| Undercarriage and Suspension | ||||
|---|---|---|---|---|
| Number of axles | 3 | |||
| Wheelbase | 4150+1350 mm, 4350+1350 mm, 4600+1350 mm, 4800+1350 mm, 5350+1350 mm, 5800+1350 mm | 13′8″+4′6″, 14′4″+4′6″, 15′2″+4′6″, 15′9″+4′6″, 17′7″+4′6″, 19′1″+4′6″ | ||
| Front track | 1950 mm | 6′5″ | ||
| Rear track | 1860 mm / 1860 mm | 6′2″ / 6′2″ | ||
| Front/rear overhang | 1250 mm / 2900 mm, 1250 mm / 2650 mm, 1250 mm / 3250 mm, 1250 mm / 3050 mm, 1250 mm / 3500 mm | 4′2″ / 9′7″, 4′2″ / 8′9″, 4′2″ / 10′8″, 4′2″ / 10′1″, 4′2″ / 11′6″ | ||
| Approach / departure angle | 32 / 12, 32 / 13, 32 / 10, 32 / 11, 32 / 9 deg. | |||
| Leaf springs | 9 / 10 | |||
| Tyres and Wheels | ||||
|---|---|---|---|---|
| Number of tyres | 10 | |||
| Tyres dimension | 10.00-20 18PR, 11.00-20 18PR, 10.00R20 18PR, 11.00R20 18PR | |||
