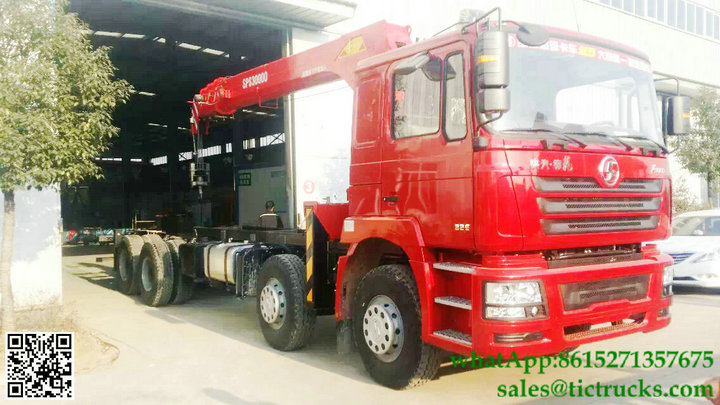

DRZ 8x4 SHACMAN Lorry Truck Mounted Crane 12T Palfinger SPS30000 Telescopic Boom

DRZ 8x4 SHACMAN Lorry Truck Mounted Crane 12T Palfinger SPS30000 Telescopic Boom
Quantity:

 DRZ 8x4 SHACMAN lorry truck mounted crane 12T Palfinger SPS30000 telescopic boom
 Euro 4 ,5
 Chassis Brand: SHACMAN DRZ 8x4 SHACAM lorry truck mounted crane 12T Palfinger SPS30000  telescopic boom cell:8615271357675DRZ 8x4 SHACAM lorry truck mounted crane 12T Palfinger SPS30000  telescopic boom cell:8615271357675DRZ 8x4 SHACAM lorry truck mounted crane 12T Palfinger SPS30000  telescopic boom cell:8615271357675DRZ 8x4 SHACAM lorry truck mounted crane 12T Palfinger SPS30000  telescopic boom cell:8615271357675DRZ 8x4 SHACAM lorry truck mounted crane 12T Palfinger SPS30000  telescopic boom cell:8615271357675DRZ 8x4 SHACAM lorry truck mounted crane 12T Palfinger SPS30000  telescopic boom cell:8615271357675DRZ 8x4 SHACAM lorry truck mounted crane 12T Palfinger SPS30000  telescopic boom cell:8615271357675DRZ 8x4 SHACAM lorry truck mounted crane 12T Palfinger SPS30000  telescopic boom cell:8615271357675DRZ 8x4 SHACAM lorry truck mounted crane 12T Palfinger SPS30000  telescopic boom cell:8615271357675DRZ 8x4 SHACAM lorry truck mounted crane 12T Palfinger SPS30000  telescopic boom cell:8615271357675


       Brand        SHACMAN        Drive Type        8x4
       Total mass        31000kg        Rated load        11720kg
       Curb weight        19150kg        Manufacturer of crane
       Emission level        Euro 4        Quantity of axles        4
       Wheel base        42100+4575+1400mm        F/R axle load        7000/18000kg(Tandem)
       Quantity of leaf spring        14/13        Quantity of tires        12
       Tyre type        12.00R20

         Approach/



         Departure angle


       18/12°
       F/R suspension        1525/2400mm        Front track        2036/2036mm
       Rear track        1860/1860mm        Overall dimension        1200x2490x3950mm
       Max.vehicle speed        90km/h        Box dimension        8400x2300x800mm
       Passengers in cab        3,2        Chassis model        SX5316JSQDR456
       Engine        Model        WP10.336E40
       Max.power        247kw/336HP
       Displacement        9726ml
       Emission level        Euro 4
       Description

         In line ,6 cylinders,4 strokes,water cooled,inter cooled,turbo charged,



         with exhaust brake




12 ton straight truck with crane SPS30000
 Basic parameters of host parameters
 SPS30000B
 Rated lifting moment 30 Mt
 Rated lifting load of 12000 kg (2.5 m)
 Maximum working range of 14.5 m
 Hooks the maximum magnification 6
 Swivel Rotary
 Luffing angle range 0~75 °
 Maximum lifting height (the legs reach the ground as the benchmark) 16.5 m
 Boom arm length 5.4 m
 Boom arm length 14.8 m
 Boom sections: 4
 Leg span (reduced ~ full extension), 2.28~6.0 (m)
 Recommended flow rate 70 l/min
 28 system rated pressure Mpa
 Hoisting speed (rope) 45 m/min
 Recommended fuel tank capacity 200 l
 Crane weight
 Ground operations SPS30000B-F 4200 kg
 Beyond weights
 Low seat + ladder 43 kg
 High seat ladder + 72 kg
 Preparation of
Note: the above speed of hydraulic oil temperature 45~55℃, no load, maximum recommended flow situations. crane weight does not include restructuring package
Custermizing
the best Truck With Crane to worldwide. We specialise in the on-road load handling solutions, and help customers enhance their efficiency and productivity.
Crane brand: XCMG or HIAB.
Crane type: Telescopic boom crane or knuckled boom crane.
Crane capacity: 2T, 3.2T, 4T, 5T, 6.3T, 8T, 10T, 12T, 14T, 16T, 25Tons.

No. of crane Arms: 2, 3, 4, 5, 6.
Chassis model: 4*2, 4*4, 6*4, 6*6, 8*4,8*8 / tractor / trailer
Cabin model: LHD or RHD
Crane Truck,25T Mobile Crane Truck,16T Crane Truck,14T Hydraulic Truck Crane,12T Truck Loading Crane,10T Truck With Crane,10T Loading Crane,8T Mobile Crane,6.3T Crane Vehicle,5T Tipper Mounted Crane,4T Boom Truck Crane,3.2T Lorry Mounted Crane,3.2T Dumper Loading Crane,2T Truck Mounted Crane
