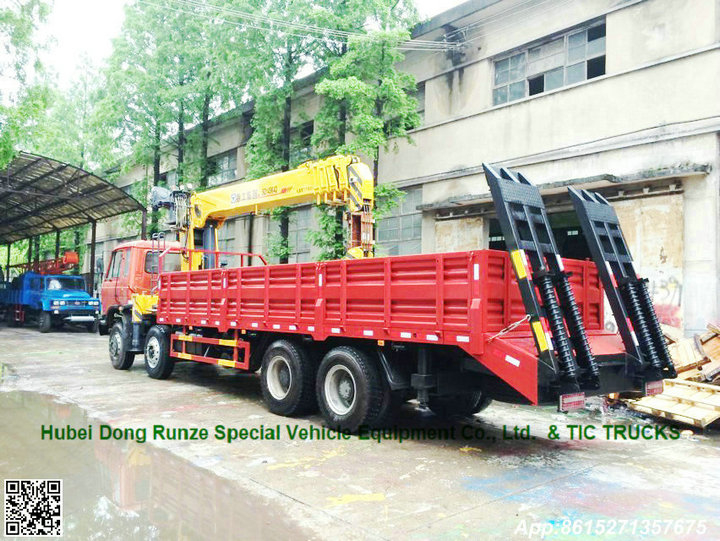

Techinical data of the craneXCMG SQS300-II Truck Mounted Crane
Model | SQS300-II | Unit |
Max Lifting Capacity | 12000 | kg |
Max Lifting Moment | 30 | T.M |
Recommend Power | 30 | kw |
Max Oil Flow of Hydraulic System | 80+32 | L/min |
Max Pressure of Hydraulic System | 26 | MPa |
Oil Tank Capacity | 200 | L |
Rotation Angle | All Rotation | |
Crane Weight | 4250 | kg |
Installation Space | 1300 | mm |
# | Engine model | Engine displacement | Engine power | Engine manufacturer | |||
---|---|---|---|---|---|---|---|
1 | ISDe285 40 | 6 700 cc | 6.7 L | 409 cu in | 210 kW | 286 hp | Dongfeng Cummins Engine Co., Ltd. |
2 | YC6L280-41 | 8 424 cc | 8.4 L | 514 cu in | 206 kW | 280 hp | Guangxi Yuchai Machinery Co., Ltd. |
3 | WP10.300E40 | 9 726 cc | 9.7 L | 594 cu in | 221 kW | 300 hp | Weichai Power Co., Ltd. |
Performance | ||||
---|---|---|---|---|
Fuel | diesel fuel | |||
Environmental standard | National IV / Euro 4 | |||
Maximum speed | 90 km/h | 56 mph | ||
ABS | none |
Capacity | ||||
---|---|---|---|---|
Rated load capacity | 19500 kg | 19.5 t | 43,000 lbs |
Weights and Ground pressure | ||||
---|---|---|---|---|
Curb weight | 11305 kg | 11.3 t | 24,923 lbs | |
Gross vehicle weight rating | 31000 kg | 31 t | 68,000 lbs | |
Axle load distribution | 6150 kg / 6900 kg / 17950 kg (tandem axle) 6.2 t / 6.9 t / 18 t (tandem axle) 13,558 lbs / 15,200 lbs / 39,573 lbs (tandem axle) |
Dimensions | ||||
---|---|---|---|---|
Overall length | 10000 mm / 11500 mm / 12000 mm | 32′10″ / 37′9″ / 39′5″ | ||
Overall width | 2500 mm | 8′3″ | ||
Overall height | 3110 mm / 3460 mm / 3680 mm | 10′3″ / 11′5″ / 12′1″ |
Undercarriage and Suspension | ||||
---|---|---|---|---|
Number of axles | 4 | |||
Wheelbase | 1950+3950+1350 mm, 1950+4250+1350 mm, 1950+4500+1350 mm, 1850+4600+1350 mm, 1950+5800+1350 mm | 6′5″+13′0″+4′6″, 6′5″+14′0″+4′6″, 6′5″+14′10″+4′6″, 6′1″+15′2″+4′6″, 6′5″+19′1″+4′6″ | ||
Front track | 1950 mm / 1950 mm | 6′5″ / 6′5″ | ||
Rear track | 1860 mm / 1860 mm | 6′2″ / 6′2″ | ||
Front/rear overhang | 1160 mm / 1590 mm, 1160 mm / 1740 mm, 1160 mm / 2540 mm, 1160 mm / 2790 mm, 1160 mm / 3040 mm, 1160 mm / 3290 mm | 3′10″ / 5′3″, 3′10″ / 5′9″, 3′10″ / 8′4″, 3′10″ / 9′2″, 3′10″ / 10′0″, 3′10″ / 10′10″ | ||
Approach / departure angle | 32 / 18, 32 / 16, 32 / 15, 32 / 14, 32 / 13, 32 / 11 deg. | |||
Leaf springs | 9 / 9 / 10 |
Tyres and Wheels | ||||
---|---|---|---|---|
Number of tyres | 12 | |||
Tyres dimension | 10.00-20 16PR, 11.00-20 16PR, 10.00R20 14PR, 11.00R20 14PR |
Miscellaneous | ||||
---|---|---|---|---|
Seating capacity | 3 | |||
Steering control | steering wheel |
