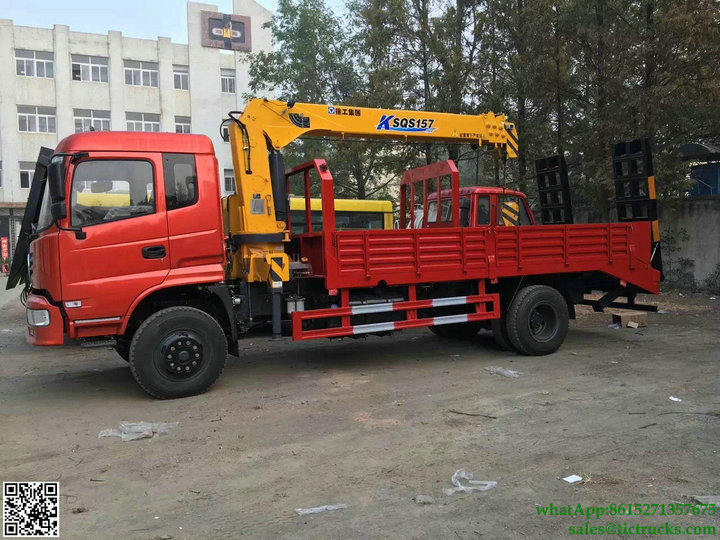

DRZ 4x2 Chufeng Lorry Truck Mounted Crane 6T Telescopic Boom Hydraulic Ladder
| Availability: | |
|---|---|
| Quantity: | |
DRZ 4x2 chufeng lorry truck mounted crane 6T telescopic boom Hydraulic ladder
Hydraulic ladder / ramp
,
DRZ 4x2 chufeng lorry truck mounted crane 6T telescopic boom Hydraulic ladder
Hydraulic ladder / ramp
,
Weichat:King253725877 WhatsApp:8615271357675 Skype:tomsongking
| rated loading | 9735 | Total mass | 16000 |
| Curb weight | 6070 | Fuel type | Diesel |
| Emissions standards | GB3847-2005,GB17691-2005 States | Number of axes | 2 |
| Wheelbase | 4500,4800,5000,5200,5300,5800 | Axle load | 6000/10000 |
| Number of spring leaf | 9/11+9,9/11+8 | Number of tires | 6 |
| Tire specification | 9.00-20 16PR,10.00-20 18PR,9.00R20 16PR,10.00R20 18PR | Close to departure angle | 32/11,32/10,32/12,32/13 |
| Front overhang Rear overhang | 1250/2450,1250/2600,1250/2400,1250/1950 | Front track | 1810,1940 |
| Rear track | 1800,1860 | Identification code | |
| Whole length | 8200,8650,8850,9000 | Vehicle width | 2500 |
| High vehicle | 2910,3050 | Cargo compartment length |
| Engine model | Engine manufacturers | Engine brand | Displacement | Power |
| YC6J180-42 ISDe185 40 | Guangxi Yuchai engine company limited Dongfeng Cummins Engine co | 6500 6700 | 132 136 |
| XCMG Crane | XCMG Crane | ( TM ) | Boom arm width )(M) | Maximum lifting weight reference (T) |
| SQS042K1Q | SQ2SK1Q | 4.2 | 5.4 | 2 |
| SQS042K2Q | SQ2SK2Q | 4.2 | 7.73 | 2 |
| SQS068K1 | SQ3.2SK1 | 6.72 | 5.35 | 3.2 |
| SQS068K1Q | SQ3.2SK1Q | 6.72 | 5.35 | 3.2 |
| SQS068K2 | SQ3.2SK2 | 6.72 | 7.56 | 3.2 |
| SQS068K2Q | SQ3.2SK2Q | 6.72 | 7.56 | 3.2 |
| SQS080K2Q | SQ4SK2Q | 8 | 7.92 | 4 |
| SQS080SK3Q | SQ4SK3Q | 8 | 9.42 | 4 |
| SQS128K2Q | SQ5SK2Q | 12.5 | 8.5 | 5.5 |
| SQS128K3Q | SQ5SK3Q | 12.5 | 11 | 5.5 |
| SQS158K2Q | SQ6.3SK2Q | 15.7 | 8.5 | 7 |
| SQS158K3Q | SQ6.3SK3Q | 15.7 | 11 | 7 |
| SQS200K3Q | SQ8SK3Q | 20 | 11.5 | 8 |
| SQS250K3Q | SQ10SK3Q | 25 | 12 | 10 |
| SQS300K3Q | SQ12SK3Q | 30 | 12.5 | 12 |
| SQS350K4Q | SQ14SK4Q | 35 | 15.77 | 14 |
| SQS400K4Q | SQ16SK4Q | 40 | 18.5 | 16 |
| SQS400K5Q | SQ16SK5Q | 40 | 22 | 16 |
| SQS625K2Q | SQ25SK2Q | 62.5 | 13.5 | 25 |
Custermizing
the best Truck With Crane to worldwide. We specialise in the on-road load handling solutions, and help customers enhance their efficiency and productivity.
Crane brand: XCMG or HIAB.
Crane type: Telescopic boom crane or knuckled boom crane.
Crane capacity: 2T, 3.2T, 4T, 5T, 6.3T, 8T, 10T, 12T, 14T, 16T, 25Tons.
No. of crane Arms: 2, 3, 4, 5, 6.
Chassis model: 4*2, 4*4, 6*4, 6*6, 8*4,8*8 / tractor / trailer
Cabin model: LHD or RHD
Crane Truck,25T Mobile Crane Truck,16T Crane Truck,14T Hydraulic Truck Crane,12T Truck Loading Crane,10T Truck With Crane,10T Loading Crane,8T Mobile Crane,6.3T Crane Vehicle,5T Tipper Mounted Crane,4T Boom Truck Crane,3.2T Lorry Mounted Crane ,3.2T Dumper Loading Crane,2T Truck Mounted Crane
Weichat:King253725877 WhatsApp:8615271357675 Skype:tomsongking
| rated loading | 9735 | Total mass | 16000 |
| Curb weight | 6070 | Fuel type | Diesel |
| Emissions standards | GB3847-2005,GB17691-2005 States | Number of axes | 2 |
| Wheelbase | 4500,4800,5000,5200,5300,5800 | Axle load | 6000/10000 |
| Number of spring leaf | 9/11+9,9/11+8 | Number of tires | 6 |
| Tire specification | 9.00-20 16PR,10.00-20 18PR,9.00R20 16PR,10.00R20 18PR | Close to departure angle | 32/11,32/10,32/12,32/13 |
| Front overhang Rear overhang | 1250/2450,1250/2600,1250/2400,1250/1950 | Front track | 1810,1940 |
| Rear track | 1800,1860 | Identification code | |
| Whole length | 8200,8650,8850,9000 | Vehicle width | 2500 |
| High vehicle | 2910,3050 | Cargo compartment length |
| Engine model | Engine manufacturers | Engine brand | Displacement | Power |
| YC6J180-42 ISDe185 40 | Guangxi Yuchai engine company limited Dongfeng Cummins Engine co | 6500 6700 | 132 136 |
| XCMG Crane | XCMG Crane | ( TM ) | Boom arm width )(M) | Maximum lifting weight reference (T) |
| SQS042K1Q | SQ2SK1Q | 4.2 | 5.4 | 2 |
| SQS042K2Q | SQ2SK2Q | 4.2 | 7.73 | 2 |
| SQS068K1 | SQ3.2SK1 | 6.72 | 5.35 | 3.2 |
| SQS068K1Q | SQ3.2SK1Q | 6.72 | 5.35 | 3.2 |
| SQS068K2 | SQ3.2SK2 | 6.72 | 7.56 | 3.2 |
| SQS068K2Q | SQ3.2SK2Q | 6.72 | 7.56 | 3.2 |
| SQS080K2Q | SQ4SK2Q | 8 | 7.92 | 4 |
| SQS080SK3Q | SQ4SK3Q | 8 | 9.42 | 4 |
| SQS128K2Q | SQ5SK2Q | 12.5 | 8.5 | 5.5 |
| SQS128K3Q | SQ5SK3Q | 12.5 | 11 | 5.5 |
| SQS158K2Q | SQ6.3SK2Q | 15.7 | 8.5 | 7 |
| SQS158K3Q | SQ6.3SK3Q | 15.7 | 11 | 7 |
| SQS200K3Q | SQ8SK3Q | 20 | 11.5 | 8 |
| SQS250K3Q | SQ10SK3Q | 25 | 12 | 10 |
| SQS300K3Q | SQ12SK3Q | 30 | 12.5 | 12 |
| SQS350K4Q | SQ14SK4Q | 35 | 15.77 | 14 |
| SQS400K4Q | SQ16SK4Q | 40 | 18.5 | 16 |
| SQS400K5Q | SQ16SK5Q | 40 | 22 | 16 |
| SQS625K2Q | SQ25SK2Q | 62.5 | 13.5 | 25 |
Custermizing
the best Truck With Crane to worldwide. We specialise in the on-road load handling solutions, and help customers enhance their efficiency and productivity.
Crane brand: XCMG or HIAB.
Crane type: Telescopic boom crane or knuckled boom crane.
Crane capacity: 2T, 3.2T, 4T, 5T, 6.3T, 8T, 10T, 12T, 14T, 16T, 25Tons.
No. of crane Arms: 2, 3, 4, 5, 6.
Chassis model: 4*2, 4*4, 6*4, 6*6, 8*4,8*8 / tractor / trailer
Cabin model: LHD or RHD
Crane Truck,25T Mobile Crane Truck,16T Crane Truck,14T Hydraulic Truck Crane,12T Truck Loading Crane,10T Truck With Crane,10T Loading Crane,8T Mobile Crane,6.3T Crane Vehicle,5T Tipper Mounted Crane,4T Boom Truck Crane,3.2T Lorry Mounted Crane ,3.2T Dumper Loading Crane,2T Truck Mounted Crane
