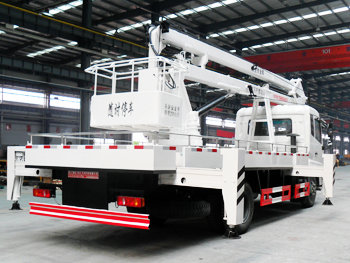

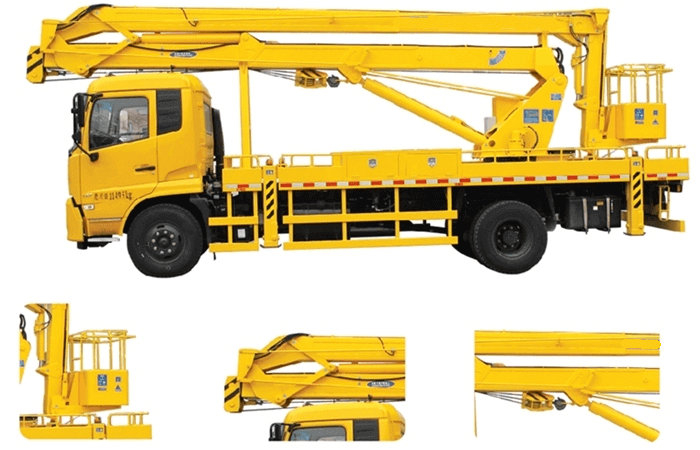

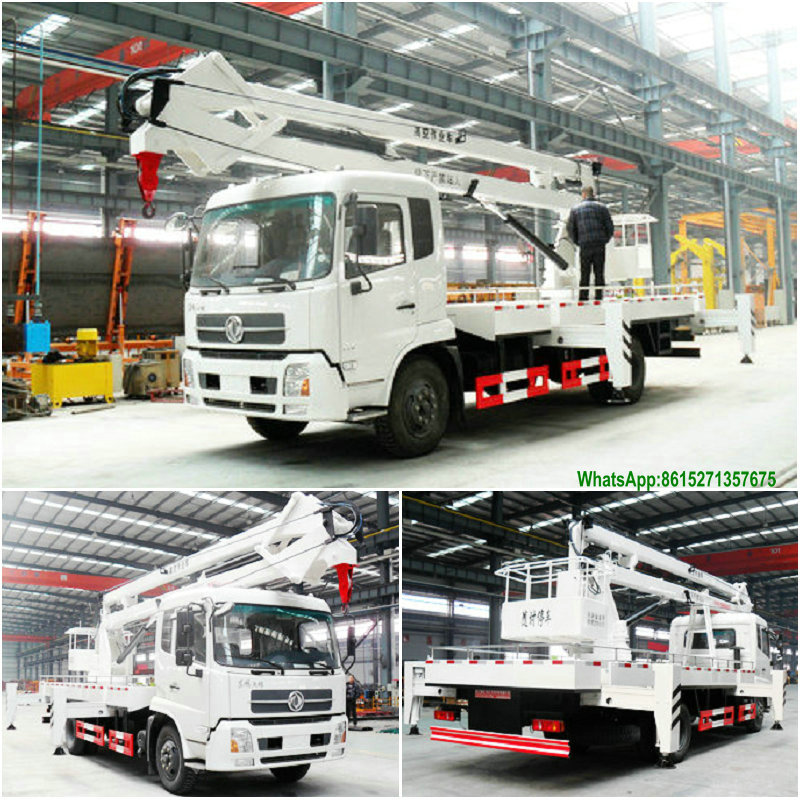

DONGFENG KING RUN 22-24M OVERHEAD WORKING TRUCK

DONGFENG KING RUN 22-24M OVERHEAD WORKING TRUCK

Price: $ 50000
Discount Price: $ 45000
FOB:
Quantity:

  • DRZ5250
  • King Run
  • 850909990
DONGFENG 22-24M OVERHEAD WORKING TRUCK

boom trucks aerial bucket truck
Description
Technical parameters
The total mass(kg) 11050 Curb Weight(kg) 10855
Rated quality(kg) xx Chassis Model DFL1120
Approach /departure angle 20/10,20/12(°) Front/rear overhang 1430/2860, 1430/2560
Dimensions(mm) 9600,9200x2480x3620 Number of spring 7/9+6, 8/10+8
Number of axes 2 Maximum speed 90
Tire Specifications 9.00-20, 9.00R20, 255R70R22.5 Number of tires 6
Front track 1880 Rear track 1800
Wheelbase 5000 Axle load 4400/8095
Emission Standards Euro3/Euro4 Type of fuel Diesel
Engine parameters
Engine Model B190 40 Engine Manufacturer Dongfeng cummins engine co., LTD
EngineDisplacement 5900 ml Engine power 125 kw
Chassis
Description
1. Dongfeng 4x2 chassis, flat cab with sleeper, left/right hand drive/AC;
2. Dongfeng 6 cylinder 190HP diesel engine, 6 speed gear box, 9.00-20tire;
3. Power steeling, gas brake.
Modified
Description
1. Operational height:20-25m,rated load of cage:200-250kg,four H-type hydraulic telescopic legs.
2. 360°all rotation.
3. Two sets of operating system,operating mode:electronic control,cage operating and platform operating.
Component Basic composition:chassis,PTO,gear pump,chassis parts,folding arms/telescopic arms, oil cylinder,pipeline system,working cage, rotating mechanism,hydraulic system,electrical system.
Application Convenient moving,used in narrow roads and streets.Aerial work platform can be used in aloft working of electricity,street lamp,municipal administration,gardens,transportation and so on.
Product advantage reasonable price,multiple functions,easy operation
