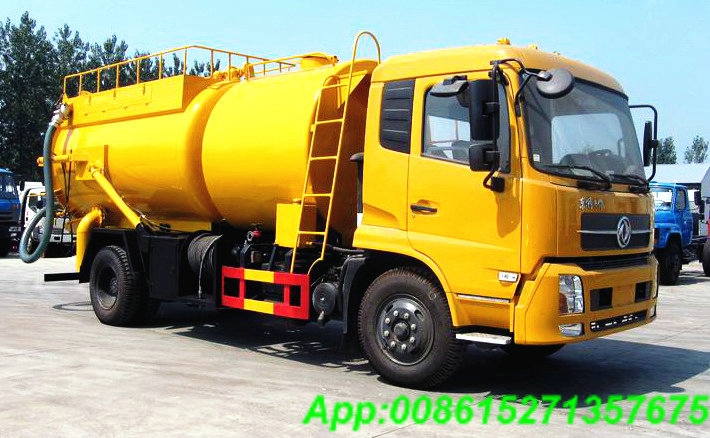

DFL Vacuum Tanker Combined Water Jetting Truck

DFL Vacuum Tanker Combined Water Jetting Truck
Quantity:

DFL Vacuum tanker Combined water Jetting truck
Tank A:Capacity: 6, 000ltrs of solid/liquid human waste. Tank B: Capacity: 2000~4000litrs of clean water for drinking, cleaning and flushing.

dta Sewage Trucks-22-T- Combined jettingsewer_cleaning_vehicle_high_pressure_jetting_vehicle_sewer_jetting_truck_sewer_flushing_vehicle_combined_sewer_cleanerdfl-15-T- water clean truck

 Dongfeng EQ Vacuum tanker truck  Combined Jetting

Vacuum tanker  septik truck  sewage tanker ,CAPACITY 8000 UPTO 12000  Sewage Tank,Sewer JettingTruck,Vacuum Suction tanker , vacuum suction truck  ,vacuum truck,Sewer Jet Truck ,vacuum sewage suction truck ,Septic Tank Truck ,Cesspit Emptier Customization, Cost and Control Built How You Want it, at a Price You Can Afford. for sale call:+86-152 -7135-7675

  Vaccum tanker vacuum sewage suction truck

 Tank A:Capacity: 6, 000ltrs of solid/liquid human waste. Tank B: Capacity: 4000litrs of clean water for drinking, cleaning and flushing.



 optional inner lined PE for chemical wast acid



 with twin vacuum pump for non-potable water, sewage suction and transport






         Items




         Descriptions




         Specifications and Types




         General




         Truck Name




         Vacuum Sewage Suction Truck




         Drive Type




         left-hand drive




         Capacity




         10m⊃3;




         Payload Weight (kg)









         Overall Dimensions L*W*H(mm)









         Engine




         Engine Model




         B160 ,B170  ,190




         Engine Brand




         Cummins




         Fuel Type




         Diesel




         Power 功率




         125kw/  160 ,170,190HP




         Emission Standard




         Euro




         Displacement(ml)




         5900




         Chassis




         Chassis Model




          EQ11




         Front/Rear Axle Load(T)




         3.6T/9T




         Tire Specification




         9.00R20




         Wheelbase (mm)




         4700




         Axle/Tire No.




         6




         Gear Box




         6 Speed Gearbox




         Brake




         brake drum brake




         Radiator









         Front/rear suspension(mm)




         1430/




         Leaf Spring No.




         7/9+6,8/10+8




         Cab




         Equip with A/Cpower steering




         Equipment




           horizontally mounted tank with domed ends, Internal welded surge baffles, Full tank length sub frame with side walks, Access ladder to top inspection cover, Sub frame integral with tank & dismountable from chassis, Lockable quick release locking mechanism on inspection cover. Durable internal corrosion protection, Fabricated from 5 mm medium carbon steel plate welded from inside and outside, Lifting eyes on top of tank for handling, Quick opening 100mm intake & purge valve, Float ball (full tank) shut off valve to stop entry of liquid into pump suction. Sight glass at front domed end indicating maximum liquid level. Tank air tight and pressure tested to 1.5 bar and vacuum tested to 20” Hg Vacuum.



         Equipped with two vacuum pump(rating rotate speed=1400r/m,min rotate speed800r/m, max suction lift6m, vacuum500mmHg, clockwise)



         Equipped withpower take off, transmission shaft, fecal tank, pipe network, fecal pipe for observing and cleanout equipment



         Time for full suction5min



 Steel Vacuum Trailers Stainless Steel Vacuum Tanks

 Aluminum Vacuum Trailer Manufacturing
