DFAC 6x6 Water Sprinkler Tanker Truck 12,000 liters

Views: 3001 Author: Site Editor Publish Time: 2022-01-07 Origin: Site

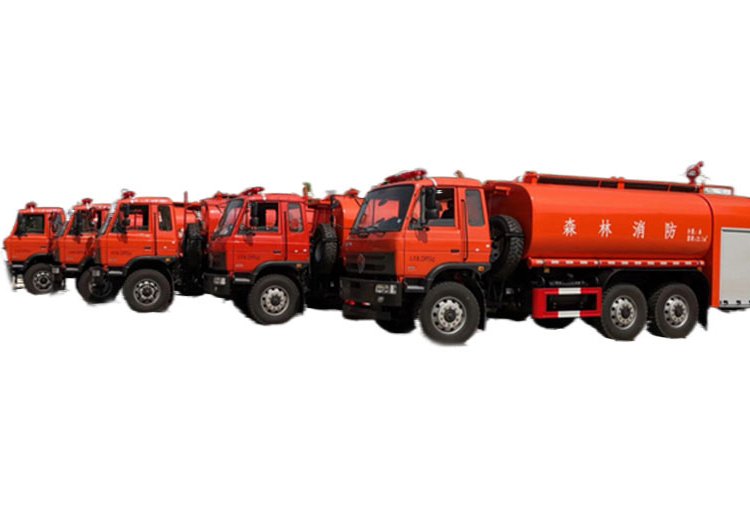

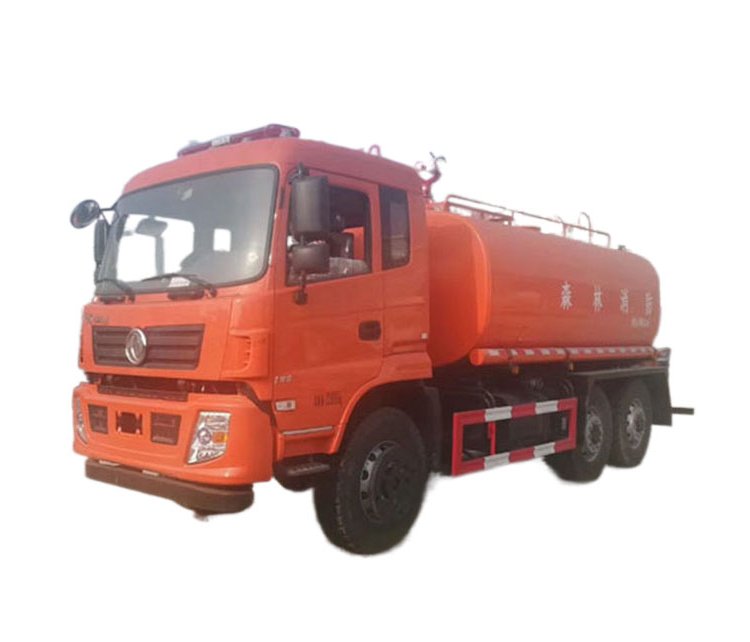

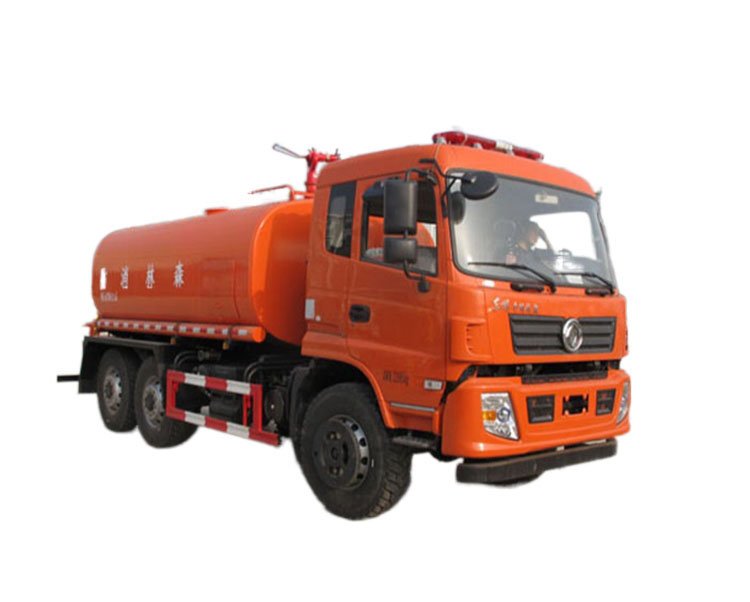

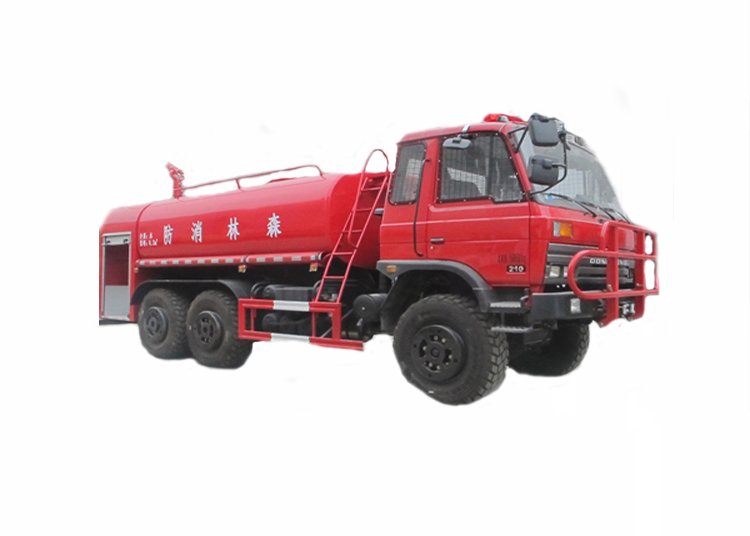

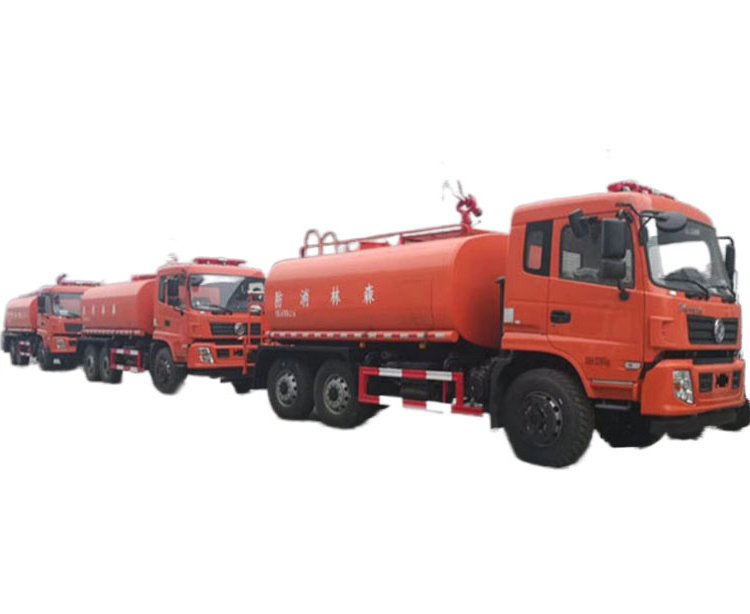

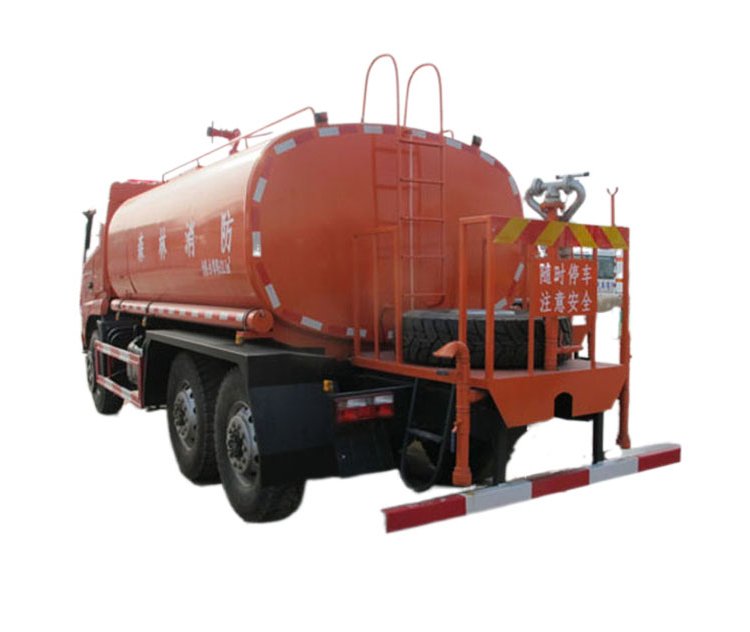

dongfeng offroad Sprinkler water supply vehicle (3)

Dongfeng 6x6 drives 8.3m3 water spray desert water tanker truck

Engine:	YC4EG185-50; ISB190 50;...	Wheelbase (mm):	3500+1250
Displacement (cc):	4730; 5900; 5900; 6700	Dimensions (mm):	7350 × 2480 × 2950
Power (kW):	136; 140; 162; 180	Gross weight (kg):	22495
Fuel type:	diesel fuel	Curb weight (kg):	6200

Chassis model		DFS5160GLJ	Chassis brand	DONGFENG
Overall dimensions		7680X2500X2850mm	Wheel base	3500+1250mm
Front/rear wheel track		1916/1876mm	Front/rear suspension	1510/1800mm
Approach/departure angle		35/34	Maximum speed	90km/h
Chassis Manufacturer		Dongfeng Motor Company
Cab	Configuration	a row and a half cab(with sleeping berth),allowable 3 passengers, air conditioner.
	Color	White, other color is optional
Engine	Model	B190 33
	Emission	Euro 3
	Type	6 cylinders,in-line,4-stroke,water-cooled,turbo inter-cooling, direct injection,diesel engine
	Rated power	190hp,rated power speed 2500rpm
	Displacement	6700ml
	Max.torque	640N.m
	Bore x stroke	102x120mm
	Manufacturer	Dongfeng Cummins Engine Co.,Ltd
Tire	Size	12.5R20 steel wire tire
	Number	6+1 nos
Clutch	350 diaphragm clutch
Fuel tank	350L
Front axle	4.1 tons
Rear axle	4.4 tons
Drive form	6X6
Rated voltage	24V,DC
Transmissions	6 speed forward 1 reverse
Steering device	Power assisted steering

More Details:
1.basic component :antirust tank, connecting device, special self suction sprinkler pump, pipeline, spray outlet, work platform

2. tank body adopts high quality carbon steel plate produced in WISCO, using a large machine molding, junction of the tank
head and body using advanced arc welding process.

3.standard configuration: The water truck installed the sprinkler(front, rear,and side), and the Sprinking length exceed
14 meters,the rear platform with water cannon(range be bigger than 28 meters), Installed the CLW Brand water Pump ,
with virescence sprinkler gun, the sprinkler gun can rotate 360 degrees, also can be adjusted into mist, range ≥ 15m, vertical suction process 7M.

4.functional use: widely used in sprinkler, spray, cooling, dust removal, flushing dust booties, spray pesticides,motor pump station,etc.

5.optional configuration: medicine wheel, drug pump, tank anti-corrosion rust-proof, multi-directional water joints.
