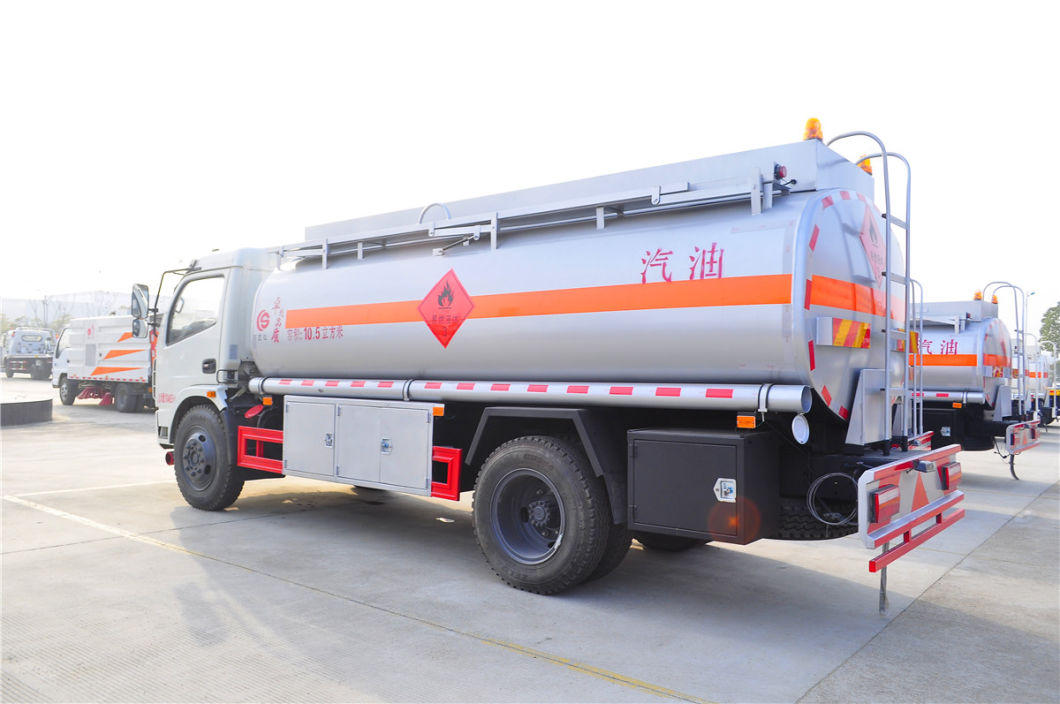

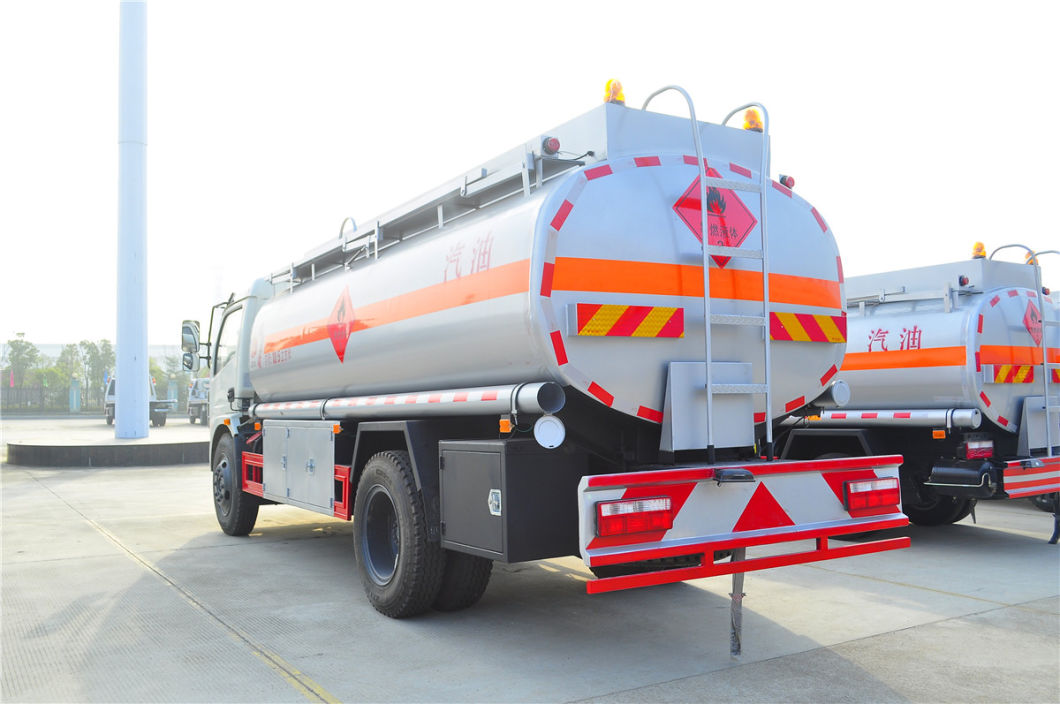

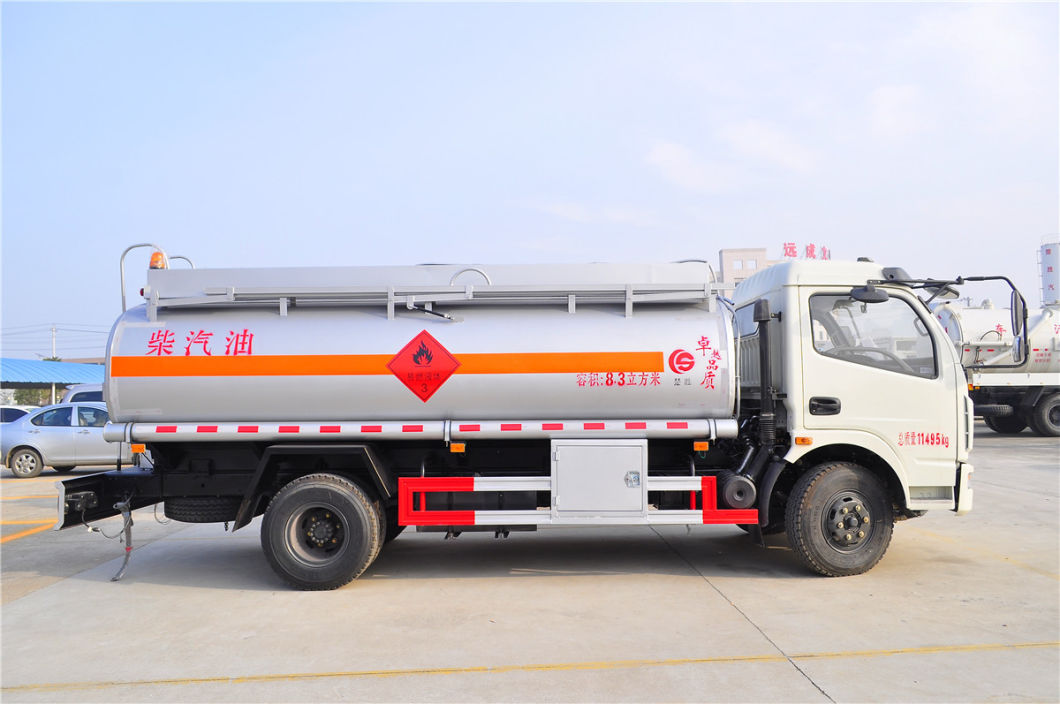

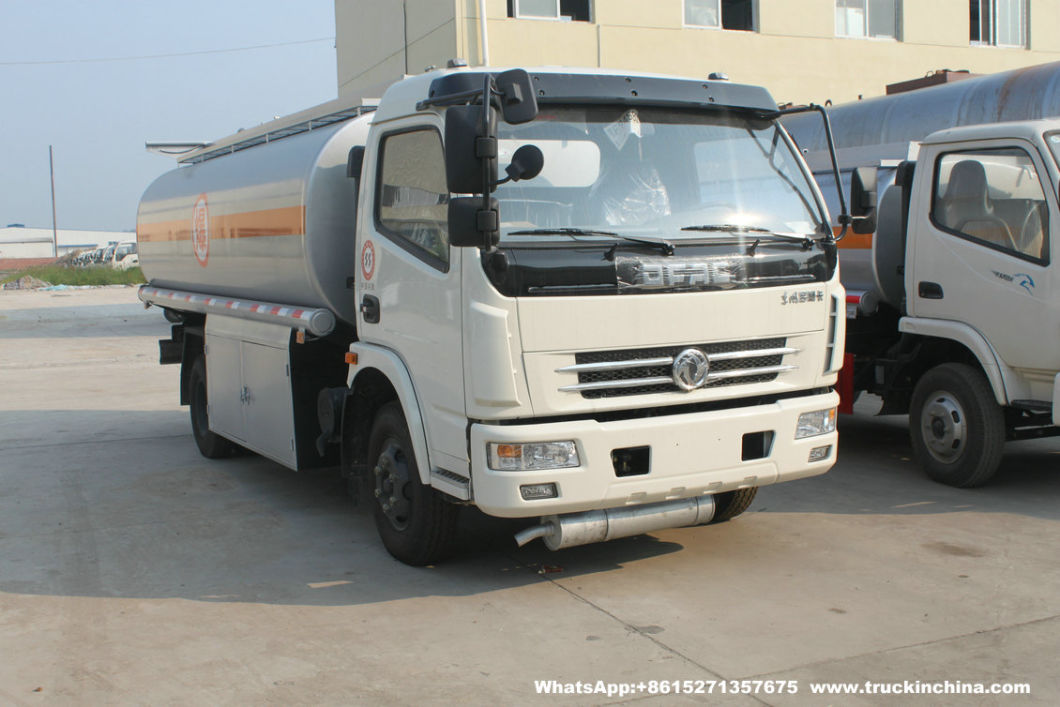

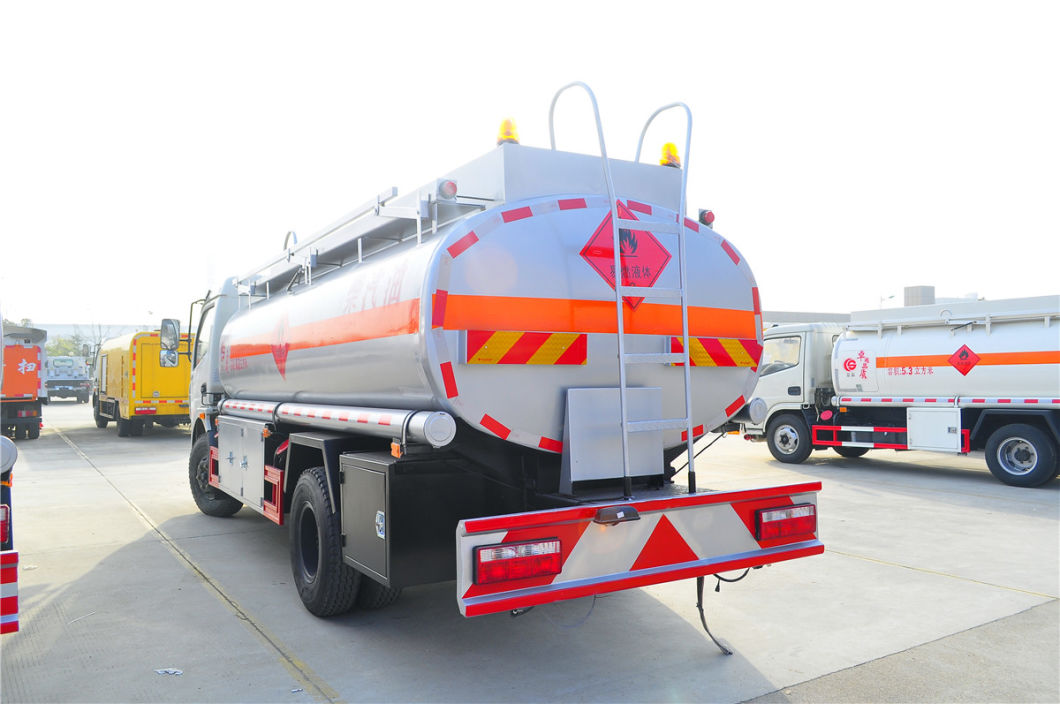

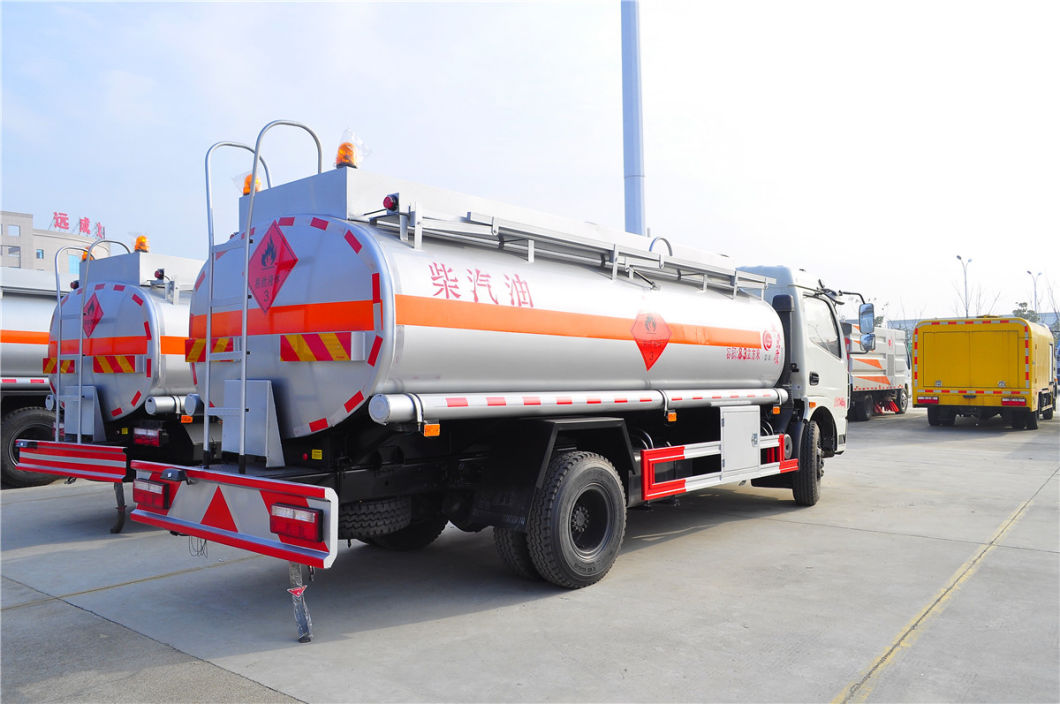

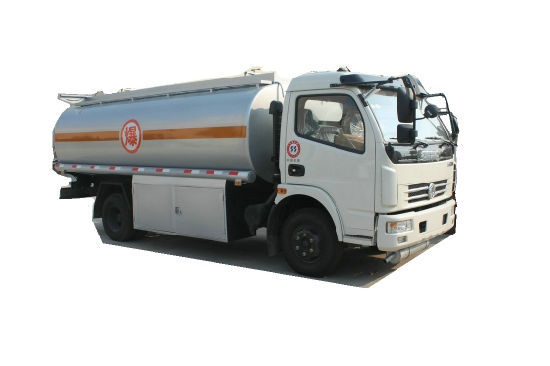

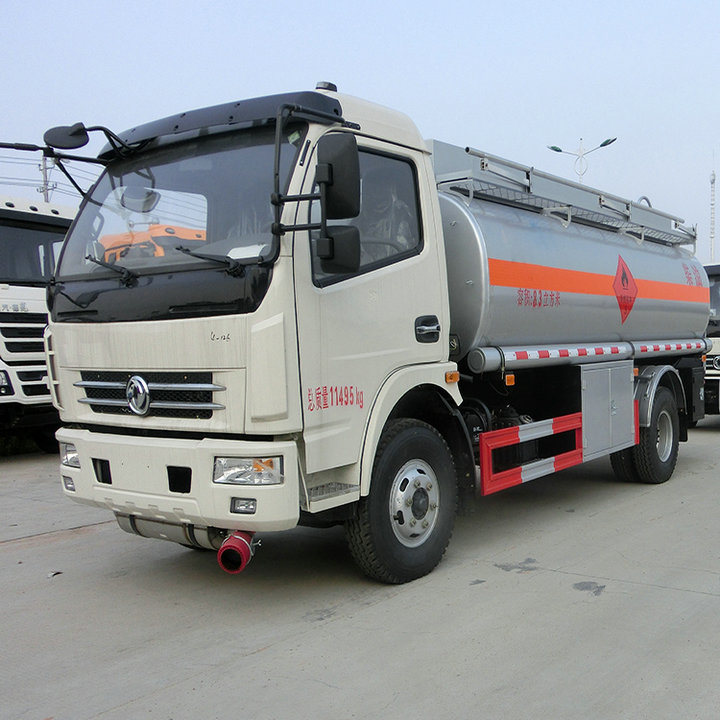

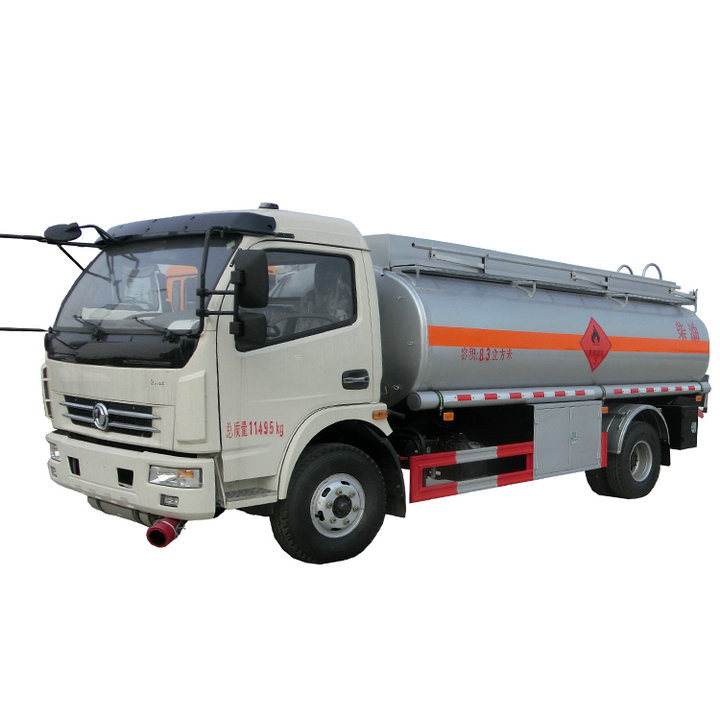

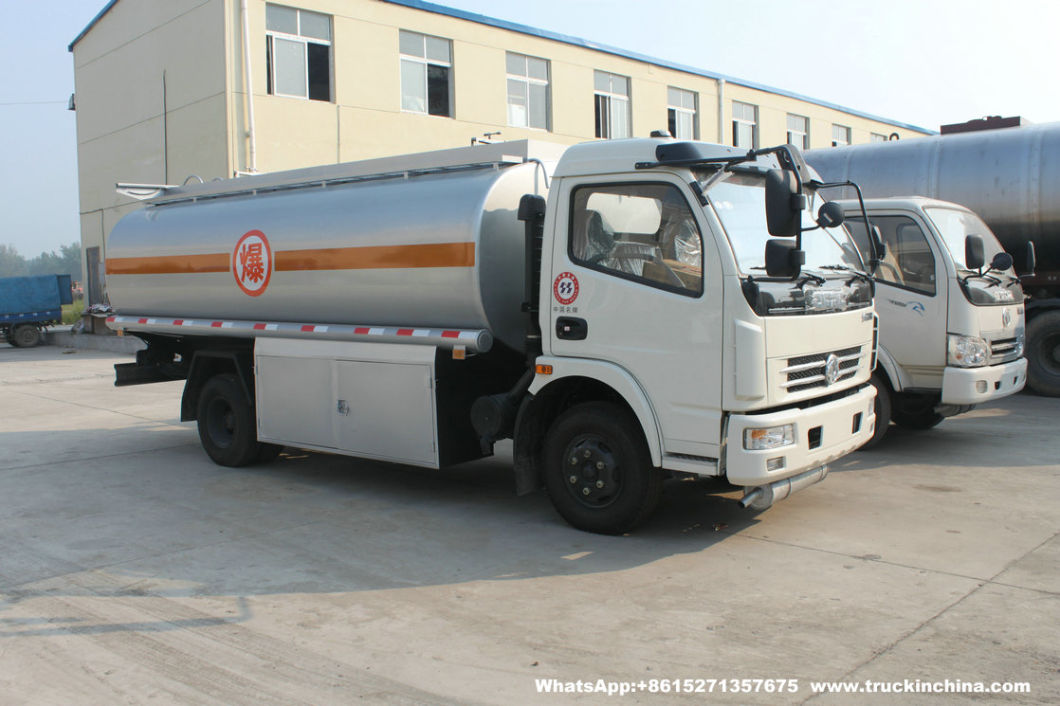

Customizing Refuel Tanker with Oil Pump Fuel Bowser dispenser 6000L
| Quantity: | |
|---|---|
- Shanghai, China
- 10000
- T/T
Customizing Refuel Tanker with Oil Pump Fuel Bowser Dispensor 6000L ( Road Tanker )
Warter Petroleum Oil ,Gasoline, Petrol, Diesel Transportation With PTO Pump
6000L mobile oil refuelling truck
Mobile Gas Station Refuel/Fuel Tanker Truck/ 1200 Gallon Fuel Tank Truck
Dongfeng 4x2 95hp 4 ton 5000L fuel diesel refueler distribution mobile mini fuel tanker trucks
Driving Type: 4*4 / 4*2
Capacity: 4000L, 5000L, 6000L, 8000L..
Steering Wheel: Left Hand Drive and Right Hand Drive
CONTACT US
Website: www.truckinchina.com
Specialize Custom Commercial Vehicle body building - semi trailer, full trailer-Spare parts
Euro 3, Tanker
Material Steel
Thickness of shell 4mm 5mm /6mm / 8mm
Thickness of dish 5mm /6mm / 8mm
Inside baffles 3mm /4mm / 5mm
Compartments 3 to 4 compartments
Volume 5000L to 25000L+ 5% expansion
Tank Top Accessories
Ladders fixed on the front and rear; foldable handrail
Walkway with anti-slip material in the front of reach the manholes,
Not covering the complete length of the tank.
Tank Equipments (all API Standard)
Each compartment is equipped with :
Aluminum Manhole cover 16" or 20"
Aluminum Emergency Bottom valve 3" with Pneumatic switch in locker
Aluminum Spill Valve 3" or 4",
Discharging Nylon hose 6m
Discharge and loading
Gravity discharge,
Top loading. Option: Bottom loading
Electric Installation
Complete 24V system in explosion proof installation

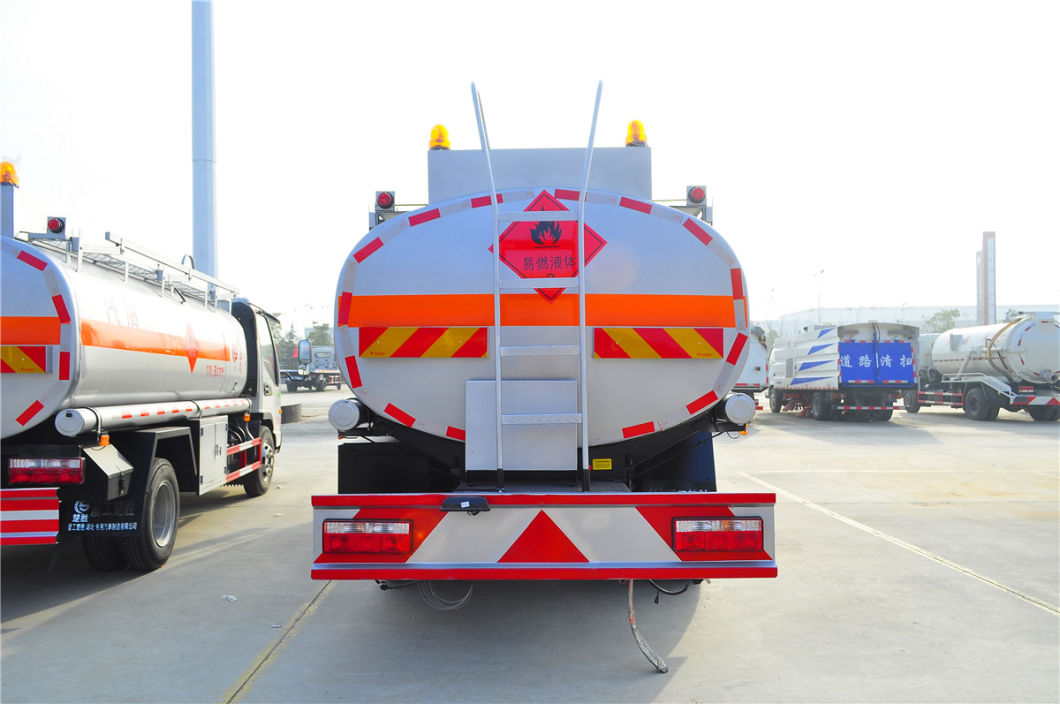

Rear lighting with rear, stop, parking, direction, fog, reverse lights, side lights
Painting
Exterior surface treatment by shot blasting
Painting by high solid primer directly on the surface
Painting inside special paint booth with the cargo cabin color or the color chosen by the customer
Accessories
Side protection, 2 Fire extinguisher, 1 Spare tire carrier.
1 Tool box with standard tools, Heavy duty tail bumper
Fuel truck ,aslo called fuel tanker truck , fuel tank truck for sale , fuel tank truck price , oil tank truck , oil tanker truck ,oil tank truck for sale , new oil tanker truck , disel tanker truck , oil transport truck , fuel truck with dispenser truck , fuel dispensing truck , fuel truck with flow meter , fuel pump truck , fuel truck with dispenser, etc
| Product Technical Specifications | ||||
| Item | Descriptions | Spesifications and Types | ||
| Vehicle | Brand | DRZE | ||
| Overall Dimensions L*W*H | 5990*1960*2400mm | |||
| Weights | GVW. | 6495kgs | ||
| Kurb Weight | 3365kgs | |||
| Rated Payload | 3000kgs | |||
| Chassis | Chassis Brand | Dongfeng | ||
| Drive Type | 4×2 | |||
| Steering | LHD or RHD | |||
| Engine | Brand | Yuchai engine | ||
| Power | 66Kw /95HP | |||
| Emmission Level | EURO 2 or Euro 3 or EURO6 | |||
| Performance | Max. Speed | 80km/h | ||
| Wheel base | 3300 mm | |||
| Tyre Specifications | 7.00-16,6.50-16,7.00R16 | |||
| No. of Tyre | 6 pcs (1 spare tyre included) | |||
| Cab | Cab Capacity | 3 persons allowed | ||
| Body/Superstructure | Tank | Capacity | 3-5m³ | |
| Material | 5mm or 6mm high quality carbon steel | |||
| Loading System | Top filling from manhole or pump fuel into tank from oil inlet valve. | |||
| Discharging System | Pump fuel out from tank or gravity discharge. | |||
| Basic Equipments | Install fuel pump drive by truck engine through PTO; One manhole, two pcs of fuel hoses (3inches) with complete quick connectors, access ladder, tank top anti-slip steel mesh installed, anti-static device, one fire extinguisher, with two corners' lights and reflective tape. | |||
| Paint | Tank color is according to client's requirements. | |||
| Optional Equipments | Air Conditioner | |||
| Bottom loading | ||||

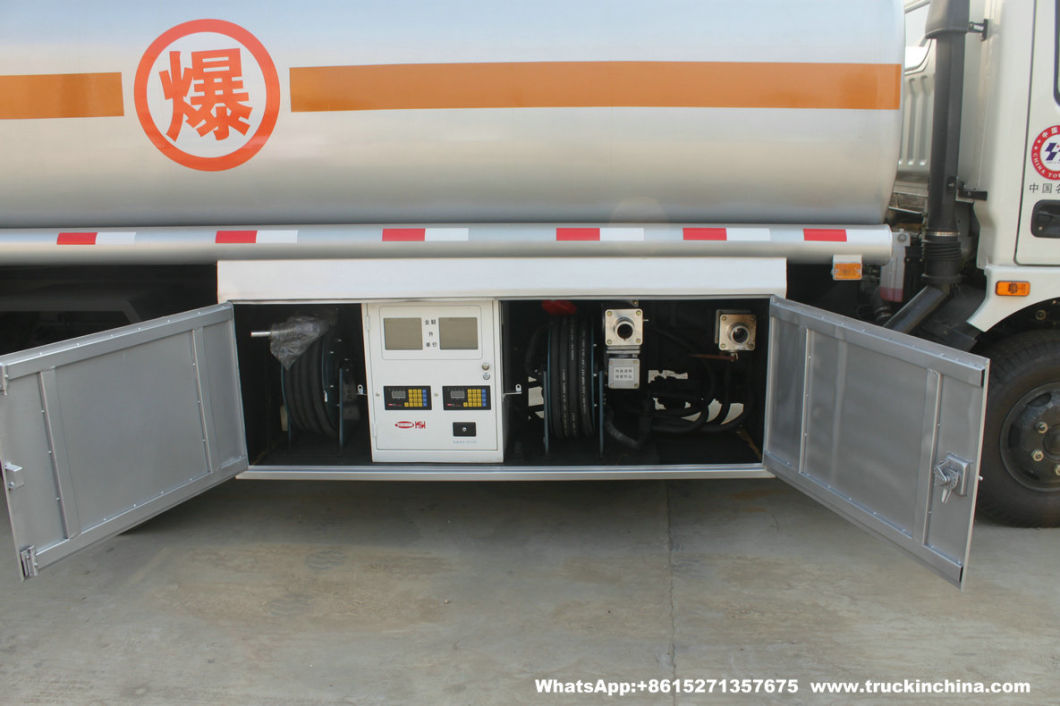

Flow meter, rolling hose with nozzle, emergency valve, compartment number, epoxy coating inside tank and so on. | ||||
2
| Description | DON DONGFENG 5cbm 4X2 Fuel tank Truck | |
| Drive Model | 4X2 | |
| Chassis | EQ1060 | |
| Vehicle Main Dimensions | Dimensions(L x W x H)mm | 5990*1960*2400 |
| Wheel base (mm) | 3300 | |
| Overhang (front/rear) (mm) | 1032/1658 | |
| Wheel track (front/rear) (mm) | 1506/1466 | |
| Approach/Departure angle(°) | 12/18 | |
| Weight in KGS | Curb Weight | 3365 |
| GVW. | 6495 | |
| Max. driving speed(km/h) | 80 | |
| Engine | Model | CY4102-C3F |
| Type | 4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-cooling | |
| Horse Power(HP) | 95HP | |
| Emission standard | Euro III | |
| Gearbox | 5 forwards & 1 reverse | |
| Clutch | Reinforced diaphragm clutch | |
| Steering Gear | Power steering, hydraulic steering with power assistance | |
| Fuel tank (L) | 100 | |
| Tire | 7.00-16 tire , 6 pcs+1 spare tire | |
| UPPER | ||
| Fact cubage | 4-5 | |
| Protective material | Q235 carbon steel | |
| Tank meterial | ||
| Equipment | 1.Equipped with CLW pump .valves and pipes,a set of Fuel Dispenser | |
| 2.Fueling truck equipped with a set of filling unit | ||
| 2.Equipped with a ladder on tank | ||
| 3.It can be design to have several compartments According to your requirements | ||
| 4.Equipped with speed limiter.The speed limit of 80 km/h | ||
| Truck Model | Chassis Model | m³ | Steel lined PE Tank | Steel Tank | Steel lined PE Tank Steel | Stainless Steel tank | Carbon Steel Tank | Aluminium alloy | Medium | ||
| DTA5310GFWD9 TANK TRANSPORTER FOR CORROSIVE ARTICLES | DFL1311A9 | 19.36 | 18.5 | / | 5 | / | / | Sulphuric Acid | |||
| DTA5160GFWLZ TANK TRANSPORTER FOR CORROSIVE ARTICLES | LZ1161RAPAT | 10.5 | 10.5 | 11.56/12 | 5 | 5 | 6 | Ammonia | 8600kg | ||
| DTA5250GFWCA TANK TRANSPORTER FOR CORROSIVE ARTICLES | CA5250GYYP62K1L6T3E4 | 13.13 | 14 | / | 5 | / | / | Hydrochloric Acid | |||
| DTA5311GFWLZ TANK TRANSPORTER FOR CORROSIVE ARTICLES | LZ1311QELAT | 22.73 | 20.5 | / | 5 | / | / | Hydrochloric Acid | 14300kg | ||
| DTA5310GFWC4 TANK TRANSPORTER FOR CORROSIVE ARTICLES | CA5310GYYP66K2L7T4E4 | 19.88 | 22.3 | / | 5 | / | / | Hydrochloric Acid | |||
| DTA5161GFWC4 TANK TRANSPORTER FOR CORROSIVE ARTICLES | CA1167PK2BE4A80 | 8.2 | 8.5 | / | 5 | / | / | Hydrochloric Acid | 7500kg | ||
| DTA5110GFWDF TANK TYPE TRANSPORT VEHICLE FOR CORROSIVE ARTICLES | DFA1110SJ11D3 | 6.1 | 6.1 | / | 5 | / | / | Hydrochloric Acid | 5200kg | ||
| DTA5312GFWCT4 TANK TRANSPORTER FOR CORROSIVE ARTICLES | CA1311P1K2L6T10BE4A80 | 17.7 | 18 | / | 5 | / | / | Hydrochloric Acid | 13260kg | ||
| DTA5311GFWC TANK TRANSPORTER FOR CORROSIVE ARTICLES | CA5310GYYP63K1L6T4E4 | 19.2 | 20.5 | 21.6 | 5 | 5 | 6 | Ammonia | 14630kg | ||
| DTA9400GFWA TANK SEMI-TRAILER FOR CORROSIVE GOODS | 18.83 | 18.5 | 20 | 5 | / | 6 | Sulphuric Acid | 7620kg | |||
| DTA9407GFW TANK SEMI-TRAILER FOR CORROSIVE GOODS | Round tank | 35 | 37 | 39 | 5 | 5 | 6 | Ammonia | 10340kg | ||
| DTA9401GFWC TANK SEMI-TRAILER FOR CORROSIVE GOODS | Round tank | 18.83 | 19.5 | 20.5 | 5 | / | 6 | Sulphuric Acid | 9360kg | ||
| DTA9406GFW TANK SEMI-TRAILER FOR CORROSIVE GOODS | Round tank | 29.5 | 31 | / | 5 | / | / | Hydrochloric Acid | 11380kg | ||
| DTA9401GFWA TANK SEMI-TRAILER FOR CORROSIVE GOODS | Round tank | 19.95 | 22 | 23.5 | 5 | / | 5 | Dilute Sulphuric Acid | |||
| DTA9402GFW TANK SEMI-TRAILER FOR CORROSIVE GOODS | Round tank | 25.67 | 25 | 26.3 | 5 | 5 | 6 | Caustic Soda | |||
| DTA9403GFW TANK SEMI-TRAILER FOR CORROSIVE GOODS | Round tank | 27.84 | 27.8 | / | / | / | 5 | Hydrochloric Acid | |||
| DTA9400GFW TANK SEMI-TRAILER FOR CORROSIVE GOODS | Round tank | 19.98 | 18 | 20 | 5 | / | 6 | Dilute Sulphuric Acid | 7620kg | ||
| DTA9350GFW TANK SEMI-TRAILER FOR CORROSIVE GOODS | Round tank | 23.82 | 23 | / | 5 | / | / | Hydrochloric Acid | |||
| DTA5310GRYL4 FLAMMABLE LIQUID TANK TRUCK | LZ1311QELAT | 23.78 | / | 28.6 | / | 5 | 6 | Diesel Oil | 12200kg | ||
| DTA5310GRYD10 FLAMMABLE LIQUID TANK TRUCK | DFL1311A10 | 29.15 | / | 30 | / | 5 | 6 | Hexane | |||
| DTA5310GRYD9 FLAMMABLE LIQUID TANK TRUCK | DFL1311A9 | 29.15 | / | 30 | / | 5 | 6 | Hexane | |||
| DTA5310GRYC4 FLAMMABLE LIQUID TANK TRUCK | CA5310GYYP63K2L6T4E4 | 29.25 | / | 29.5 | / | 5 | 6 | Hexane | |||
| DTA5311GRYC4 FLAMMABLE LIQUID TANK TRUCK | CA5310GYYP66K2L7T4E4 | 28.46 | / | 29.5 | / | 5 | 6 | Hexane | |||
| DTA5160GRYB4 FLAMMABLE LIQUID TANK TRUCK | BJ5163GYY-AB | 13.44 | / | 14.5 | / | 4 | 5 | Hexane | |||
| DTA5250GRYBH4 FLAMMABLE LIQUID TANK TRUCK | BJ5253GYY-XA | 25.3 | / | 25 | / | 5 | 6 | Hexane | |||
| DTA5160GRYD5 FLAMMABLE LIQUID TANK TRUCK | DFL1160BX5 | 14.22 | / | 17/17/15.13 | / | 4 | 5 | Hexane | |||
| DTA5160GRYE4 FLAMMABLE LIQUID TANK TRUCK | EQ1168GLJ3 | 15 | / | 15.7/16.4/16.7 | / | 4 | 5 | Hexane | |||
| DTA5310GRYB4 FLAMMABLE LIQUID TANK TRUCK | BJ5317GYY-XB | 28.45 | / | 29.8 | / | 5 | 6 | Hexane | |||
| DTA5251GRYC4P62 FLAMMABLE LIQUID TANK TRUCK | CA5250GYYP62K1L6T3E4 | 17.09 | 19.7 | / | 4 | 5 | Butyl Acetate | 10420kg | |||
| DTA5311GRYYBJ4 FLAMMABLE LIQUID TANK TRUCK | BJ5312GYY-XB | 21 | 21.7 | / | 4 | 5 | Butyl Acetate | 12800kg | |||
| DTA9390GRY FLAMMABLE LIQUID TANK SEMI-TRAILER | 41.34 | / | 44.5 | / | 5 | 6 | Alcohol | ||||
| DTA9401GRY FLAMMABLE LIQUID TANK SEMI-TRAILER | 45.25 | / | 43.5 | / | 5 | 6 | Ethanol | ||||
| DTA9402GRY FLAMMABLE LIQUID TANK SEMI-TRAILER | 40.18 | / | 47.5 | / | 5 | 6 | Butanol | ||||
| DTA9403GRYB FLAMMABLE LIQUID TANK SEMI-TRAILER | (Whatsapp/ Weichat +86152 71357675) | 45 | / | 44.5 | / | 5 | 6 | Butyl Ether | 8820kg | ||
| DTA9401GRYD FLAMMABLE LIQUID TANK SEMI-TRAILER | 42.6 | / | 40.5 | / | 5 | 6 | Methanol | ||||
| DTA9402GRYA ALUMINUM ALLOY FLAMMABLE LIQUID TANK SEMI-TRAILER | 42.39 | / | 47.8 | / | / | / | 9 | Methanol | |||
| DTA9406GRY ALUMINUM ALLOY FLAMMABLE LIQUID TANK SEMI-TRAILER | 47.67 | / | 47.67 | / | / | / | 6 | Butyl Ether | |||
| DTA9351GRY ALUMINUM ALLOY FLAMMABLE LIQUID TANK SEMI-TRAILER | Round tank | 36.87 | / | 36.5 | / | / | / | 9 | Methanol | ||
| DTA9405GRYA ALUMINUM ALLOY FLAMMABLE LIQUID TANK SEMI-TRAILER | Announcement needs to be changed | 46 | / | 47.3 | / | / | / | 6 | Butyl Ether | ||
| DTA9401GYYC ALUMINUM ALLOY OIL SEMI-TRAILER | 42 | / | 47 | / | / | / | 6 | Diesel Oil | 6800kg | ||
| DTA9401GRYA ALUMINUM ALLOY FLAMMABLE LIQUID TANK SEMI-TRAILER | sample vehicle | 42 | / | 42 | / | / | / | 8 | Methanol | 7280kg | |
| DTA9351GYY ALUMINUM ALLOY OIL SEMI-TRAILER | 43.5 | / | 39.9 | / | / | / | 6 | Gasoline | |||
| DTA9401GYYB TYPE ALUMINUM ALLOY OIL SEMI-TRAILER | 47.5 | / | 49 | / | / | / | 6 | Gasoline | |||
| DTA9400GSY ALUMINUM ALLOY EDIBLE OIL TRANSPORTATION SEMI-TRAILER | 43.8 | / | 43.5 | / | / | / | 6 | Edible Oil | |||
| DTA5310GYYS4 ALUMINUM ALLOY TANKER | SQR1311D5T6-E1 | 28.2 | / | 30 | / | / | / | 6 | Gasoline | ||
| DTA9400GYW TYPE TANK SEMI-TRAILER FOR OXIDIZING GOODS TRANSPORTATION | 27.3 | / | 32.5 | / | 6 | / | / | Liquid Ammonium Nitrate | 11650kg | ||
| DTA9401GHY CHEMICAL LIQUID TRANSPORTATION SEMI-TRAILER | Round tank | 42 | / | 43.5 | / | 5 | 6 | Methanol | |||
| DTA9402GY CHEMICAL LIQUID TRANSPORTATION SEMI-TRAILER | Round tank | 21.99 | 20 | 21.7 | 5 | / | 6 | Sodium Hydroxide | |||
| DTA9405GHY CHEMICAL LIQUID TRANSPORTATION SEMI-TRAILER | 45.73 | / | 43.2 | / | 5 | 6 | Sec-Butylamine | ||||
| DTA9406GHY CHEMICAL LIQUID TRANSPORTATION SEMI-TRAILER | 49.89 | / | 55.1 | / | 5 | 6 | Hexane | ||||
| DTA9403GHY CHEMICAL LIQUID TRANSPORTATION SEMI-TRAILER | Round tank | 39.37 | / | 39.5 | / | 5 | 6 | Methanol | |||
| DTA9407GY CHEMICAL LIQUID TRANSPORTATION SEMI-TRAILER | 33 | 33 | / | 5 | / | / | Diluted Hydrochloric Acid | ||||
| DTA5251GHYDD CHEMICAL LIQUID TRANSPORT VEHICLE | DFL1250A11 | 21.45 | / | 22 | / | 5 | 6 | Xylene | |||
| DTA9400GYY OIL SEMI-TRAILER | 47.7 | / | 51.5 | / | 5 | 6 | Gasoline | ||||
| DTA5251GYYDD TANKER | DFL1250A11 | 21.6 | / | 20.5 | / | 5 | 6 | Gasoline | |||
| DTA5310GFWD9 TANK TRANSPORTER FOR CORROSIVE ARTICLES | CA5250GYYP62K1L6T3E4 | 22.5 | / | 22/21.7 | / | 5 | 6 | Gasoline | |||
| DTA5160GFWLZ TANK TRANSPORTER FOR CORROSIVE ARTICLES | DFL1311A10 | 27.65 | / | 29.6 | / | 5 | 6 | Gasoline | |||
| DTA5250GFWCA TANK TRANSPORTER FOR CORROSIVE ARTICLES | CA5310GYYP63K2L6T4E4 | 28.5 | / | 30.4 | / | 5 | 6 | Gasoline | |||
| DTA5311GFWLZ TANK TRANSPORTER FOR CORROSIVE ARTICLES | EQ1168GLJ3 | 14.24 | / | 15.7/16.3/16.6 | / | 4 | 6 | Gasoline | |||
| DTA5310GFWC4 TANK TRANSPORTER FOR CORROSIVE ARTICLES | EQ1070 | 4.8 | / | 7 | / | 4 | 5 | Gasoline | 4270kg | ||
| DTA5161GFWC4 TANK TRANSPORTER FOR CORROSIVE ARTICLES | Round tank | 29.9 | 31.5 | 33 | 5 | 6 | 6 | Sodium Hydroxide | |||
| DTA5110GFWDF TANK TYPE TRANSPORT VEHICLE FOR CORROSIVE ARTICLES | 34.26 | / | 38.7 | / | 5 | 6 | Glycol | ||||
| DTA5312GFWCT4 TANK TRANSPORTER FOR CORROSIVE ARTICLES | 31.5 | 33 | 36 | 5 | 5 | 6 | Water | ||||
| DTA5311GFWC TANK TRANSPORTER FOR CORROSIVE ARTICLES | Round tank | 38.39 | / | 39 | / | 5 | 6 | Methanol Formaldehyde, | |||
| DTA9400GFWA TANK SEMI-TRAILER FOR CORROSIVE GOODS | Round tank | 28.8 | 31.5 | 33 | 5 | 5 | / | Hydrogen Peroxide Solution | |||
