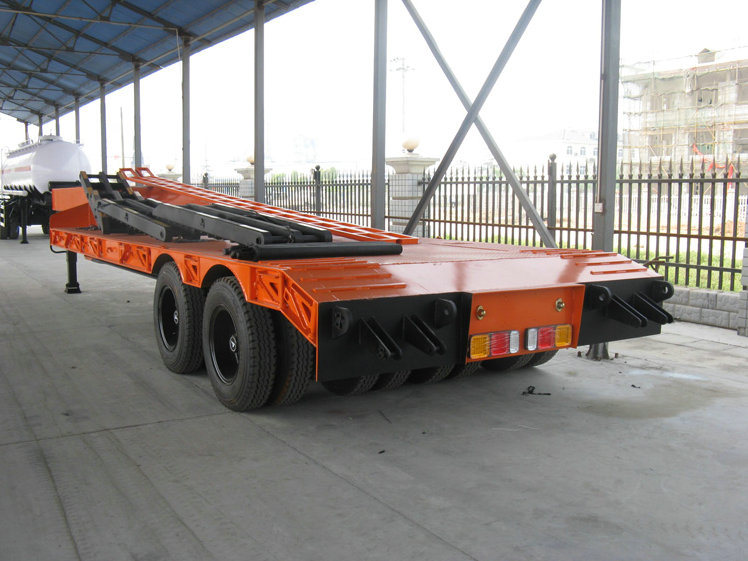

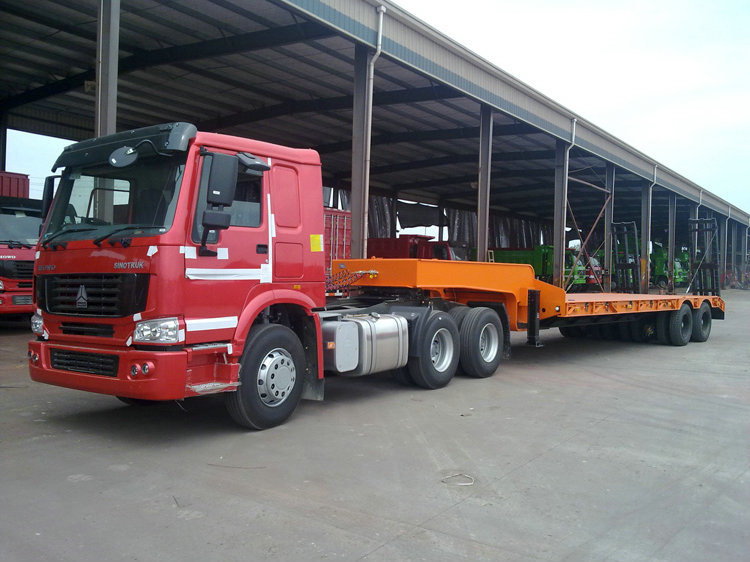

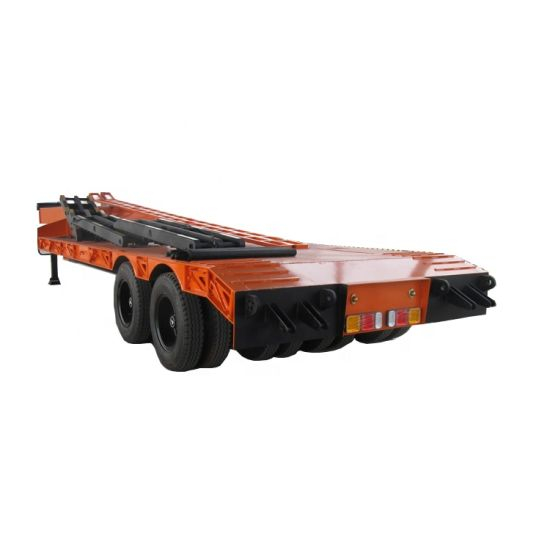

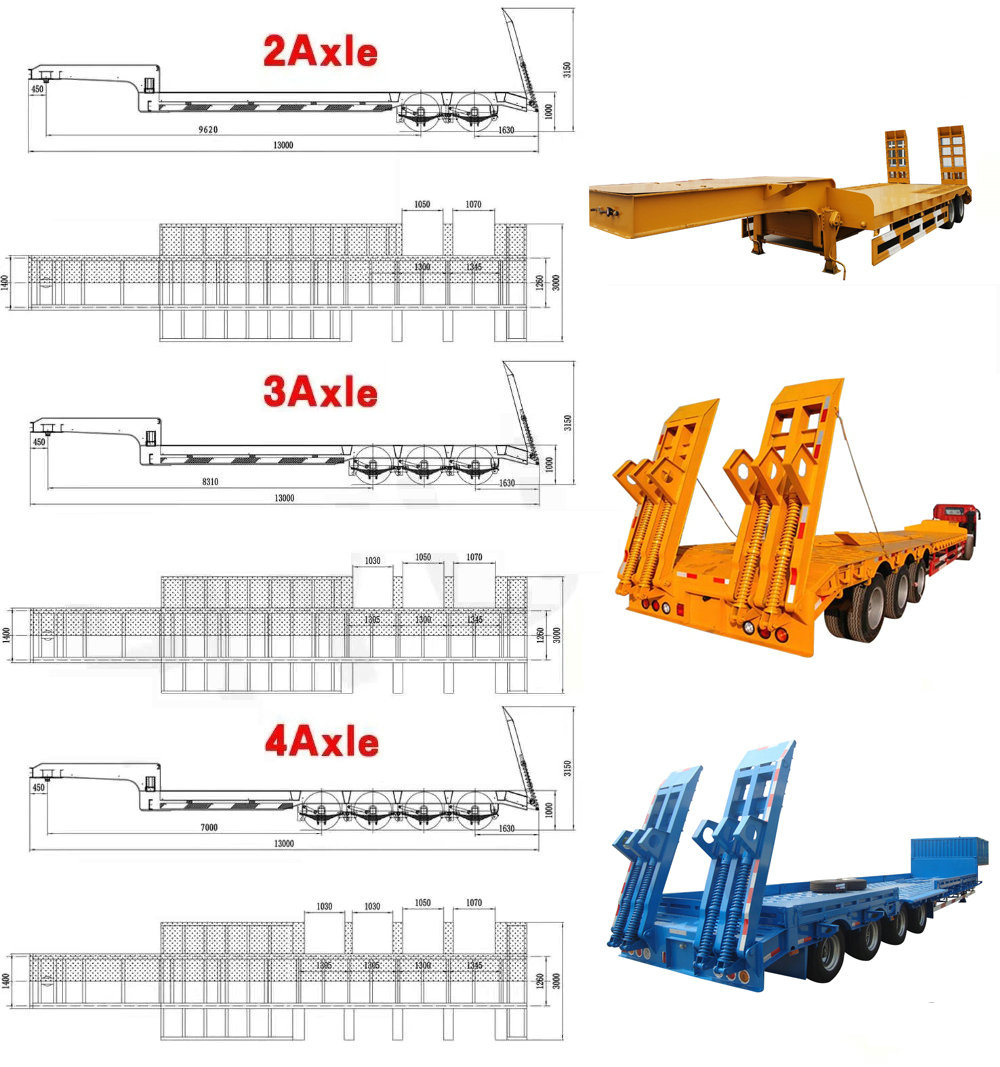

Customizing 4 Axles Low Bed Semi Trailer (80ton-150ton Lowboy Semi Trailer)
| Quantity: | |
|---|---|
- Shanghai, China
- 200sets Per Month
- T/T, Western Union
Customizing 4 Axles Low Bed Semi Trailer (80ton-150ton Lowboy Semi Trailer) Heavy Haul Equipment Trailer
Hydraulic Modular Trailers, Multi Axle Trailer 80T- 250T

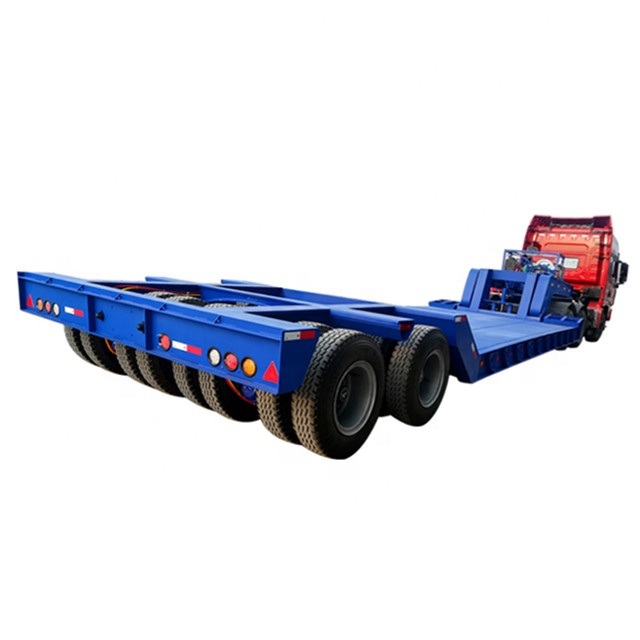

Multi Axle Steering Axle Low Bed Trailer

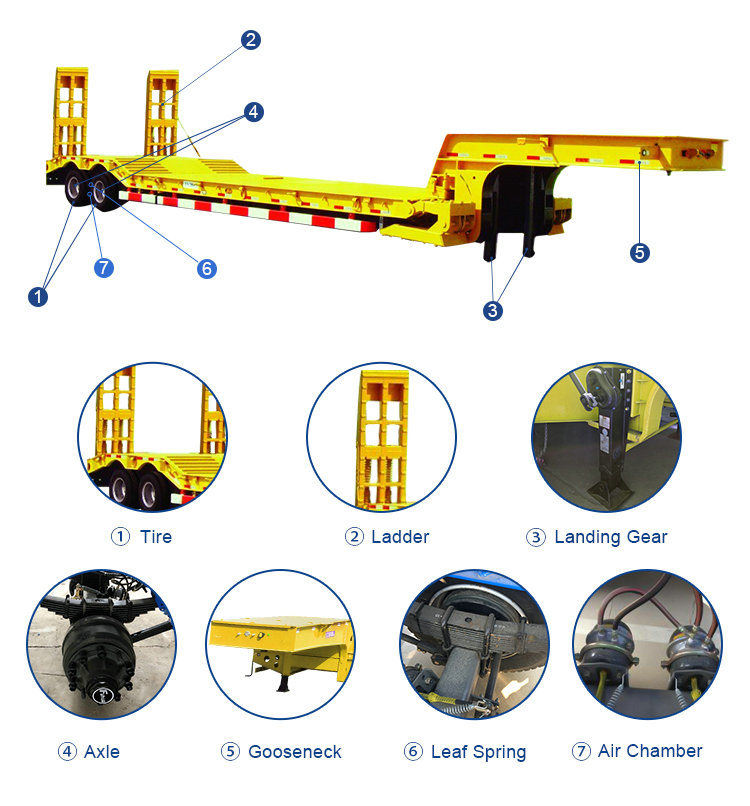

| DIMENSION | |||
| Tare Weight | 12500kgs | ||
| Payload | 80Tons | ||
| Overall dimension | 14000x2500x1700mm | ||
| Chasis | Heavy duty and extra durability design I beam, opting for high tensile steel Q345B, welded by automatic submerged arc processes. Top flange 18mm, width 140mm, middle flange 810mm, bottom flange 20mm, width 140mm | ||

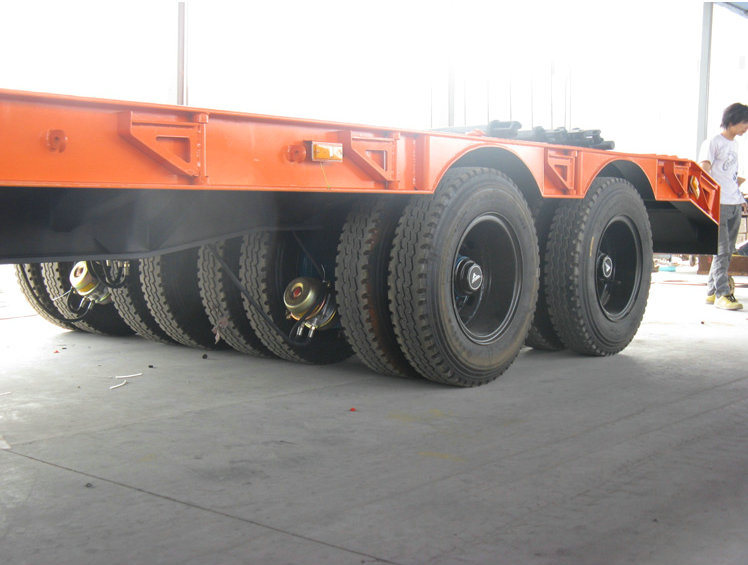

| Axle | Anqiao axle, 2 axle in line, 4 axle in total | ||
| Suspension | Mechanical suspension | ||
| Floor | 3mm checked plate | ||

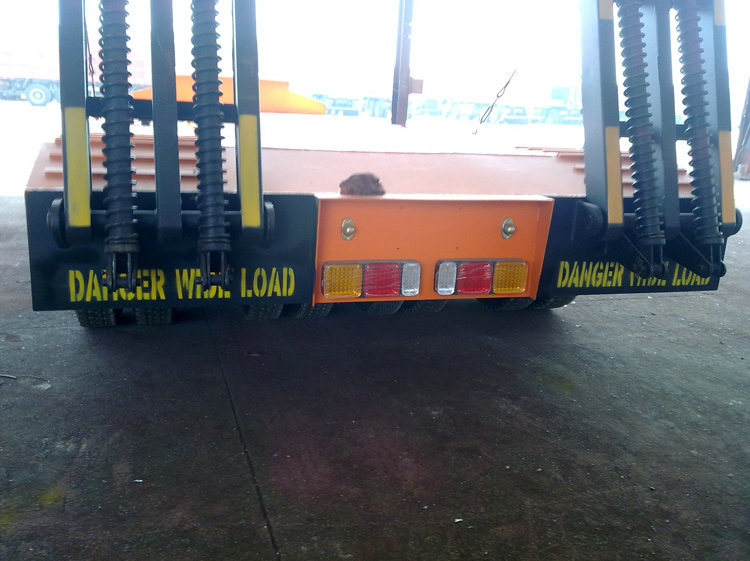

| Ramp | Mechanical ramp | ||
| King PIn | 2 inches | ||
| Landing Gear | JOST landing gear | ||
| Wheel Rim | 8.25R22.5 steel wheel rim | ||
| Tire | 11R22.5 tubeless tire | ||
| Spare Tire | One set of spare tire including a carrier | ||
| Braking System | WABCO RE 6 relay valve, spring brake chamber | ||
| Painting | Complete sand blasting to clean rust, one coat of prime painting, 2 coats of final paint Color in Red, Blue | ||
| Accessories | One standard tool box | ||
Hydraulic platform Multi-Axles trailer
Hydraulic platform Multi-Axles trailer are mainly used in transporting large and heavy loads, bridge, tunnel engineering ,power engineering, petrochemical engineering and railway construction. Transportation oversize and over weight freights that split apart series hydraulic full trailer that can be assembled into weight from 45 tons to 2200 tons of various series.
We use advanced manufacture technology,make automatic submerged-arc welding for vertical beam,uses shot blasting treatment for integral frame,removes welding stress effectively,uses advanced fixture and technology during the whole production process,and ensure formation and assembly accuracy of work pieces
Customize Truck
3 Axle Low Loader Trailer, 60Ton Low Bed Semi-trailer, 60Ton Low Loader Trailer ,3 Axle Low Bed Trailer, Low Loader Trailer, 80 Ton Low Loader Trailer, Bulldozer Low Loader Trailer, Tri Axle Low Bed Trailer
Customization, Cost and Control Built How You Want it, at a Price You Can Afford.
DOLLY Tanker, Fuel Tanker's Pup Trailer,Pup Trailer Tankers, FULL trailer, pup trailer, Tank Dolly, Tank Dolly trailer Drawbar Fulltowing Trailer Trailer Dolly for Sale
4/6/9/10/12 Wheels Mini Dump Drawbar Full Towing Dolly Trailer
