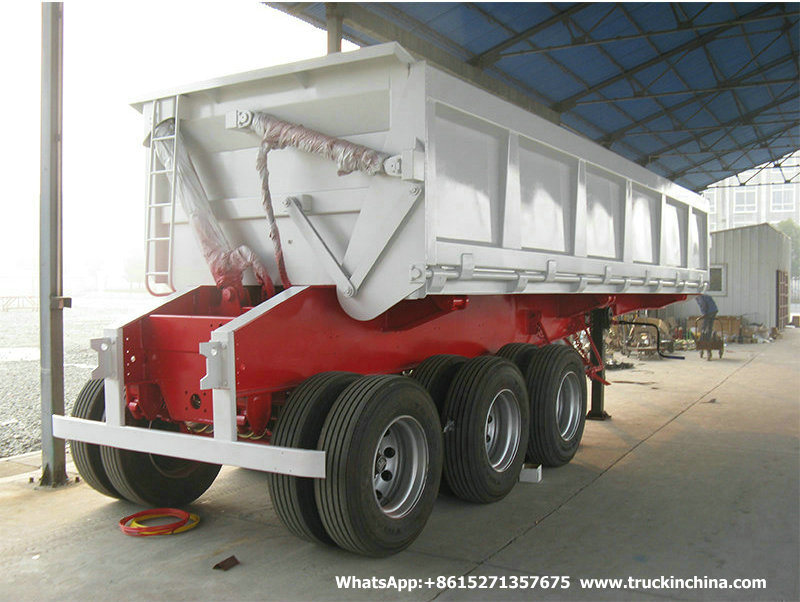

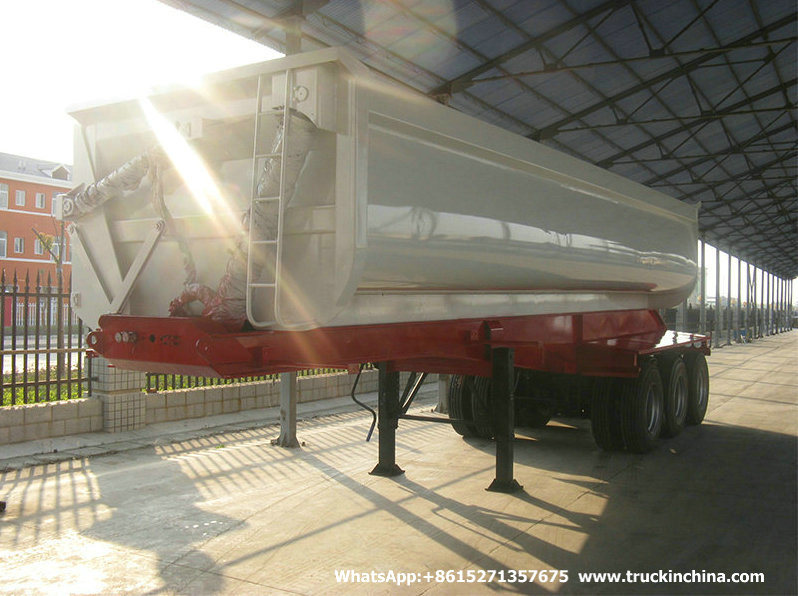

Customizing 22cbm 3 Axle Side Tipper Trailer (BPW Axles U-shape)

Customizing 22cbm 3 Axle Side Tipper Trailer (BPW Axles U-shape)

Quantity:
  • Shanghai, China
  • 200sets Per Month
  • T/T

 Heavy Duty Customizing 22CBM 3 Axle Side Tipper Trailer ( BPW Axles U-shape )

Customizing 22cbm 3 Axle Side Tipper Trailer (BPW Axles U-shape)

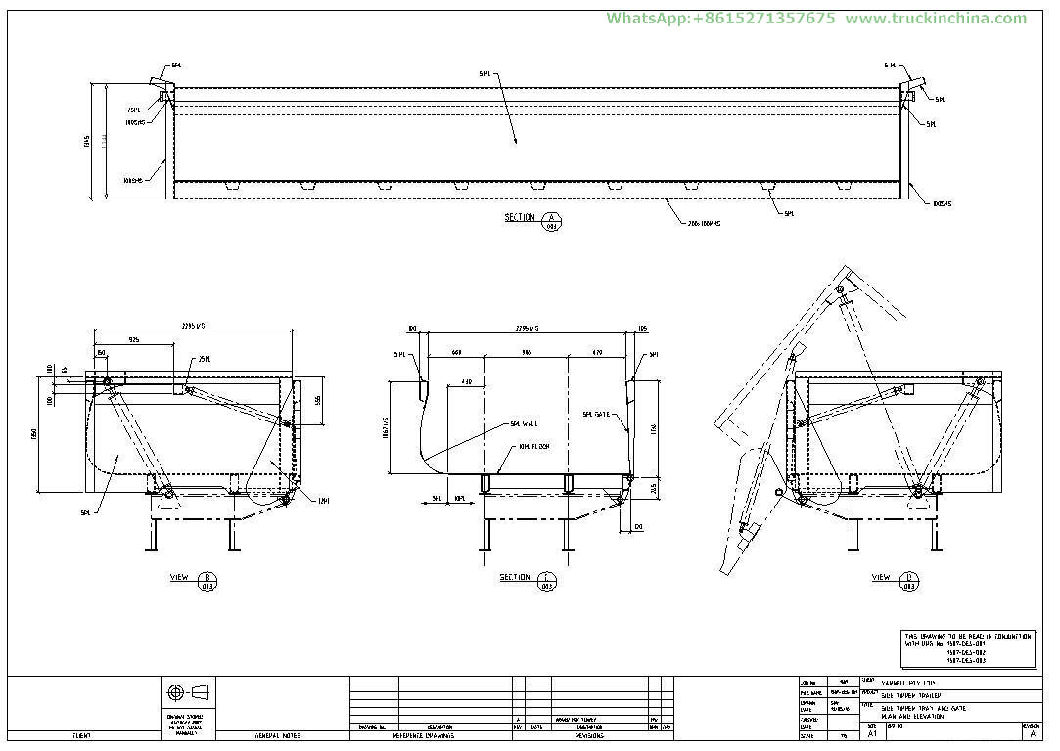

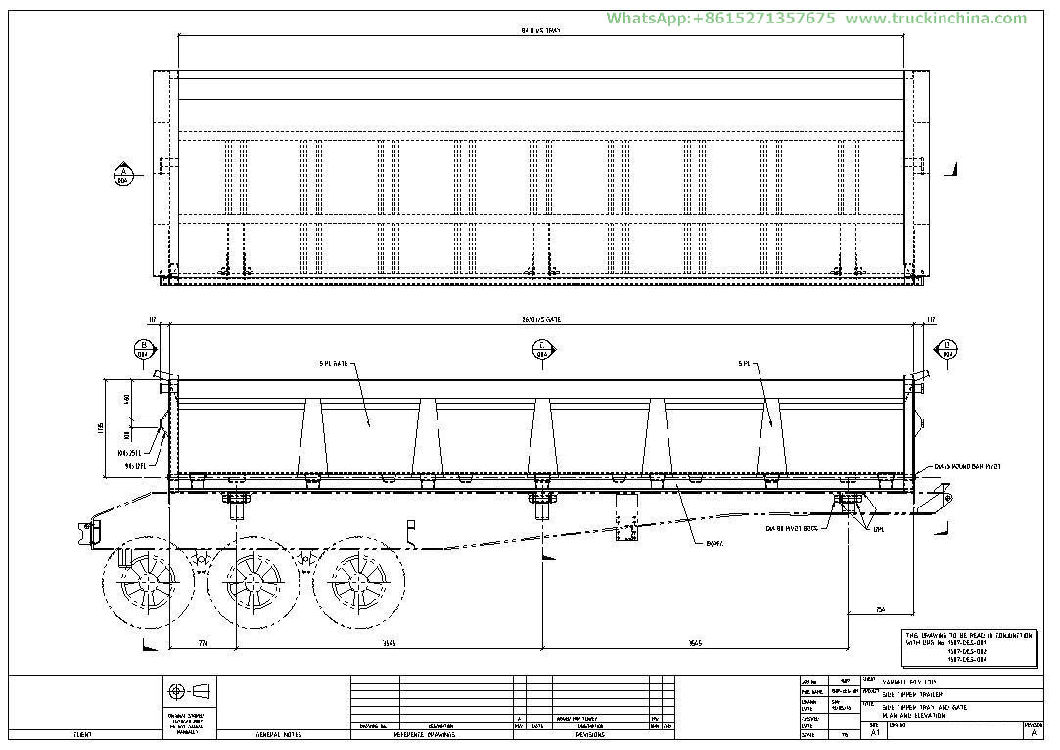

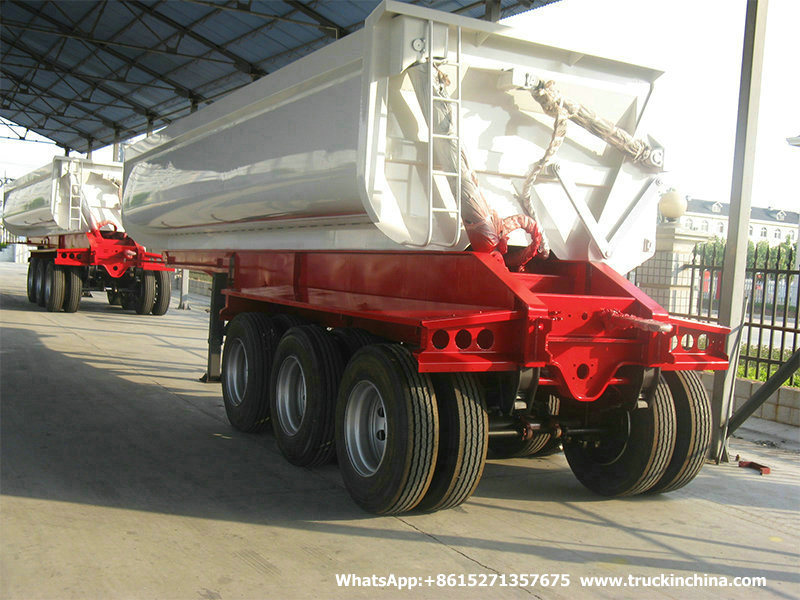

U shape 3 axles side dump semi trailer draw
Customizing 22cbm 3 Axle Side Tipper Trailer (BPW Axles U-shape)
Customizing 22cbm 3 Axle Side Tipper Trailer (BPW Axles U-shape)
Customizing 22cbm 3 Axle Side Tipper Trailer (BPW Axles U-shape)

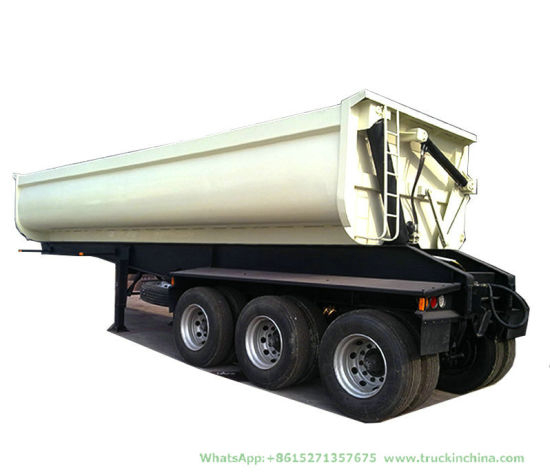

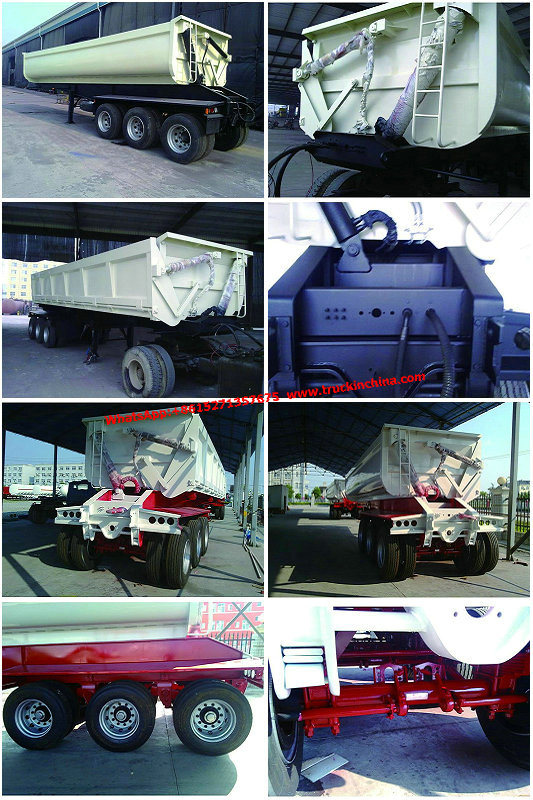

U shape 3 axles side dump semi trailer
Customizing 22cbm 3 Axle Side Tipper Trailer (BPW Axles U-shape)
Customizing 22cbm 3 Axle Side Tipper Trailer (BPW Axles U-shape)
Customizing 22cbm 3 Axle Side Tipper Trailer (BPW Axles U-shape)Customizing 22cbm 3 Axle Side Tipper Trailer (BPW Axles U-shape)

22CBM 3 Axle Side Tipper Trailer


1.Side tipper trailer widely used is Australia

2.3 axle trailer with mechanical suspension or air bag suspension.

3.U shape tipper trailer for easy dumping, less remains in the corner.

4.For construction material, mining, gravel transport


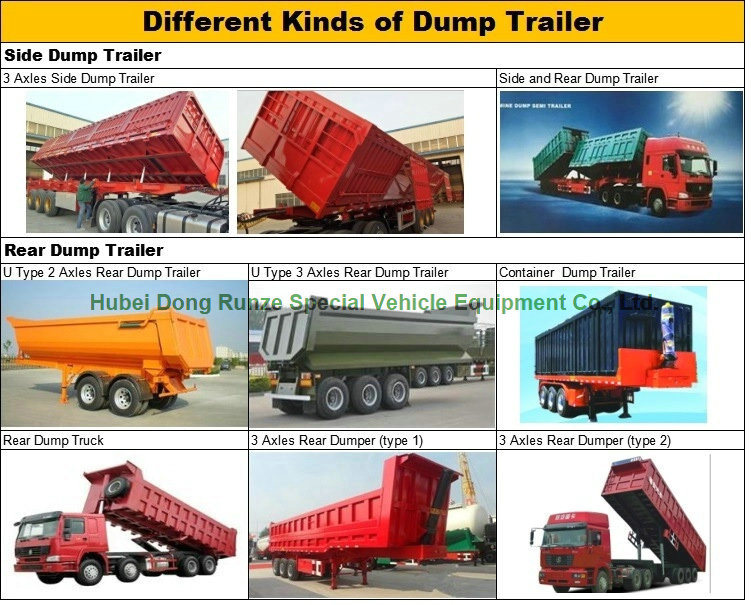

Application of 22CBM 3 Axle Side Tipper Trailer

The tipper trailer generally transports bulk cargoes and materials. There are many types of tipper trailer. According to the hydraulic system, there are front tipping system, side tipping system, which make the tipper dumping in different direction. According to the tipper box shape, there are square shape and U shape. According to the no. of axles, there are 2 axle, 3 axle, 4 axle, 5 axle or 6 axle trailer. According to the payload, there are 30Tons, 40Tons, 60Ton or even 100Tons for your option.


Advantages of 22CBM 3 Axle Side Tipper Trailer


• Stable Lifting

The hydraulic lifting system consists of the hydraulic fuel tank, hydraulic pipes, multi-way valves and hydraulic cylinder. The side hydraulic cylinder will first open the side gate, the middle hydraulic cylinder will then lift and tip the box to the side for discharging and dumping.


• B Double Trailer

This tipper trailer could be designed as B trailer to couple with A trailer for road train. It is popular in Australia and America which allow the driving of road train.


Specifications:


Dimensions
Tare Weight 9500KGS
Payload 40000KGS
Overall Length 10000mm
Overall Width 2480mm
Dumper Body
Type Side tipping type
Volume 22CBM
Body Sheet 6-8mm steel sheet
Main Parameters
Chassis

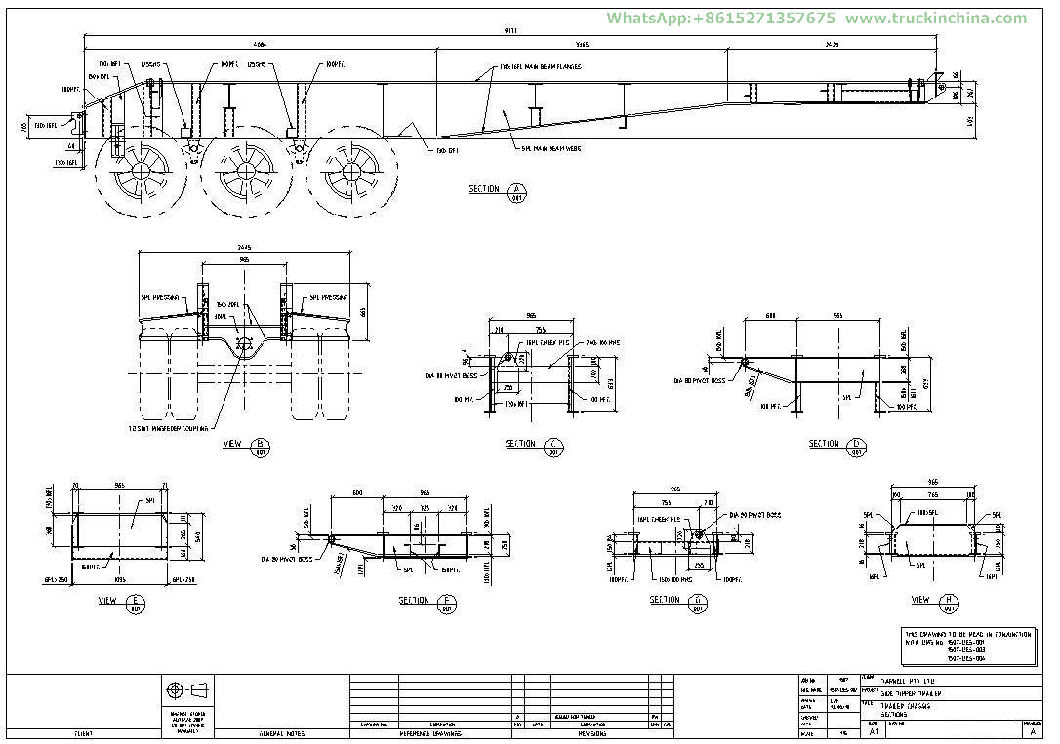

Heavy duty and extra durability designed I beam;

Opting for high tensile steel Q345B;

Welded by automatic submerged-arc processes;

Top Flange: 14mm Width: 140mm;

Middle Flange: 6mm;

Bottom Flange: 16mm Width: 140mm;

Axle 3 axles
Brand Name: BPW, L1 or FUWA
Suspension Mechanical suspension or air suspension
Spring Leaf spring or air bag
King Pin JOST brand 2" Bolt-in
Landing Gear JOST brand Two-speed, manual operating
Wheel Rim 8.5-20, 9.0-20, 8.25-22.5, 9.0-22.5
Tyre 11.00R20, 12.00R20, 11R22.5, 12R22.5, 315/80R22.5
Spare Tire One set of spare tire including a carrier
Braking System

WABCO RE 6 relay valve;

T30/30+T30 Spring brake chamber;

40L air tanks

Painting

Complete chassis sand blasting to clean rust;

1 coat of anticorrosive prime;

2 coats of final paint

Accessories One standard tool box








Customizing 22cbm 3 Axle Side Tipper Trailer (BPW Axles U-shape)
Customizing 22cbm 3 Axle Side Tipper Trailer (BPW Axles U-shape)
Customizing 22cbm 3 Axle Side Tipper Trailer (BPW Axles U-shape)




Customization, Cost and Control Built How You Want it,
at a Price You Can Afford. for sale       5 / 6 AXLES TRAILER TIPPER SPECIFICATION
MODEL    DRZ9905    DRZ9906
Description     5 AXLES TRAILER TIPPER TRAILER TIPPER  BUCKET SIZE 10.986*2.4*1.7M   VOLUM 44.8M3     6 AXLES TRAILER TIPPER  TRAILER TIPPER BUCKET SIZE 10.986*2.4*1.7M VOLUM 44.8M3
Loading Capacity     80TON    80TON-100TON
Axle    5 AXLES FRONT 2 *13TON AXLES LIFTABLE + 3*16T AXLES WITH DUTY SPRING SUSPENSION       6 AXLES   FRONT 3 *13TON AXLES LIFTABLE + 3*16T AXLES WITH DUTY SPRING SUSPENSION
Tyre     4 pieces   385/65R22.5 ;           12 pieces  12.00R20    6 pieces   385/65R22.5 ;                       12 pieces  12.00R20
Dimensions(LxWxH)     12000mm x 2500 x 3800mm
Tare weight    16 tons  /  17 tons
Axle spacing     +1310mm+1310mm+1310mm; +1310mm+1310mm+1310mm+1310mm;
Rims    11.75/22.5, 8.5-20
Suspension System     2/3 air bag suspension + 3 sets 9/9/9/ spring suspension
CONTACT US
Website:  www.truckinchina.com
Tech 1.
We have well experienced in reseaching and developing different trailers: Container trailer, Low bed trailer, Side wall semi trailer, Stake semi trailer, Tank trailer, Dump trailer, Car carrier trailer,Van trailer, Extendable trailer, Modular trailer, Special trailer and Heavy duty trailer etc  Road you success business!
Outside dimension(mm)
Length:13000, width:2500   height:2850
Inside dimension(mm)
Length:12850, width:2320   height:600
Gross weight(kg)40000
Tare weight(kg)8500
Loading capacity(kg)31500
Axles3 pieces,13T/piece, Fuwa brand or BPW brand

Tech 2.


Technical Parameters

DIMENSIONS&KGS
Tare weight 12000kg
Payload 45000kg
Overall length 10400mm
Overall width 2550mm
Overall height 2800mm
CHASSIS SPECIFICATIONS
Chassis

high tensile steel with light weigth design beam;

welded by automatic Submerged-Arc processes.

Top Flange 18mm;width 140mm;Middle Flange 6mm;Bottom Flange 20mm,width 140mm

Axle BPW or FUWA or L1 or HJ optional
Suspension Mechanical suspension or air suspension optional upon choice
Leaf spring 8 pieces leaf spring
King pin JOST brand 2'' bolt-in king pin
Landing gear JOST brand two speed manual operation, heavy duty landing gear
Wheel rim 8.5-20, 8.25-22.5, 9.0-22.5 optional
Tire 11.00-20, 8.25R15, 9.0-22.5 optional
Spare tire one set of spare tire including a carrier
Braking system WABCO 6 relay valve, T30/30 spring brake chamber; 40L air tank
Painting Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Accessories One standard tool box
side tipping

one side or both sides tipping optional

groups of cylinders optional

dump box shap square shape or U shap optional



Tech 3.
3 axle tipping semi trailer truck 80ton

Loading capacity: 80Tons

Tipper body bucket: 35CBM

No.of axle: 3 axle BPW,FUWA optional

Hydraulic cylinder: HYVA or China brand

Tire specification: 12.00R22.5,Total 12 tires

Trailer suspension: Strengthen leaf spring suspension

Tipper body material:  Q345 for tipper body,16Mn for tipper trailer chassis

Tipper body volume(CBM):   About 35CBM

Rated loading weight(kg):   80,000kgs

Tipper body hydraulic lifter:   HYVA

Tipper body thickness:   Side floor:8mm,end floor:10mm

Dump Semi-trailer 3 axles  Air suspension 3 axle 60Ton tipper semi-trailer

Tipper load capacity: 60Ton

No of axle: 3 axle BPW,FUWA

Dump body volume: 30CBM

Hydraulic cylinder: HYVA or China brand are option

Suspension: Air suspension

Tire: 315/60R22.5,total 12 units

Tipper bucket(Tipper body) specification


Tipper body material:  Q345 for tipper body,16Mn for tipper trailer chassis

Tipper body volume(CBM):   About 30CBM

Rated loading weight(kg):   60,000kgs

Tipper body dimension(mm):   8800x2350x1800

Tipper body hydraulic lifter:   HYVA

Tipper body thickness:   Side floor:8mm,end floor:10mm

Tech 3.

Tipper trailer chassis specification

Axle:   3 axle FUWA 16Ton

Suspension:   Air suspension

Landing gear:   JOST double action


Kingpin:    JOST 50# or 90#

Tech 4.
3 axles U-shape Rear Dump Semi-trailer 24 cbm

Type

3 axles U-shape Rear Dump Semi-trailer

Overall dimension

8600 * 2490 * 3370 mm

Inside cargo box dimension

7399*2480*1400mm

Capacity of cargo box

24m3

Main beam

Beam height: 500mm, Upper plate: 14mm,Double Middle plate: 8 mm, Down plate: 14mm

Platform thickness

6mm

Side wall thickness

4mm

Material

High-tensile Steel, T700

Gross vehicle weight

Approximately 8500 kgs

Total weight

45000 kg

Lifting system

HYVA brand

King pin

90# (3,5 inch)

Support leg

Standard 30T, SAF Holland

Axle

FUWA brand, 3*13T

Suspension

mechanical suspension 10pcs leaf spring

Tire

Triangle brand, 11.00R-20, 13pcs

Rim

8.0-20, 13 pcs

Brake System

30/30 type on each axle

Spare wheel carrier

01 pcs

Tool box

01 pcs

Electrical System

Chinese standard 24V lighting system

Side Maker Lamp

LED lamp

Painting

Polyurethane Paint

60Ton U shape tipper semi-trailer 35cbm

U shape tipper semi-trailer is widely use in mining engineering,huge construction site,large quarry site,etc.

It have many advantageous than normal tipper truck, such as heavy load capacity, huge load box volume,more stability,etc.

It can combined work with different tractor head, so it improve the working efficiency than tipper truck.

U shape tipper semi-trailer specifications


Tipper body material

Carbon steel -Q235 or Q345 for tipper body

16Mn for tipper trailer chassis(frame and girden)

Body volume(CBM)

About 35CBM

Trailer curb weight(kg)

11,800kgs

Max.loading weight(kg)

80,000kgs

Overall dimensions(mm)

10500×2500×3950

Tipper body size (mm)

9800x2350x1800

Axle description

3 axle BPW brand,each axle 16Ton load capacity

Tire specification

Triangle brand tire,12.00R22.5,total 12 tires

Suspension type

Strengthen leaf spring suspension

Landing gear

JOST double action landing gear

Kingpin specification

JOST, 2 inch(50mm)

Electric circuit

Chinese standard 24V

Tipper body components

Main frame description

Heavy duty extra durability design,high tensile steel 16Mn

Hydraulic system

One set of HYVA hydraulic cylinder

Tipper body volume(M3)

35M3

Body thickness (mm)

Side floor:8mm,end floor:10mm,carbon steel plate

ACCESSORIES

Climb Ladder

High tensive steel,ladder located at the front side

Spare tire carrier

1 unit

Tools box

1 unit tool box fixed

TRAILER CONSTRUCTION &FIXTURE

Lighting

24 Volt electrical in accordance to Chinese standard complete with Chinese's made LED light for brake, signal, reverse and fog light at rear, and marker light at both side of trailer, complete with ''3M'' reflective tape at sides and rear

Rear Bumper

Made of Steel,manufacture Standard


3 axle 60Ton dumper semi trailer


Tech 5.

Tipper semi-trailer also called dumper semi-trailer.This type of tipper semi-trailer composed of running gear,dump

bucket,hydraulic lifting cylinder,tool box,ladder,etc.Running gear including landing leg,tire,suspension,axle,beam.

Dump bucket material is carbon steel from WISCO.Hydraulic lifting cylinder adopted world famous HYVA brand to

ensure the stability and good seal performance.Also China made Hydraulic lifting cylinder is optional.

Tipper body material:  Q345 for tipper body,16Mn for tipper trailer chassis

Tipper body volume(CBM):   About 30CBM

Rated loading weight(kg):   60,000kgs

Tipper body dimension(mm):   8800x2350x1800

Tipper body hydraulic lifter:   HYVA

Tipper body thickness:   Side floor:8mm,end floor:10mm


Tipper trailer chassis specification

Axle:   3 axle FUWA 16Ton

Suspension:   Air suspension

Landing gear:   JOST double action


Kingpin:    JOST 50# or 90#

Tipper bucket(Tipper body) specification

3 Axle Tipping Semi Trailer
1) One Tool Box;
2) Good quality with competitive price.

3 Axle Tipping Semi Trailer 45T Capacity Load


1. Model:                                                         DRZ9570


2. Whole Truck Dimension:                            8200x2496x3300mm


3. Body Size:                                                     7000x2300x1700mm


4. Steel Thickness of Carriage:                      Floor:8mm, Side:6mm


5. Axle:                                                           3Axles, 16T


6. Tyre:                                                             12.00R20


7. Coupling Seat Size:                                     3.5 inch, 90#


8. Dead Weight:                                                 13000kg


9. Loading Capacity:                                           45000kg


10. Color:                                                           optional


11. One Tool Box


12. Two Spare Tires Supports

Customization, Cost and Control Built How You Want it, at a Price You Can Afford.
sale call:+86-152 -7135-7675

MODEL:DUMP Side SEMI-TRAILER

YEAR:                  NEW

LOAD CAPACITY:    40T, 50T, 60T,80T,100T

BUCKET VOLUME:    30m⊃3; , 35m⊃3;, 40m⊃3;, 45m⊃3;

AXLE:    FUWA AXLE 13T (16T, 20T)    OPTIONP BPW AXLE (12T, 13T), ABS    2axles Bogie type trailer

TIRE:  12.00-20 TIRE                          OPTION:--------------------------SPECIFICATION12.00R20 RAIL TIRE
Type: tipper semi-trailer
DIMENSION:
Overall Length:          8,500mm
Overall Width:            2,500mm
Overall height:           3,900mm

RUNNING GEAR:
Suspension : Undermount tri-axle suspension with equalizer,10 leaf plat spring.
Brake       :Dual line pneumatic brake system
Axle:          BPW axle 13,000 kg capacity. X 3PCS
Wheel:         9.0-22.5 steel Disc wheel 13 pcs, made in China.
Tire:           12R22.5 Bridgestone  tyre 13 pcs
King Pin :      3 " king pin,
LANDING LEG: Jost 28T

Main beam : 500/16/10/20  Q345
The box applied with Q345, Bottom 8, Side 6
The frame applied with Q235,
Cylinder:
HYVA FC214
TANK ACCESSORIES AND FITTINGS :
One tool box, one spare tyre with carrier

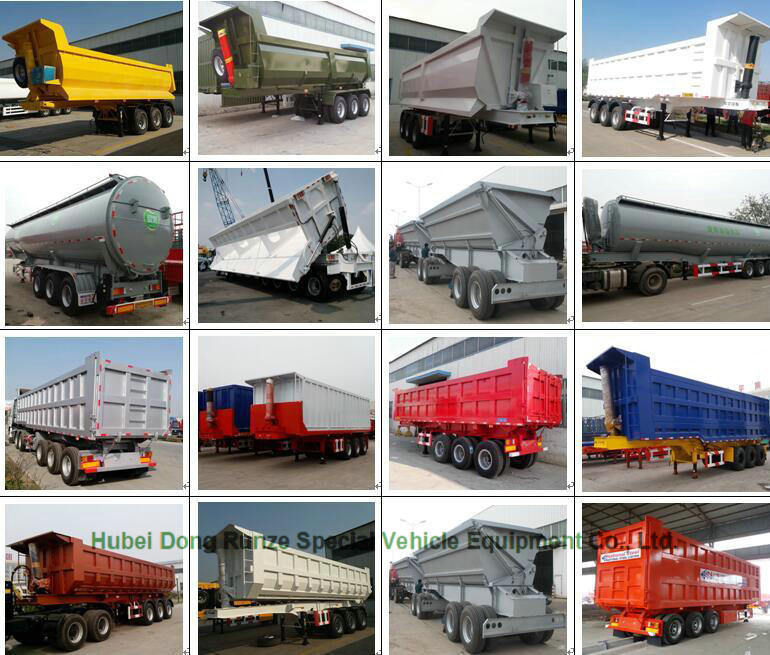

Customizing 22cbm 3 Axle Side Tipper Trailer (BPW Axles U-shape)China Trailer Truck Trailer Semi Trailer Tipper Trailer Heavy Duty Lowbed Semi Trailer Lowbed Truck Semi Trailer Gooseneck Lowbed Trailer Gooseneck Lowbed Semi Trailer Lowbed Trailer 3 Axles Ramp Lowbed Semi Trailer
Recommended Suppliers:
China Trailer Manufacturers Truck Trailer Manufacturers Semi Trailer Manufacturers Tipper Trailer Manufacturers Heavy Duty Lowbed Semi Trailer Manufacturers Lowbed Truck Semi Trailer Manufacturers Gooseneck Lowbed Trailer Manufacturers Gooseneck Lowbed Semi Trailer Manufacturers Lowbed Trailer 3 Axles Manufacturers Ramp Lowbed Semi Trailer Manufacturers
Hot Wholesale Products:
Wholesale Semi Trailer Parts Wholesale Low Trailer Wholesale Truck Semi Trailer Wholesale Heavy Semi Trailer Wholesale New Semi Trailer Wholesale Semi Trailer Door
DOLLY Tanker, Fuel Tanker's Pup Trailer,Pup Trailer Tankers, FULL trailer, pup trailer, Tank Dolly, Tank Dolly trailer  Drawbar Fulltowing Trailer Trailer Dolly for Sale
4 Wheels Mini Dump Drawbar Full Towing Dolly Trailer.

SUCCESS CASES

More >>

Contact Us

EMAIL:Sale@tictrucks.com
TEL: 86-152-71357675
 WeiChat:king253725877
truck in china weichat made in china truck
 Add:Wuhan Office 1: No.1 Taizong Avenue Gaoqiao Industry Park Taiwanese  Investment Area Dongxihu District Wuhan City, Hubei Province, P.R China
Address CRRC Factory : No. 8 Jiliangdadao,Zengdu Economic Development Zone,Suizhou City, Hubei Province, P.R China P.O. Box 441300
Address Yuchai DTA Truck Factory : No. 121, Liangshui 1St Road, Zengdu Economic Development Zone Suizhou City, P.R. China  P.O. Box 441300  .......

Hubei Dong Runze Special Vehicle Equipment Co., Ltd. All rights reserved. 2009-2020 XML Site Map webmail   Made-in-China.com    https://tictrucks.en.made-in-china.com/
 www.truckinchina.com ,www.tictrucks.com
