Customized Towing Truck Flatbeds Body for Chassis 5tons -16t Wrecker

Customized Towing Truck Flatbeds Body for Chassis 5tons -16t Wrecker
Quantity:
  • Shanghai, China
  • 1000
  • T/T

Sino Truck HOWO  360 Degree Rotation 50 Tons Heavy Duty Wrecker
Ask for better price

Customized Towing Truck Flatbeds Body for Chassis 5tons -16t Wrecker
Customized Towing Truck Flatbeds Body for Chassis 5tons -16t Wrecker
Customized Towing Truck Flatbeds Body for Chassis 5tons -16t Wrecker
Customized Towing Truck Flatbeds Body for Chassis 5tons -16t Wrecker
Customized Towing Truck Flatbeds Body for Chassis 5tons -16t Wrecker

Wrecker Special features

Rated lifts quality

1500 kg


corbel telescopic stroke

1200 mm


Corbel maximum effective length

1300 mm


Maximum tractor speed

40 km / h

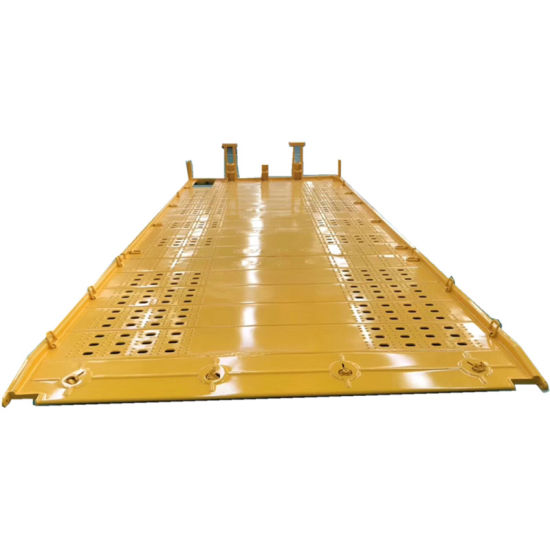

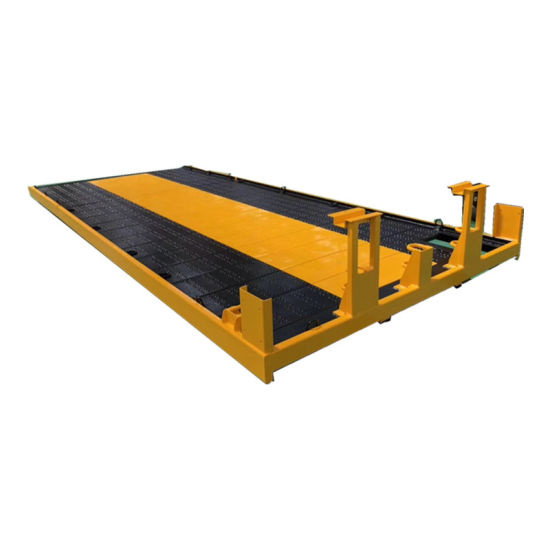

Wrecker Flat institutions

Tablet Size L * W

6600 * 2340(mm)


panel smallest angle

10(°)


Flat working stroke

2700(mm)


Max quality flat-panel

3000(kg)

Wrecker Winch parameters

Number (only) a rated takeoff weight

3000(kg)


Rope length

23(m)


twisted rope speed

8(m / min)

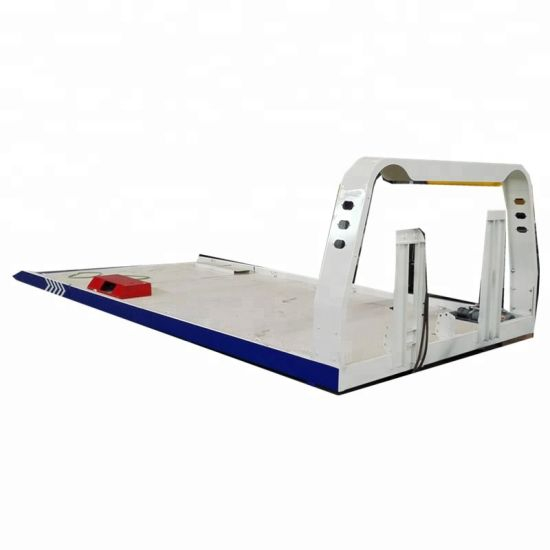

More equipment showing here

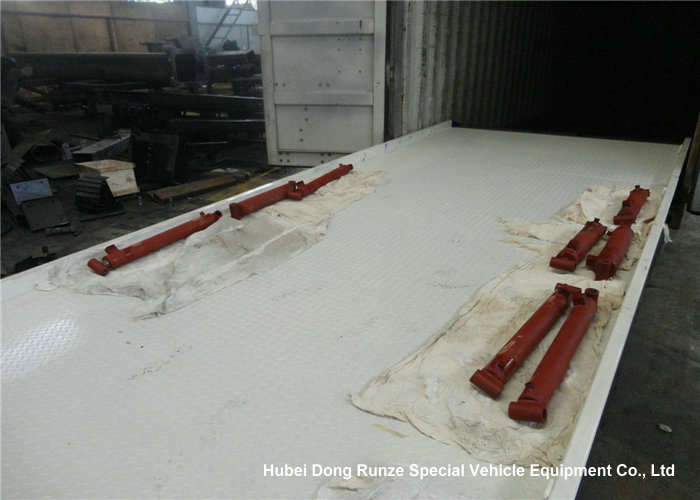

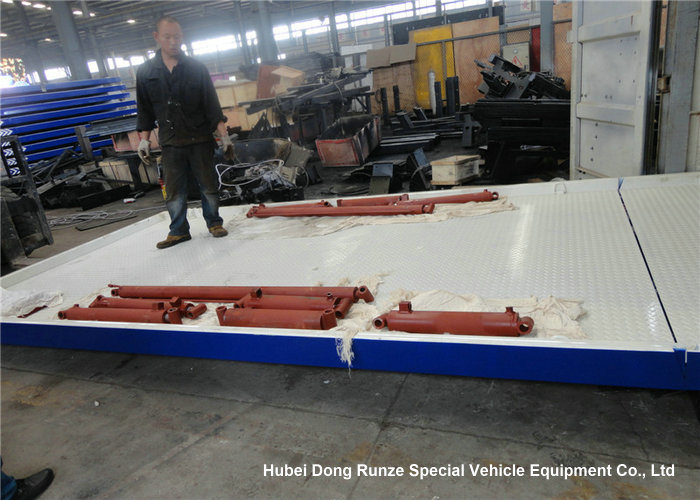

1: flat bed thickness :5mm

2: The balance valve, cylinder block, abrasion wheel, pulley, pulley, pulley block, a baffle, tire, hoisting joint, hook, lights (side)

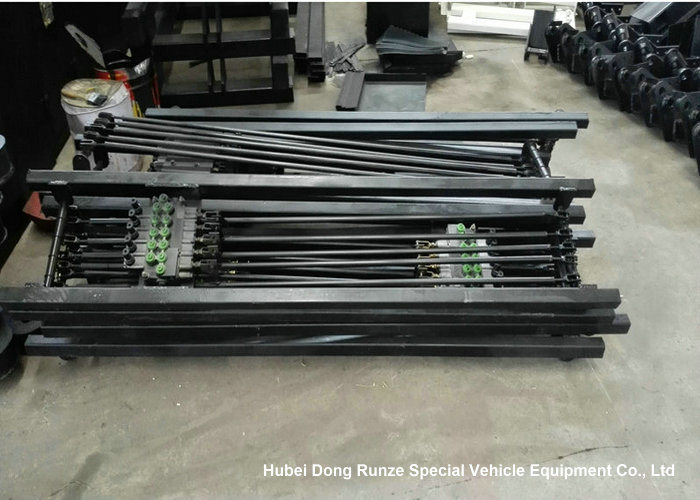

3:   Both side Linkage 5 valve with the operating rod with shelf

4:   Two units tower wheels

5:   One unit "L" type tower fork (2 fork)

6:   Two unit "L" type tower fork jack (2 jack)

7:   Back lifting arm ( include legs,back lifting arm , back lifting arm seat), hydraulic lock ,balance valve

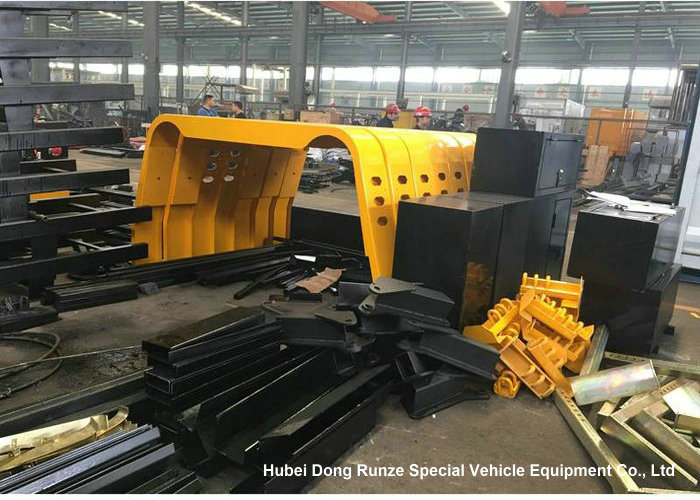

8:   Portal frame  , spare tyre rack

9:   Took box ,with 5 lock

10:  Hydraulic  oil tank

11:  1.2meters Warning light

12:  Gear pump with PTO

13:  Plastic roller chain


The pictures are for your reference only.
Customized Towing Truck Flatbeds Body for Chassis 5tons -16t Wrecker
Customized Towing Truck Flatbeds Body for Chassis 5tons -16t Wrecker
Customized Towing Truck Flatbeds Body for Chassis 5tons -16t Wrecker




Customized Towing Truck Flatbeds Body for Chassis 5tons -16t Wrecker
Customized Towing Truck Flatbeds Body for Chassis 5tons -16t Wrecker

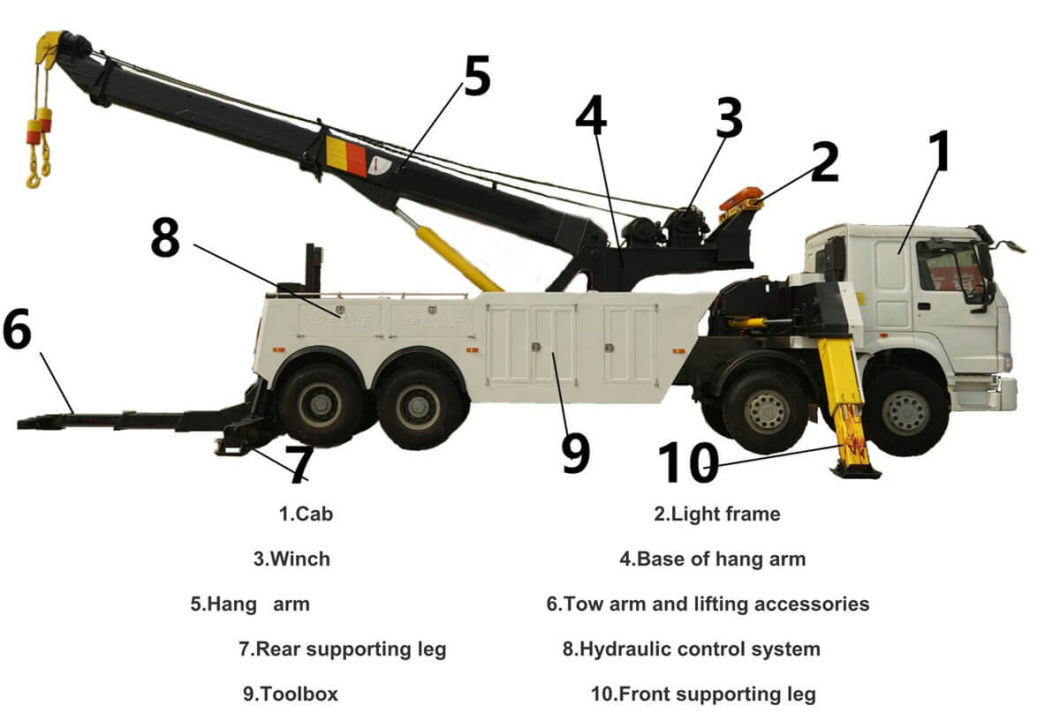

HOWO 8*4 Heavy Duty 30ton 40ton Winch Rotating Crane Wrecker Truck:

Cabin Driving type 8x4, Right hand drive

HOWO 76 cab, with air condition and one bed, 70°hydraul`ically tillable to the front as attached photo for ref.
Vehicle Main Dimensions Overall dimensions (L x W x H) mm 11460×2500×3270
Wheel base  (mm) 1800+4600+1350
Wheel track  (front/rear) (mm) 2022/1830/1830
Approach/Departure angle(°) 16/18
Weight in KGS Tare Weight 24870
payload 30000
Front axles loading capacity 2x9000
Rear axles loading capacity 2x16000
Engine Brand Sinotruk
Model WD615.47
Type 4-stroke direct injection ,  6-cylinder in-line with water cooling, turbo-charging and inter-cooling
Horse Power(HP) 371
Emission standard Euro
Gearbox HW19710, 10 Forwards gear & 2 reverse gear
Tire 12R22.5  tubeless tire with one spare
Clutch Reinforced diaphragm clutch, diameter 430 mm
Steering ZF8098
Oil tank 400L
Special Device For Wrecker System
Hoisting Organ Rated under-pulling capacity 40000
Max Under-hoisting Capacity (kg) 16000
Max Under-hoist length (mm) 1630
Under hoisting work angle -10~85°
Lifting Organ
Max lifting capacity(kg) 30000
Max lifting high(mm) 12000
Telescope length(mm) 6000
Winch 15000kgs×2
Steel rope 50M,Φ22
Crane luffing angle 5°~  60°
Crane rotation angle 360°All Rotation

Landing Leg
Distance between front legs(mm) 6100
Distance between rear legs(mm) 4000
