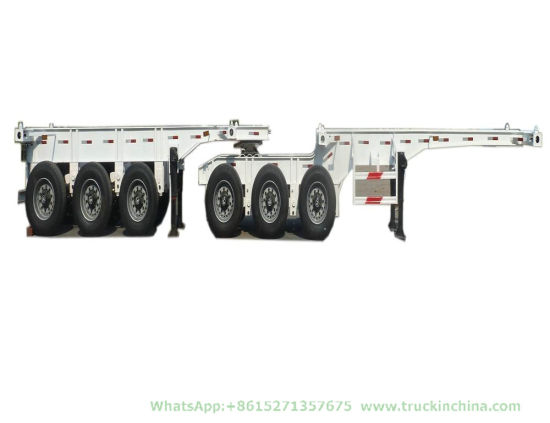

Customized Interlink 2 Flatbed Semi Trailer Truck (Double Combination 20FT Container Trailers Flatbed Or Skeleton Type)
| Quantity: | |
|---|---|
- Shanghai, China
- 200sets Per Month
- T/T, Western Union
Customized Interlink 2 Flatbed Semi Trailer Truck (Double Combination 20ft Container Trailers Flatbed Or Skeleton Type)
Customized 4 -6 Axles Double Dolly Full Trailer With 5Th Wheels (Interlink Trailer)
Customized Double Combination Interlink Trailer (Dolly 2-6 Multi Axles 20T -80Tone)

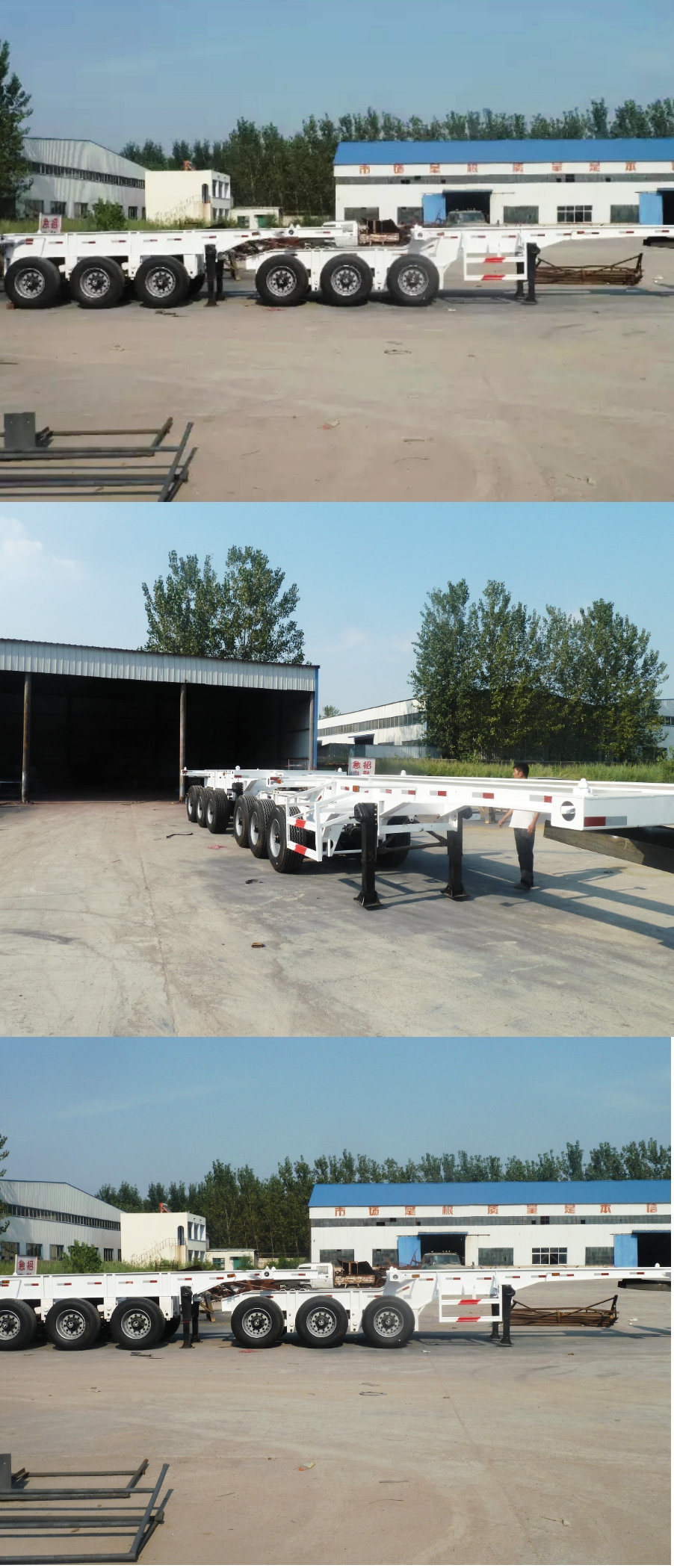

Double Combination Interlink 2 -6 Axle Dolly Trailer
| Brand | DRZ Super Interlink Skeleton Chassis Trailer |
| Overall dimension | 14500mm X 2500mm X1579mm |
| Loading capacity | 60 ton |
| Axle | 6 axles |
| Suspension | Heavy duty mechanical spring suspsension |
| Tire | 24 units, 385/65R22.5 |
| Rim | 8.0-20 |
| Landing gear | JOST |
| Twist locks | 12 units locks |
| Brake system | WABCO |
| King pin | 90# |
| Electical system | 24V, LED lights |
| Parameter | |||||
| Outside Dimensions (L*W*H) | (6000-17000)*2500*1550mm | ||||
| Rated Load | 45000 kg | ||||
| Tare Weight | 7000 kg | ||||
| Wheel Base | 8390+1310+1310 (mm) | ||||
| Twist lock No | 12 | ||||
| Running Gear | |||||
| Tires | specification | 12R22.5-18 | |||
| No. of tires | 8/12/16 | ||||
| Spare tire carriers | 1 or 2 | ||||
Axles | Brand | FUWA (BPW optional) | |||
| No. of axles: | 2/3/4 | ||||
| Axle-load | 13000kg | ||||
| Wheel rim | 7.50-20 rim or 8.00 | ||||
| Suspension | rigid suspension,10 pcs leaf-spring | ||||
| Brakes | brand | TK brand | |||
| Brake chamber | double air chamber | ||||
| System | Dual line braking system /ABS | ||||
| Under Frame | |||||
| Departure Angle | 16 | ||||
| Front/Rear Overhang | 1890mm | ||||
| Main Beam | material | I beam ,Q345B, automatic submerged arc welded | |||
| specification | Height is 500mm,upper plate is 14mm,lower plate is 16mm,middle is 8mm | ||||
| Cross Beam material | Q235B | ||||
| Side beam | Channel steel | ||||
| Plate form | Steel Sheet 3mm thickness or diamond plate(Also can choose other thickness ,such as 2mm,2.3mm,4mm,5mm,6mm) | ||||
| King Pin | 50# or 90# | ||||
| Landing gear | 28Ton | ||||
| Accessory | One tooling box with a set of standard trailer tool | ||||
| Electrical | |||||
| Voltage | 24V | ||||
| Receptacle | 7 ways (7 wire harness) | ||||
| Lights | Front corner marker lamp :red ;reflector lamp :white | ||||
| Side marker :orange | |||||
| Rear lamp :red; rear reflector :white; turn single lamp :orange | |||||
| Painting ,marking and side guard can according to the customer's requirement | |||||

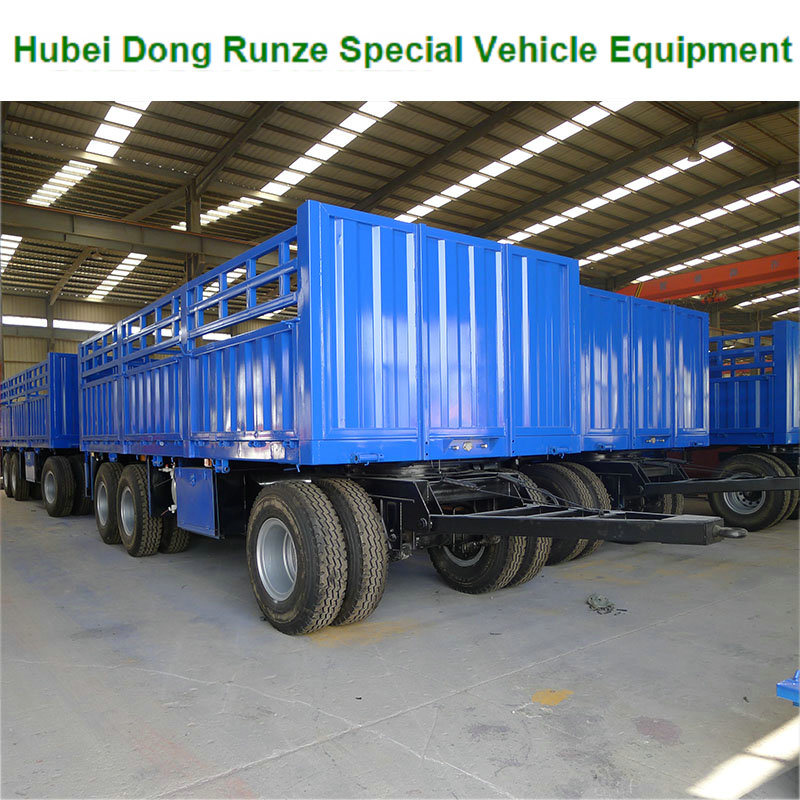

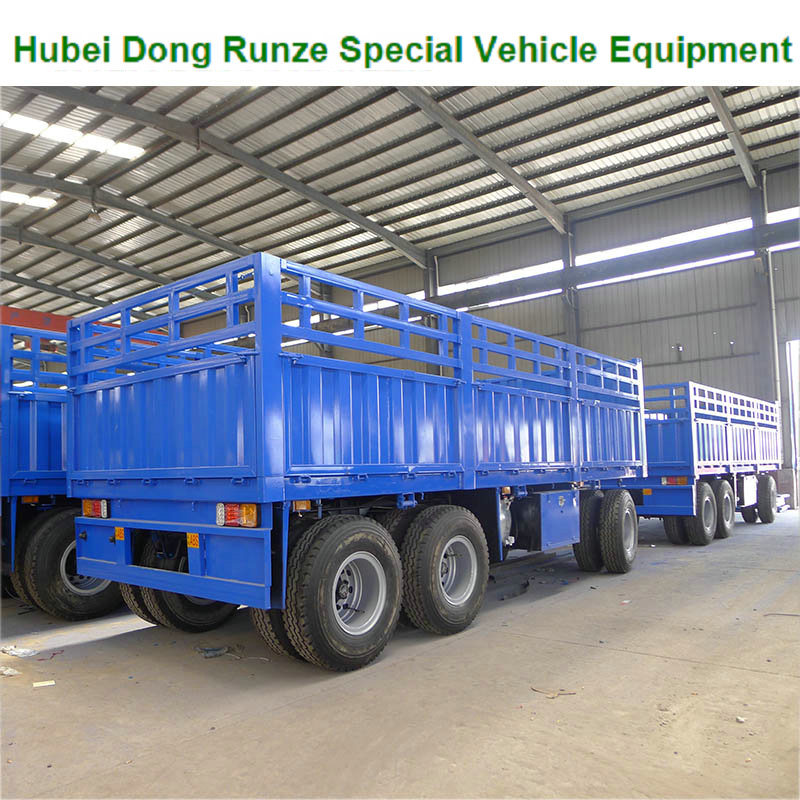

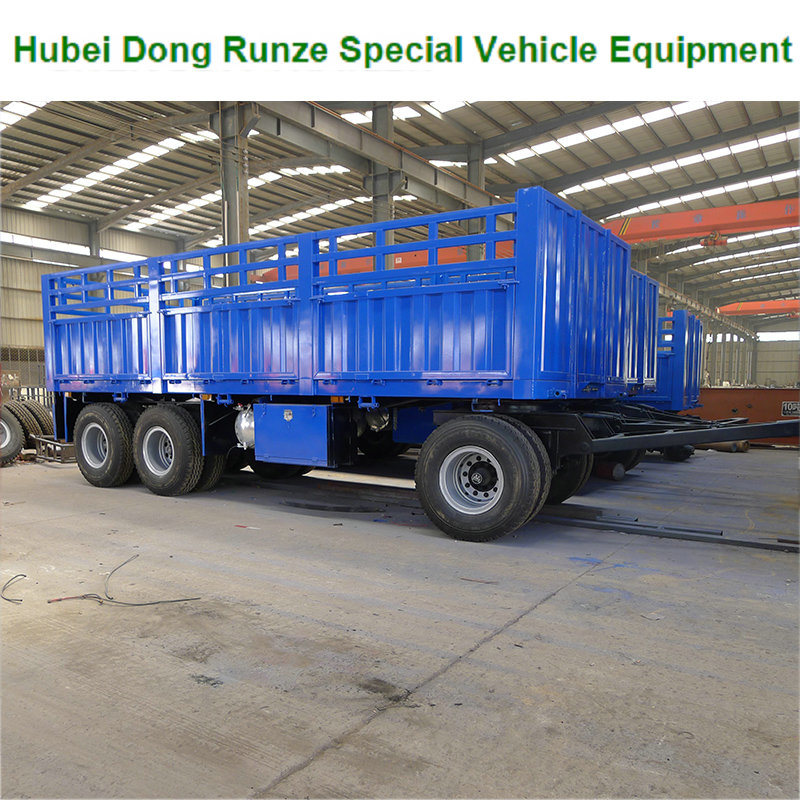

3 Axle 30 Ton Drawbar Stake Full Trailer
2 -6Axles Dolly Full Trailer With Draw Bar For Sale
DOLLY Tanker, Fuel Tanker's Pup Trailer,Pup Trailer Tankers, FULL trailer, pup trailer, Tank Dolly, Tank Dolly trailer Drawbar Fulltowing Trailer Trailer Dolly for Sale
4 Wheels Mini Dump Drawbar Full Towing Dolly Trailer
| Overall Dimension | 9000*2500*3500mm or Customized |
| Curb Weight | 5.0T |
| Loading Capacity | 40T |
| Main Beam Spec. | T700/Q345 Steel, Height:500mm, Plate Thickness:8-16mm |
| Side Frame | Channel Steel |
| Cross Brace | Channel Steel/Bending Steel |
| Suspension | Mechanical Suspension, Air Suspension or Optional/ Tandem or Single Suspension |
| Leaf Spring | 10-layers leaf spring(90mm*13mm*10pcs) |
| Axle Spec. | 13T/16T/20T BPW or FUWA brand |
| King Pin | 2"(50mm)or3.5"(90mm) JOST Brand |
| Tire | 11.00R20/12.00R20/ 12R22.5 |
| Brake Chamber | 2sets |
| Electric System | 24V, One Set 6-core Standard Cable |
| Light | Tail lamp with turn signal,brake light & reflector,side lamp etc |
| Painting | Sand blasting, prime coating, surface painting,color optional, wax polishing |
| Packing | FCL Container, Ro-ro Shipment or Optional |
Axle:
Famous Brand Axle Support
Trailer Durable and High Truck Attendance Rate
Chassis:
China Best Q345B-T700 support Stronger Main Beam
Tire:
Good Quality Tire support Trailer Running Safety&Smoothly
King Pin:
JOST Detachable Type support Durable and Fast&Easy Replace
Emergency Valve:
Fast Response,Low Failure support Safetly&Protect Tire Longer Time Use
Parameters:
| Overall Dimension | 13000*3000*3100mm or Customized | ||
| Curb Weight | 6.5T | ||
| Loading Capacity | 40T, 50T, 60T, 70T, 80T, 90T, 100T | ||
| Main Beam Spec. | T700/Q345 Steel, Height:500mm, Plate Thickness:8-16mm | ||
| Side Frame | Channel Steel | ||
| Cross Brace | Channel Steel/Bending Steel | ||
| Suspension | Mechanical Suspension, Air Suspension or Optional | ||
| Leaf Spring | 10-layers leaf spring(90mm*13mm*10pcs) | ||
| Axle Spec. | 13T/16T/20T BPW or FUWA brand | ||
| King Pin | 2"(50mm)or3.5"(90mm) JOST Brand | ||
| Tire | 11.00R20/12.00R20/ 12R22.5 | ||
| Brake Chamber | 6sets | ||
| Landing Gear | 28T*2, JOST brand | ||
| Accessories | 1 Standard Tool Box | ||
| Electric System | 24V, One Set 6-core Standard Cable | ||
| Light | Tail lamp with turn signal,brake light & reflector,side lamp etc | ||
| Painting | Sand balsting,prime coating, surface painting,color opitional, wax polishing | ||
| Ladder | Spring or Hydraulic | ||
| Packing | FCL Container, Ro-ro Shipment, Framework or Optional | ||
Carry Box Roller Turntable Full Draw Bar Dolly Trailer
