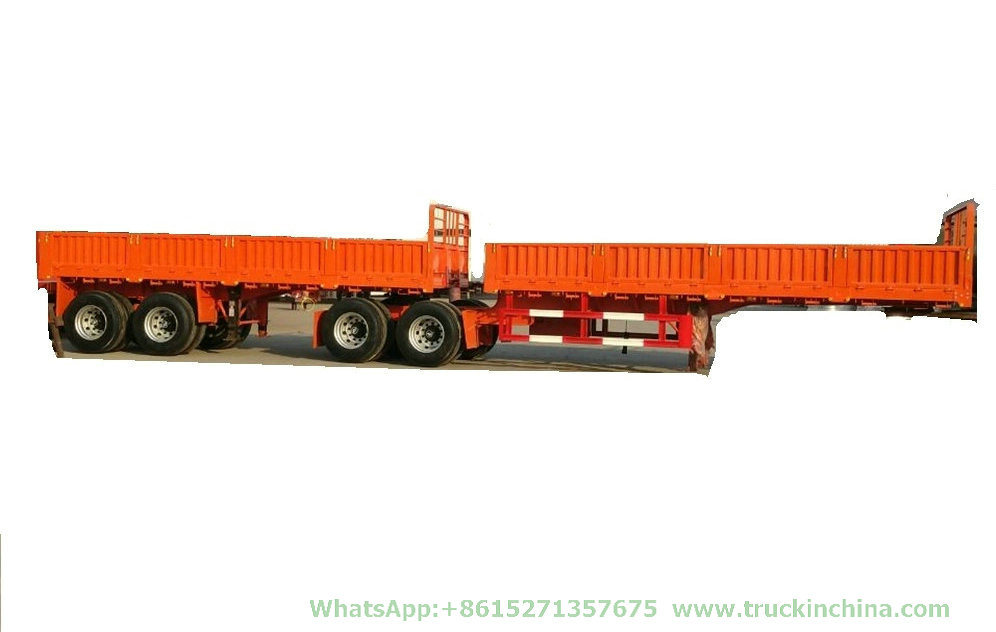

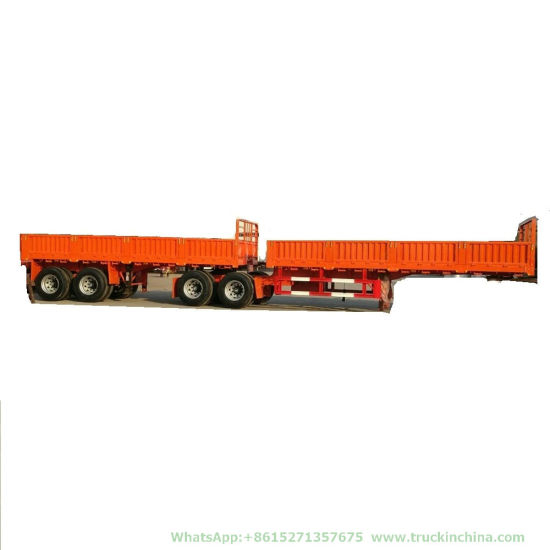

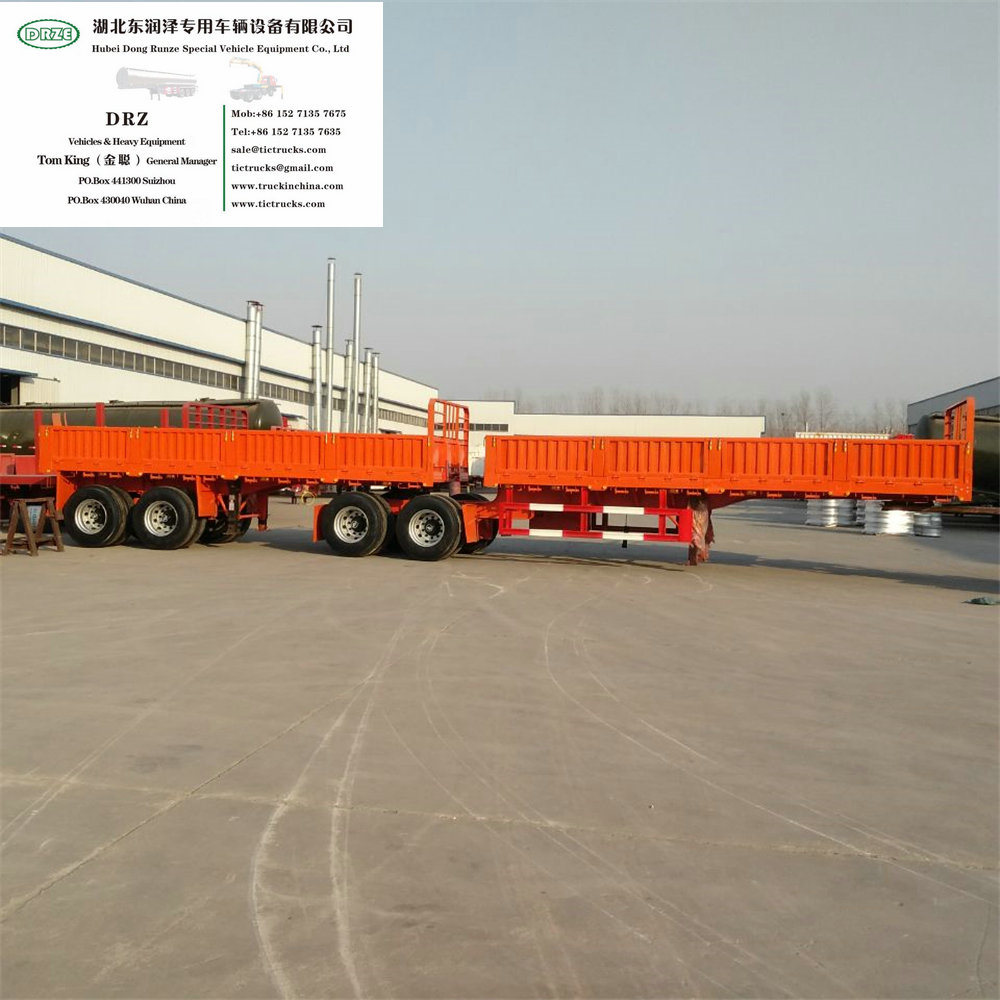

Customized Double Combination Interlink Trailer (Dolly 2-6 Multi Axles 20T -80Tone)
| Quantity: | |
|---|---|
- Shanghai, China
- 200sets Per Month
- T/T, Western Union
Customized 4 -6 Axles Double Dolly Full Trailer With 5Th Wheels (Interlink Trailer)
Customized Double Combination Interlink Trailer (Dolly 2-6 Multi Axles 20T -80Tone)
Double Combination Interlink 2 -6 Axle Dolly Trailer
3 Axle 30 Ton Drawbar Stake Full Trailer
2 -6Axles Dolly Full Trailer With Draw Bar For Sale
DOLLY Tanker, Fuel Tanker's Pup Trailer,Pup Trailer Tankers, FULL trailer, pup trailer, Tank Dolly, Tank Dolly trailer Drawbar Fulltowing Trailer Trailer Dolly for Sale
4 Wheels Mini Dump Drawbar Full Towing Dolly Trailer
| Overall Dimension | 9000*2500*3500mm or Customized |
| Curb Weight | 5.0T |
| Loading Capacity | 40T |
| Main Beam Spec. | T700/Q345 Steel, Height:500mm, Plate Thickness:8-16mm |
| Side Frame | Channel Steel |
| Cross Brace | Channel Steel/Bending Steel |
| Suspension | Mechanical Suspension, Air Suspension or Optional/ Tandem or Single Suspension |
| Leaf Spring | 10-layers leaf spring(90mm*13mm*10pcs) |
| Axle Spec. | 13T/16T/20T BPW or FUWA brand |
| King Pin | 2"(50mm)or3.5"(90mm) JOST Brand |
| Tire | 11.00R20/12.00R20/ 12R22.5 |
| Brake Chamber | 2sets |
| Electric System | 24V, One Set 6-core Standard Cable |
| Light | Tail lamp with turn signal,brake light & reflector,side lamp etc |
| Painting | Sand blasting, prime coating, surface painting,color optional, wax polishing |
| Packing | FCL Container, Ro-ro Shipment or Optional |
Axle:
Famous Brand Axle Support
Trailer Durable and High Truck Attendance Rate
Chassis:
China Best Q345B-T700 support Stronger Main Beam
Tire:
Good Quality Tire support Trailer Running Safety&Smoothly
King Pin:
JOST Detachable Type support Durable and Fast&Easy Replace
Emergency Valve:
Fast Response,Low Failure support Safetly&Protect Tire Longer Time Use
Parameters:
| Overall Dimension | 13000*3000*3100mm or Customized | ||
| Curb Weight | 6.5T | ||
| Loading Capacity | 40T, 50T, 60T, 70T, 80T, 90T, 100T | ||
| Main Beam Spec. | T700/Q345 Steel, Height:500mm, Plate Thickness:8-16mm | ||
| Side Frame | Channel Steel | ||
| Cross Brace | Channel Steel/Bending Steel | ||
| Suspension | Mechanical Suspension, Air Suspension or Optional | ||
| Leaf Spring | 10-layers leaf spring(90mm*13mm*10pcs) | ||
| Axle Spec. | 13T/16T/20T BPW or FUWA brand | ||
| King Pin | 2"(50mm)or3.5"(90mm) JOST Brand | ||
| Tire | 11.00R20/12.00R20/ 12R22.5 | ||
| Brake Chamber | 6sets | ||
| Landing Gear | 28T*2, JOST brand | ||
| Accessories | 1 Standard Tool Box | ||
| Electric System | 24V, One Set 6-core Standard Cable | ||
| Light | Tail lamp with turn signal,brake light & reflector,side lamp etc | ||
| Painting | Sand balsting,prime coating, surface painting,color opitional, wax polishing | ||
| Ladder | Spring or Hydraulic | ||
| Packing | FCL Container, Ro-ro Shipment, Framework or Optional | ||
Carry Box Roller Turntable Full Draw Bar Dolly Trailer
