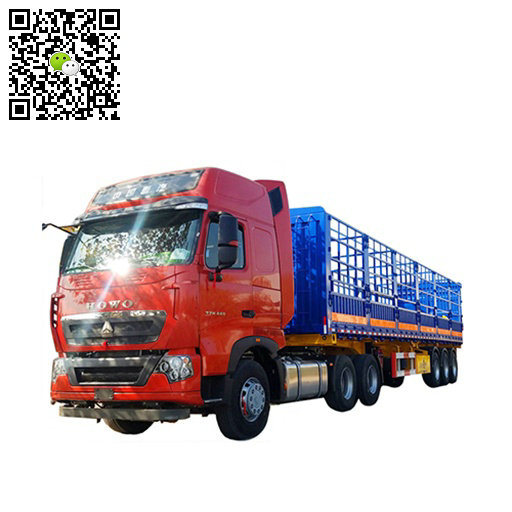

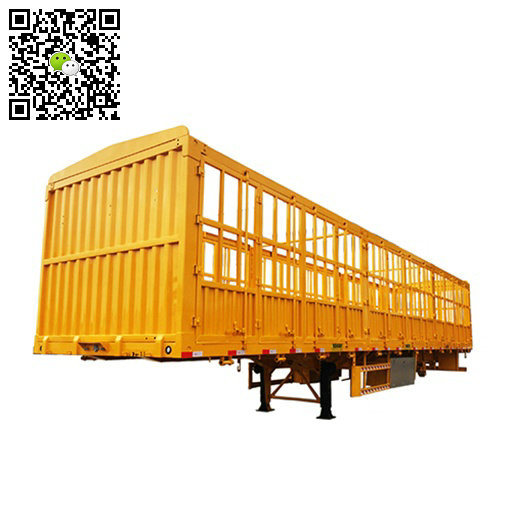

Customized 3axles Livestock Cargo Transport Trailer 40t-60t
Customized 3axles Livestock Cargo Transport Trailer 40t-60t
| Quantity: | |
|---|---|
- Shanghai, China
- 200sets Per Month
- T/T, Western Union
Customized 2-3 -4Axles Livestock Cargo Transport Trailer 40T-60T
4 Axles Fence Semi Trailer
Brand: DONG RUNZE
| Item | Composition | Specifications |
| Weight | Tare Weight | 7.5-14T |
| Loading Capacity | 30T - 90T | |
| Axle weight load | 13T/ 16T | |
| Chassis | Main beam | Material is Q345B Steel; Height: 450mm-520mm; Upper plate is 14mm-25mm; Middle plate is 8mm-12mm; Down plate is 16mm-25mm; |
| Side beam | 14# /16# /18# channel steel | |
| King Pin | 2"or 3.5"traction pin | |
| Dimensions(L*W*H) | 12500-18000 x 2500-3000 x1500+(1600~1800)mm (adjustable as request) | |
| Floor | 3mm/ 4mm diamond steel plate | |
| Side wall | 600~1500mm ,you can choose freely | |
| Suspension | Suspension type | Mechanical or Air suspension |
| Leaf Spring | 90(W)mm×13(Thickness)mm×10 layers or 100(W)mm×12(Thickness)mm×12 layers | |
| Running system | Axle | 2/3/4 axles, FUWA, BPW or other optional brand |
| Wheel Rim | 8.00-20,8.5-20,9.0-20,8.25-22.5,9.0-22.5 | |
| Wheelbase | 7180/6680/6260+1310+1310mm | |
| Tire | Specification: 11.00R20, 12.00R22.5 Number of Tire:8 or12 pieces | |
| Brake system | Brake Chamber | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); Two pieces of 45L air tanks; |
| Brake system | Dual Line Brake system, ABS is optional | |
| Brake Valve | KTL Brand/WEBCO | |
| Other | Tool box | 1 set of standard tool box |
| Light | LED light Tail lamp with turn signal, brake light & reflector, side lamp etc | |
| Painting | Sand blasting to clean rust completely; First coat of anticorrosive prime, twice coats of final paint; | |
| Spare Tire Carriers | 1 or 2 pieces | |
| Twist lock | 4 / 8/12 pcs, Lifting type or Twist Screw type | |
| Landing gear | 28T Heavy duty landing gear (Brand Optional) | |
| Electronic system | 24v, 7core socket |

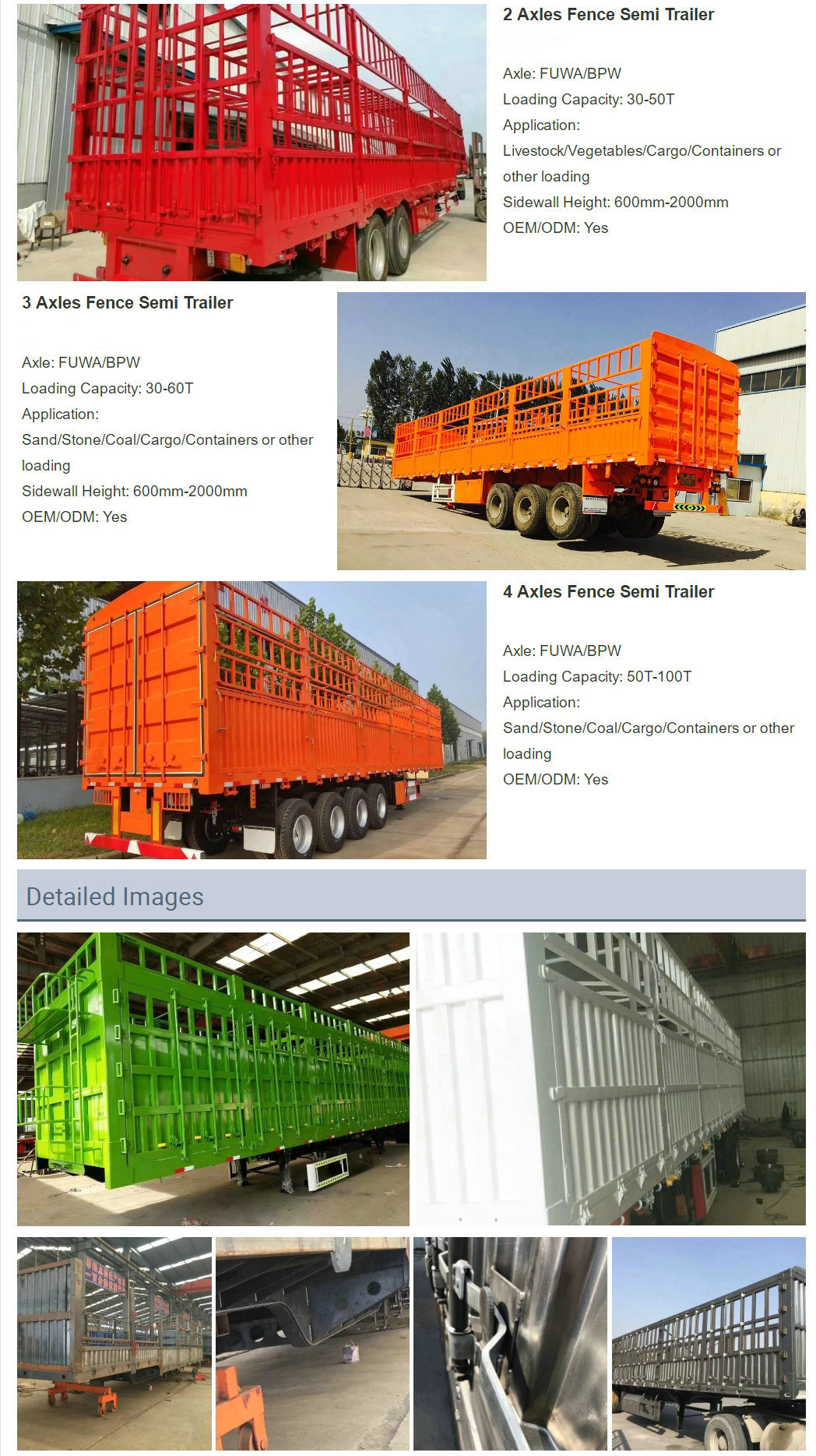

2 Axles Fence Semi Trailer
Brand: DONG RUNZE
Axle: FUWA/BPW
Loading Capacity: 30-50T
Application: Livestock/Vegetables/Cargo/Containers or other loading
Sidewall Height: 600mm-2000mm
OEM/ODM: Yes

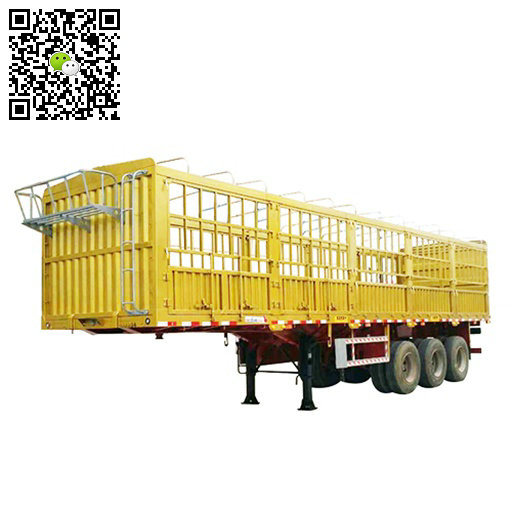

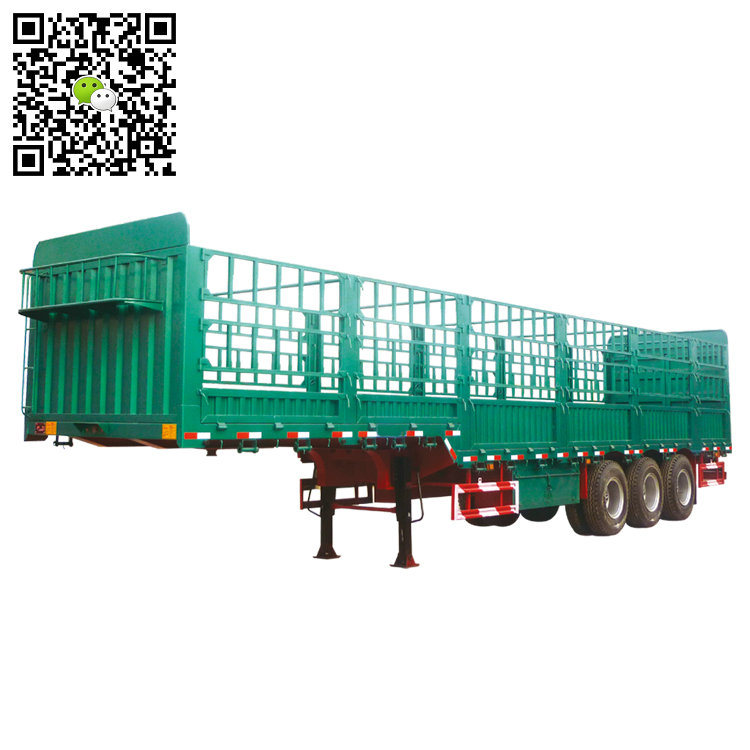

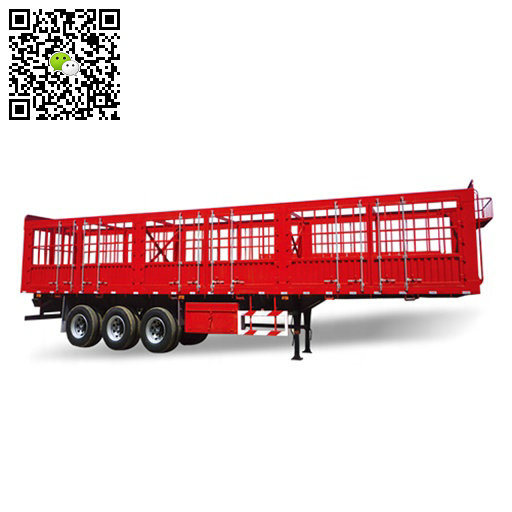

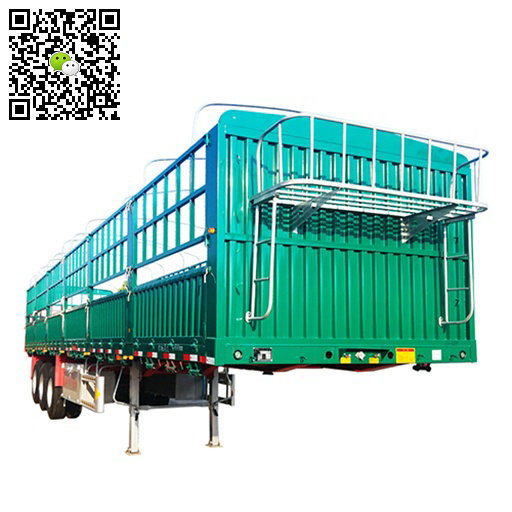

3 Axles Fence Semi Trailer
Brand: DONG RUNZE
Axle: FUWA/BPW
Loading Capacity: 30-60T
Application: Sand/Stone/Coal/Cargo/Containers or other loading
Sidewall Height: 600mm-2000mm
OEM/ODM: Ye
Axle: FUWA/BPW
Loading Capacity: 50T-100T
Application: Sand/Stone/Coal/Cargo/Containers or other loading
OEM/ODM: Yes
2 -6Axles Dolly Full Trailer With Draw Bar For Sale
DOLLY Tanker, Fuel Tanker's Pup Trailer,Pup Trailer Tankers, FULL trailer, pup trailer, Tank Dolly, Tank Dolly trailer Drawbar Fulltowing Trailer Trailer Dolly for Sale
4 Wheels Mini Dump Drawbar Full Towing Dolly Trailer
| Overall Dimension | 9000*2500*3500mm or Customized |
| Curb Weight | 5.0T |
| Loading Capacity | 40T |
| Main Beam Spec. | T700/Q345 Steel, Height:500mm, Plate Thickness:8-16mm |
| Side Frame | Channel Steel |
| Cross Brace | Channel Steel/Bending Steel |
| Suspension | Mechanical Suspension, Air Suspension or Optional/ Tandem or Single Suspension |
| Leaf Spring | 10-layers leaf spring(90mm*13mm*10pcs) |
| Axle Spec. | 13T/16T/20T BPW or FUWA brand |
| King Pin | 2"(50mm)or3.5"(90mm) JOST Brand |
| Tire | 11.00R20/12.00R20/ 12R22.5 |
| Brake Chamber | 2sets |
| Electric System | 24V, One Set 6-core Standard Cable |
| Light | Tail lamp with turn signal,brake light & reflector,side lamp etc |
| Painting | Sand blasting, prime coating, surface painting,color optional, wax polishing |
| Packing | FCL Container, Ro-ro Shipment or Optional |
Axle:
Famous Brand Axle Support
Trailer Durable and High Truck Attendance Rate
Chassis:
China Best Q345B-T700 support Stronger Main Beam
Tire:
Good Quality Tire support Trailer Running Safety&Smoothly
King Pin:
JOST Detachable Type support Durable and Fast&Easy Replace
Emergency Valve:
Fast Response,Low Failure support Safetly&Protect Tire Longer Time Use
Parameters:
| Overall Dimension | 13000*3000*3100mm or Customized | ||
| Curb Weight | 6.5T | ||
| Loading Capacity | 40T, 50T, 60T, 70T, 80T, 90T, 100T | ||
| Main Beam Spec. | T700/Q345 Steel, Height:500mm, Plate Thickness:8-16mm | ||
| Side Frame | Channel Steel | ||
| Cross Brace | Channel Steel/Bending Steel | ||
| Suspension | Mechanical Suspension, Air Suspension or Optional | ||
| Leaf Spring | 10-layers leaf spring(90mm*13mm*10pcs) | ||
| Axle Spec. | 13T/16T/20T BPW or FUWA brand | ||
| King Pin | 2"(50mm)or3.5"(90mm) JOST Brand | ||
| Tire | 11.00R20/12.00R20/ 12R22.5 | ||
| Brake Chamber | 6sets | ||
| Landing Gear | 28T*2, JOST brand | ||
| Accessories | 1 Standard Tool Box | ||
| Electric System | 24V, One Set 6-core Standard Cable | ||
| Light | Tail lamp with turn signal,brake light & reflector,side lamp etc | ||
| Painting | Sand balsting,prime coating, surface painting,color opitional, wax polishing | ||
| Ladder | Spring or Hydraulic | ||
| Packing | FCL Container, Ro-ro Shipment, Framework or Optional | ||
Carry Box Roller Turntable Full Draw Bar Dolly Trailer
