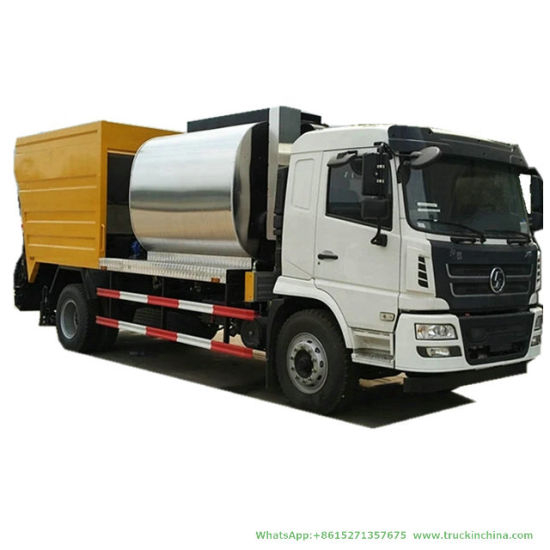

Customize Small Shacman Asphalt Synchronous Chip Sealer Truck with 6cbm Asphalt Tank

Customize Small Shacman Asphalt Synchronous Chip Sealer Truck with 6cbm Asphalt Tank

Quantity:
  • Shanghai, China
  • 8000
  • T/T

Road Construction Shacman Asphalt Synchronous Chip Sealer Truck  Customize
Customize Small Shacman Asphalt Synchronous Chip Sealer Truck with 6CBM Asphalt Tank
Cell: 0086 152 7135 7675

Shacman Asphalt  Synchronous Chip Sealer
 Shacman asphalt synchronous chip sealer truck,6 CBM asphalt sprayer truckCustomize Small Shacman Asphalt Synchronous Chip Sealer Truck with 6cbm Asphalt Tank
Customize Small Shacman Asphalt Synchronous Chip Sealer Truck with 6cbm Asphalt Tank
Customize Small Shacman Asphalt Synchronous Chip Sealer Truck with 6cbm Asphalt Tank


1. Bitumen spray truck, aslo called asphalt sprayer or saphalt paving truck, is specially designed and produced for transporting or spraying liquid asphalt(Including hot asphalt, emulsified asphalt and residue),in addition it can also supply loose asphalt binder to the soil, the construction of asphalt stabilized soil pavement or pavement base.
Bitumen spray truck is a black road construction machinery, one of the main equipment for the construction of road, city roads, airports and port terminals.
2. Type of our asphalt paving truck:

a. Common type

b. Standard type

c. Smart type(domestic main components)

d. Smart type(import main components)

(See more details in the comparation table below)

3. Capacity of spraying asphalt:

Type: whole four types above can work with liquid asphalt, such as hot asphalt, emulsified asphalt and residue, etc.

Rubber asphalt: need special equipment and customized.

Spraying rate: according to equipped asphalt pump(from 300~680 liters/min)

Spraying width: 4.5~6m

Spraying area: 0.2~0.3 liters/cbm

4. Structure of our asphalt spray truck:

Automobile system, asphalt tank, asphalt pumping and spraying system, thermal oil heating system, hydraulic system, combustion system, control system, pneumatic system, operating platform.

ITEM UNIT PARAMETER
Overall dimensions mm 8500x2500x3350
Asphalt tank dimention
2200x1550x1520 /ellipse
Insulating layer
80
Asphalt tank capacity m3 6
Gravel tank capacity
8
GVW kg Appro×16000
Curb weight
Appro×7600
Wheel base mm 5100
F/R track base
2022/1830
F/R suspension
1500/2750
Approach/departure angle ° 16/14
Suspension mm 1250/2800
Max speed km/h 95
Axle Load kg 6000/10000
Drive system 4X2 Steel Power
Tire specification 10.00-20 16PR Number of axles 2
Engine model Manufacturer China National Heavy Duty Truck Group Co ., Ltd

Model WP6.220E32

Emission/kw 6750ml/176Kw, 240hp

Gear box 8F&2R
Asphalt tank Stainless steel scrub, with Insulating layer
Spray medium Hot asphalt, emulsified asphalt and residual oil
Bitumen Spray System Options (Please select which type you need when inquiry)
Type Standard Type China Intelligent Import Intelligent
Model of asphalt pump QGB950(950L/min) QGB950(950L/min) U.S. imported brand
Origin of asphalt pump China made China made U.S.
Suitable Tank Volume 15CBM 15CBM 15CBM
Medium Dilute/Emulsify asphalt Hot/Dilute/Emulsify asphalt Hot/Dilute/Emulsify asphalt/Rubber asphalt
Hydraulic System Shanxi YUCI Shanxi YUCI Shanxi YUCI
Proportional Valve - - Taiwan EFBG-03-160-HF
Reversing Valve - -
Relief Valve - -
Model of Hydraulic Pump CBQ550-L CBQ550-L CBQ550-L
Model of Hydraulic Motor 05-110-BD31 05-110-BD31 05-110-BD31
Radiator RISHENG brand RISHENG brand RISHENG brand
Control System Manaul Computer control in driving cabin, Germen STW system Computer control in driving cabin, Germen STW system
Control Type 1-control-2 1-control-2 1-control-2
Operation Person 2 persons 1 persons 1 persons
Asphalt Nozzle Number 36 pcs pneumatic nozzles 36 pcs intelligent nozzles 36 pcs intelligent nozzles
Heating Type Heat conducting oil automatically heating
Conducting Oil Hebei,China
Burner Italy import G20
Power of Engine 6KW
Spraying Capacity 0.25-3.5L/min 0.25~4L/min 0.25~4L/min
Spraying Error / ±8% ±2%
Spraying Width 4.5m 4.5 4.5~6m
Remark If sprinkling asphalt to install extra equipment If you need to sprinkle rubber asphalt, please call me

Our asphalt distributor truck for sale features and advantage
1.) Automatic asphalt distributor boasts three layers. It can adjust the spray amount according to its operational speed.

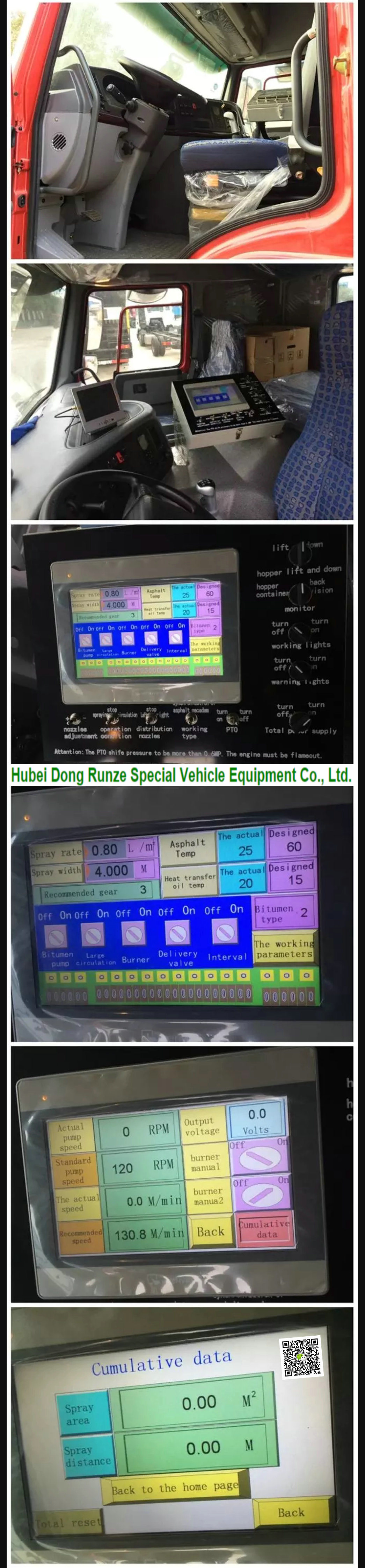

2.) The whole asphalt spraying process can be finished in the cab.
3.) Each nozzle is controlled by separate computer. The spray width can be adjusted at random.
4.) The control procedure is equipped with two control systems, cab and post operational platform to ensure the reliability of asphalt spray.
5.)The computer control system adopts modular design for lower accident rate and maintenance.
6.)The temperature of asphalt in tank is kept below or equal to two degrees per hour
7.)The distributor is equipped with automatic blowing device to shift the asphalt outside to the tank

The overall description of our Synchronous Chipsealer Truck series

Automatic Asphalt Distributor/Bitumen Sprayer The main fitting adopts the most advanced components with computer system controlled spraying. Our intelligent asphalt distributor's accuracy meets Euro standards. Together with the advantages of asphalt distributors in the world, with automatic asphalt distributor, we innovated four new technologies

1. Any asphalt used is displaced.
2. Asphalt nozzle is multilayer filtrate and keeps the quality of spray.
3. Asphalt spraying is controlled by computer system.
4. Asphalt spray is suitable for asphalt pavement construction, which can improve performance achievements to international standards with zero tolerance.
5.Automatic asphalt distributor boasts three layers. It can adjust the spray amount according to its operational speed.
6. The whole asphalt spraying process can be finished in the cab.
7. Each nozzle is controlled by separate computer. The spray width can be adjusted at random.
8. The control procedure is equipped with two control systems, cab and post operational platform to ensure the reliability ofasphalt spray.

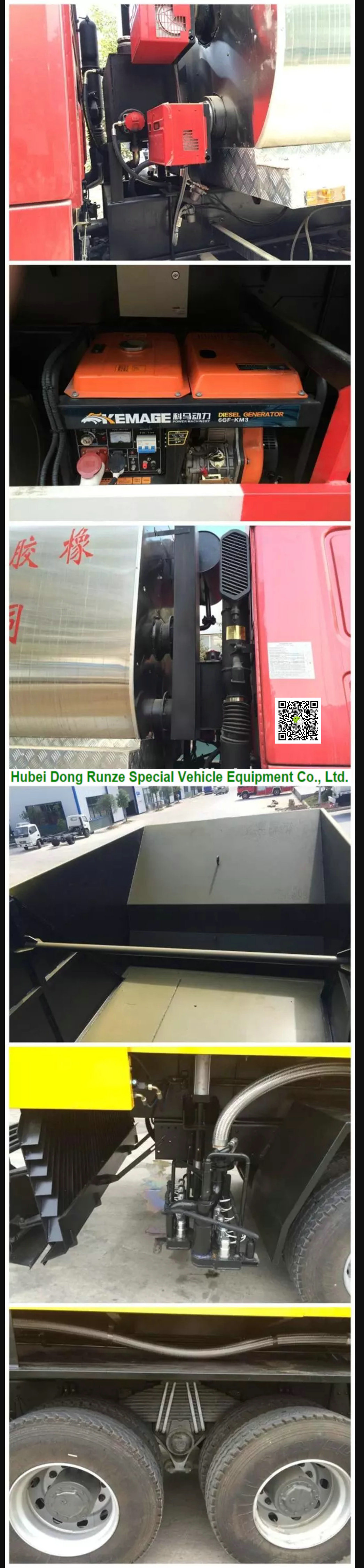

Product Photos

Customize Small Shacman Asphalt Synchronous Chip Sealer Truck with 6cbm Asphalt Tank
Customize Small Shacman Asphalt Synchronous Chip Sealer Truck with 6cbm Asphalt Tank
Customize Small Shacman Asphalt Synchronous Chip Sealer Truck with 6cbm Asphalt Tank


Parameters of Semi-Automatic Asphalt Distributor.


Model

5251GLQ

5162GLQ

5161GLQ

5120GLQ

5111GLQ

5090GLQ

5081GLQ

Truck

Cab-over-engine 6*4

Cab-over-engine 4*2

Cab-over-engine 4*2

Cab-over-engine 4*2

Cab-over-engine 4*2

Cab-over-engine 4*2

Cab-over-engine 4*2

Chassis Model

ZZ1257M4647C

DFL1160BX

BJ5163ELFFD

BJ1123VJPEG-S

EQ1110TJ12D5

EQ1090T9ADJ3AC

HFC1081KT

Burner model

G20

G20

G20

G20

G20

G20

G20

Asphalt capacity

12000

8000

8000

6600

5400

4500

5000

Spray bar variable(m)

0-6M

0-6M

0-6M

0-6M

0-6M

0-6M

0-5.5M

Spray bar value(kg)

0.3-3.0

0.3-3.0

0.3-3.0

0.3-3.0

0.3-3.0

0.3-3.0

0.3-3.0

Dimension

10500*2496*3350

8995*2490*3200

8785*2455*3015

8990*2350*2855

7998*2260*2870

7445*2285*2560

7350*2010*2460
Configuration Type Details of Asphalt truck
Normal configuration Simple type 1. Asphalt pump: ZP230 insulation type high viscosity asphalt pump;
2. Asphalt pump drive motor: GM05 series high-torque plunger motor;
3. Burner: G10 imported from Italy
4. Temperature control: AI-218 microcomputer temperature controller;
5. Spreading width: 1.2m ~ 4.5m, optional 6m
6. Spray  control: manual adjustment
7. Asphalt pipeline compressed air cleaning function
Ordinary configuration 1. Asphalt pump: ZP230 insulation type high viscosity asphalt pump;
2. Asphalt pump drive motor: GM05 series high-torque plunger motor;
3. Hydraulic pump: F563 aluminum alloy gear pump;
4. Hydraulic system: manual flow control valve imported;
5. Burner: G10 imported from Italy
6. Temperature control: AI-218 microcomputer temperature controller;
7. Spreading width: 1.2m ~ 4.5m, optional 6m
8. Sprinkler control: manually adjust asphalt pipe
9. Asphalt pipeline compressed air cleaning function
Ordinary upgrade configuration
1. Asphalt pump: ZP230 insulation type high viscosity asphalt pump;
2. Asphalt pump drive motor: GM05 series high-torque plunger motor;
3. Hydraulic pump: F563 aluminum alloy gear pump;
4. Hydraulic system: imported proportional flow control valve;
5. Burner: G10 imported from Italy
6. Heating method: automatically heating by heat-conduction oil
7. Temperature control: AI microcomputer temperature controller;
8. Width of Spray : 1.2m ~ 4.5m, optional 6m precise triple overlappingSpray ,
9. Spraying quantity control: manually adjust asphalt nozzle;
10. Asphalt pipeline compressed air cleaning function
Semi-intelligent configuration

1. Asphalt pump: ZP230 insulation type high viscosity asphalt pump;
2. Asphalt pump drive motor: GM05 series high-torque plunger motor;
3. Hydraulic pump: F563 aluminum alloy gear pump;
4. Hydraulic system: imported proportional flow control valve;
5. Burner: G10 imported from Italy
6. Heating method:  automatically heating by heat-conduction oil
7. Temperature control: AI microcomputer temperature controller;
8. Maximum width of Spray : 4.5 meters, optional 6 meters, precise three overlapping Spray , fully electric controln ozzle,
9. Sprinkler control: front and background potentiometer adjustment, digital display;
10. Asphalt pipeline compressed air cleaning function
Full intelligent configuration

1. Asphalt pump: ZP230 insulation type high viscosity asphalt pump;
2. Asphalt pump drive motor: GM05 series high-torque plunger motor;
3. Hydraulic pump: F563 aluminum alloy gear pump;
4. Hydraulic system: imported proportional flow control valve;
5. Burner: G10 imported from Italy
6. Heating method:  automatically heating by heat-conduction oil with selective heating function
7.temperature control: Germany Siemens temperature control module, computer temperature control
8. Maximum width of Spray : 4.5 meters, optional 6 meters, precise three overlapping Spray , fully electric control nozzle,
9. Sprinkling width is precisely controlled by computer: sprinkling quantity control: Germany Siemens PLC, intelligent control, sprinkling quantity and speed precise linkage, front touch screen control system.
10. Asphalt pipeline compressed air cleaning function
Full intelligent configuration
imported Pump
  1. Asphalt pump:  European TGGP-86-100 heat preservation pump

2. Asphalt pump drive motor: GM05 series high-torque plunger motor;
3. Hydraulic pump: Germany leisler plunger variable pump;
4. Hydraulic system: imported proportional flow control valve;
5. Burner: G10 imported from Italy
6. Heating method:         automatically heating by heat-conduction oil   with selective heating function
7.       temperature control: Germany Siemens temperature control module, computer temperature control
8. Maximum width of Spray : 4.5 meters, optional 6 meters, precise three overlapping Spray ,       fully electric   control   nozzle,
9.       Sprinkling width is precisely controlled by computer: sprinkling quantity control: Germany Siemens PLC, intelligent control, sprinkling quantity and speed precise linkage, front touch screen control system.
10. Asphalt pipeline compressed air cleaning function
11.spray volume 0.2 ~ 3 kg / , 28 sets of full electric nozzle,


Our products enjoy a good reputation for the good quality!
The asphalt distributor is made up by chassis, asphalt tank, asphalt pump, optional conduction oil heating system, electronic control system and spraybar system, etc.
Major features:
1) Digital display meters and instruments to indicate speed of the vehicle and the asphalt pump rotation, as well as temperature of asphalt inside the tank.
2) Possesses heat preservation, conduction oil recycling heating, transportation, spray, pumping and discharge function, etc.
3) Nozzle controlled through pneumatic joint control operation of cylinder for opening and closing.
4) Cleaning system of compressed air

5) Hydraulic power take-off of chassis or auxiliary diesel engine for drive, heated with burner, optional conduction oil recycling system.
