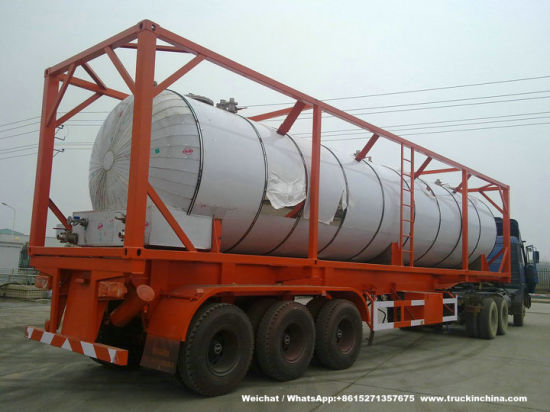

Customising 40FT Stainless Steel Tank Container with Insulation Steam Heating for Phosphorus Chemeical Liquid Transport
| Quantity: | |
|---|---|
-
Shanghai, China
-
300
-
T/T

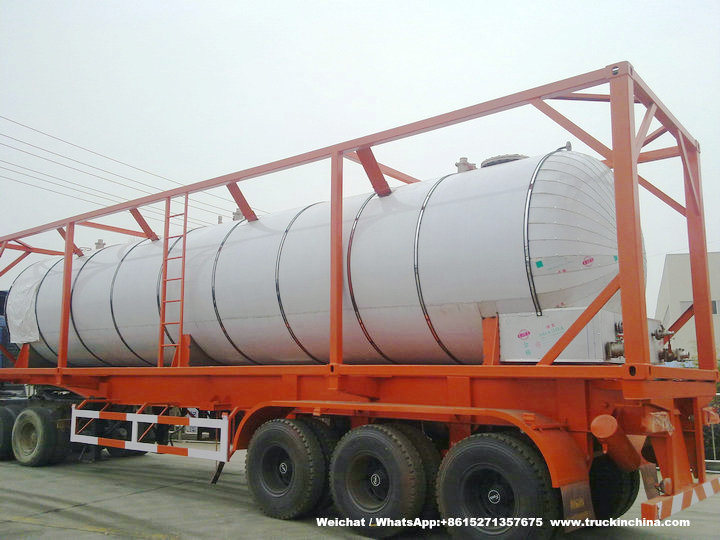

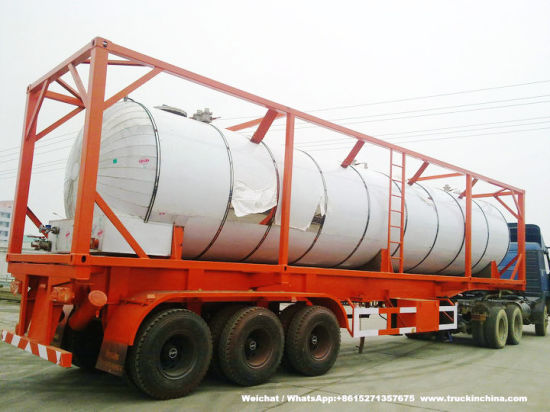

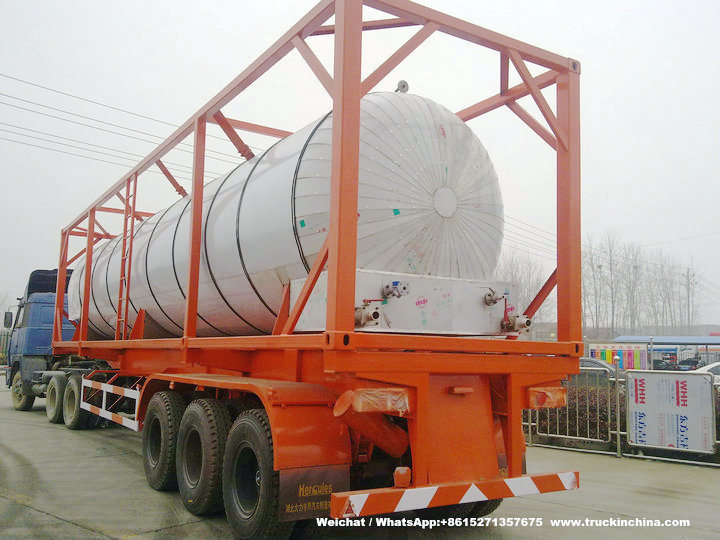

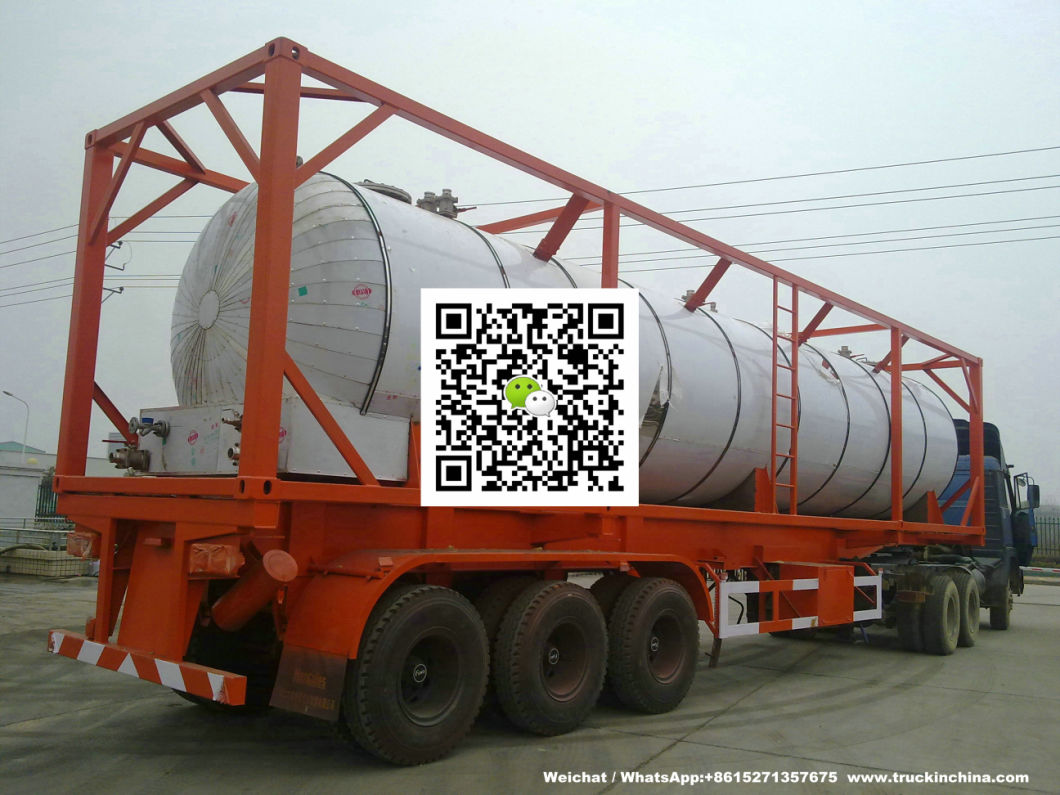

Customising 40FT Stainless Steel Tank Container with Insulation Steam Heating for Phosphorus Chemeical Liquid Transport
Toxci ISO Tank for Yellow Phosphorus Stainless Steel Insulated Tank Container with Steam Heating System
inlet and outlet are sealed with nitrogen to isolate air and water sealed
stainless steel Tank Container with Heating Insulated System for transport Yellow Phosphorus
PHOSPHORUS WHITE, PHOSPHORUS YELLOW UN Number: 1381
for UN 1381, PHOSPHORUS, WHITE or YELLOW, UNDER WATER or IN SOLUTION
The effective volume of the tank is 20 --30 cubic meters, the tank body is cylindrical, made of high-quality international 304 type stainless steel 6mm, stainless steel wave plate 4mm, 4 layers in total (each upper and lower C-shaped flow port is welded firmly with a 150 mm wide C-shaped stainless steel plate to prevent cracking), a feed inlet of the tank body is equipped with a discharge outlet, and the inlet and outlet are sealed with nitrogen to isolate air and water, a 530mm diameter Maintenance manhole, glass fiber insulation for tank body, plus 1mm stainless steel mirror panel protection
Yellow Phosphorus, Phosphoric Acid Solution tanks
Manway Assembly 1 x DN500 tongue and groove type flat bolted manlid with 2 lifting eyebolts
incorporating one off DN150 loading connection at centre. Gasket: PTFE
Top Discharge Assembly 1 x 2" ANSI 150# weld in pad fitted with 2" AZ-F2 fire safe flanged plug
valve complete with bolted blank flange retained by chain.
A full length 2" flanged siphon tube is fitted with tube guide and sump. The valve will be painted in Red and shall be marked with "Phosphorus". Gasket: VSP(PITA)
Weld-in pad fitted horizontally on top centre line.
Nitrogen Connection 1 x 1.5" ANSI 150# weld in pad fitted with 1.5" AZ-F2 fire safe flanged plug
valve complete with bolted blank flange retained by chain.
The valve will be painted in Blue and shall be marked with "Nitrogen". Gasket: VSP(PITA)
Weld-in pad fitted horizontally on top centre line.
Water Connection 1 x 2" ANSI 150# weld in pad fitted with a 2" to 1.5" adaptor flange and 1.5"
AZ-F2 fire safe flanged plug valve complete with bolted blank flange retained by chain.
The valve will be painted in Green and shall be marked with "Water". Gasket: VSP(PITA)
Weld-in pad fitted horizontally on top centre line.
Relief Valve Assembly 1 x DN 80 flanged pressure relief valve with flameproof gauze, fitted with
bursting disc and manometer.
Set pressure: valve 4.4 bar; disc rated at 4.84 bar. Weld-in pad fitted horizontally on top centre line.

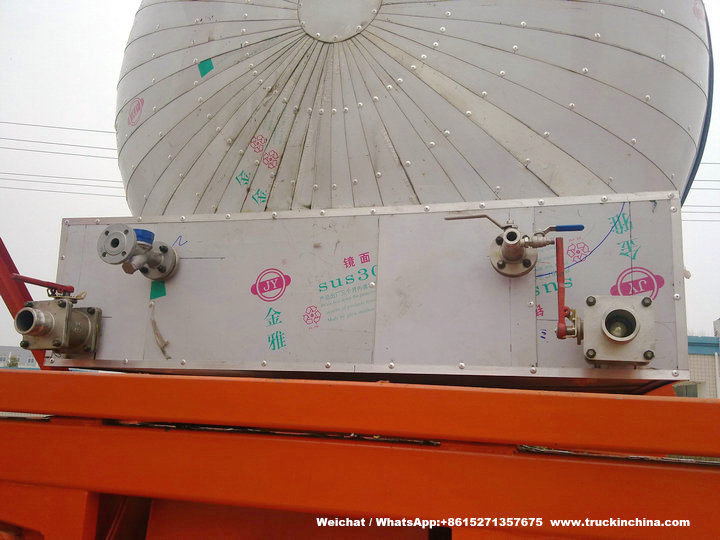

Spill Boxes 2 top spill boxes with lockable aluminium covers provided as follows:-
Centre box with lid flat open to front contains Manway assembly and PR Valve.
Rear box with lid flat open to front contains Top outlet, Nitrogen connection and Water connection.
Drainage pipes made of 304 stainless steel fitted to each side of each box.
Walkway „A Type walkway, 475 wide aluminium „Q grating fitted as follows:-
2 full length walkways fitted with two transverse sections, one adjacent to the centre spill box, one across rear of tank.
Electrolytic barriers fitted between differing materials.
Insulation Tank insulated with 25mm PU outside plus 25mm rock wool inside where
possible. Tank ends insulated with rockwool.
Aluminium foil will be fitted between insulation and tank shell. External cladding: 0.8mm nominal Aluminium
Steam Heating 12 longitudinal runs heating coils, giving actual surface of heating 6.5
M2(effective heating area of 13 M2 )will be fitted.
The working pressure is 4 bar and the testing pressure is 6 bar Inlet connection and outlet connection are 1" BSP.
Stainless steel caps and chain will be fitted.
Thermometer 1 off, Dual scale thermometer, -40° C to 160° C, liquid filled, fitted on rear
end to lower left side.
Ladder 1-off, Aluminium with anti-slip rungs, fitted at the rear RHS of the tank. Electrolytic barrier tape will be positioned between any dissimilar metals.
Earthing Plate 1 off, welded to bottom frame rear end of tank
Document Holder 1 off, in tubular PVC
Decal Mandatory markings supplied and fitted, Owners logo decal artwork to be supplied by TWS, will make the logo decal and stick onto the tank.
Data Plate 1 off SS consolidated data plate as per code.
Internal Finish Longitudinal welds: as-welded
Circumferential welds: as-welded but with 400 mm ground flush at the bottom centre.
Entire internal surface chemically cleaned and passivated after completion of all welding and dressing.
External Finish Tank Shell: External surface of tank cleaned after completion of all welding
and testing.
Framework: All carbon steel frame parts will be shot blasted to Swedish standard SA2½ followed by the application of:-
Painting First coat: Intermediate: Final coat:
Hempadur Zinc (1536C) Hempatex Primer (1530C) Hempatex Hibuild (5643C) TOTAL
Colour Red
30 micron min DFT 40 micron min DFT 50 micron min DFT 120 micron min DFT RAL 3002
Delivery Conditions Purged with Nitrogen and delivered with 0.5 Bar pressure.
Delivery time: 50~100units during 3months~12months
Inspection Agency: LR or BV
Cargo carried: Yellow phosphorus UN1381
ASME Spot ASME Full
Stacking: Each container is approved for 10 high stacking
Design Approvals: IMDG T14, CFR 49, ADR/RID, CSC, TC, TIR, ISO, UIC, US/UK DOT
The pictures are for your reference only.
ISO Tank Container 20 FT For Hazardous Liquids
Road transport tank container
ISOTANK List
The Main Technical Parameters of Tanks (ASME Standard) | ||||||||||||
| Loading Medium | Model | Capacity | Design | Design | Tank Material | Nominal Tank | Insulation | Tare weight | Max. Gross Weight | Dimension | Loading Method |
1 | R134a | T50 | 24 | 1.38 | -40 /+55 | SA-612N | 11 | Sunshade | 6400 | 34000 | 6058 X 2438 X2591 | Down load unload |
2 | R22 | 22 | 2.1 | -40/+50 | 18 | 8800 | ||||||
3 | R143a | 22 | 2.42 | 20 | 9500 | |||||||
4 | R125 | 22 | 2.75 | 21 | 9500 | |||||||
5 | R32 | 20 | 3.44 | 25 | 10900 | |||||||
6 | AHF | T19 | 21 | 1.0 | -40/+55 | SA516M NGr.485 | 12 | No | 6900 | Up load unload | ||
7 | Trichlorosilan | T14 | 21 | 0.5 | -40/+50 | Q345R | 12 | No | 6780 | 34000 | 6058 X 2438 X2591 | |
8 | Liquid Chlorine | T50 | 20 | 1.7 | -40/+50 | 16 | 8300 | |||||
9 | 21.72 | 1.62 | 16 | 8900 | ||||||||
10 | Liquid | T50 | 21.6 | 2.2 | -40/+50 | 06Cr19Ni10 | 22 | Packing Insulation | 11970 | |||
11 | SO2 | T20 | 21 | 1.03 | 40 /+60 | 16MnDR | 12 | No | 6900 | |||
12 | Cryogenic Liquid | T75 | 19.8,20 | 0.75-2.35 | -196/+50 | Inner Tank: 06Cr19Ni10 | Vacuum With Mutli-wrapped | 8600/12880 | Down load unload | |||
The Main Technical Parameters of Tanks (China Standard) | ||||||||||||
| Loading Medium | Model | Capacity | Design | Design | Tank Material | Nominal Tank | Insulation | Tare weight | Max. Gross Weight | Dimension | Loading Method |
1 | R134a | T50 | 24 | 1.38 | -40 /55 | Q345 (16MnR) | 12 | Sunshade | 6500 | 34000 | 6058 X 2438 X2591 | Down load unload |
2 | R22 | 20 | 2.1 | -40/+50 | 16 | 7850 | ||||||
3 | 24 | 18 | 9100 | |||||||||
4 | R125 | 22 | 2.75 | 22 | 9900 | |||||||
5 | R32 | 22 | 3.44 | 28 | 12000 | |||||||
6 | 23.7 | -40 /55 | 12700 | |||||||||
20ft T50 LPG ISO Tank Container LPG Propane Isobutane Gas Tank Container 24K
1. DRZ Cryogenic Storage Tank include the following ISO cryogenic tank:10ft, 12ft, 20ft, 40ft
2. Used for: liquid oxygen tank container, liquid nitrogen tank container, liquid argon tank container, liquid Nitrous Oxide tank container, liquid carbon dioxide tank container, LNG tank container, LPG tank container, AHF tank container, Liquid Chlorine tank container, liquid ammonia tank container.
3. Tank capacity: 7.7m3~60m3.
4. Tank pressure: 8bar, 16bar ,24Bar or based on user requirement.
5. certificate: RID/ADR, CFR49, IMDG, T75 UN PORTABLE, TIR , UIC, CSC, TC, US DOT, UK-DFT, FRA
Hydrogen Peroxide Iso Containers, Stainless Steel Iso Tank Containers
Sulphuric Acid Iso Containers, Stainless Steel Iso Tank Containers
Nitric Acid Iso Containers, Stainless Steel Iso Tank Containers
Mining Chemicals Iso Containers, Stainless Steel Iso Tank Containers
Food Products Iso Containers, Stainless Steel Iso Tank Containers
Solvents Iso Containers, Stainless Steel Iso Tank Containers
Oils Iso Containers, Stainless Steel Iso Tank Containers
Resins Iso Containers, Stainless Steel Iso Tank Containers
Alcoholic Beverages Iso Containers, Stainless Steel Iso Tank Containers
Mo 1 Iso Containers, Stainless Steel Iso Tank Containers
Imo Iso Containers, Stainless Steel Iso Tank Containers
Imo 5 Iso Containers, Stainless Steel Iso Tank Containers
Imo 7 Iso Containers, Stainless Steel Iso Tank Containers
Food Tank Containers And Iso Containers, Stainless Steel Iso Tank Containers
Tank Containers Containers And Iso Containers, Stainless Steel Iso Tank Containers
Iso Containers, Stainless Steel Iso Tank Containers Hazardous.
Iso Containers, Stainless Steel Iso Tank Containers Non-Hazardous Liquid Materials.
Horizontal Iso Tanks And Containers, Stainless Steel Iso Tank Containers
Vertical Iso Containers, Stainless Steel Iso Tank Containers
The Aim Of Iso Is To Create a Standardised Process Of Manufacture So That Things Can Be Interchangeable No Matter Where You Are. Having Products With An Iso Label Enables People To Know Exactly How The Product Will Work And Know Everything About It.
There Are Plenty Of Advantages For Using An Iso Tank. They Are a Highly Reliable, Cost Effective And Safe Way Of Transporting Bulk Liquids From Place To Place.
T9, T10,T11,T14,T50 portable tank Standard ISO tank 10.9K-26K cement tank,
PTFE/PE Lined tanks for hydrofluoric acid liquid ,hydrochloric acid ,sodium hypochlorite HCl,NaOH,NaClO liquid etc.
Insulation Tank for bitumen Liquid Asphalt,crude oil etc.Portable Tank Container
Tank Containers can be used to carry the following products:
Portable Tank Container
Products
ISO Tank - Ammonium Nitrate
ISO Tank - Bio-diesel
ISO Tank - Molasses
ISO Tank - Caster Oil
ISO Tank - Hexane
ISO Tank - Ethanol
ISO Tank - Ethylene
ISO Tank - Methanol
ISO Tank - IMO 1
ISO Tank - IMO 2
ISO Tank - IMO5
ISO Tank - Capacities ranging from 10,000 litres to 25,000 litres
ISO Tank - Swap Bodies with capacities ranging from 26,000 litres to 32,000 litres
ISO Tank - Bitumen tank containers 21,000 litres
ISO Tank - Off-shore tanks with capacities of 1,000 litres to 10,000 litres
IMO 1
ISO Tank - Shell made from 316 Stainless Steel
ISO Tank - Capacity of 12,000 - 26,500 litres nominal
ISO Tank - MAWP of 4 bar
ISO Tank - For transport of:
ISO Tank - Hazardous liquids
ISO Tank - Available in 7.65, 10, 20, or 30 foot sizes
ISO Tank - Also Swap-bodies 7.65m and 7.82 (30,000-35,000 litres)
ISO Tank - Heating by steam or electric heating (optional)
ISO Tank -
Cooling by Glycol (optional)
Please contact us if you require further information and/or a quotation. (Contact Details above)
IMO 2
ISO Tank - Shell made from 316 Stainless Steel
ISO Tank - Capacity of 12,000 - 26,500 litres nominal
ISO Tank - MAWP of 1.75 bar
ISO Tank - For transport of:
ISO Tank - Low Hazardous liquids
ISO Tank - Available in 7.65, 10, 20, or 30 foot sizes
ISO Tank - Also Swap-bodies 7.65m and 7.82 (30,000-35,000 litres)
ISO Tank - Heating by steam or electric heating
ISO Tank - Cooling by Glycol
Please contact us if you require further information and/or a quotation. (Contact Details above)
IMO 0
ISO Tank - Shell made from 316 Stainless Steel
ISO Tank - Capacity of 12000 - 26500 litres nominal
ISO Tank - MAWP of 4 bar
ISO Tank - For transport of
ISO Tank - Wine
ISO Tank - Fruit Juices
ISO Tank - Vegetable Oils
ISO Tank - Mineral Oils
ISO Tank - Non-hazardous Oils
ISO Tank - Available in 20 foot / 6 metres
ISO Tank - Also Swap-bodies 7.65m and 7.82 (30,000-35,000 litres)
ISO Tank - Heating by steam or electric heating (optional)
ISO Tank -
Cooling by Glycol (optional)
Please contact us if you require further information and/or a quotation. (Contact Details above)
IMO 5
ISO Tank - Shell made from 316 Stainless Steel
ISO Tank - Capacity of 15,000 - 25,500 litres nominal
ISO Tank - MAWP of 1.75 bar
ISO Tank - For transport of gases, including:
ISO Tank - Propane
ISO Tank - Butane
ISO Tank - Refrigerants
ISO Tank - Available in 20, 30 or 40 foot sizes
ISO Tank - Cooling by sun-shieldPlease contact us if you require further information and/or a quotation. (Contact Details above)IMO 7
ISO Tank - Shell made from 316 Stainless Steel or Carbon Steel
ISO Tank - Capacity of 20,000 - 24,000 litres nominal
ISO Tank - MAWP of 8 bar
ISO Tank - For transport of cryogenic gases, including:
ISO Tank - LNG
ISO Tank - Available in 10, 20, 30 or 40 foot sizes
ISO Tank - Cooling by glycolPlease contact us if you require further information and/or a quotation. (Contact Details above)
Bitumen Tank Containers
ISO Tank - Shell made from Carbon Steel
ISO Tank - Capacity of 20,000-25,000 litres nominal
ISO Tank - MAWP of 1.75 bar
ISO Tank - Low Hazardous liquids
ISO Tank - Available in 20 or 30 foot sizes
ISO Tank - Also Swap-bodies 7.15m (30,000 litres) and 7.82 (35,000 litres)
ISO Tank - Heating by direct flame, hot oil or electric heatingPlease contact us if you require further information and/or a quotation. (Contact Details above)
Cement Containers
ISO Tank - Capacity of 17.5 - 25 cubic metres
ISO Tank - Pressure dischargeOffshore
ISO Tank - Shell made from 316 Stainless Steel
ISO Tank - Capacity of 2,000 - 10,000 litres
ISO Tank - MAWP of 5 bar
ISO Tank - For transport of gases, including:
ISO Tank - Hazardous chemicals
ISO Tank - Acid
ISO Tank - Petroleum
ISO Tank - Available in 8 x 8 x 10 sizes
ISO Tank - Heated by steam or electric (optional)
The highly hazardous tank container is an IMO 1, T11, T14, T20 or T22 stainless steel container with a capacity range between 14.600 and 24.000 liters. The tank containers we offer are suitable to transport highly hazardous and often corrosive cargoes. The tanks comply to all international regulations including ASME-U Stamp (T20 and T22). We have a variety of tank containers with either a rubber, resign or plastic lining. Other types and modifications include tank containers with baffle plates, bolted manlids, valve actuators, coated valves, coated spill boxes, gauges and different top discharge connections. Other safety related fittings or connections improving the operational flexibility can also be attached.
Beside the options shown, a wide range of other modifications and fittings is available. Please share your enquiry and we will specify the most suitable tank container for your business. During this process we will take into account the product(s) to be loaded, the area of operation and any loading or discharge preferences. Our goal is to provide you with the most optimal tank taking both income and costs into consideration.
ISO Tank, ISO Tank Containers
Manufacturers & Exporters
ISO Containers, stainless steel ISO tank containers, IMO tank containers for All types of Water , Hydrogen Peroxide , Sulphuric Acid , Nitric Acid , Mining chemicals , Food Products ,Solvents, Oils , Resins , Alcoholic Beverages , MO 1 ,IMO 2 IMO 2 ,IMO 5 IMO 5 ,IMO 7 IMO 7,Food Tank Containers and UN portable tanks that can be used to ship a hazardous and non-hazardous liquid materials. Our ISO tanks is versatile tanks and ISO standards tanks, many different kind of can be equipped with insulation ISO tanks, steam heating ISO tank, electric heating ISO tank or refrigeration for products that require temperature control, top and/or bottom discharge valve and pipeline systems , protective linings if required and other modifications we will provide as per customer requirement. Products stored or transported by these containers vary from non-hazardous and hazardous chemicals ISO tanks. These specially ISO tanks units are specially designed for transportation of bulk liquid product to, from and between fixed and/or mobile consumption points and where house delivery.
The bulk liquids that can be transported in an ISO tank include :
Swap body tank ISO tank , ISO Tank Containers- a swap body has a bigger tank which is larger than the frame, usually 23 or 25 feet (7.01 or 7.62 meters) long
Food-grade tank - ISO tank , ISO Tank Containers- a standard tank container which can only be loaded with foodgrade products
ISO tank , ISO Tank Containers Reefer tank - a tank with the ability to cool the product to be transported
ISO tank , ISO Tank ContainersGas tank - a tank that is suitable for the transport of gases
Silo tank ISO tank , ISO Tank Containers- a tank for the transport of grains and powders
T1 ISO tank container for wine and light liquids (ISO tank , ISO Tank Containers)
T4 ISO tank container for non-hazardous edible and non-edible oils (ISO tank , ISO Tank Containers)
T11 ISO tank container for non-hazardous chemicals - ISO tank , ISO Tank Containers
T14 ISO tank container for hazardous chemicals and acids like HCl and zinc chloride - ISO tank , ISO Tank Containers
T50 ISO tank container for LPG and ammonia gas - ISO tank , ISO Tank Containers
SWAP tank container (for cargo above 26,000 to 32,000 metric tons or 25,600 to 31,500 long tons or 28,700 to 35,300 short tons ISO tank , ISO Tank Containers
Rubber-lined ISO tank container for acid-based chemicals best for ISO tank , ISO Tank Containers
PE Lined steel tanks for hydrofluoric acid liquid ,hydrochloric acid ,sodium hypochlorite HCl,NaOH,NaClO liquid etc.
Hazardous chemicals
Acid
Petroleum
ISO Tank
ISO 40' LNG Tank Container | Bitumen tank container | ISO 20' Tank Container |
IMO 1 | IMO 2 | IMO 5 |
Cell :+8615271357675

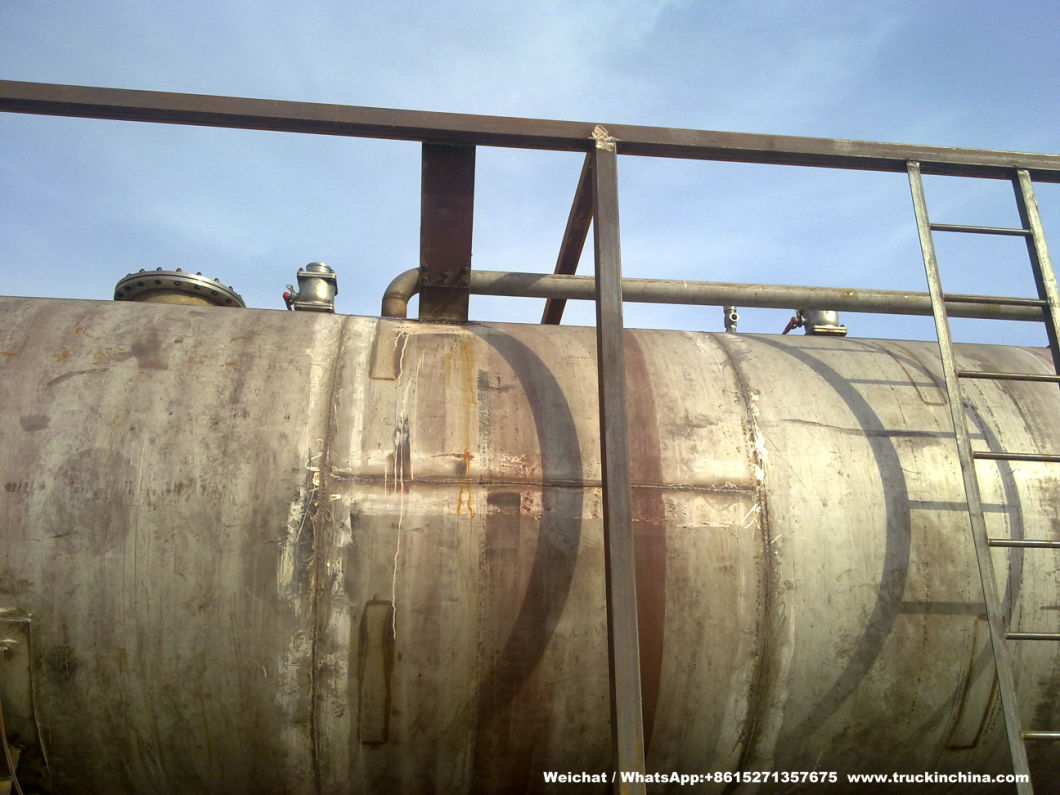

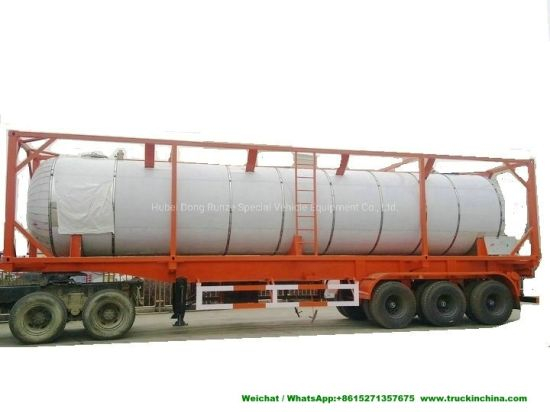

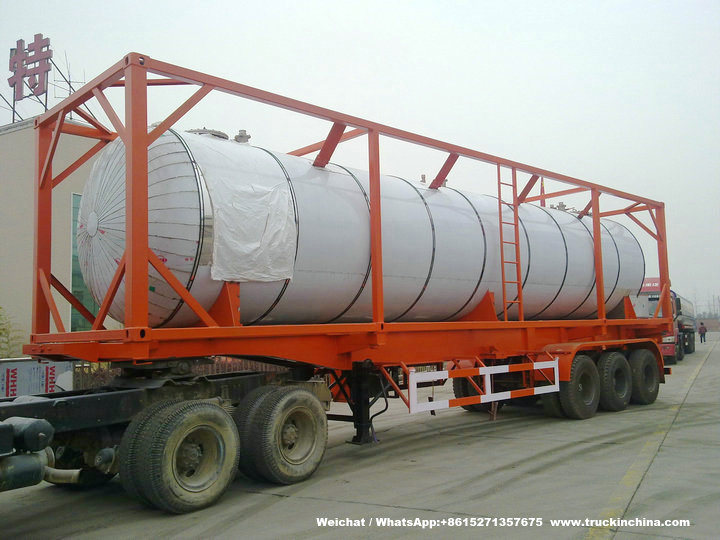

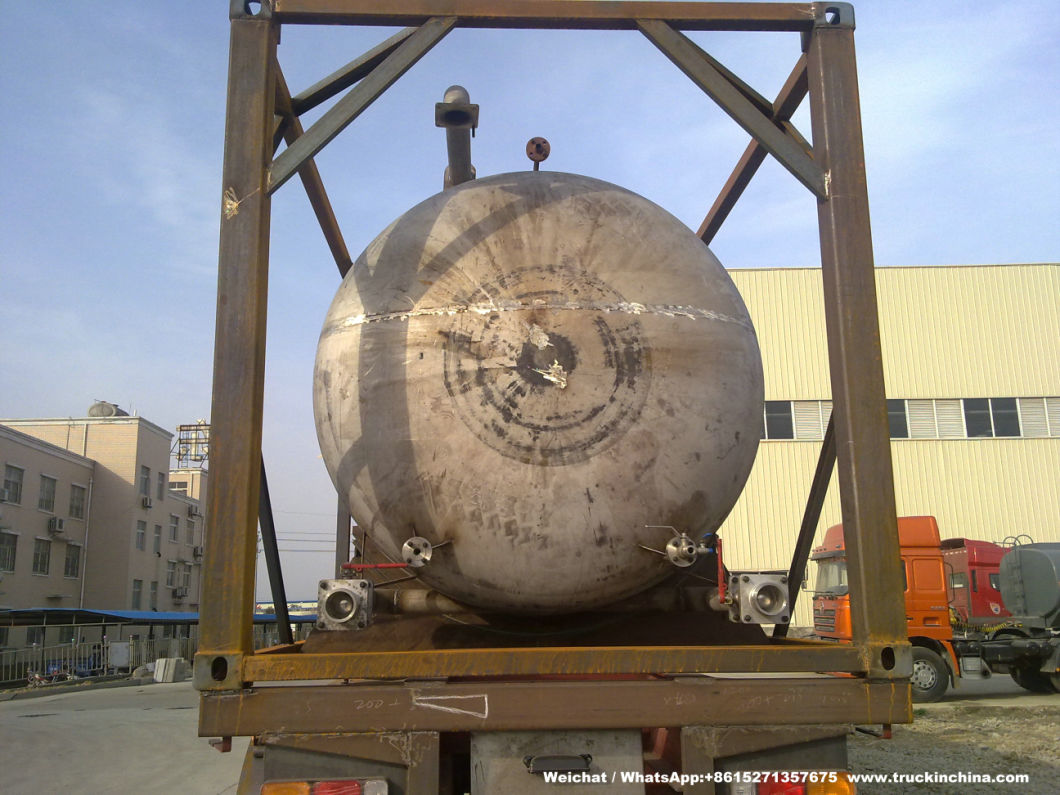

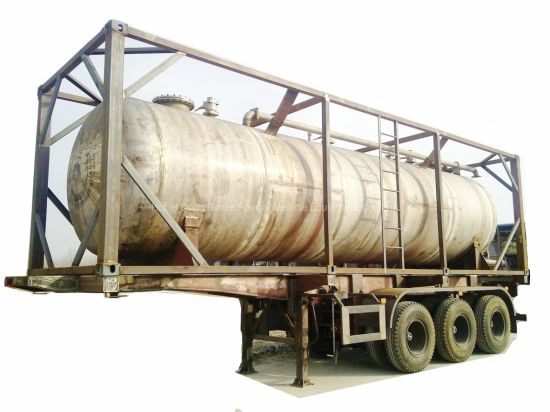

Customising 40FT Stainless Steel Tank Container with Insulation Steam Heating for Phosphorus Chemeical Liquid Transport
Toxci ISO Tank for Yellow Phosphorus Stainless Steel Insulated Tank Container with Steam Heating System
inlet and outlet are sealed with nitrogen to isolate air and water sealed
stainless steel Tank Container with Heating Insulated System for transport Yellow Phosphorus
PHOSPHORUS WHITE, PHOSPHORUS YELLOW UN Number: 1381
for UN 1381, PHOSPHORUS, WHITE or YELLOW, UNDER WATER or IN SOLUTION
The effective volume of the tank is 20 --30 cubic meters, the tank body is cylindrical, made of high-quality international 304 type stainless steel 6mm, stainless steel wave plate 4mm, 4 layers in total (each upper and lower C-shaped flow port is welded firmly with a 150 mm wide C-shaped stainless steel plate to prevent cracking), a feed inlet of the tank body is equipped with a discharge outlet, and the inlet and outlet are sealed with nitrogen to isolate air and water, a 530mm diameter Maintenance manhole, glass fiber insulation for tank body, plus 1mm stainless steel mirror panel protection
Yellow Phosphorus, Phosphoric Acid Solution tanks
Manway Assembly 1 x DN500 tongue and groove type flat bolted manlid with 2 lifting eyebolts
incorporating one off DN150 loading connection at centre. Gasket: PTFE

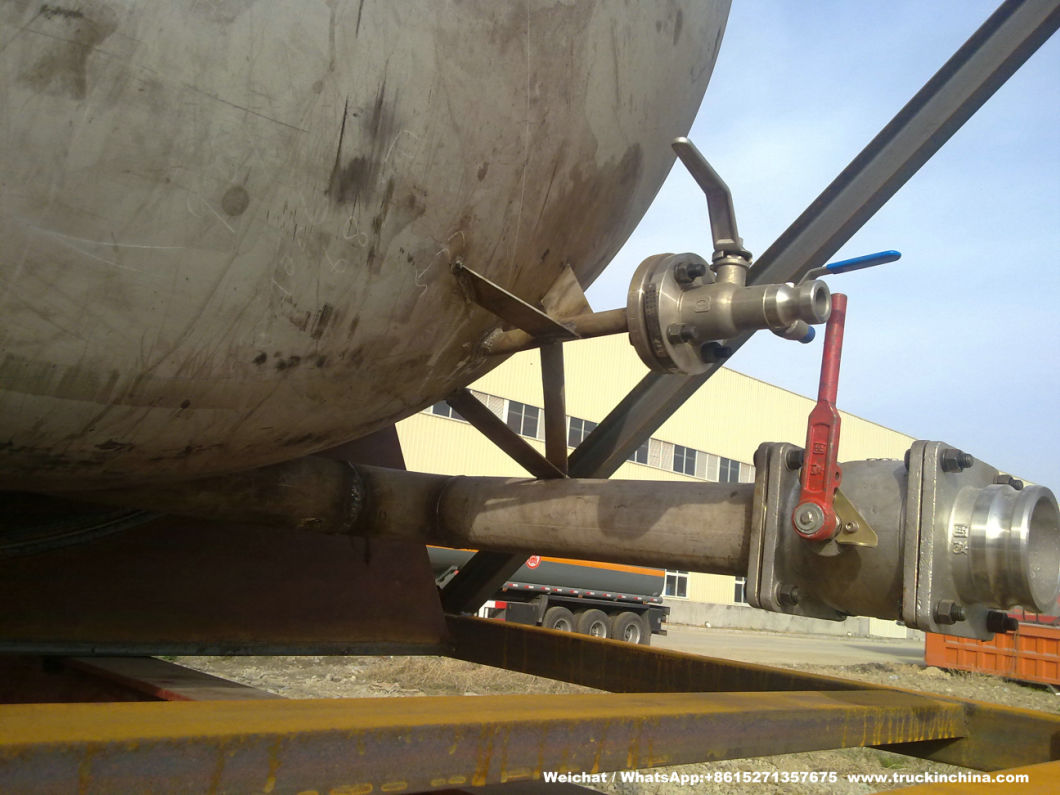

Top Discharge Assembly 1 x 2" ANSI 150# weld in pad fitted with 2" AZ-F2 fire safe flanged plug
valve complete with bolted blank flange retained by chain.
A full length 2" flanged siphon tube is fitted with tube guide and sump. The valve will be painted in Red and shall be marked with "Phosphorus". Gasket: VSP(PITA)
Weld-in pad fitted horizontally on top centre line.
Nitrogen Connection 1 x 1.5" ANSI 150# weld in pad fitted with 1.5" AZ-F2 fire safe flanged plug
valve complete with bolted blank flange retained by chain.
The valve will be painted in Blue and shall be marked with "Nitrogen". Gasket: VSP(PITA)
Weld-in pad fitted horizontally on top centre line.
Water Connection 1 x 2" ANSI 150# weld in pad fitted with a 2" to 1.5" adaptor flange and 1.5"
AZ-F2 fire safe flanged plug valve complete with bolted blank flange retained by chain.
The valve will be painted in Green and shall be marked with "Water". Gasket: VSP(PITA)
Weld-in pad fitted horizontally on top centre line.
Relief Valve Assembly 1 x DN 80 flanged pressure relief valve with flameproof gauze, fitted with
bursting disc and manometer.
Set pressure: valve 4.4 bar; disc rated at 4.84 bar. Weld-in pad fitted horizontally on top centre line.
Spill Boxes 2 top spill boxes with lockable aluminium covers provided as follows:-
Centre box with lid flat open to front contains Manway assembly and PR Valve.
Rear box with lid flat open to front contains Top outlet, Nitrogen connection and Water connection.
Drainage pipes made of 304 stainless steel fitted to each side of each box.
Walkway „A Type walkway, 475 wide aluminium „Q grating fitted as follows:-
2 full length walkways fitted with two transverse sections, one adjacent to the centre spill box, one across rear of tank.
Electrolytic barriers fitted between differing materials.
Insulation Tank insulated with 25mm PU outside plus 25mm rock wool inside where
possible. Tank ends insulated with rockwool.
Aluminium foil will be fitted between insulation and tank shell. External cladding: 0.8mm nominal Aluminium
Steam Heating 12 longitudinal runs heating coils, giving actual surface of heating 6.5
M2(effective heating area of 13 M2 )will be fitted.
The working pressure is 4 bar and the testing pressure is 6 bar Inlet connection and outlet connection are 1" BSP.
Stainless steel caps and chain will be fitted.
Thermometer 1 off, Dual scale thermometer, -40° C to 160° C, liquid filled, fitted on rear
end to lower left side.
Ladder 1-off, Aluminium with anti-slip rungs, fitted at the rear RHS of the tank. Electrolytic barrier tape will be positioned between any dissimilar metals.
Earthing Plate 1 off, welded to bottom frame rear end of tank
Document Holder 1 off, in tubular PVC
Decal Mandatory markings supplied and fitted, Owners logo decal artwork to be supplied by TWS, will make the logo decal and stick onto the tank.
Data Plate 1 off SS consolidated data plate as per code.
Internal Finish Longitudinal welds: as-welded
Circumferential welds: as-welded but with 400 mm ground flush at the bottom centre.
Entire internal surface chemically cleaned and passivated after completion of all welding and dressing.
External Finish Tank Shell: External surface of tank cleaned after completion of all welding
and testing.
Framework: All carbon steel frame parts will be shot blasted to Swedish standard SA2½ followed by the application of:-
Painting First coat: Intermediate: Final coat:
Hempadur Zinc (1536C) Hempatex Primer (1530C) Hempatex Hibuild (5643C) TOTAL
Colour Red
30 micron min DFT 40 micron min DFT 50 micron min DFT 120 micron min DFT RAL 3002
Delivery Conditions Purged with Nitrogen and delivered with 0.5 Bar pressure.
Delivery time: 50~100units during 3months~12months
Inspection Agency: LR or BV
Cargo carried: Yellow phosphorus UN1381
ASME Spot ASME Full
Stacking: Each container is approved for 10 high stacking
Design Approvals: IMDG T14, CFR 49, ADR/RID, CSC, TC, TIR, ISO, UIC, US/UK DOT
The pictures are for your reference only.
ISO Tank Container 20 FT For Hazardous Liquids
Road transport tank container
ISOTANK List
The Main Technical Parameters of Tanks (ASME Standard) | ||||||||||||
| Loading Medium | Model | Capacity | Design | Design | Tank Material | Nominal Tank | Insulation | Tare weight | Max. Gross Weight | Dimension | Loading Method |
1 | R134a | T50 | 24 | 1.38 | -40 /+55 | SA-612N | 11 | Sunshade | 6400 | 34000 | 6058 X 2438 X2591 | Down load unload |
2 | R22 | 22 | 2.1 | -40/+50 | 18 | 8800 | ||||||
3 | R143a | 22 | 2.42 | 20 | 9500 | |||||||
4 | R125 | 22 | 2.75 | 21 | 9500 | |||||||
5 | R32 | 20 | 3.44 | 25 | 10900 | |||||||
6 | AHF | T19 | 21 | 1.0 | -40/+55 | SA516M NGr.485 | 12 | No | 6900 | Up load unload | ||
7 | Trichlorosilan | T14 | 21 | 0.5 | -40/+50 | Q345R | 12 | No | 6780 | 34000 | 6058 X 2438 X2591 | |
8 | Liquid Chlorine | T50 | 20 | 1.7 | -40/+50 | 16 | 8300 | |||||
9 | 21.72 | 1.62 | 16 | 8900 | ||||||||
10 | Liquid | T50 | 21.6 | 2.2 | -40/+50 | 06Cr19Ni10 | 22 | Packing Insulation | 11970 | |||
11 | SO2 | T20 | 21 | 1.03 | 40 /+60 | 16MnDR | 12 | No | 6900 | |||
12 | Cryogenic Liquid | T75 | 19.8,20 | 0.75-2.35 | -196/+50 | Inner Tank: 06Cr19Ni10 | Vacuum With Mutli-wrapped | 8600/12880 | Down load unload | |||
The Main Technical Parameters of Tanks (China Standard) | ||||||||||||
| Loading Medium | Model | Capacity | Design | Design | Tank Material | Nominal Tank | Insulation | Tare weight | Max. Gross Weight | Dimension | Loading Method |
1 | R134a | T50 | 24 | 1.38 | -40 /55 | Q345 (16MnR) | 12 | Sunshade | 6500 | 34000 | 6058 X 2438 X2591 | Down load unload |
2 | R22 | 20 | 2.1 | -40/+50 | 16 | 7850 | ||||||
3 | 24 | 18 | 9100 | |||||||||
4 | R125 | 22 | 2.75 | 22 | 9900 | |||||||
5 | R32 | 22 | 3.44 | 28 | 12000 | |||||||
6 | 23.7 | -40 /55 | 12700 | |||||||||
20ft T50 LPG ISO Tank Container LPG Propane Isobutane Gas Tank Container 24K
1. DRZ Cryogenic Storage Tank include the following ISO cryogenic tank:10ft, 12ft, 20ft, 40ft
2. Used for: liquid oxygen tank container, liquid nitrogen tank container, liquid argon tank container, liquid Nitrous Oxide tank container, liquid carbon dioxide tank container, LNG tank container, LPG tank container, AHF tank container, Liquid Chlorine tank container, liquid ammonia tank container.
3. Tank capacity: 7.7m3~60m3.
4. Tank pressure: 8bar, 16bar ,24Bar or based on user requirement.
5. certificate: RID/ADR, CFR49, IMDG, T75 UN PORTABLE, TIR , UIC, CSC, TC, US DOT, UK-DFT, FRA
Hydrogen Peroxide Iso Containers, Stainless Steel Iso Tank Containers
Sulphuric Acid Iso Containers, Stainless Steel Iso Tank Containers
Nitric Acid Iso Containers, Stainless Steel Iso Tank Containers
Mining Chemicals Iso Containers, Stainless Steel Iso Tank Containers
Food Products Iso Containers, Stainless Steel Iso Tank Containers
Solvents Iso Containers, Stainless Steel Iso Tank Containers
Oils Iso Containers, Stainless Steel Iso Tank Containers
Resins Iso Containers, Stainless Steel Iso Tank Containers
Alcoholic Beverages Iso Containers, Stainless Steel Iso Tank Containers
Mo 1 Iso Containers, Stainless Steel Iso Tank Containers
Imo Iso Containers, Stainless Steel Iso Tank Containers
Imo 5 Iso Containers, Stainless Steel Iso Tank Containers
Imo 7 Iso Containers, Stainless Steel Iso Tank Containers
Food Tank Containers And Iso Containers, Stainless Steel Iso Tank Containers
Tank Containers Containers And Iso Containers, Stainless Steel Iso Tank Containers
Iso Containers, Stainless Steel Iso Tank Containers Hazardous.
Iso Containers, Stainless Steel Iso Tank Containers Non-Hazardous Liquid Materials.
Horizontal Iso Tanks And Containers, Stainless Steel Iso Tank Containers
Vertical Iso Containers, Stainless Steel Iso Tank Containers
The Aim Of Iso Is To Create a Standardised Process Of Manufacture So That Things Can Be Interchangeable No Matter Where You Are. Having Products With An Iso Label Enables People To Know Exactly How The Product Will Work And Know Everything About It.
There Are Plenty Of Advantages For Using An Iso Tank. They Are a Highly Reliable, Cost Effective And Safe Way Of Transporting Bulk Liquids From Place To Place.
T9, T10,T11,T14,T50 portable tank Standard ISO tank 10.9K-26K cement tank,
PTFE/PE Lined tanks for hydrofluoric acid liquid ,hydrochloric acid ,sodium hypochlorite HCl,NaOH,NaClO liquid etc.
Insulation Tank for bitumen Liquid Asphalt,crude oil etc.Portable Tank Container
Tank Containers can be used to carry the following products:
Portable Tank Container
Products
ISO Tank - Ammonium Nitrate
ISO Tank - Bio-diesel
ISO Tank - Molasses
ISO Tank - Caster Oil
ISO Tank - Hexane
ISO Tank - Ethanol
ISO Tank - Ethylene
ISO Tank - Methanol
ISO Tank - IMO 1
ISO Tank - IMO 2
ISO Tank - IMO5
ISO Tank - Capacities ranging from 10,000 litres to 25,000 litres
ISO Tank - Swap Bodies with capacities ranging from 26,000 litres to 32,000 litres
ISO Tank - Bitumen tank containers 21,000 litres
ISO Tank - Off-shore tanks with capacities of 1,000 litres to 10,000 litres
IMO 1
ISO Tank - Shell made from 316 Stainless Steel
ISO Tank - Capacity of 12,000 - 26,500 litres nominal
ISO Tank - MAWP of 4 bar
ISO Tank - For transport of:
ISO Tank - Hazardous liquids
ISO Tank - Available in 7.65, 10, 20, or 30 foot sizes
ISO Tank - Also Swap-bodies 7.65m and 7.82 (30,000-35,000 litres)
ISO Tank - Heating by steam or electric heating (optional)
ISO Tank -
Cooling by Glycol (optional)
Please contact us if you require further information and/or a quotation. (Contact Details above)
IMO 2
ISO Tank - Shell made from 316 Stainless Steel
ISO Tank - Capacity of 12,000 - 26,500 litres nominal
ISO Tank - MAWP of 1.75 bar
ISO Tank - For transport of:
ISO Tank - Low Hazardous liquids
ISO Tank - Available in 7.65, 10, 20, or 30 foot sizes
ISO Tank - Also Swap-bodies 7.65m and 7.82 (30,000-35,000 litres)
ISO Tank - Heating by steam or electric heating
ISO Tank - Cooling by Glycol
Please contact us if you require further information and/or a quotation. (Contact Details above)
IMO 0
ISO Tank - Shell made from 316 Stainless Steel
ISO Tank - Capacity of 12000 - 26500 litres nominal
ISO Tank - MAWP of 4 bar
ISO Tank - For transport of
ISO Tank - Wine
ISO Tank - Fruit Juices
ISO Tank - Vegetable Oils
ISO Tank - Mineral Oils
ISO Tank - Non-hazardous Oils
ISO Tank - Available in 20 foot / 6 metres
ISO Tank - Also Swap-bodies 7.65m and 7.82 (30,000-35,000 litres)
ISO Tank - Heating by steam or electric heating (optional)
ISO Tank -
Cooling by Glycol (optional)
Please contact us if you require further information and/or a quotation. (Contact Details above)
IMO 5
ISO Tank - Shell made from 316 Stainless Steel
ISO Tank - Capacity of 15,000 - 25,500 litres nominal
ISO Tank - MAWP of 1.75 bar
ISO Tank - For transport of gases, including:
ISO Tank - Propane
ISO Tank - Butane
ISO Tank - Refrigerants
ISO Tank - Available in 20, 30 or 40 foot sizes
ISO Tank - Cooling by sun-shieldPlease contact us if you require further information and/or a quotation. (Contact Details above)IMO 7
ISO Tank - Shell made from 316 Stainless Steel or Carbon Steel
ISO Tank - Capacity of 20,000 - 24,000 litres nominal
ISO Tank - MAWP of 8 bar
ISO Tank - For transport of cryogenic gases, including:
ISO Tank - LNG
ISO Tank - Available in 10, 20, 30 or 40 foot sizes
ISO Tank - Cooling by glycolPlease contact us if you require further information and/or a quotation. (Contact Details above)
Bitumen Tank Containers
ISO Tank - Shell made from Carbon Steel
ISO Tank - Capacity of 20,000-25,000 litres nominal
ISO Tank - MAWP of 1.75 bar
ISO Tank - Low Hazardous liquids
ISO Tank - Available in 20 or 30 foot sizes
ISO Tank - Also Swap-bodies 7.15m (30,000 litres) and 7.82 (35,000 litres)
ISO Tank - Heating by direct flame, hot oil or electric heatingPlease contact us if you require further information and/or a quotation. (Contact Details above)
Cement Containers
ISO Tank - Capacity of 17.5 - 25 cubic metres
ISO Tank - Pressure dischargeOffshore
ISO Tank - Shell made from 316 Stainless Steel
ISO Tank - Capacity of 2,000 - 10,000 litres
ISO Tank - MAWP of 5 bar
ISO Tank - For transport of gases, including:
ISO Tank - Hazardous chemicals
ISO Tank - Acid
ISO Tank - Petroleum
ISO Tank - Available in 8 x 8 x 10 sizes
ISO Tank - Heated by steam or electric (optional)
The highly hazardous tank container is an IMO 1, T11, T14, T20 or T22 stainless steel container with a capacity range between 14.600 and 24.000 liters. The tank containers we offer are suitable to transport highly hazardous and often corrosive cargoes. The tanks comply to all international regulations including ASME-U Stamp (T20 and T22). We have a variety of tank containers with either a rubber, resign or plastic lining. Other types and modifications include tank containers with baffle plates, bolted manlids, valve actuators, coated valves, coated spill boxes, gauges and different top discharge connections. Other safety related fittings or connections improving the operational flexibility can also be attached.
Beside the options shown, a wide range of other modifications and fittings is available. Please share your enquiry and we will specify the most suitable tank container for your business. During this process we will take into account the product(s) to be loaded, the area of operation and any loading or discharge preferences. Our goal is to provide you with the most optimal tank taking both income and costs into consideration.
ISO Tank, ISO Tank Containers
Manufacturers & Exporters
ISO Containers, stainless steel ISO tank containers, IMO tank containers for All types of Water , Hydrogen Peroxide , Sulphuric Acid , Nitric Acid , Mining chemicals , Food Products ,Solvents, Oils , Resins , Alcoholic Beverages , MO 1 ,IMO 2 IMO 2 ,IMO 5 IMO 5 ,IMO 7 IMO 7,Food Tank Containers and UN portable tanks that can be used to ship a hazardous and non-hazardous liquid materials. Our ISO tanks is versatile tanks and ISO standards tanks, many different kind of can be equipped with insulation ISO tanks, steam heating ISO tank, electric heating ISO tank or refrigeration for products that require temperature control, top and/or bottom discharge valve and pipeline systems , protective linings if required and other modifications we will provide as per customer requirement. Products stored or transported by these containers vary from non-hazardous and hazardous chemicals ISO tanks. These specially ISO tanks units are specially designed for transportation of bulk liquid product to, from and between fixed and/or mobile consumption points and where house delivery.
The bulk liquids that can be transported in an ISO tank include :
Swap body tank ISO tank , ISO Tank Containers- a swap body has a bigger tank which is larger than the frame, usually 23 or 25 feet (7.01 or 7.62 meters) long
Food-grade tank - ISO tank , ISO Tank Containers- a standard tank container which can only be loaded with foodgrade products
ISO tank , ISO Tank Containers Reefer tank - a tank with the ability to cool the product to be transported
ISO tank , ISO Tank ContainersGas tank - a tank that is suitable for the transport of gases
Silo tank ISO tank , ISO Tank Containers- a tank for the transport of grains and powders
T1 ISO tank container for wine and light liquids (ISO tank , ISO Tank Containers)
T4 ISO tank container for non-hazardous edible and non-edible oils (ISO tank , ISO Tank Containers)
T11 ISO tank container for non-hazardous chemicals - ISO tank , ISO Tank Containers
T14 ISO tank container for hazardous chemicals and acids like HCl and zinc chloride - ISO tank , ISO Tank Containers
T50 ISO tank container for LPG and ammonia gas - ISO tank , ISO Tank Containers
SWAP tank container (for cargo above 26,000 to 32,000 metric tons or 25,600 to 31,500 long tons or 28,700 to 35,300 short tons ISO tank , ISO Tank Containers
Rubber-lined ISO tank container for acid-based chemicals best for ISO tank , ISO Tank Containers
PE Lined steel tanks for hydrofluoric acid liquid ,hydrochloric acid ,sodium hypochlorite HCl,NaOH,NaClO liquid etc.
Hazardous chemicals
Acid
Petroleum
ISO Tank
ISO 40' LNG Tank Container | Bitumen tank container | ISO 20' Tank Container |
IMO 1 | IMO 2 | IMO 5 |
Cell :+8615271357675
