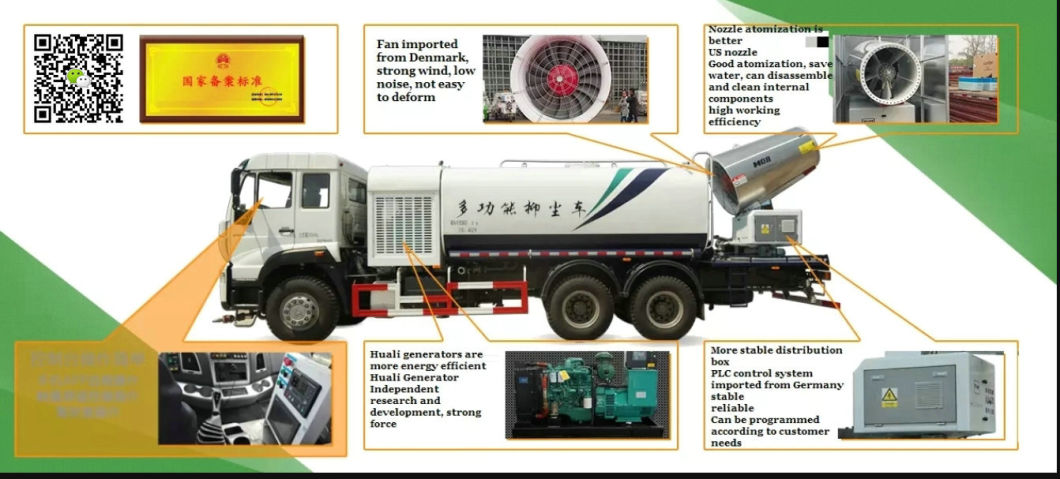

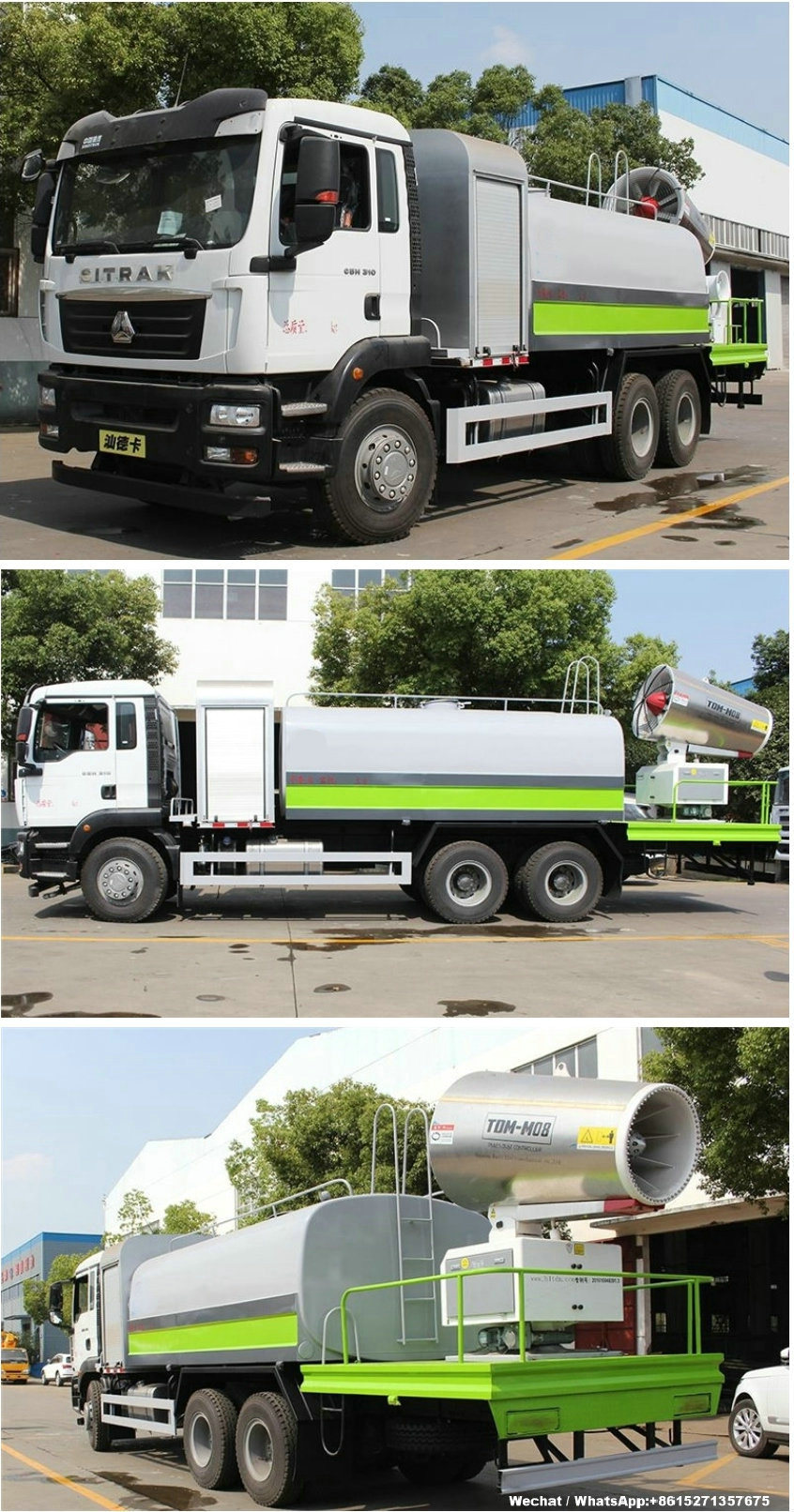

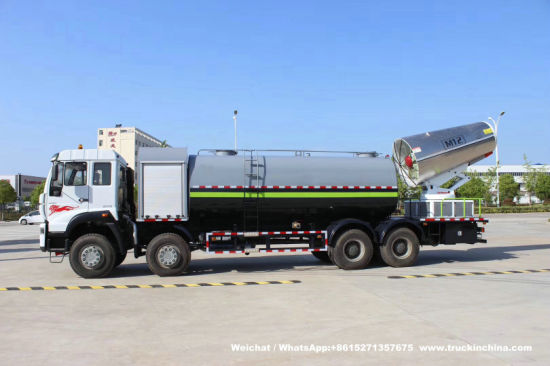

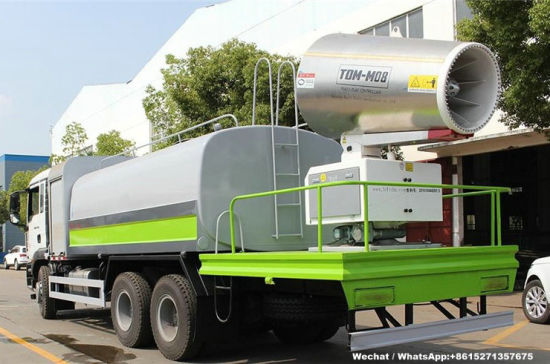

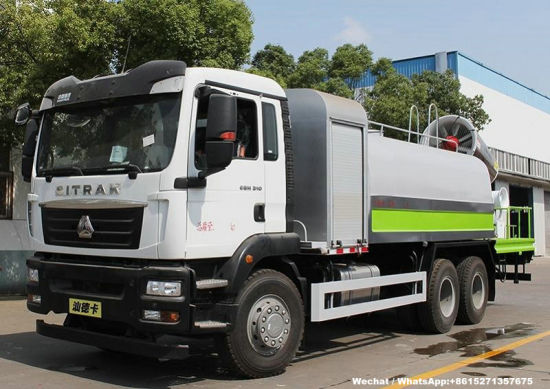

Custmoizing Pesticides Sprayer Truck 120m Mist Spray Tanker Truck (TDM Fogging Spray Remote Controller)
Dust Control And Suppression,Dust Suppression Fog Cannon,Multi-Functional Dust Control Truck
fog cannon manufacturer in China. Fog cannon is an effective dust suppression equipment.
| Quantity: | |
|---|---|
-
Shanghai, China
-
1000
-
T/T, Western Union
Custmoizing Pesticides Sprayer Truck 120m Mist Spray Truck ( TDM Fogging Spray Remote Controller) Disinfection Tanker
Truck mounted Canon Mist blower Spray Machine for city-wide disinfection
Multi Fuction Vehical Spray Mist Fog Cannon
Pesticide Spray
Mine Dust Suppression
Water Sprinkle / Water Transport/ Wash Road
Fire Fighting
Disinfection Sterilization,Epidemic Prevention
Emergence Electric Power Supply
Multi-functional Water Sprinkler Dust Suppression Truck dust control truck with Emergency Power Supply Vehicle ,sterilization spray , sterilization spray machine , disinfection sterilization spray machine ,disinfectant tanker,virus desinfection trucks
Water Mist Cannon Trucks water/ oil tanker truck Customization, Cost and Control Built How You Want it, at a Price You Can Afford.
Remote Controller , Spray fight Coronavirus in remote robot , Robot canon spray , Robot canon spray fight Coronavirus , Remote control canon spray fight Coronavirus , Remote control canon spray fight Coronavirus , Remote control canon spray Coronavirus , Remote control canon spray water Coronavirus , Robot fight Coronavirus , robot to fight Coronavirus
Automatic Intelligentized Water Fog Cannon for Environment Dedusting
Smoke Fog Machine Water Fog Spray Dust Remover Blower Cannon
Main technical parameters of vehicle sprayer disinfects spray machine (60-120 m):
| Parameter item | Reference index | ||||
| Sprayer type | Type TDM-M04 | Type TDM-M06 | Type TDM-M08 | Type TDM-M10 | Type TDM-M12 |
| Photo | |||||
Cannon spray machine China Price(RMB / CNY) | ¥ CNY | ¥ CNY | ¥ CNY | ¥ CNY | ¥ CNY |
| Static wind Spray range (m) | 40m | 60m | 80m | 100m | 120m |
| Coverage area | 3768/5024 | 7536/11300 | 13400/20000 | 20900/31400 | 30144/45216 |
| Total power (Kw) | 10.5 | 27.1 | 31 | 38.6 | 69 |
| Fan power (Kw) | 7.5 | 18.5 | 22 | 30 | 55 |
| Water Pump power (Kw) | 2.2 | 7.5 | 7.5 | 7.5 | 11 |
| Power supply | AC380V, 50Hz, three-phase four wire | AC380V, 50Hz, three-phase four wire | AC380V, 50Hz, three-phase four wire | AC380V, 50Hz, three-phase four wire | AC380V, 50Hz, three-phase four wire |
| Number of sprinklers (Nozzles) | 39 | 78 | 78 | 110 | 100 |
| Water consumption (m3 / h ) | 3.2 | 7 | 7 | 10 | 10 |
| Pump pressure (Mpa) | Centrifugal 1.5-2.0Mpa | Centrifugal 1.5-2.0Mpa | Centrifugal 1.5-2.0Mpa | Centrifugal 1.5-2.0Mpa | Centrifugal 1.5-2.0Mpa |
| Diameter of water mist particles (m) | 30-150 | 30-150 | 20-200 | 20-200 | 20-200 |
| Rotation angle (electric) | ±120∘/±180∘ | ±120∘/±180∘ | ±120∘/±180∘ | ±120∘/±180∘ | ±120∘/±180∘ |
| Pitch angle (electric) | 0∘~ 50∘ | -10∘~ 50∘ | -10∘~ 60∘ | -10∘~ 60∘ | -10∘~ 60∘ |
| control mode | Local / wireless remote / Cloud Services | Wireless remote control / touch screen | Wireless remote control and touch screen / Cloud Services | Wireless remote control and touch screen / Cloud Services | Wireless remote control and touch screen / Cloud Services |
| Fixed mode | Vehicle mounted, high platform, platform type | Vehicle mounted, high platform, platform type | Vehicle mounted, high platform, platform type | Vehicle mounted, high platform, platform type | Vehicle mounted, high platform, platform type |
| Protection level | IP55 | IP55 | IP55 | IP55 | IP55 |
| Noise standard (dB) | 20 meters 65dB | 20 meters 65dB | 20 meters 65dB | 20 meters 65dB | 20 meters 65dB |
| Use ambient temperature (c) | 0-50 (no heat preservation), -35-50 (heat preservation). | 0-50 (no heat preservation), -35-50 (heat preservation). | 0-50 (no heat preservation), -35-50 (heat preservation). | 0-50 (no heat preservation), -35-50 (heat preservation). | 0-50 (no heat preservation), -35-50 (heat preservation). |
| Outline size (mm) | 1550*1100*1550 | 1900x1155x2365 | 2000x1155x2360 | 2435x1155x2360 | 3100x1700x2500 |
| Weight (Kg) | 620 | 1270 | 1300 | 1540 | 2700 |
| Number of fans (unit) | 2 | 1 | 2 | 2 | 2 |
| Noise control | Double wall noise reduction | Double wall noise reduction | Double wall noise reduction | Double wall noise reduction | Double wall noise reduction |
| Spray ring type | International double spray form | International double spray form | International double spray form | International double spray form | International double spray form |
| Generator set optional | 20KW +¥30000 | Yuchai 50KW +¥40000 | Yuchai 50KW +¥40000 | Yuchai 50KW +¥40000 | Yuchai 100KW ¥80000~100000 |
Chassis technical parameters | |||
Chassis Model | ZZ5256XXYN504GF1 | Chassis name | |
Wheelbase (mm) | 3875+14003900+13504275+14004300+13504575+14004600+13504975+14005000+13505375+14005400+13505775+14005800+1350 | ||
Tire specification | 12.00R20 16PR, 11.00R20,12R22.5295/80R22.5315/80R22.5 18PR/315/80R22.5 16PR | ||
Leaf spring number | 3/4,3/5,3/10,11/10,3/-/- | ||
Fuel types | diesel oil | Rear wheelbase (mm) | 1850/1850 |
Engine type | Engine manufacturing enterprise | Displacement (ML) | Power (Kw) |
MC07.27-60 MC07.31-60 MC07.34-60 WP8.350E61 WP6H270E61 MC09.35-60 MC09.38-60 | China Heavy Duty Truck Group Co., Ltd. China Heavy Duty Truck Group Co., Ltd. China Heavy Duty Truck Group Co., Ltd. Weichai Power Limited by Share Ltd Weichai Power Limited by Share Ltd China Heavy Duty Truck Group Co., Ltd. China Heavy Duty Truck Group Co., Ltd. | ||
ater truck special function | A. Water tank capacity(L):6000L 10,000 Liters B. Sprinkling area(m):14-16m C. Suction lift(m):≥7m Water cannon range description Water cannon installed on the rear of the truck,also with operation platform,that operator can work on the platform.It can be used to clean road,trees,and also for emergency fire fighting. Water cannon range:≥60m,it can rotation with 360° degree freely | |
Manhole size(mm) | Man way access hole on top of tank; manhole diameter:¢500mm | |
Front spray function | Front spray bar with fan sprayer,spray range: ≥20m | |
Man walk way | With skid resistance man walk way on top of tank | |
Water pump model | 80QZB(F)-60/90S | |
Flow rate(L/m) | 1000 | |
Head of delivery(m) | 60 | |
Shaft power | 22.5 | |
Suction height (m) | 6.5 | |
Efficiency(%) | 95% | |
Welcome all around world customer visit our factory.- which has excellent performance with reasonable price.
1.Strong capability, high & far throw range, wide coverage area.
2.Customizable nozzles achieve precise volume spraying, high efficiency and spray speed.
3.Flexible power: three-phase 380V and diesel generator power supply optional
4.Flexible installation, fixed on the concrete platform or diesel generator-powered vehicles optional.
5.Remove control.Easily adjust the spray angle of horizontal rotation.
6.Compare to tank car, water consumption save 70% ~80%.
1.Environmental protection: City pm2.5/10 dust control, Disinfection epidemic prevention, City Demolition,Odor control at waste disposal & landfill sites,Humidifying, cooling and dust control on construction site, etc.
2.Industry dust suppression:Open pit mining blasting/digging/ load&transport dust , Port material storage yard dust , Wharf Bulk Ships loading&unloading dust, Iron & steel plant stockpile & slag disposal dust, Power plant coal storage yard dust, Conveyor belt blanking point dust, Coal mine crushing dust,Haul roads dust,Storage and handling of bulk materials dust, etc.
3.Agriculture protection:The sprayer can used for pest control in agriculture, orchard, garden areas,farmland, forest, road greening, grassland, pasture ,etc.
| Model | DS-120 |
| Throw | 120m without wind |
| Volume Flow | 120L-160L/min |
| Fog Droplet Size (Adjustable ) | 30-300μm |
| Water Pressure(Mpa) | 2.5-3.5Mpa |
| Horizontal Rotation Angle (Adjustable ) | ±160° Automatic |
| Pitching Angle (Adjustable ) | -10°~45° |
| Coverage Area | 34000~40000m² without wind |
| Product Size(L*W*H) | L295*W154*H275 (cm) |
| Water Tank Capacity (Optional) | 4000-20000L |
| Vehicle Matching | Agricultural vehicle,truck,watering cart,trailed vehicle, etc. |
| Warranty | 1year |
| Model | DS-100 |
| Throw (m) | 100 |
| Volume Flow (L/min) | 120~160 |
| Water Pressure (MPa) | 2.5~3.5 |
| Fog Droplet Size ( um ) | 30-200 |
| Horizontal Rotation Angle (Remote Control) | ±160° Automatic |
| Pitching Angle (Remote Control) | -10°~45° |
| Coverage Area | 23000~27000m² without wind |
| Degree of Protection | Not less than IP55 |
| Overall Dimensions (L*W*H) | L277*W154*H271cm |
| Water Tank Capacity (Optional) | 4000-20000L |
| Model | DS-30 |
| Throw | Horizontal: 30m; Vertical: 20m (without wind) |
| Volume Flow | 9-18L/min |
| Fog Droplet Size (Adjustable ) | 50-150 μm |
| Water Pressure (Mpa) | 1.5~3.0MPa |
| Pitching Angle | -10~90° |
| Horizontal Rotation Angle | 180° Manual |
| Overall Dimensions | L130 * W115 * H148 (cm) |
| Water Tank Capacity (Optional) | 400-2000L |
| Auxiliary Power Unit | Diesel generator, plunger pump, motor |
| Vehicle Matching | Agricultural vehicle,truck,watering cart,trailer, pickup car etc. |
| Model | DS-35 |
| Throw Distance | Horizontal: 35m; Vertical: 20m |
| Volume Flow | 9-18L/min |
| Fog Droplet Size (Adjustable ) | 50-150μm |
| Water Pressure (Mpa) | 1.5~3.0MPa |
| Pitching Angle | -10~90° |
| Horizontal Rotation Angle | 360° Automatic |
| Overall dimension | L145 * W113 * H176 (cm) |
| Water Tank Capacity (Optional) | 400-2000L |
| Auxiliary Power Unit | Gasoline generator, plunger pump, motor |
| Vehicle Matching | Agricultural vehicle,truck,watering cart,trailer, pickup car etc. |
| Model | DS-40 |
| Throw | Horizontal: 40m; Vertical: 25m (no wind) |
| Volume Flow | 16-24L/min |
| Fog Droplet Size (Adjustable ) | 50-150μm |
| Water Pressure (Mpa) | 1.5~3.0MPa |
| Pitching Angle | -10~45° |
| Horizontal Rotation Angle | 180° Manual / 360° Automatic |
| Overall Dimension | L1560 * W750 * H1700 (mm) |
| Water Tank Capacity (Optional) | 400-4000L |
| Auxiliary Power Unit | diesel generator set (optional), plunger pump, motor |
| Vehicle Matching | Agricultural vehicle,truck,watering cart,trailer, pickup car etc. |
| Model | DS-50 |
| Max Throw | 50m*no wind condition |
| Discharge (Adjustable) | 16~30L/min (less water consumption) |
| Fog Droplet Size (Adjustable) | 30um-50um /50um-100um |
| Horizontal Rotation Angle | 180°manual control / 320°remote control |
| Pitching Angle | -10°~40° |
| Coverage Area | 5000~7000m² without wind |
| Water Pressure | 1.5~3.5MPa |
| Auxiliary Power Unit | 20KW Diesel Generator Set |
| Dimensions(L*W*H) | 158×145×175cm |
| Sprayer Tank | According to customer's requirements |
| Vehicle Matching | Agricultural vehicle,truck,watering cart,trailer vehicle, etc. |
| Water Tank Capacity (Optional) | 4000-20000L |
| Model | DS-60 |
| Throw | ≥60m |
| Volume Flow | 70L-80L/min |
| Fog Droplet Size (Adjustable ) | 30-150 µm |
| Water Pressure(Mpa) | 2.0~3.5Mpa |
| Water Pressure(bar) | 20-35bar |
| Water Pressure(kg) | 20-35kg |
| Motor RPM | 2900 |
| Horizontal Rotation Angle | ±160° Automatic |
| Pitching Angle | -10°~45° |
| Coverage Area | 8,000 ~10,000m2 |
| Product Size ( L * W * H) | L220 * W154 * H239 (cm) |
| Vehicle Matching | Agricultural vehicle,truck,watering cart,trailed vehicle, etc. |
| Water Tank Capacity (Optional) | 4000-20000L |
| Model | DS-80 |
| Throw | 80m no wind |
| Volume Flow (Adjustable) | 105L-118L/min |
| Fog Droplet Size (Adjustable ) | 30-150um |
| Water Pressure (Mpa) | 2.5~3.5Mpa |
| Horizontal Rotation Angle | ±160° Automatic |
| Pitching Angle | 10° +45° |
| Coverage Area | 15000~17000m² without wind |
| Overall Dimensions (L*W*H) | L241*W153*H250(cm |
