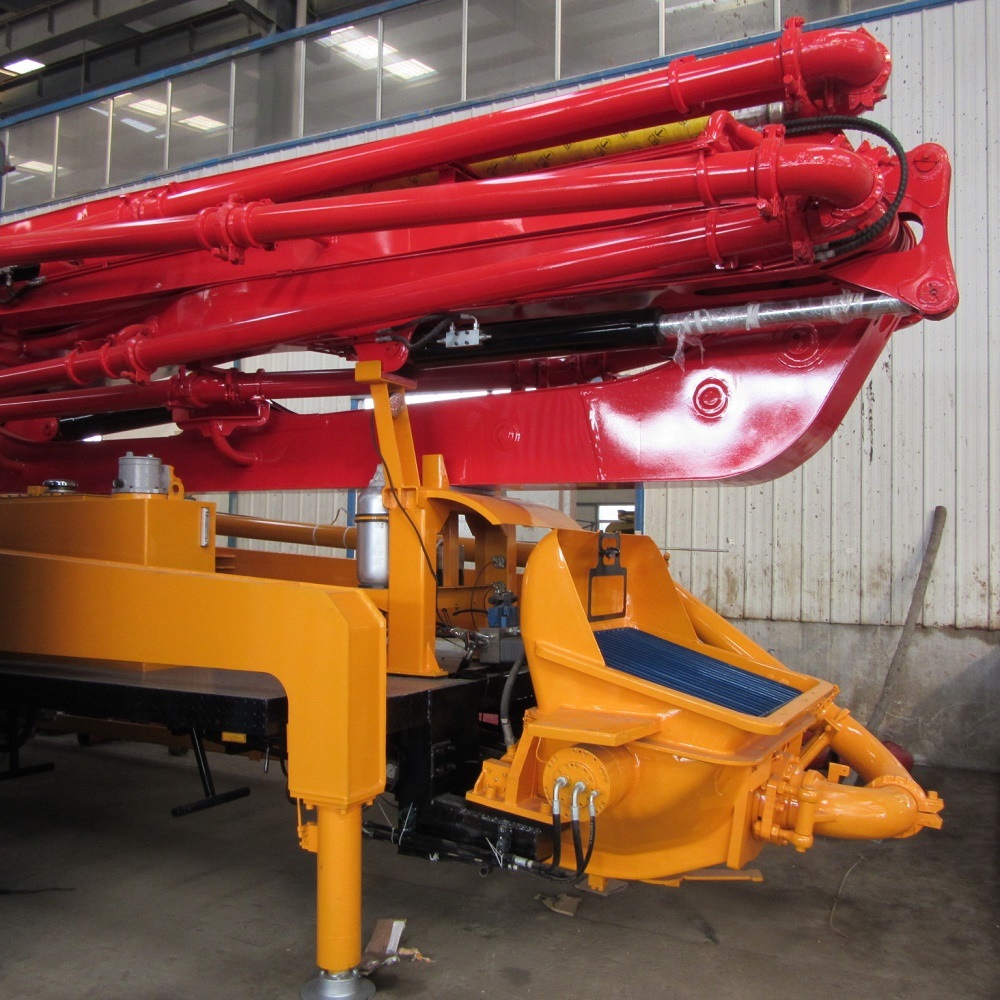

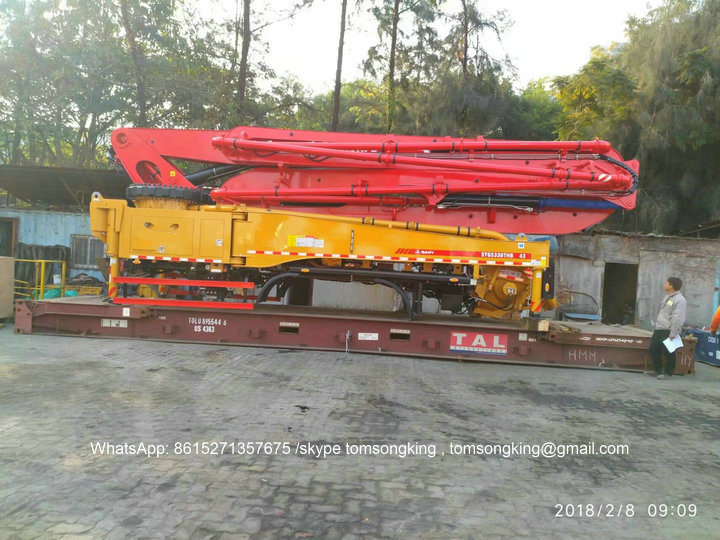

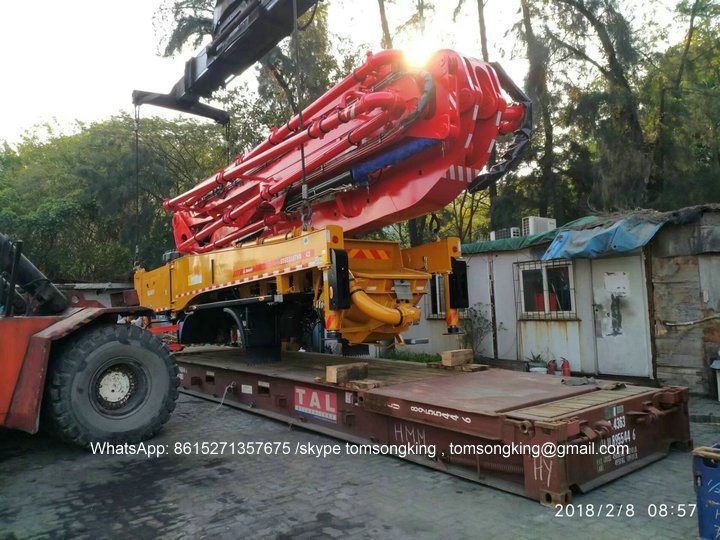

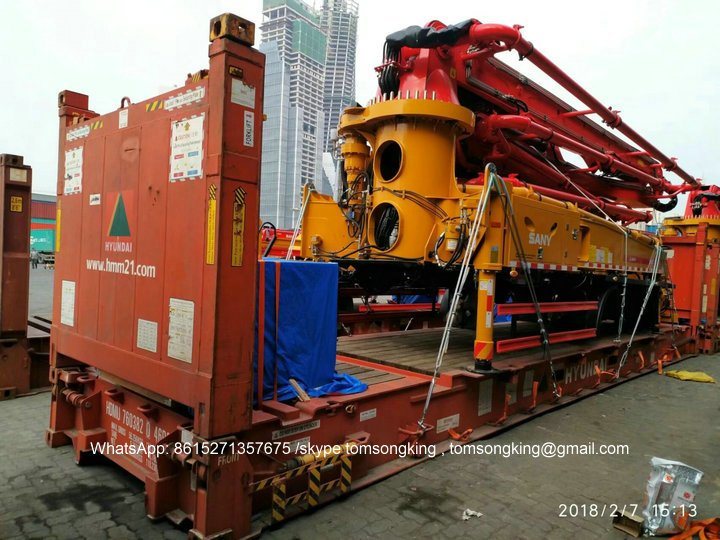

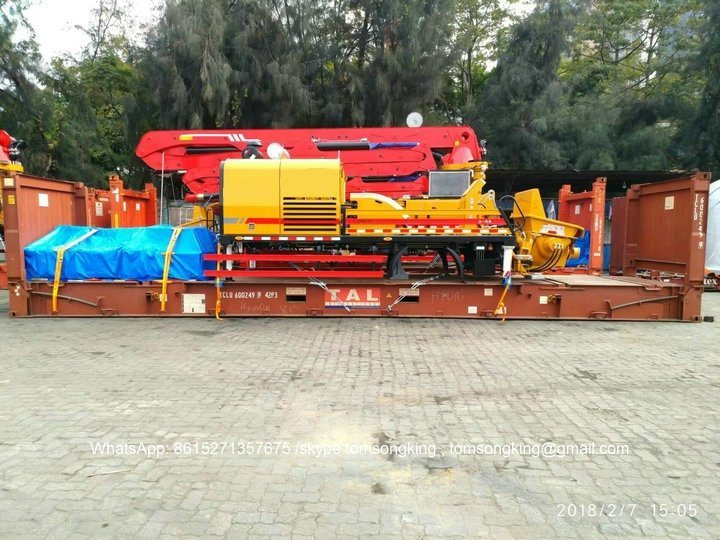

Concrete Boom Pump 27m-35mskd Body (Upper Kit) for Truck Mounted for After Sale (Refitting/ Replace /Repare) Service
| Quantity: | |
|---|---|
- Shanghai, China
- 3000
- T/T

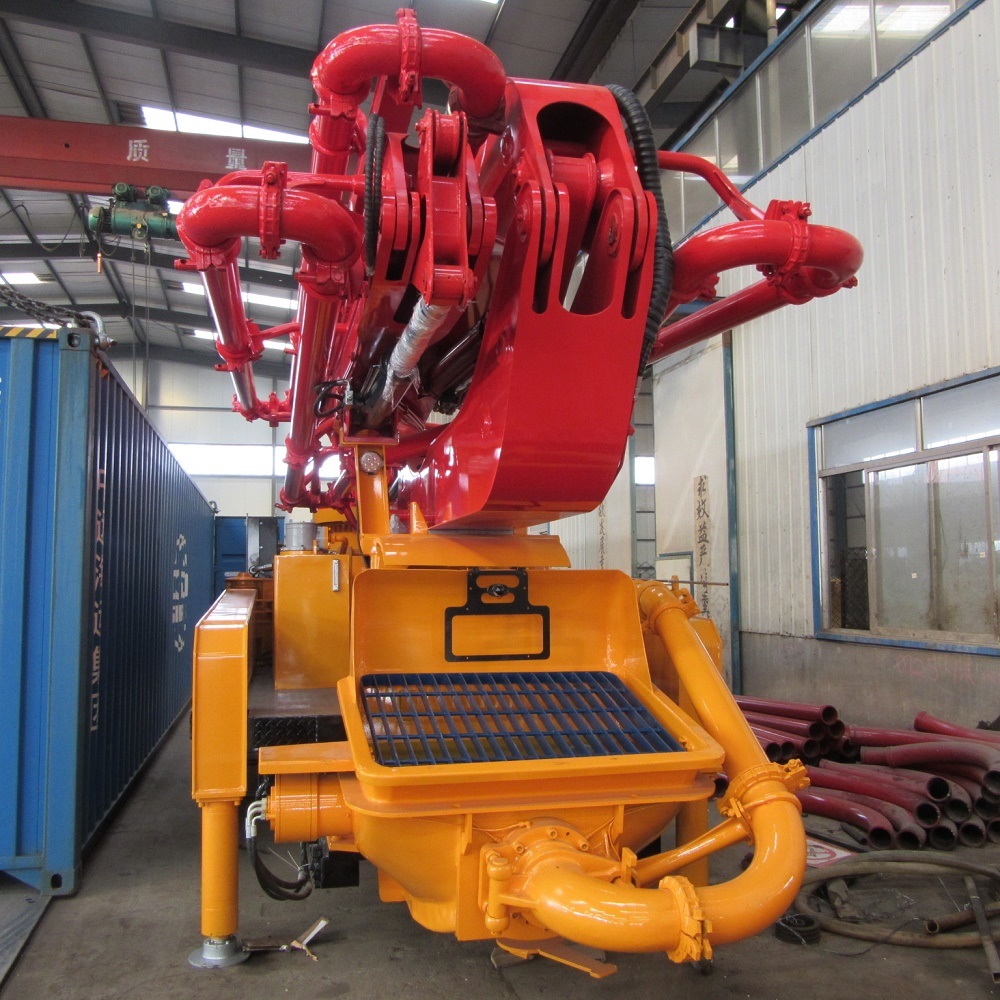

Truck-Mounted Concrete Boom Pump Upper Body 27M -35M Customizing
http://www.truckinchina.com/Truck-Mounted-Concrete-Boom-Pump-Upper-Body-27M-35M-Customizing-pd6854060.html

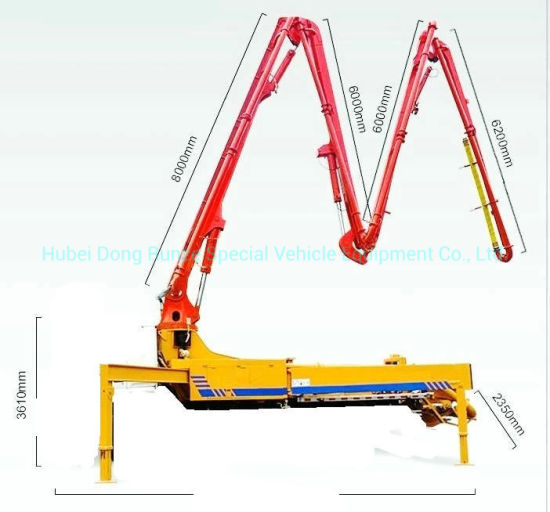

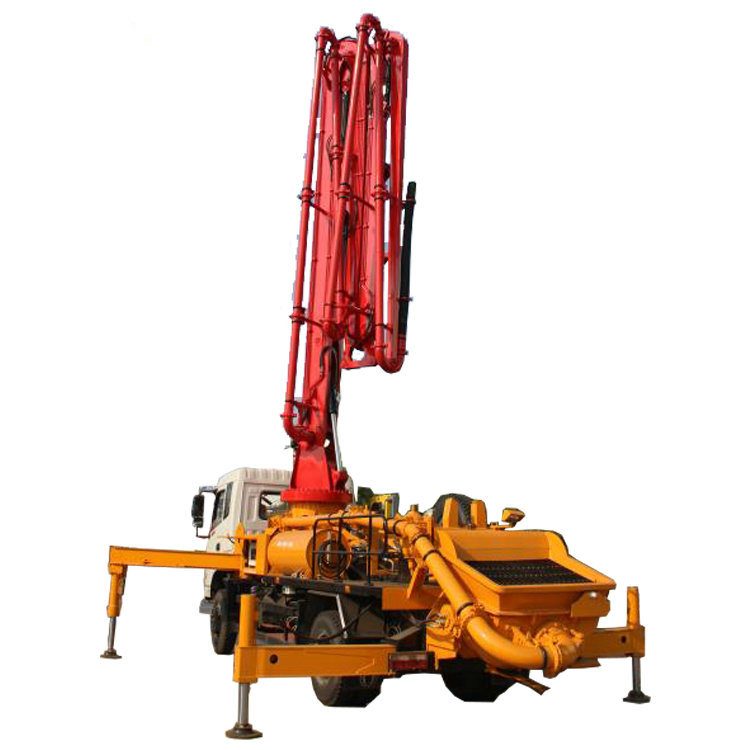

30m concrete pump truck technical parameters | |

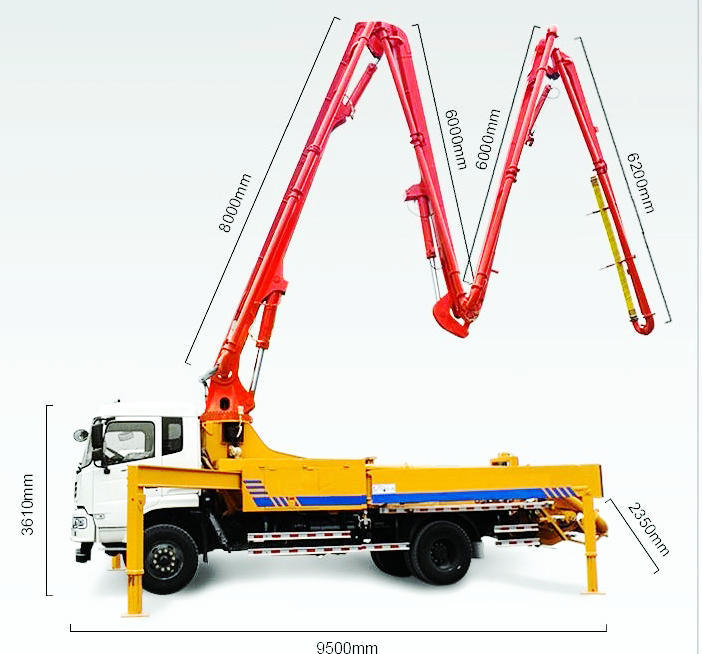

Name | DRZ5190THB-30m concrete pump truck |
Machine parameters | |
Overall length of the vehicle | 9500 mm |
Overall width of the vehicle | 2350 mm |
Overall height of the vehicle | 3610 mm |
Vehicle weight | 19000 kg |
Boom system | |
Maximum vertical height of boom | 29.7 m |
Boom horizontal fabric radius | 27.2 m |
The depth of the fabric | 19.1 m |
First arm length | 8000 mm |
Second arm length | 6000 mm |
Third arm length | 6000 mm |
Fourth arm length | 6200 mm |
Rotation Angle of each arm | 90°/180°/270°/240° |
Boom control mode | Load sensitive proportional control |
Boom folding method | M type |
Turret rotation angle | 360° |
Front leg spanning distance | 5840 mm |
Rear leg across the distance | 4050 mm |
Front and rear leg longitudinal distance | 6300 mm |
Leg opening method | X |
Tail hose length | 3000 mm |
Concrete pipe diameter | 125 mm |
Electrical control system | |
Control power supply | 24 V |
Control module brand | Siemens, Germany |
Operating Voltage | 24 V |
Intermediate electrical appliance brand | Omron |
Wireless remote control brand | Shanghai Technology(Sany Heavy Industry (optional)) |
| Hydraulic drive system | |
| Hydraulic system type | Closed hydraulic system |
| System work pressure | 35.0 Mpa |
| Main hydraulic pump brand | Rexroth |
| Main oil pump model | Rexroth A4VG125 |
| Main electro-hydraulic reversing valve brand | Import |
| Suction and return oil filter element brand | Xugong |
| Boom multi-way valve brand | Harvey, Germany |
| Boom balance valve brand | US SUN |
| Boom oil pump brand | Domestic |
| Outrigger multi-way valve brand | Italy |
| Safety valve brand | Import |
| Cylinder hydraulic seal brand | Parker |
| Hydraulic tank volume | 450 L |
| Hydraulic oil cooling method | Air cooled |
| Main cylinder | Xieli 1400 mmX80 mmX130 mm |
| Transfer case brand | German Sibao |
| Slewing reducer brand | Domestic |
| Hose connector brand | Eaton, United States |
| Chassis | |
| Chassis model | Dongfeng |
| Emission standards | EU standard |
| Engine | Yuchai 240 |
| Wheelbase | 4700 mm |
| Maximum travel speed | 83 km/h |
| Vehicle approach/away angle | 24.6°/15.6° |
| Tire specifications | 11.00R20 18 layer |
| Pumping system | |
| Concrete distribution valve form | S valve |
| Concrete piston brand | Domestic |
| Maximum concrete outlet pressure | 10.5-20 Mpa |
| Conveying cylinder inner diameter/stroke | 230 mmX1450 mm |
| Maximum feeding height | 1450 mm |
| Bucket capacity | 0.65 m² |
| Pumpable concrete slump | 160--220 |
| Maximum aggregate size allowed | 40 mm |
| Lubrication method | Centralized lubrication |

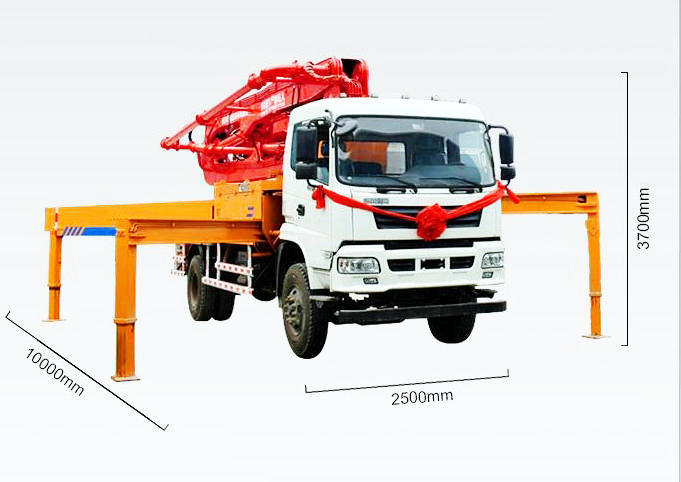

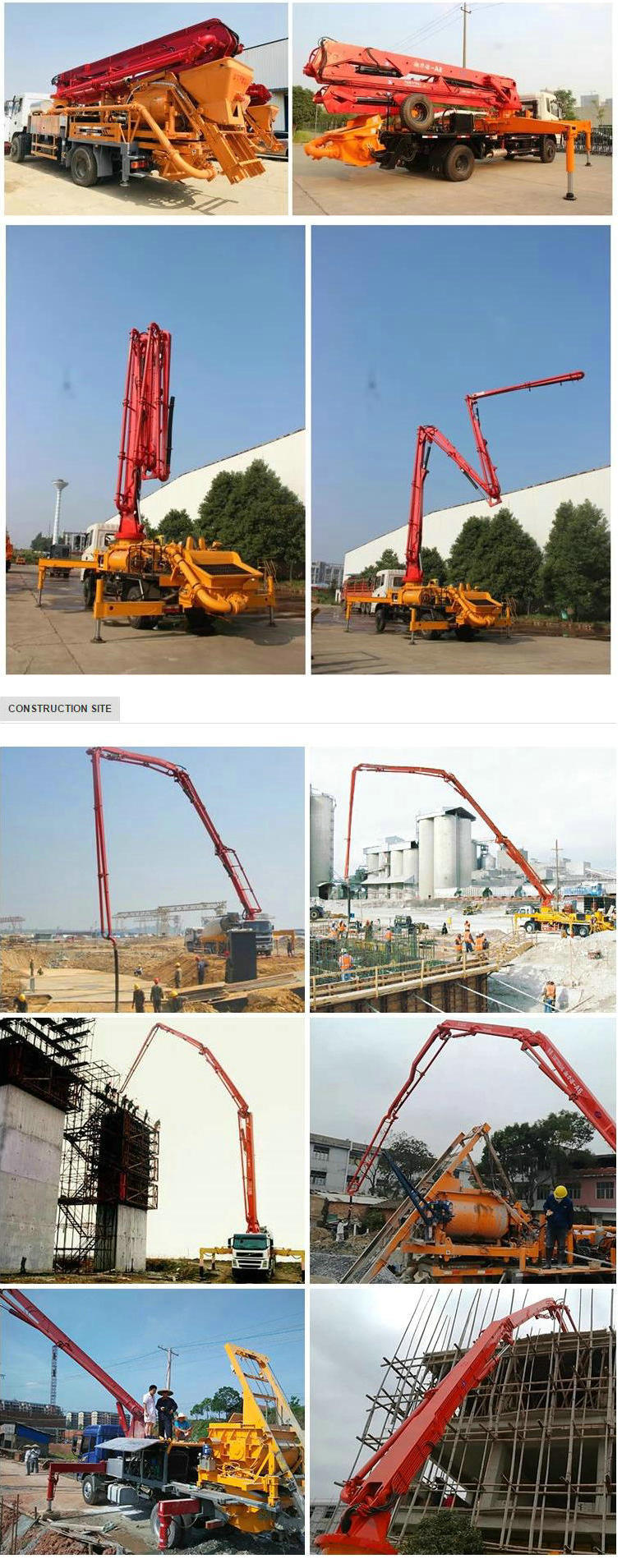

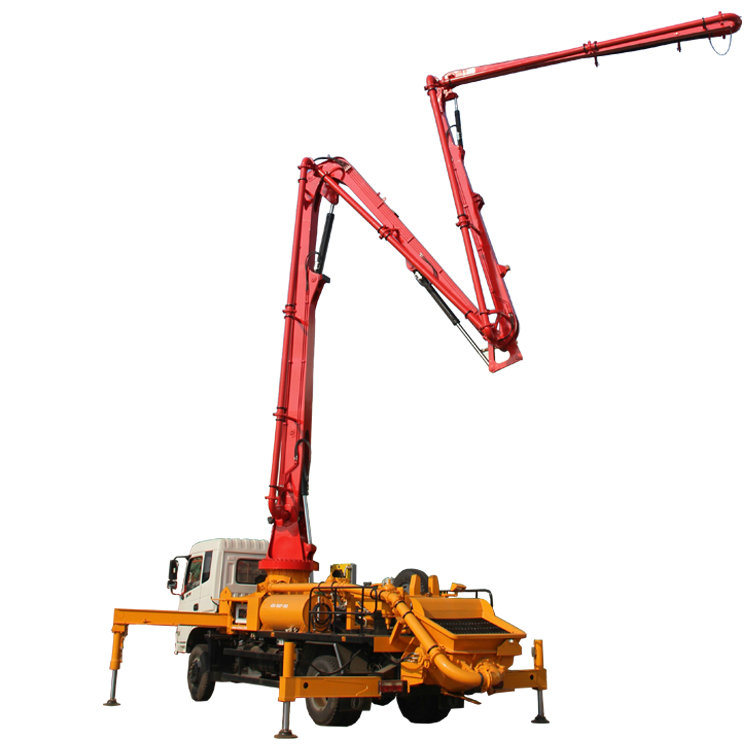

34m single-bridge concrete pump truck DRZ5190THB-34m concrete pump truck
| 34m concrete pump truck | |
| Name | DRZ5190THB-34m concrete pump truck |
| Machine parameters | |
| Overall length of the vehicle | 10000 mm |
| Overall width of the vehicle | 2550 mm |
| Overall height of the vehicle | 3700 mm |
| Wheelbase Vehicle quality | 21000 kg |
| Boom system | |
| Maximum vertical height of boom | 33.7 m |
| Boom horizontal fabric radius | 32.4 m |
| The depth of the fabric | 23.9 m |
| First arm length | 7200 mm |
| Second arm length | 6300 mm |
| Third arm length | 5900 mm |
| Fourth arm length | 5400 mm |
| Fifth arm length | 5200 mm |
| Rotation Angle of each arm | 90°/180°/270°/360°/240° |
| Boom control mode | Load sensitive proportional control |
| Boom folding method | R/Z type |
| Turret rotation angle | 360° |
| Front leg spanning distance | 6000 mm |
| Rear leg across the distance | 7000 mm |
| Front and rear leg longitudinal distance | 6300 mm |
| Leg opening method | X |
| Tail hose length | 3000 mm |
| Concrete pipe diameter | 125 mm |
| Electrical control system | |
| Control power supply | 24 V |
| Control module brand | Siemens, Germany |
| Operating Voltage | 24 V |
| Intermediate electrical appliance brand | Omron |
| Wireless remote control brand | Sany Heavy Industry |
| Hydraulic drive system | |
| Hydraulic system type | Closed hydraulic system |
| System work pressure | 35.0 Mpa |
| Main hydraulic pump brand | Rexroth |
| Main oil pump model | Rexroth A4VG125 |
| Main electro-hydraulic reversing valve brand | Import |
| Suction and return oil filter element brand | Xugong |
| Boom multi-way valve brand | Harvey, Germany |
| Boom balance valve brand | US SUN |
| Boom oil pump brand | Import |
| Outrigger multi-way valve brand | Italy |
| Safety valve brand | Import |
| Cylinder hydraulic seal brand | Parker |
| Hydraulic tank volume | 450 L |
| Hydraulic oil cooling method | Air cooled |
| Main cylinder | Xieli 1400 mmX80 mmX130 mm |
| Transfer case brand | German Sibao |
| Slewing reducer brand | Domestic |
| Hose connector brand | Eaton, United States |
| Chassis | |
| Chassis model | Dongfeng |
| Emission Standards | EU standard |
| Engine | Yuchai 240 |
| Wheelbase | 4700 mm |
| Maximum travel speed | 83 km/h |
| Vehicle approach/away angle | 24.6°/15.6° |
| Tire specifications | 11.00R20 18 layer |
| Pumping system | |
| Concrete distribution valve form | S valve |
| Concrete piston brand | Domestic |
| Maximum concrete outlet pressure | 10.5-20 Mpa |
| Conveying cylinder inner diameter/stroke | 230 mmX1450 mm |
| Maximum feeding height | 1450 mm |
| Bucket capacity | 0.65 m² |
| Pumpable concrete slump | 160--220 |
| Maximum aggregate size allowed | 40 mm |
| Lubrication method | Centralized lubrication |
| Stirring system | |
| Customized JS750 mixer | |
Cell /+8615271357675
The pictures are for your reference only.
| Vehicle model | Chassis brand | Chassis model | Load | Overall dimensions | Wheel base | Engine model | hp/standard | Tire | FOB Price | CIF | |||||||||||||||||||||
| LHD RHD price add $2000 | m3 | mm | mm | USD | 100%TT 50%+50% | ||||||||||||||||||||||||||
| DRZ5250GJBD | DONGFENG | DFL5250GJBA | 10 | 8800X2500X3930 | 3650+1350 | L340-30 | 340/Euro 3 | 11.00R20 | 353000 | $51920 | $57970 | ||||||||||||||||||||
| DRZ5142GJBB | FOTON | BJ5142GJB-G1 | 4 | 6460X2480X3450 | 3400 | YCD4F22-110 | 110/Euro 2 | 8.25-16 | 112300 | 16520 | $20500 | ||||||||||||||||||||
| DRZ5142GJBB1 | FOTON | BJ5142GJB-G1 | 5 | 6660X2480X3450 | 3600 | YCD4D130-33 | 130/ Euro 2 | 8.25-20 | 129300 | 19020 | $23090 | ||||||||||||||||||||
| DRZ5162GJBB | FOTON | BJ5162GJB-F1 | 7 | 6980X2490X3750 | 4200 | YC6J190-33 | 190/Euro 2 | 10.00R20 | 199500 | $29340 | $33930 | ||||||||||||||||||||
| DRZ5252GJBB | FOTON | BJ5252GJB-S | 10 | 8930X2495X3790 | 3575+1350 | WP10.340E32 | 340/Euro 3 | 11.00R20 | 338900 | $49840 | $55820 | ||||||||||||||||||||
| DRZ5253GJBB | FOTON | BJ5253GJB-S2 | 12 | 9350X2495X3935 | 4100+1350 | WP10.340E32 | 340/Euro 3 | 12.00R20 | 357000 | $52500 | |||||||||||||||||||||
| DRZ5318GJBB | FOTON | BJ5318GJB-1 | 14 | 10752X2495X3998 | 1800+3450+1350 | WP10.340E32 | 340/Euro 3 | 12.00R20 | 422200 | $62090 | |||||||||||||||||||||
| DRZ5313GJBB | FOTON | BJ5313GJB-11 | 18 | 11230X2495X3995 | 1800+3650+1350 | WP12.380E32 | 380/Euro 3 | 12.00R20 | 450300 | $66230 | |||||||||||||||||||||
| DRZ5250GJBQ | I.S.U.Z.U | QL1250DAFZY | 14 | 10050X2490X3900 | 4000+1300 | 6HK1-TCSG50 | 280/Euro 5 | 11.00R20 | 496400 | 73000 | |||||||||||||||||||||
Concrete Mixer Tunnels
8 CUBIC METERS BODY WITH FULL YUCHAI 130HP ENGINE AND PUMP Germany ZF reducer,Germany REXROTH hydraulic pump, KAIPENG radiator( USE THE MIXER INDIVIDUAL WITHOUT ANY CONNECTION FOR THE TRUCK)
MIXERS 8 CUBIC METERS BODY WITH FULL 130HP ENGINE AND PUMP
( USE THE MIXER INDIVIDUAL WITHOUT ANY CONNECTION FOR THE TRUCK)
| Concrete mixer truck structure parameters | ||||
| Loading capacity | 8m3 | Tank material | 5mm steel | |
| Tank front head | 8mm steel | Reducer | Germany ZF | |
| Hydraulic pump | Germany REXROTH | Hydraulic motor | Germany REXROTH | |
| Radiator | KAIPENG | Color and Logo | Optional | |
| Standard configuration | sub frame,mixer tank,reducer, hydraulic pump,hydraulic motor, radiator,water tank,cleaning hose,feed port, discharge port,climbing ladder,air pressure water supply device. | |||
| 8m3 | Germany ZF reducer,Germany REXROTH hydraulic pump, KAIPENG radiator,mixer tank(main tank 5mm alloy steel wear resistant material,front tank head 8mm steel wear resistant material) | |||
| Selective ENGINE | YUCHAI ENGINE 130HP Model :YC4D /YC4E Series Displacement(L)4.214 Emission Euro 2/ 3/4 Rated Power96/2800 (kw/rpm)MaximumTorque380/1700-2000(Nm/r/min) | |||
Concrete Pump
Concrete Pump main motor 30kw/Horizontal pumping distance 200 meters, vertical 50 meters,100kw diesel generator
Cell :+8615271357675
