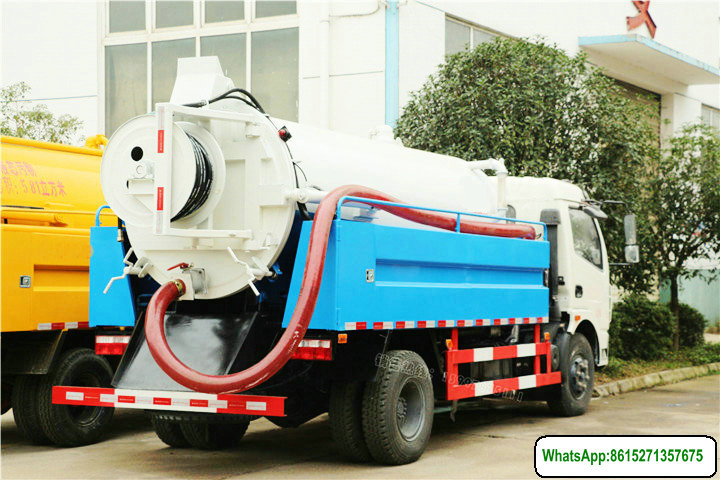

Cleaning-vacuum Truck Pressure Water Clean Truck 5.25+1.5m3

Cleaning-vacuum Truck Pressure Water Clean Truck 5.25+1.5m3
Quantity:

vacuum tanker with pressure water clean truck
Dongfeng 4x2 6CBM cleanout and sewage suction truck 201601229


       Main technical parameters of products
       Product name:        TIC5112GQW4-cleaning sewage suction vehicles        Overall dimensions:        6800X2080X2900(mm)
       Chassis model:        DFA1110SJ11D3        Cargo compartment dimensions:        XX (mm)
       Total mass:        11495(Kg)        Approach/departure angle:        24/15 (°)
       Quality rating:        5000(Kg)        Front overhang Rear overhang:        1210/1790(mm)
       Kerb mass:        6300(Kg)        Speed limit:        95(km/h)
       Vehicle notes:        Tank body effective volume 5.25 cubic metres, transport media: liquid pollutants, density 1000 kilograms/each cubic metres. tank body shape size (long/straight long x diameter) (mm): 4000/3700x1300. side protection material for Q235, joins way for connection bracket solid welding in pay frame beam Shang. Hou protection material for Q235, connection way: with structure connection pieces solid welding in main car Hou end, Hou Department protection loaded section size (wide x high) 60x120 (mm), Rear protective height above ground: 450mm. with the optional cab chassis. clean the suction function is not the same as two.


cleaning-vacuum truck

       Chassis parameter parameter
       Chassis model:        DFA1110SJ11D3        Fuel type:        Diesel
       Axis:        2        Front track:        1770,1831,1740,1845,1769,1903(mm)
       Wheelbase:        3800        Rear track:        1640,1586,1610,1680,1629(mm)
       CAB numbers:        3        Number of spring leaf:        8/10+7,11/9+7
       Number of tires:        6        Axle load:        4595/6900
       Tire size:        8.25-20 14PR,8.25R20 14PR
       Emission standard:        GB3847-2005,GB17691-2005 States

       Engine parameters
       Engine:        Engine manufacturer:        Displacement (ML):        Power (kW):
       ISB3.9-125E40A
       CY4102-CE4B
       CY4102-CE4C
       YC4E140-42
       YN38CRD1
       YC4S150-48
       YC4FA120-40
       Dongfeng Cummins Engine co
       Dongfeng Chaoyang diesel power Co Ltd
       Dongfeng Chaoyang diesel power Co Ltd
       Guangxi Yuchai machinery company limited
       Kunming yunnei power company limited
       Guangxi Yuchai machinery company limited
       Guangxi Yuchai machinery company limited
       3900
       3856
       3856
       4260
       3760
       3767
       2982
       92
       100
       91
       103
       95
       110
       88

       Other information
       Tank body effective volume 5.25 cubic metres, transport media: liquid pollutants, density 1000 kilograms/each cubic metres. tank body shape size (long/straight long x diameter) (mm): 4000/3700x1300. side protection material for Q235, joins party for connection bracket solid welding in pay frame beam Shang. Hou protection material for Q235, connection way: with structure connection pieces solid welding in main car Hou end, Hou Department protection device section size (wide x high) 60x120 (mm), Rear protective height above ground: 450mm. with the optional cab chassis. clean the suction function is not the same as two.



water clean vacuum tanker-04-sewer scavenger
water clean vacuum tanker-37-sewer scavenger
sewage truck with pressure water clean
