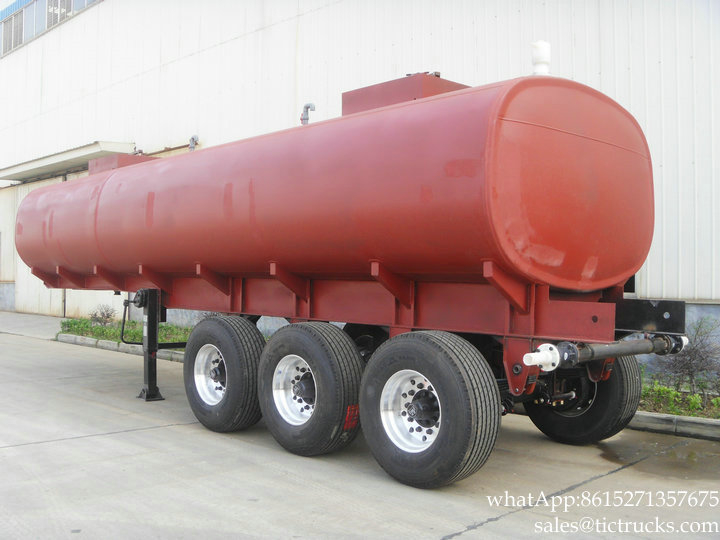

Hydrofluoric acid Chemical liquid tank trailer
37.58m3 Hydrofluoric acid Chemical liquid tank truck
| Main datesheet>> |
| Driving type: | | Wheelbase: | 6730+1310+1310 |
| Overall dimension: | 12980×2480×3500 | F/R overhang: | -/2130 |
| Rated payload: | 31000 | Curb weight: | 9 T |
| Max. speed: | 80KM/h | | |
| Frame parameter>> |
| Leg: | 16 T | Tank material: | Carbon steel,stainless steel,alloy,Plastic-lined steel |
| Front axle: | 13T Fuwa axle | rear axle: | 13T Fuwa axle |
| leaf spring of suspension number: | -/8/8/8,-/10/10/10,-/-/-/- | Tyre qty: | 12 sets |
| Tyre size: | 11.00R20 12PR | F/R tread: | 1840/1840/1840 |
| |
| The vehicle announcement: | DRZ9403GHY | The vehicle type: | Chemical liquid tank truck |
| Brand: | TIC TRUCKS | Origin: | Suizhou hubei |
| Tank material: aluminum, aluminum alloy, transport medium: xylene, class item number: 3, medium density: 0.88 t/m3, theeffective volume of Tank: 37.58 cubic meters, the shape of Tank size (length x length short axis x axis) (mm) : 12600 * 2460 * 2460.With the speed limit device of the tractor.Protective materials: Q235 carbon steel, connection mode: left and right side and bottom protection are connected by welding, the back of the protective section size (mm) : 120 * 50 * 5, the back of the protective ground height (mm) : 530.ABS manufacturers: he DE international trading (Shanghai) co., LTD., jiaozuo, rick control technology co., LTD., the ABS model: 4 s / 3 m, G ABS. |
About chemical tanker truck:
Chemical tank truck is mainly used for loading and unloading of acid, alkali, salt and other corrosive, medium risk.Chemical liquid truck tanks have all plastic cans, carbon steel lined with plastic cans.Partition USES two cant hold tight structure, ensure transportation stationary.Annex with the corrosion resistance of the bolt, and the rubber gasket seal.Vats with advanced butt welding technology, the tank after forming high pressure gas leakage detection, make tank has high intensity, center of gravity, smooth vehicles carrying security etc.
Chemical car depending on the delivery of material, the material can be stainless steel, manganese steel cans, aluminium cans, steel cans, steel lining plastic or rubber cans and plastic cans.Forming of tank adopts advanced CNC automatic vertical arc butt welding technology, welding technology and head and monolithic gangsu composite molding technology at a time.Cross section shape of tank are round, oval, square shape.Options insulation layer, heating pipe, heating equipment such as heat preservation;Chemical vehicle equipped with active safety and passive safety emergency protection device, to provide fully enclosed remote material handling control function.
Apply to the transport of lightweight fuel oil, heavy oil, hydrochloric acid, nitric acid, caustic soda, sulfuric acid, and hydrogen peroxide, alcohol, benzene, cooking oil etc.Options, self-priming pump, chemical pump, centrifugal pump, oil pump, stainless steel pump.;Been table design can be used on the pump inlet and pump, pump inlet and pump out table, however, since the flow table, but their table, etc.
Oil tank truck rear or side can install according to the requirements of using 1-3 gravity flow valve.Weighing options count single, double counting back to zero flowmeter.According to the needs of users also optional other configuration
Acetaldehyde tank trailer truck LDPE lined steel tank and HDPE at 20C° show little or no damage after 30 days of constant exposure. HDPE at 50C° shows
Acetic Acid 5 % tank trailer truck LDPE lined steel tank and HDPE at 20C°-50C° show little or no damage after 30 days of constant exposure.
Acetic Acid, glacial 50% tank trailer truck LDPE lined steel tank and HDPE at 20C° show little or no damage after 30 days of constant exposure.
Allyl Alcohol tank trailer truck LDPE lined steel tank and HDPE at 20C°-50C° show little or no damage after 30 days of constant exposure.
Aluminum salts tank trailer truck LDPE lined steel tank and HDPE at 20C°-50C° show little or no damage after 30 days of constant exposure.
Amino acids tank trailer truck LDPE lined steel tank and HDPE at 20C°-50C° show little or no damage after 30 days of constant exposure.
Ammonia tank trailer truck LDPE lined steel tank and HDPE at 20C°-50C° show little or no damage after 30 days of constant exposure.
Ammonium carbonate,
saturated tank trailer truck LDPE lined steel tank and HDPE at 20C°-50C° show little or no damage after 30 days of constant exposure.
Ammonium phosphate tank trailer truck LDPE lined steel tank and HDPE at 20C°-50C° show little or no damage after 30 days of constant exposure.
Ammonium sulphate tank trailer truck LDPE lined steel tank and HDPE at 20C°-50C° show little or no damage after 30 days of constant exposure.
Aniline tank trailer truck LDPE lined steel tank and HDPE at 20C° show little or no damage after 30 days of constant exposure. HDPE at 50C° shows
some effect after 7 days of constant exposure.
Benzene tank trailer truck LDPE lined steel tank and HDPE at 20C°-50C° - damage may occur. Not recommended for continuous use.
Boric acid tank trailer truck LDPE lined steel tank and HDPE at 20C°-50C° show little or no damage after 30 days of constant exposure.
Calcium chloride tank trailer truck LDPE lined steel tank and HDPE at 20C°-50C° show little or no damage after 30 days of constant exposure.
Calcium hydroxide
saturated tank trailer truck LDPE lined steel tank and HDPE at 20C°-50C° show little or no damage after 30 days of constant exposure.
Calcium sulphate No data is available at this time.
Carbon tetrachloride HDPE at 20C° shows little or no damage after 30 days. tank trailer truck LDPE lined steel tank at 20C° and HDPE at 50C° show some effect
after 7 days of constant exposure. tank trailer truck LDPE lined steel tank at 50C° not recommended.
Chlorobenzene Immediate damage may occur. Not recommended for continuous use.
Chlorine 10% in water HDPE and tank trailer truck LDPE lined steel tank at 20C° shows little or no damage after 30 days. tank trailer truck LDPE lined steel tank at 50C° shows damage and is not
recommended.
Chromic acid 10% tank trailer truck LDPE lined steel tank and HDPE at 20C°-50C° show little or no damage after 30 days of constant exposure.
Chromic acid 50% tank trailer truck LDPE lined steel tank and HDPE at 20C°-50C° show little or no damage after 30 days of constant exposure.
Citric acid 10% tank trailer truck LDPE lined steel tank and HDPE at 20C°-50C° show little or no damage after 30 days of constant exposure.
Dimethylsulfoxide tank trailer truck LDPE lined steel tank and HDPE at 20C°-50C° show little or no damage after 30 days of constant exposure.
Ethanol 95% tank trailer truck LDPE lined steel tank and HDPE at 20C°-50C° show little or no damage after 30 days of constant exposure. Ethyl acetate tank trailer truck LDPE lined steel tank and HDPE at 20C°-50C° show little or no damage after 30 days of constant exposure.
Ethylene glycol tank trailer truck LDPE lined steel tank and HDPE at 20C°-50C° show little or no damage after 30 days of constant exposure.
Ethylene oxide HDPE at 20C° shows little or no damage after 30 days of constant exposure. tank trailer truck LDPE lined steel tank at 20C° and tank trailer truck LDPE lined steel tank / HDPE
at 50C° show some effect after 7 days.
Ferric chloride tank trailer truck LDPE lined steel tank and HDPE at 20C°-50C° show little or no damage after 30 days of constant exposure.
Fluoride tank trailer truck LDPE lined steel tank and HDPE at 20C°-50C° show little or no damage after 30 days of constant exposure.
Fluorine HDPE at 20C° shows little or no damage after 30 days of constant exposure. tank trailer truck LDPE lined steel tank at 20C° shows some effect after 7 days. Neither HDPE or tank trailer truck LDPE lined steel tank are recommended at 50C°.
Formaldehyde 10% tank trailer truck LDPE lined steel tank and HDPE at 20C°-50C° show little or no damage after 30 days of constant exposure.
Formaldehyde 40% tank trailer truck LDPE lined steel tank and HDPE at 20C°-50C° show little or no damage after 30 days of constant exposure.
Glycerol tank trailer truck LDPE lined steel tank and HDPE at 20C°-50C° show little or no damage after 30 days of constant exposure.
Heating oil No further data is available at this time.
Hydrochloric acid 5% tank trailer truck LDPE lined steel tank and HDPE at 20C°-50C° show little or no damage after 30 days of constant exposure.
Hydrochloric acid 20% tank trailer truck LDPE lined steel tank and HDPE at 20C°-50C° show little or no damage after 30 days of constant exposure.
Hydrochloric acid 35% tank trailer truck LDPE lined steel tank and HDPE at 20C°-50C° show little or no damage after 30 days of constant exposure.
Hydrocyanic acid tank trailer truck LDPE lined steel tank and HDPE at 20C°-50C° show little or no damage after 30 days of constant exposure.
Hydrofluoric acid tank trailer truck LDPE lined steel tank and HDPE at 20C°-50C° show little or no damage after 30 days of constant exposure.
Hydrofluoric acid 4% tank trailer truck LDPE lined steel tank and HDPE at 20C°-50C° show little or no damage after 30 days of constant exposure.
Hydrofluoric acid 48% tank trailer truck LDPE lined steel tank and HDPE at 20C°-50C° show little or no damage after 30 days of constant exposure.
Hydrogen peroxide 3% tank trailer truck LDPE lined steel tank and HDPE at 20C°-50C° show little or no damage after 30 days of constant exposure.
Hydrogen peroxide 30% tank trailer truck LDPE lined steel tank and HDPE at 20C°-50C° show little or no damage after 30 days of constant exposure.
Isobutyl alcohol tank trailer truck LDPE lined steel tank and HDPE at 20C°-50C° show little or no damage after 30 days of constant exposure.
Isopropyl acetate No data is available at this time.
Isopropyl alcohol tank trailer truck LDPE lined steel tank and HDPE at 20C°-50C° show little or no damage after 30 days of constant exposure.
Lactic Acid 10 % tank trailer truck LDPE lined steel tank and HDPE at 20C°-50C° show little or no damage after 30 days of constant exposure.
Lactic Acid 90 % tank trailer truck LDPE lined steel tank and HDPE at 20C°-50C° show little or no damage after 30 days of constant exposure.
Lead acetate tank trailer truck LDPE lined steel tank and HDPE at 20C°-50C° show little or no damage after 30 days of constant exposure.
Methanol tank trailer truck LDPE lined steel tank and HDPE at 20C°-50C° show little or no damage after 30 days of constant exposure.
n-butyl alcohol tank trailer truck LDPE lined steel tank and HDPE at 20C°-50C° show little or no damage after 30 days of constant exposure.
n-octane tank trailer truck LDPE lined steel tank and HDPE at 20C°-50C° show little or no damage after 30 days of constant exposure.
Phosphoric acid 10% tank trailer truck LDPE lined steel tank and HDPE at 20C°-50C° show little or no damage after 30 days of constant exposure.
Phosphoric acid 85% HDPE and tank trailer truck LDPE lined steel tank at 20C° show little or no damage after 30 days of constant exposure. tank trailer truck LDPE lined steel tank at 50C° shows immediate damage and is not recommended.
Phosphorous trichloride HDPE and tank trailer truck LDPE lined steel tank at 20C° show little or no damage after 30 days of constant exposure. tank trailer truck LDPE lined steel tank at 50C° has no
data available. HDPE at 50C° shows some effect after 7 days.
Potassium carbonate tank trailer truck LDPE lined steel tank and HDPE at 20C°-50C° show little or no damage after 30 days of constant exposure.
Potassium hydroxide 5 % tank trailer truck LDPE lined steel tank and HDPE at 20C°-50C° show little or no damage after 30 days of constant exposure.
Potassium hydroxide
concentrated tank trailer truck LDPE lined steel tank and HDPE at 20C°-50C° show little or no damage after 30 days of constant exposure.
Potassium permanganate tank trailer truck LDPE lined steel tank and HDPE at 20C°-50C° show little or no damage after 30 days of constant exposure.
Propylene glycol tank trailer truck LDPE lined steel tank and HDPE at 20C°-50C° show little or no damage after 30 days of constant exposure.
Pyridine Immediate damage may occur. Not recommended for continuous use.
Salicylic acid, saturated tank trailer truck LDPE lined steel tank and HDPE at 20C°-50C° show little or no damage after 30 days of constant exposure.
Silver acetate tank trailer truck LDPE lined steel tank and HDPE at 20C°-50C° show little or no damage after 30 days of constant exposure.
Silver nitrate tank trailer truck LDPE lined steel tank and HDPE at 20C°-50C° show little or no damage after 30 days of constant exposure.
Sodium carbonate tank trailer truck LDPE lined steel tank and HDPE at 20C°-50C° show little or no damage after 30 days of constant exposure.
Sodium chloride,
saturated tank trailer truck LDPE lined steel tank and HDPE at 20C°-50C° show little or no damage after 30 days of constant exposure.
Sodium dichromate tank trailer truck LDPE lined steel tank and HDPE at 20C°-50C° show little or no damage after 30 days of constant exposure.
Sodium hydroxide 1% tank trailer truck LDPE lined steel tank at 20C°-50C° shows little or no damage after 30 days of constant exposure. HDPE at 20C°-50C° shows
some effect after 7 days.
Sodium hydroxide 50% tank trailer truck LDPE lined steel tank and HDPE at 20C°-50C° show little or no damage after 30 days of constant exposure.
Sodium hypochlorite 15% HDPE at 20C°-50C° show little or no damage after 30 days of constant exposure. tank trailer truck LDPE lined steel tank at 20C° is suitable but at 50C° shows some effect after 7 days.
Sodium nitrate tank trailer truck LDPE lined steel tank and HDPE at 20C°-50C° show little or no damage after 30 days of constant exposure.
Sodium sulphate tank trailer truck LDPE lined steel tank and HDPE at 20C°-50C° show little or no damage after 30 days of constant exposure.
Sucrose tank trailer truck LDPE lined steel tank and HDPE at 20C°-50C° show little or no damage after 30 days of constant exposure.
Sulphide No additional information is available at this time.
Sulfuric acid 6% tank trailer truck LDPE lined steel tank and HDPE at 20C°-50C° show little or no damage after 30 days of constant exposure.
Sulfuric acid 20% tank trailer truck LDPE lined steel tank and HDPE at 20C°-50C° show little or no damage after 30 days of constant exposure.
Sulfuric acid 60% tank trailer truck LDPE lined steel tank and HDPE at 20C°-50C° show little or no damage after 30 days of constant exposure.
Tannic acid tank trailer truck LDPE lined steel tank and HDPE at 20C°-50C° show little or no damage after 30 days of constant exposure.
Toluene tank trailer truck LDPE lined steel tank at 20C° show some effect after 7 day of constant exposure. HDPE at 20C°-50C° and tank trailer truck LDPE lined steel tank at 50C°
show immediate damage and are not recommended.
immediate damage and are not recommended.
Urea tank trailer truck LDPE lined steel tank and HDPE at 20C°-50C° show little or no damage after 30 days of constant exposure.
Zinc chloride tank trailer truck LDPE lined steel tank and HDPE at 20C°-50C° show little or no damage after 30 days of constant exposure.
