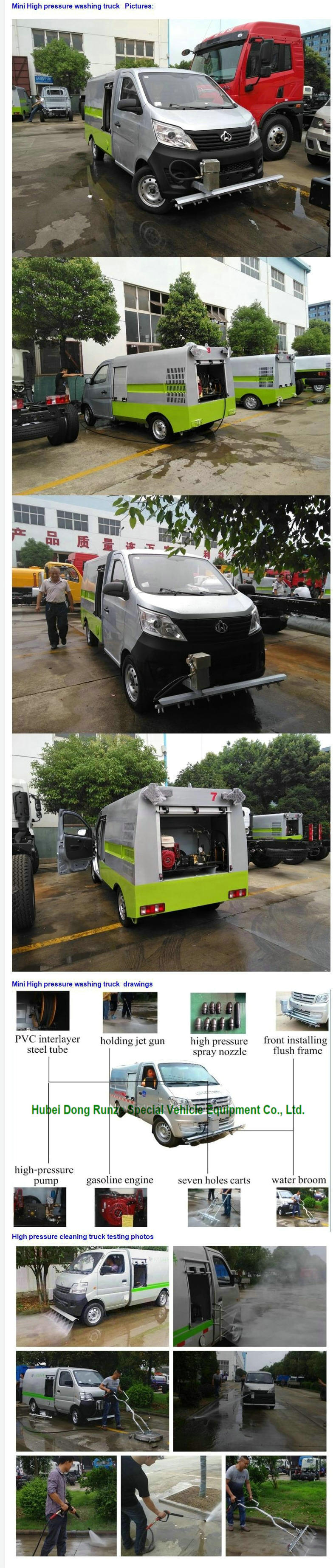

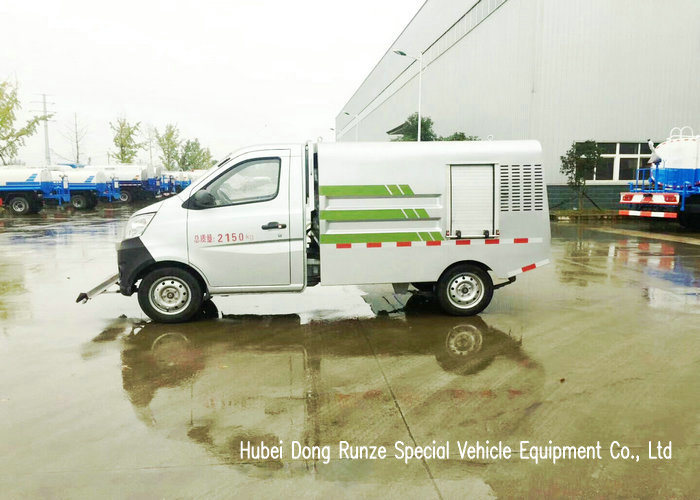

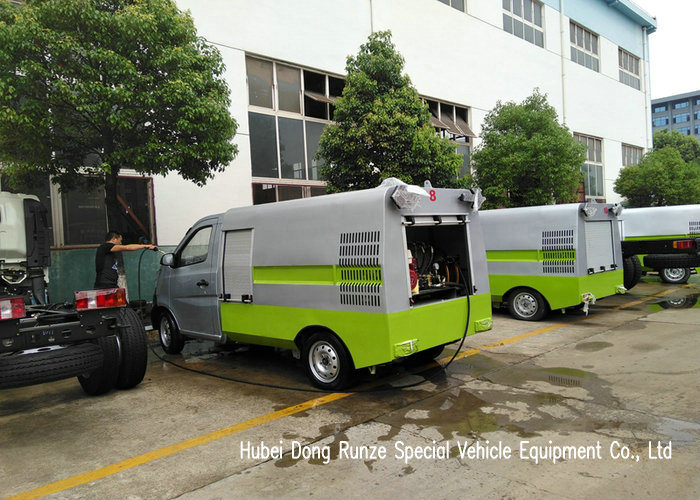

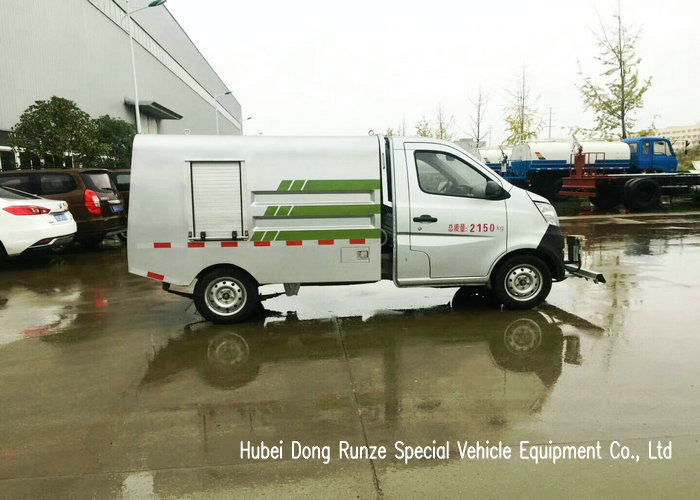

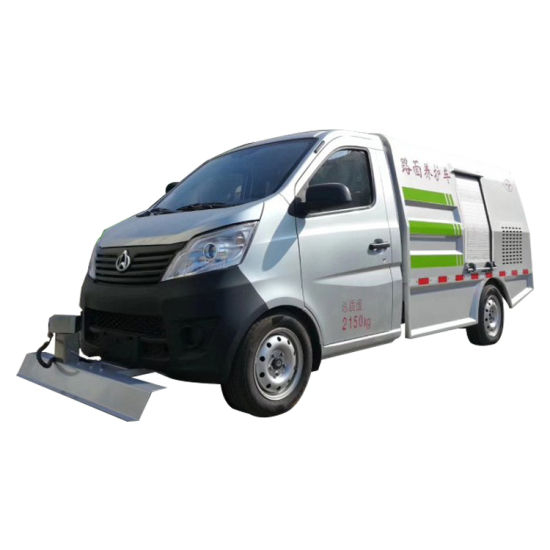

Mini High Pressure Street Cleaning Truck
Changan high pressure washing car can also be called changan high pressure washing car, changan pavement washing car, changan washing car. Is our company according to market demand, the development of a road, platform, sidewalk, city appearance cleaning car. This product is compact and flexible, beautiful in appearance, comfortable to drive, easy to operate, high reliability, suitable for urban streets, railway stations and stations, residential areas, etc. Can be high pressure on the road and pavement cleaning, can effectively clean up the sanitary dead spots, psoriasis advertising.
Configuration: changan road surface washing cars use van type vehicle modelling, more safe and more stylish, changan new cab, engine USES the changan JL466Q1 gasoline engine (the four) 70 horsepower (16 valve), 5-speed transmission, configuration of special drive high-pressure pump, engine, the maximum working pressure can reach 30 mpa, tank volume is 1.5 square, bridge before installation, there are seven nozzle of wash pipe, a wide range of flushing road; The flow rate is 11.7l /min, the single operation time is about 3 hours, a single-point jet gun, the curtain type box door used by fire fighting vehicles on three sides is beautiful. Compared with manual cleaning, water saving is nearly 4 tons per kilometer. In the past, it used to take 40 people per kilometre of pavement to clean by hand, which took five hours.
Main Specifications | |||
Product Brand | DRZ | The first Batch | 290 |
Product Name | Mini High pressure washing truck | Product Model | DRZ5020GQXB |
Total Weight (Kg) | 1850 | Volume(m3) | 1.3 |
Rated load(Kg) | 125 | Overall Dimension(mm) | 4300X1520X1850(mm) |
Curb Weight(Kg) | 1595 | Cab seats (man) | 2 |
Approach angle/departure angle(°) | 25/26 | Front overhang/Rear overhang(mm) | 760/790(mm) |
Number of axles | 2 | Wheelbase(mm) | 2750 |
Axle Load(Kg) | 835/1015 | Maximum Speed(Km/h) | 98 |
Chassis Technical Parameters | |||
Chassis Model | SC1026DAN4 | Chassis Name | Truck Chassis |
Brand Name | Changan | Manufacturing enterprise | Changan motor co. |
Wheel specification | 165/70R13LT,175R13LT | Number of wheels | 6 |
Plate spring count | -/5 | Front gauge(mm) | 1280 |
Fuel Species | gasoline | Track rear(mm) | 1290 |
Engine type | Engine manufacturing enterprise | Displacement(ml) | Power(Kw) |
JL466Q1 | Chongqing Changan Automobile Company Limited | 1012 | 50.7 |
The above information is for reference only. We can produce according to your needs so, If you have any questions you can contact me at any time.
Parts | Model No. | DRZ5030TYHS5 | |
Chassis | Chassis model | SC1031GND51 | |
Chassis engine model | DK12-10(Emission national V) | ||
Chassis engine power | 65KW | ||
Fuel type | Petrol | ||
Wheel base | 2700mm | ||
Cab's configuration | Air condition | ||

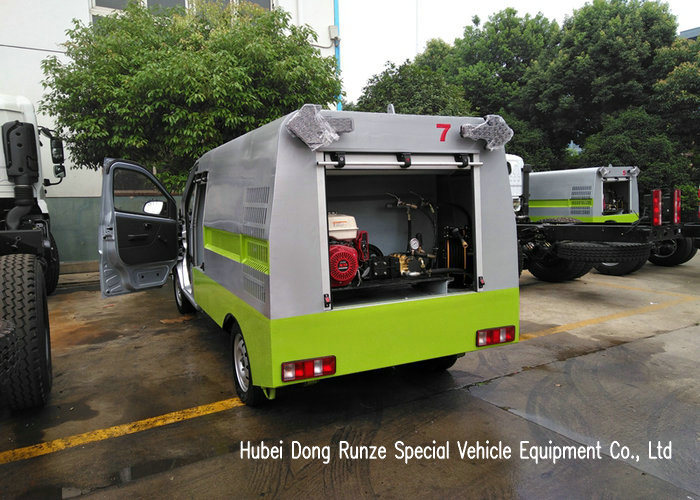

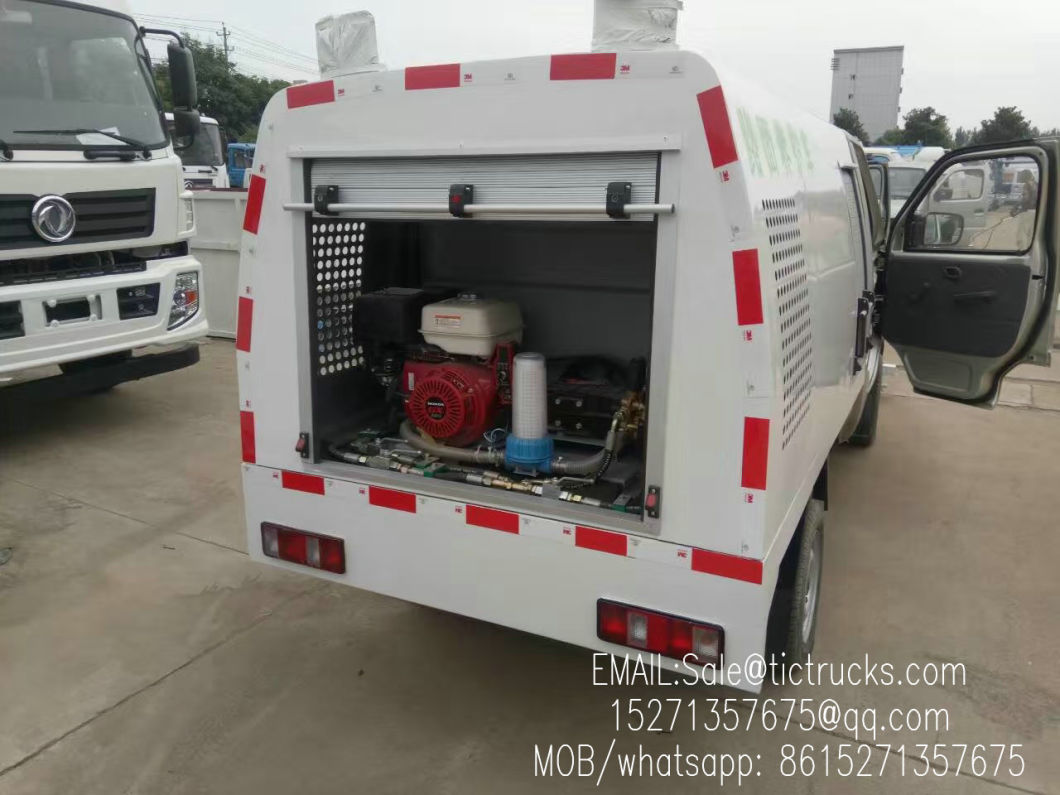

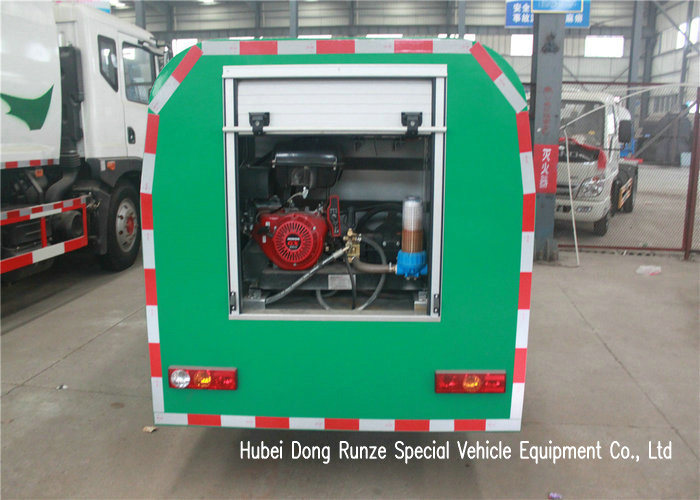

Auxiliary engine | Auxiliary engine model | Honda GX390 | |
Net power of auxiliary engine | 6.6 kw/3600 r/min | ||
Overall dimension | Overall dimension(L*W*H) | 4595×1520×2040 mm | |
Mass parameter | GVW | 2595 kg | |
Payload | 885 kg | ||
Kerb weight | 1580 kg | ||
Main specification | Volume of water tank | 1.4m³ | |
Volume of cargo box | 1.4m³ | ||

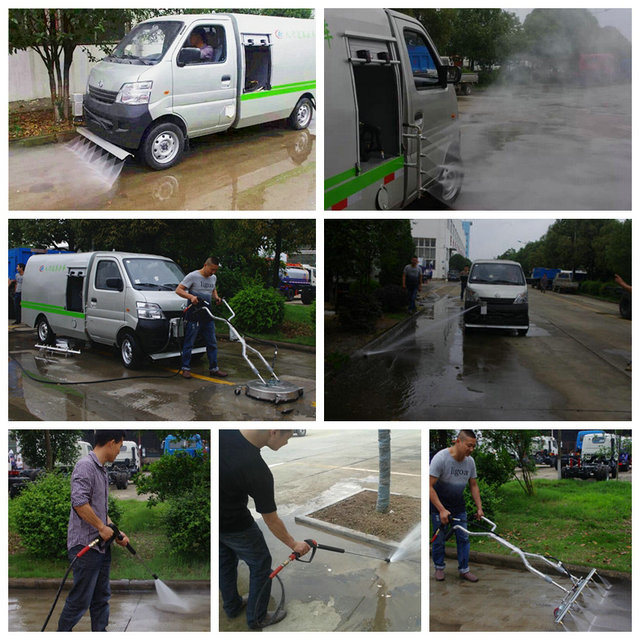

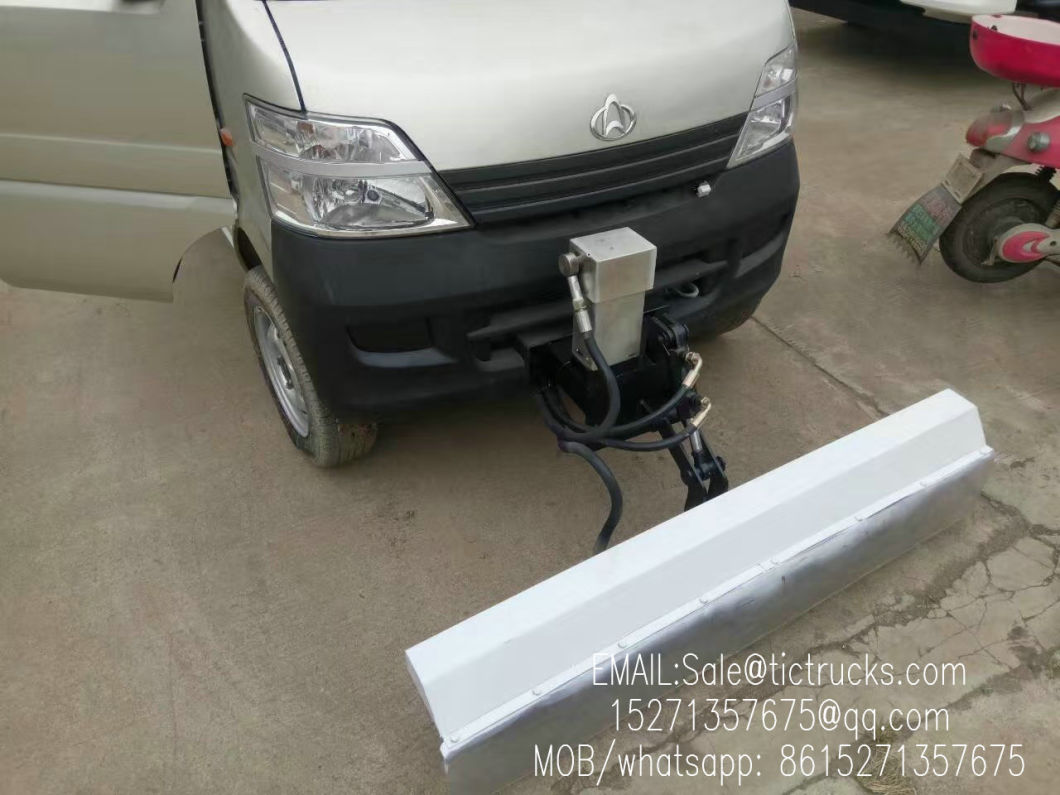

Washing width of front spray rod | 1.5m | ||
Fixed point washing distance | 3.5m | ||
Working capacity | ≥95% | ||
Deflection angle of front spray rod | ±15° | ||
Lifting height of front spray rod | 100mm | ||
Washing width of auxiliary trolley | 1500mm | ||
High pressure pump | Italy UDOR CC50/12S | ||
maximum pressure of High pressure water way | 10Mpa | ||
Water hose length | 15m |
Cell /+8615271357675
SPECIFICATION
changan mini 3 cbm road sweeper truck artificial grass sweeper
Main parameters | Brand | DONG RUN ZE |
Product model | DRZ5030TSL5SC | |
Gross weight (Kg) | 3495 | |
Curb weight (Kg) | 2750 | |
Cab seats | 3 | |
Number of axles | 2 | |
Overall dimension(mm) | 5110*1610*2310 | |
Wheel base(mm) | 2990 | |
Max speed (Km/h) | 90 | |
Chassis parameters | Chassis model | SC1031GDD53 |
Brand | Changan | |
Fuel | diesel | |
Number of wheels (mm) | 4 | |
Tire specification | 165R14LT | |
Engine capacity (ml) | 1240 | |
Emission standard | Euro III |
Road sweeper truck is also called road sweeper truck, it combine the function of road sweeping, garbage collection and garbage transportation , is new type efficient sanitation special cleaning vehicle
Specifications | |||
Item | Specifications | Item | Specifications |
Truck | |||
Name | Mini road sweeper | ||
Model | DRZ5030TSLSC5 | Gross Weight | 3495kg |
Overall dimensions | 5200*1650*2300mm | Curb Weight | 2800kg |
Wheelbase | 2990mm | Approach angle | 40° |
Front Track | 1330mm | Departure Angle | 19° |
Rear Track | 1210mm | Front Overhang | 640mm |
Number of axles | 2 | Rear Overhang | 1570mm |
Max speed | 90km/h | Number of Tyres | 6 |
Traction system | 4×2 | Tyre | 165R14LT |
Transmission | manual | Allowable Cab Passengers | 2 |
Chassis | |||
Model | SC1031GDD53 | Brand | Changan |
Engine (Motor) | |||
Brand | Chongqing Xiaokang | Type | Diesel |
Model | DK12-10 | Displacement | 1240ml |
Horse power | 88 | Emission standard | Euro 5 |
Equipment | |||
Water Tank | 0.5cbm | Tank Material | Carbon or Stainless |
Garbage Tank | 2cbm | Sweep width | 2.5m |
Sweep rate | ≥95% | Sweeping speed | 3-25km/h |
Remarks | |||
Leadtime | Within 30 days | ||
Warranty | 12 months |
Street Sweeping4 Brooms Vacuum Cleaner Steel Brush Multifunction Road Sweeper Truck
Debris Bin And Water Bin Are Made Of Stainless Steel ,Corrosion-Resistant
Four Booms Sweeping System And Suction System Combine Working ,High Efficient.
Water Sprinklers Equipped On Brooms,Suction Nozzle.
Suction Nozzle Is Floating Type,Self Adjustable For Different Road Condition.
Air Blower Is Special For Road Sweeper,High Efficient,Low Noise
4x2 Howo road sweeper truck street sweeper truck vacuum road sweeper
Sinotruk HOWO light truck road sweeper truck hot sale factory price
1.production name:road truck, road sweeper truck, road sweeping truck,road sweeper machine,road sweeper,road sweeper vehicle,road sweeper car.
2.driving style:4x2 ,4x4, 6x4, 6x6, 8x4 ,8x8
3.Provide different brand chassis: DONGFENG, SINOTRUK, SHACMAN, NORTH BENZ, FOTON, ROWOR, HINO, JAC, JMC
OR WITH JAPAN CHASSIS
1. Consist of origina Vehicles chassis, hydraulic system, elevating system and electrical system.
2. Sweeper Truck technology from American and made a lot of optimized design.
3. The cleaning system is driven by imported advanced hydraulic motor to guarantee the power and reliability during work.
4. With the structure of four mid-mounted disk brushes and one rear-mounted suction nozzle, which provide a large sweeping width, high sweeping efficiency and good traffic ability. Also convenient for adjustment and maintenance of sweeper device and nozzle.
5. An automatic clutch is set up on the transmission between the vice-engine and the fan, wshich can ensure the automatic separation of the vice-engine from the fan when the vice-engine startup or shutdown.
6. The sweeping disk has the protection function and automatic reset function, which can avoid obstacles automatically and return automatically.
Beiben road sweeper truck
maximum operation capacity: sqm/h/h-44000 -90000square meters.
Standard configuration Chassis,sub frame,body,4 sweeping brushes, stainless steel vacuum tank, water tank,5T fan, auxiliary engine, electromagnetic control valve, suction cup, sprinkler system, hydraulic system and electrical system. Selective configuration surveillance system,rolling brush. | |||||||||||
Vehicle model | Chassis brand | Chassis model | Load (L) | Overall dimensions | Wheel base | Engine model | hp/standard | Tire | EXW Price RMB /USD=6.3 | ||
Dust | Water | mm | mm | RMB | USD | ||||||
DRZ5160TSLD | DONGFENG LHD/RHD RHD price add $2000 | DFL1160BX | 6000;7000 | 4000; 3500 | 8090X2470X3050 | 4700 | B190 33 | 190/Euro 3 | 9.00-20 | 309800 | US$49,175 |
DRZ5060TSLE | DONGFENG LHD/RHD RHD price add $2000 | EQ1060TJ20D3 | 3500 | 800 | 5970X2000X2400 | 3300 | CY4102-C3F | 95/Euro 3 | 11.00R20 | 159400 | US$25,302 |
DRZ5090TSLE | DONGFENG LHD/RHD RHD price add $2000 | EQ1090T9ADJ3AC | 4500 | 1000 | 6700X2290X2500 | 3800 | CY4102-E3C | 120/Euro 3 | 7.50R16 | 200500 | US$31,825 |
DRZ5108TSLE | DONGFENG LHD/RHD RHD price add $2000 | EQ1108KJ | 5000 | 3000 | 7000X2480X3000 | 3950 | B170 33 | 170/Euro 3 | 9.00-20 | 257700 | US$40,905 |
DRZ5126TSLE | DONGFENG LHD/RHD RHD price add $2000 | EQ1126KJ1 | 6000 | 4000 | 8090X2470X3050 | 4700 | B190 33 | 190/Euro 3 | 9.00-20 | 279800 | US$44,413 |
DRZ5141TSLE | DONGFENG LHD/RHD RHD price add $2000 | EQ1141KJ | 6000 | 4000 | 7650X2480X3000 | 4500 | B190 33 | 190/Euro 3 | 10.00-20 | 272700 | US$43,286 |
DRZ5073TSLB | FOTON LHD/RHD RHD price add $2000 | BJ1073VEJEA-A | 3500 | 800 | 5995X1900X2680 | 3360 | 4DW91-63NG2 | 98/Euro 2 | 6.50-16 | 149400 | US$23,714 |
DRZ5163TSLB | FOTON LHD/RHD RHD price add $2000 | BJ1163VKPGG-1 | 6000 | 4000 | 7810X2495X3160 | 5000 | Phaser160Ti-33 | 160/Euro 3 | 9.00R20 | 299800 | US$47,587 |
DRZ5070TSLQ | ISUZU LHD | QL1070A1KAY | 4500 | 1000 | 6465X1980X2435 | 3815 | 4KH1-TCG40 | 120/Euro 4 | 7.00-15 | 255700 | US$40,587 |
DRZ511009TSLQ | ISUZU LHD | QL11009LARY | 5000 | 3000 | 6910X2200X2640 | 4175 | 4HK1-TCG40 | 190/Euro 4 | 8.25-20 | 331400 | US$52,603 |
DRZ51609TSLQ | ISUZU LHD | QL11609MFRY | 6000 | 4000 | 7705X2500X3060 | 4500 | 4HK1-TCG40 | 190/Euro 4 | 10.00-20 | 403100 | US$63,984 |
DRZ5161TSLH | JAC LHD/RHD RHD price add $2000 | HFC1161P3K2A47F | 6000 | 4000 | 8155X2495X3070 | 4700 | YC4E160-42 | 160/Euro 4 | 11.00R20 | 337900 | US$53,635 |
DRZ5165TSLS | SHACMAN LHD/RHD RHD price add $2000 | SX1165UN461 | 6000 | 4000 | 8040X2490X3270 | 4600 | WP10.270E32 | 270/Euro 3 | 12.00R20 | 362000 | US$57,460 |
