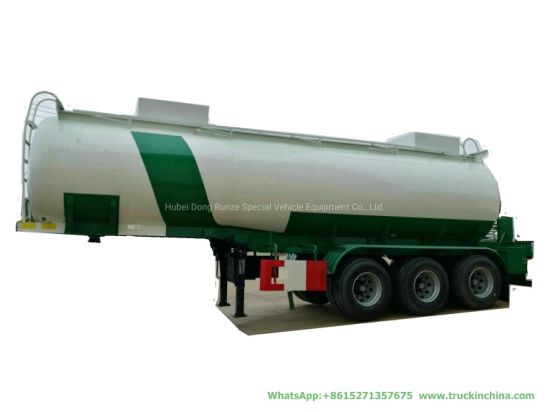

Caustic Soda Tanker Corrosive Chemical Liquid Steel Lined Plastic Tank Trailer (3 Axles PE Lined Tank for Dilute Sulfuric Acid Hydrochloric Acid)

Caustic Soda Tanker Corrosive Chemical Liquid Steel Lined Plastic Tank Trailer (3 Axles PE Lined Tank for Dilute Sulfuric Acid Hydrochloric Acid)
Availability:
Quantity:
  • Shanghai, China

  • 3000

  • T/T

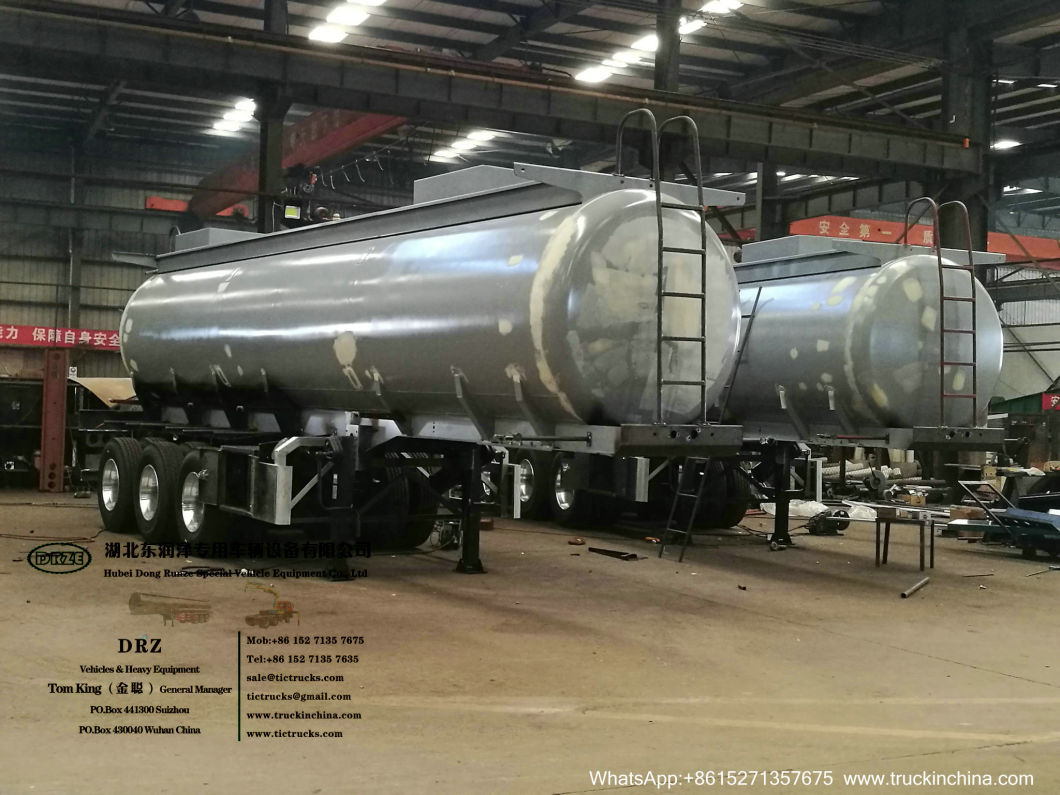

Caustic Soda Tanker Corrosive Chemical Liquid Steel Lined Plastic Tank Trailer ( 3Axles PE Lined Tank for Dilute Sulfuric Acid  Hydrochloric Acid) Semi-Trailer  (  Sodium Hydroxide Steel Tank Lined LLDPE)
Sodium Hydroxide Tank Semi-Trailer 3 axles 26500Liters,32000liters

Ask for better price

Cell +8615271357675

The pictures are for your reference only.

Sodium hydroxide ,Hydrochloric Acid, Phosphoric Acid Tank Container ,Trailer Truck Steel tank lined LLDPE Sodium hydroxide, also known as lye and caustic soda  inorganic compound with the formula NaOH. It is a white solid ionic compound consisting of sodium cations Na+ and hydroxideanions Sodium hydroxide is a highly caustic base and alkali that decomposes proteins at ordinary ambient temperatures and may cause severe chemical

Caustic Soda Tanker Corrosive Chemical Liquid Steel Lined Plastic Tank Trailer (3 Axles PE Lined Tank for Dilute Sulfuric Acid Hydrochloric Acid)
Caustic Soda Tanker Corrosive Chemical Liquid Steel Lined Plastic Tank Trailer (3 Axles PE Lined Tank for Dilute Sulfuric Acid Hydrochloric Acid)
Caustic Soda Tanker Corrosive Chemical Liquid Steel Lined Plastic Tank Trailer (3 Axles PE Lined Tank for Dilute Sulfuric Acid Hydrochloric Acid)
Caustic Soda Tanker Corrosive Chemical Liquid Steel Lined Plastic Tank Trailer (3 Axles PE Lined Tank for Dilute Sulfuric Acid Hydrochloric Acid)

Corrosive chemical liquid steel lined plastic tank with dilute sulfuric acid and hydrochloric acid

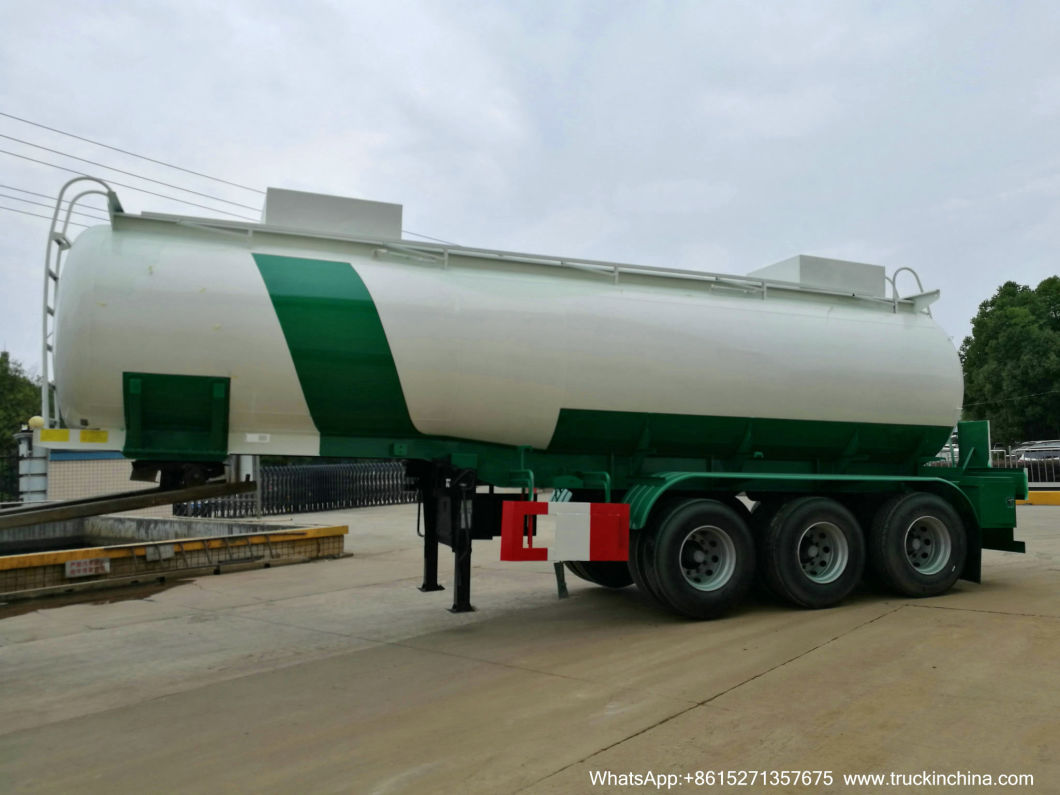

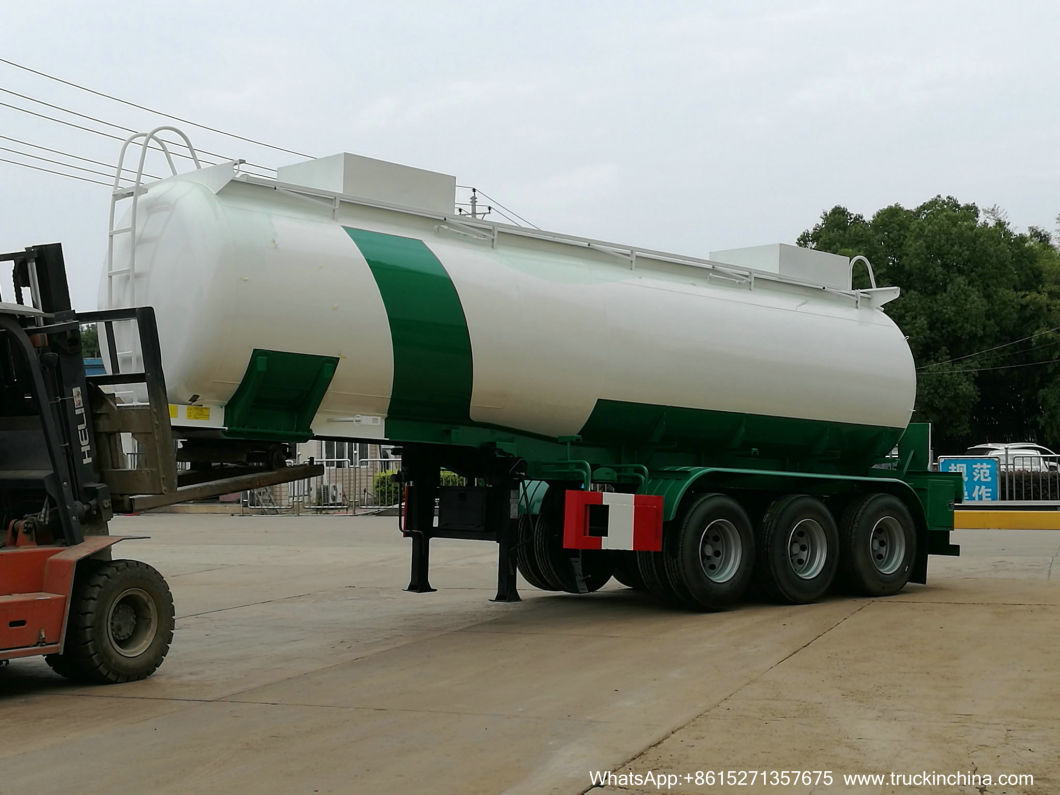

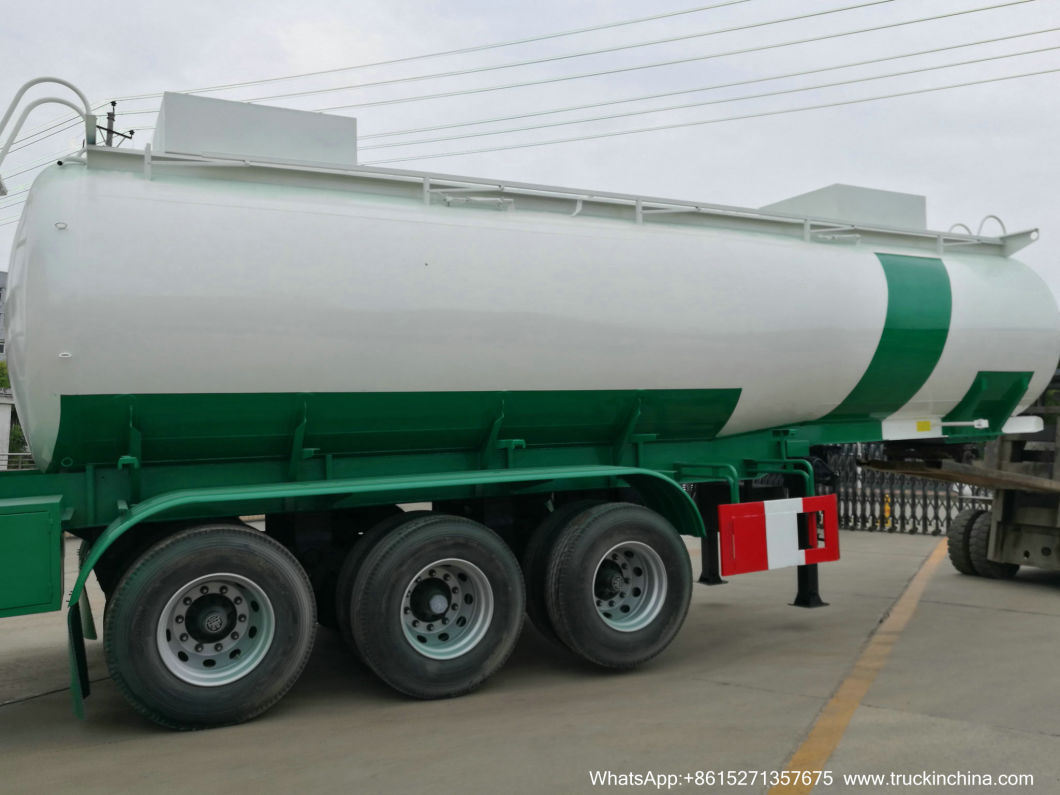

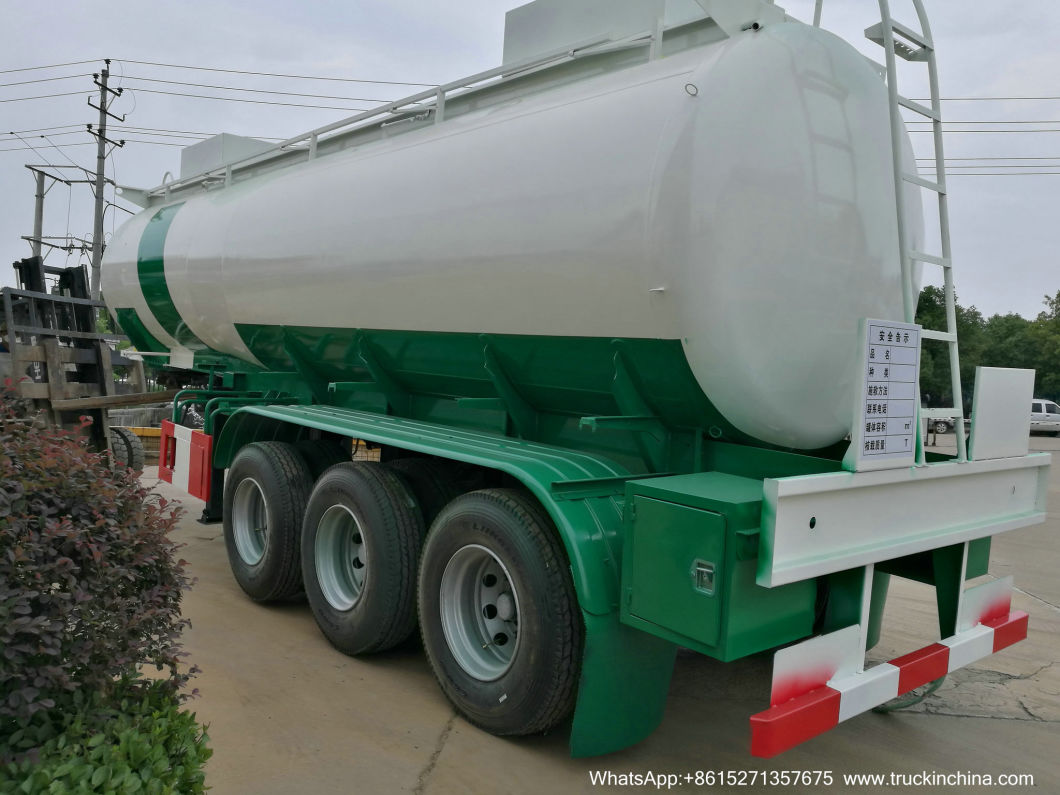

32 ton liquid alkali transport tank semi-trailer
Vehicle model: dta9408gfwd
Boundary dimension: 9700 × 2500 × 3800 (mm)
Announcement volume: 26.5m3
Total mass: 40 tons
Curb weight: 8.6 tons
Rated load mass: 31.4t
Transportation medium: sodium hydroxide
Traveling part of semi-trailer of 32 ton liquid alkali transport tank: the tractor is provided by the user, providing the traction height. 90 × traction pin, three axle 12 ton Fuhua disc brake axle, with two axle Kemei ABS, 28T single acting outrigger, 4 steel plates, 12 sets of 12.00r22.5 vacuum tires + steel ring, all steel mudguard, a spare tire holder, a toolbox, air chamber and air reservoir are equipped with connection and installation for testing brake pipe pressure. Transportation medium: sodium hydroxide.
32 ton liquid alkali transportation tank semi-trailer tank part: the tank part can be made of carbon steel or steel lined plastic composite material according to the density of liquid alkali. The net volume of the tank is 26.5 cubic meters. The tank body is made of high-quality WISCO Q235 carbon steel plate. The tank body is in a round shape and is made strictly according to the standard pattern announced. The tank body shall be painted with dark gray acid and alkali resistant paint. The volume of transportation medium "sodium hydroxide" shall be "26.5" cubic meters. Reflective tape, reflective strip and safety notice shall be pasted. The light locks shall be complete and the word "corrosion" shall be pasted. Two 4kg fire extinguishers and two DN80 equal length acid resistant pipes shall be provided

3 Axles Acid Tank Trailer for HCl (max 35%) , Naoh (max 50%) , Naclo (max 10%) , PAC (max 17%) , H2so4, H3po4 (10%-85%) , Nh3. H2O, H2O2 (30%) etc 28cbm-35cbm
Caustic Soda Tanker Corrosive Chemical Liquid Steel Lined Plastic Tank Trailer (3 Axles PE Lined Tank for Dilute Sulfuric Acid Hydrochloric Acid)
Caustic Soda Tanker Corrosive Chemical Liquid Steel Lined Plastic Tank Trailer (3 Axles PE Lined Tank for Dilute Sulfuric Acid Hydrochloric Acid)
Caustic Soda Tanker Corrosive Chemical Liquid Steel Lined Plastic Tank Trailer (3 Axles PE Lined Tank for Dilute Sulfuric Acid Hydrochloric Acid)

Naoh Sodium Hydroxide Tanker Trailer 190000L-30000L Caustic Soda Round Dishhead Truck Trailer

3 Axles Hydrofluoric Acid Tank Trailer For HCl (max 35%) , Naoh (max 50%) , Naclo (max 10%) , PAC (max 17%) , H2so4 etc

Hydrochloride Acid Tank Trailer 30T Solusion  Hydrogen Chlorate, Sodium Hydroxide,Acrylic ,Acetic Acid,Glacial Acetic Acid, Hydrogen Peroxide ,Propionic acid,

3 Axles Acid Tank Trailer For HCl (max 35%) , NaOH (max 50%) , NaClO(max 10%) , PAC (max 17%) , H2so4 ,H3PO4 (10%-85%),NH3. H2O,H2O2 (30%) etc 28CBM-45CBM
Acid Tanker Trailer For Road  Transport (Hydrogen Fluoride) Hydrofluoric Acid HF 48%

Ask for better price

Cell +8615271357675

Used to contain: HCl (max 35%), NaOH (max 50%), NaCLO (max 10%), PAC (max 17%),H2SO4(60%,98%) ,HF ( 48%),H3PO4 (10%-85%),NH3. H2O,H2O2 (30%)etc…

20cbm sodium hydroxide acid cistern tank semi trailer

Chemical Tank Trailer for Dangerous Liquid Transport

Caustic Soda Tanker Corrosive Chemical Liquid Steel Lined Plastic Tank Trailer (3 Axles PE Lined Tank for Dilute Sulfuric Acid Hydrochloric Acid)
Caustic Soda Tanker Corrosive Chemical Liquid Steel Lined Plastic Tank Trailer (3 Axles PE Lined Tank for Dilute Sulfuric Acid Hydrochloric Acid)

Description of Chemical Tank Trailer for Dangerous Liquid Transport

The chemical tank trailer specializes in transporting dangerous liquids. It can transport corrosive liquids of different concentrations, including sulphuric acid, hydrochloric acid, nitric acid, etc.

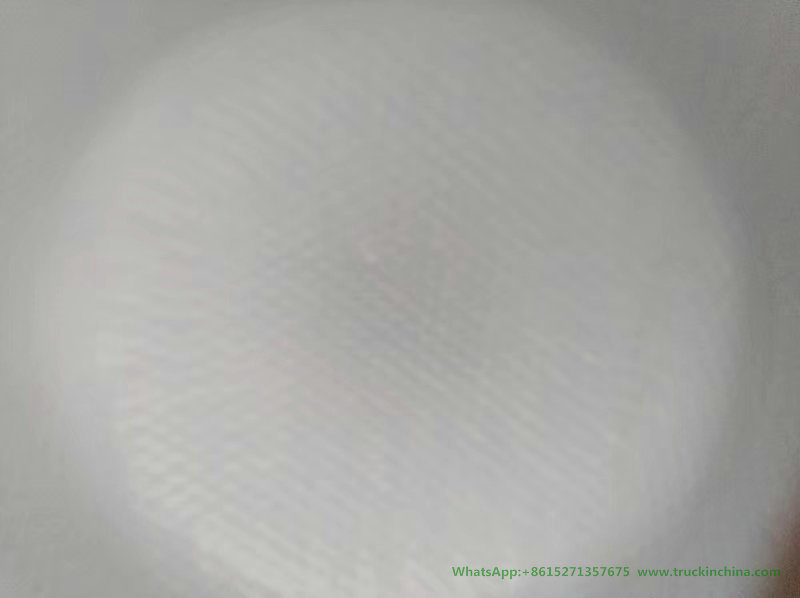

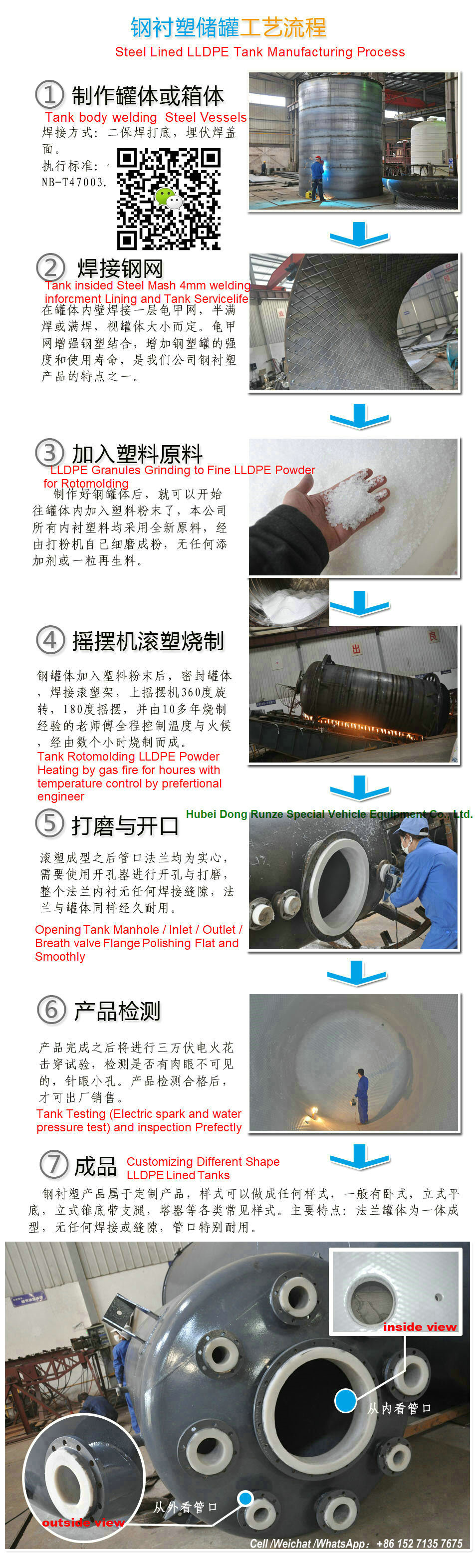

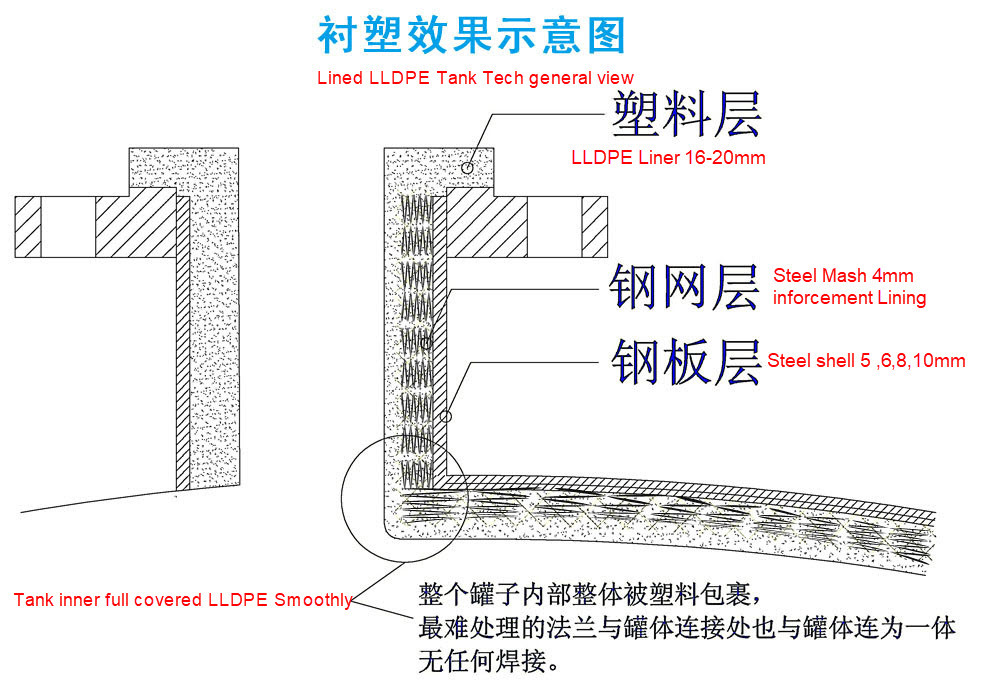

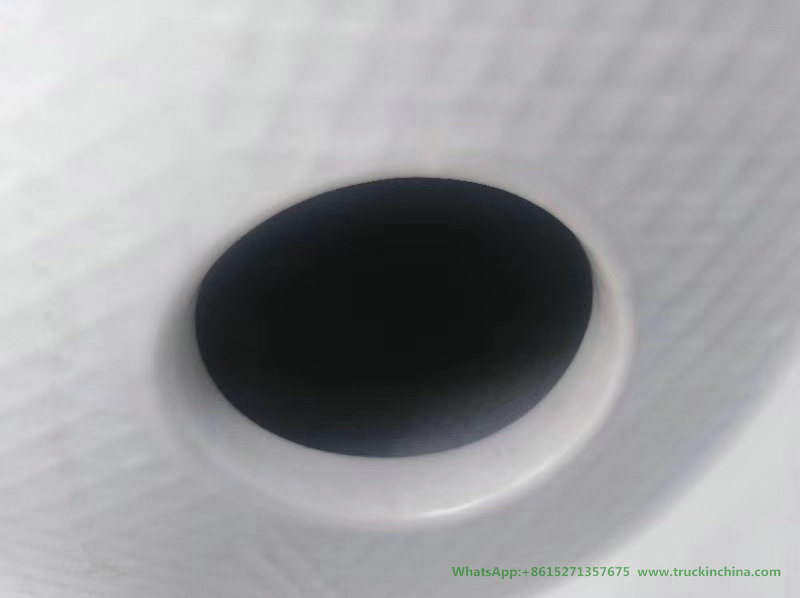

The tank body is divided into two layers, the outer layer is solid carbon steel material, and the inner part is anti-corrosion plastic material, which ensures safety.

Caustic Soda Tanker Corrosive Chemical Liquid Steel Lined Plastic Tank Trailer (3 Axles PE Lined Tank for Dilute Sulfuric Acid Hydrochloric Acid)
Caustic Soda Tanker Corrosive Chemical Liquid Steel Lined Plastic Tank Trailer (3 Axles PE Lined Tank for Dilute Sulfuric Acid Hydrochloric Acid)


Advantages of Chemical Tank Trailer for Dangerous Liquid Transport


Corrosion resistance

The chemical pump and other components of the trailer are safe, sealed and stable, and are not easy to be corroded by dangerous liquid in transportation.


Safe driving

The semi-trailer is equipped with ABS system to help safe driving, and has PVC and ESD electrostatic discharge facilities to ensure safety.


Wave Obstructors

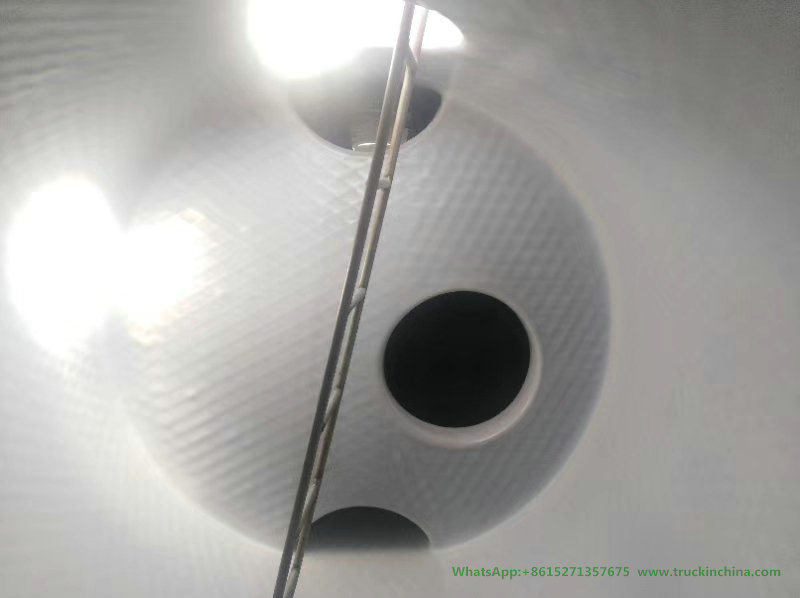

All-plastic wave obstructors are set in the tank to cushion the shock to the cap during the urgent brake or rapid starting.


Specification

Main Dimensions
Overall Dimension 12100x2500x3300
Tare Weight 11900
Loading Capacity 45Ton
Tank Body
Shape Mono block Cylinder
Total Volume (m3) 32cmb
Tanker Body Material 6 mm carbon steel
End Plate 6 mm carbon steel
Inner Lining 16 mm plastics
Manhole Cover

∮500mm, 2 sets with 2 breather valve

Steel manhole cover with plastic lining

Discharging Valve 2 sets ∮100mm discharging valve, stainless made
Safety Valve 1 set of safety valve
Discharging Pipe 4" rubber hose, 2pcs, 6m long
Chassis
Axle 3 pcs FUWA 13Ton axles
Landing Gear

JOST brand Two-speed;

manual operating;

heavy duty landing gear

King Pin JOST brand 2" bolt-in king pin
Suspension Mechanical suspension with leaf spring
Braking System

WABCO RE 6 relay valve;

T30/30 Spring brake chamber;

40L air tanks

Wheel Rim 9.0-22.5 wheel rim, 12 pieces
Tire 12R22.5 tubeless tire , 12 pieces
Painting

Complete Chassis sand blasting to clean rust,

1 coat of anticorrosive prime, 2 coats of final paint

Accessories One standard tool box, one spare tyre and carrier
