CONTAINER SEMI-TRAILER,LOW BED TRAILER export to ZAMBIA CIF DAR ES SALAAM price
Views: 20165 Author: Dong Runze Publish Time: 2017-03-15 Origin: Hubei Dong Runze Special Vehicle Equipment
CONTAINER SEMI-TRAILER,LOW BED TRAILER export to ZAMBIA CIF DAR ES SALAAM price
GROSS WEIGHT 26470kg NET WEIGHT 26460kg
CIF FREIGHT$5760.15 PREMIUM $21.34
HS | Product name | Specification model | Quantity | Final destination country | Unit price | Total price | Currency |
87163990 | CARGO TRANSPORTATION | LOW FLAT PANEL TRAILER 9409TDPA | 1 | ZAMBIA | 24093.59 | 24093.59 | USD | |
87163910 | CONTAINER SEMI-TRAILER | CARGO TRANSPORTATION CONTAINER SEMI-TRAILER | 9400 | 1 | ZAMBIA | 17347.39 | 17347.39 | USD |

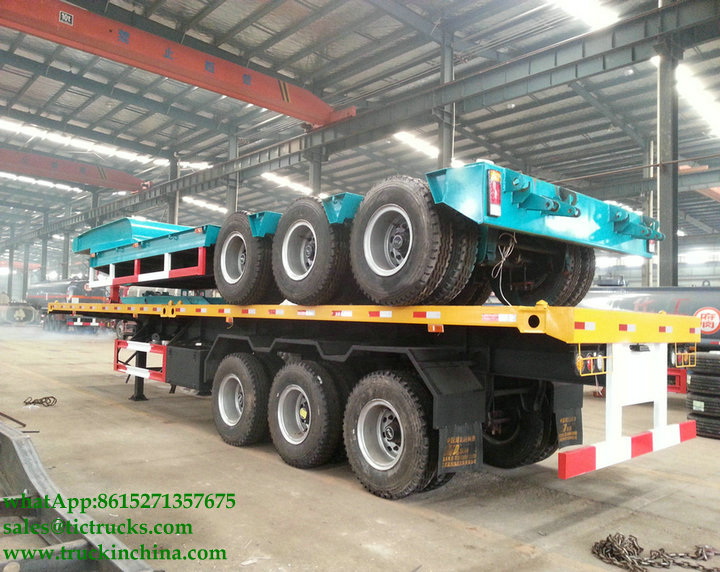

13T Fuwa Axle 40ton Flatbed Container Semi Trailer Yellow Red Green Blue White
Technical parameter
| Model Name | 13T Fuwa Axle 40ton Flatbed container Semi Trailer Yellow Red Green Blue White | Dimension(L*W*H)(mm) | 12400*2500*1520 |
| Tare weight(kg) | 6600 | Loading weight(kg) | 40000 |
| Axle | FUWA 13T 3pics | Wheelbase(mm) | 7900+1310+1310 |
| Suspension system | Common mechanical suspension 10 | ||
| Main beam | The height of the beam is 500mm, upper plate is 14mm, down is 16mm, middle 6mm. | ||
| Platform plate | 3mm dimaond plate | Side beam | 16 # channel steel |
| Container twist locker | 12pcs | Tyre | 12*1100R20 or 12R22.5 |
| Steel rim | 12* 9.00-22.5 | Traction pin | 50mm, 90mm |
| Spare wheel bracket | 2pcs | Tool box | 1 standard |
| Landing gear | External dual speed 28ton | Mark | Rear fender is white, unmarked |
| Brake system | Dual line braking system | Brake air chamber | Six big chamber |
Heavy Duty 3 Axles Low Bed Semi Trailer For Tracked Vehicles Customized
3 Axles Low Bed Trailer heavy duty equipment for tracked vehicles , wheel loaders and excavator
Specifications:
| Tare Weight | About 8.5-13T |
| Dimension | 12000mm-18000mm*2500mm-3500mm*3050mm Please indicate the working platform height and length. |
| Loading Capacity (T) | 30T-100T |
| Axle | 13 T/16T, FUWA /BPW Brand |
| Rim | 6.5-20/7.5-20/8.00-20/8.5-20 |
| Tire | 8.25R20/10.00R20/11.00R20/12.00R20 |
| Suspension | Mechanical suspension (Germany Type or America Type) Or Air suspension (China brand or BPW brand ) |
| Spring leaf | 90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12 |
| King pin | JOST brand 2.0 or 3.5inch bolts type or Welding type |
| Support leg | JOST brand D200T or China brand 28Tons (Double speed) |
| Main beam | Height: 450mm-520mm, upper plate is 14mm-25mm, middle plate is 8mm-12mm, down plate is 16mm-25mm ; Material is Q345B Steel . |
| Side beam | 16mm -25mm channel steel ( Material is Q235steel ). |
| Ladder | Manual or Hydraulic type |
| Gooseneck | For choose |
| Brake chamber | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); Two pieces of 45L air tanks |
| ABS | Optional |
| Twist Locks | Four ,Eight or Twelve pieces (Lifting type or Twist Screw Type) |
| Valve | WABCO valve |
| Light | LED light |
| Voltage | 24V |
| Receptacle | 7 ways (7 wire harness) |
| Tool box | One piece, 1m×0.5m×0.5m (Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar) |
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
| Shipping Terms: | By bulk cargo carrier, RORO or 40HQ container. |
