Views: 2034 Author: Tom Publish Time: 2021-04-15 Origin: Dong Runze
Bulk Supply Of UN1838 Titanium Tetrachloride T20 Tank BV Certification

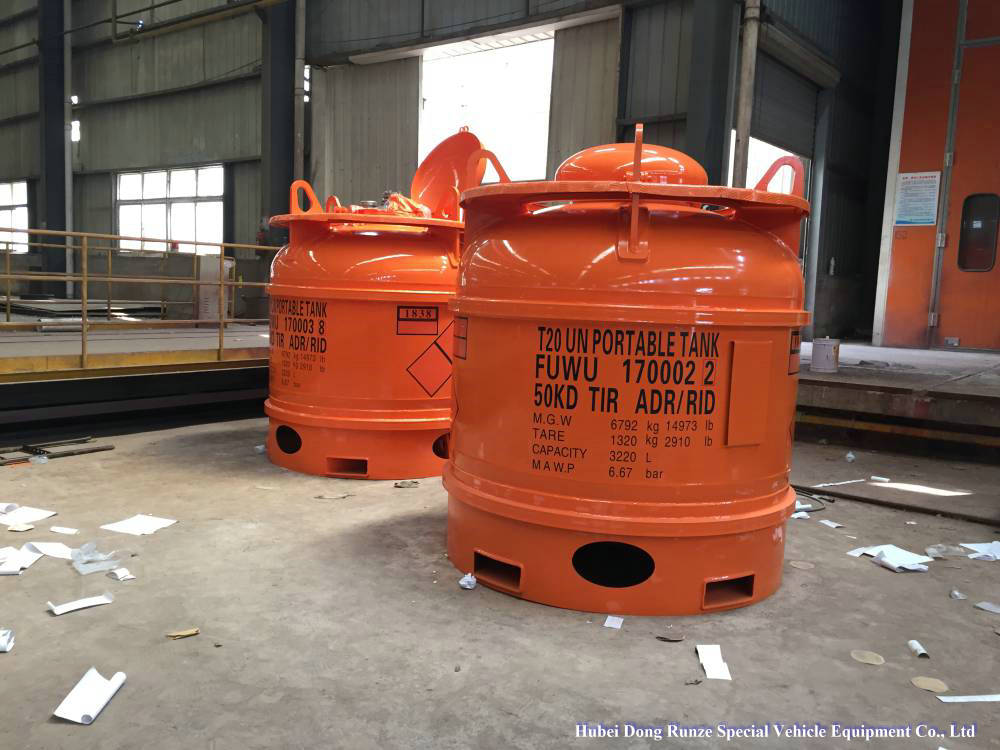

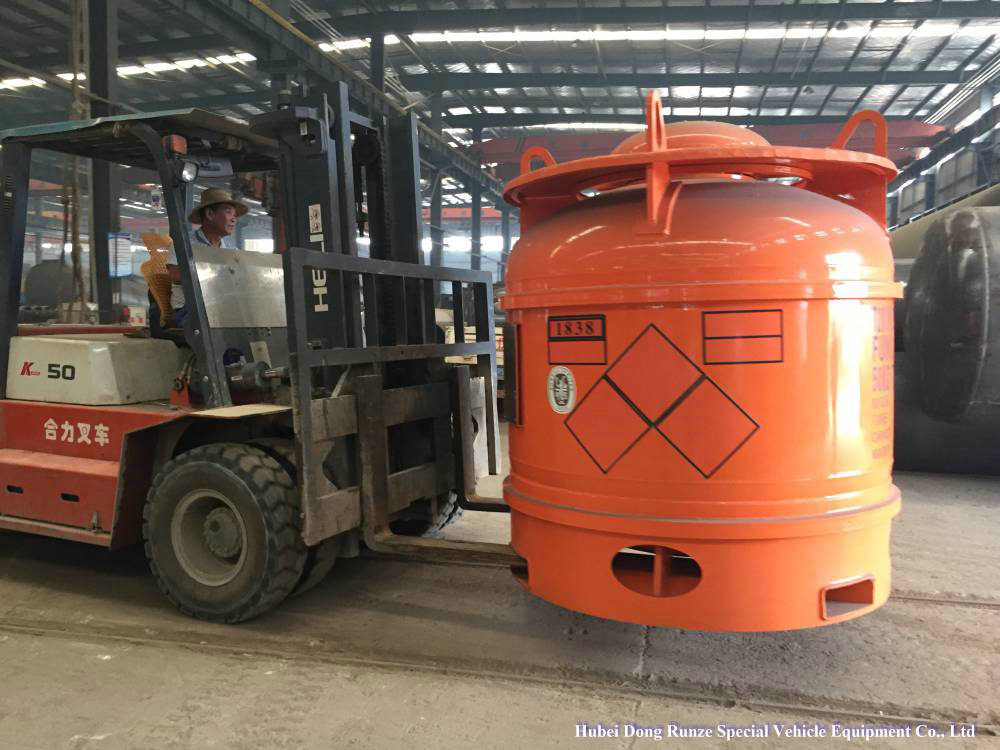

Titanium tetrachloride tank portable tank
Basic parameters of titanium tetrachloride mobile tank :
model | T20 | volume (m3): Capacity | 3.22 |
Design pressure(Mpa): Design Inner pressure | 6.67 | Design temperature range (℃) Range of DesignTemperature | -40 ~65 |
Filling Medium Loading Medium | Titanium tetrachloride | ||
Body material Material of Main Body | S30408(06Cr19NI10) | Nominal shell thickness( mm) NDminal Thickness of Tank | 12 |
Maximum load (kg) Max.GrossWeight | 5125 | External dimension (mm) OuterDimension(LxWxH) | 1616*1616*2200 |
Maximum total mass | 6385 | Handling type Loading Method | Loading and unloading |
Design criteria | TSG R0005-2011 GB150 IMDG CODE35-10 | ||
Third party inspection | TS CCS or BV |

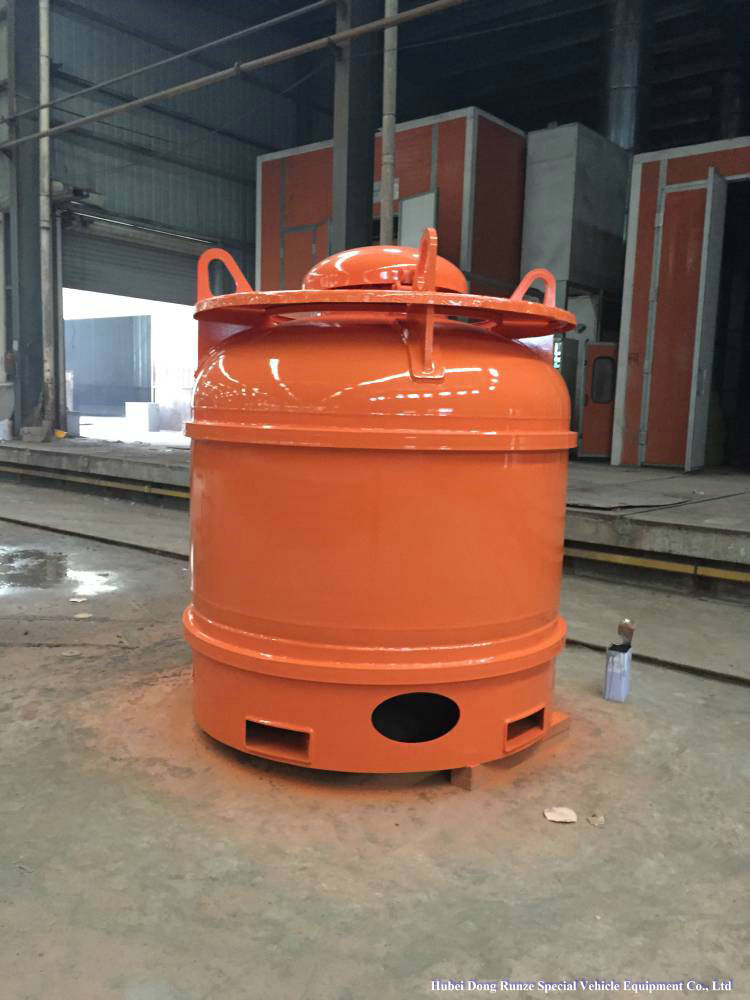

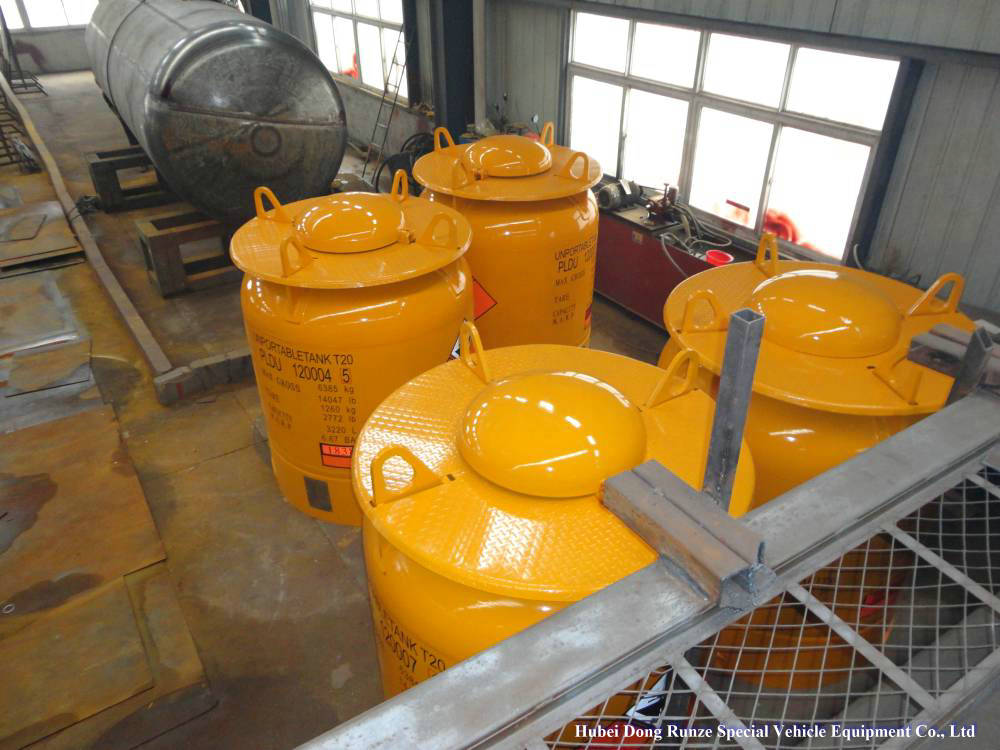

Movable titanium tetrachloride tank :
Dimensions: 1616 * 1616 * 2200 mm material: s30408 (06cr196ni10)
Volume: 3.23 cubic meters tank weight: 1260kg
Maximum loading capacity: 5125kg; maximum total weight: 6385kg
Working pressure: 6.67bar design temperature: - 40 ℃ to + 65 ℃
Tank material: S30408(06Cr19NI10)
Design Code: TSG r0005-2011 GB150 IMDG code35-10

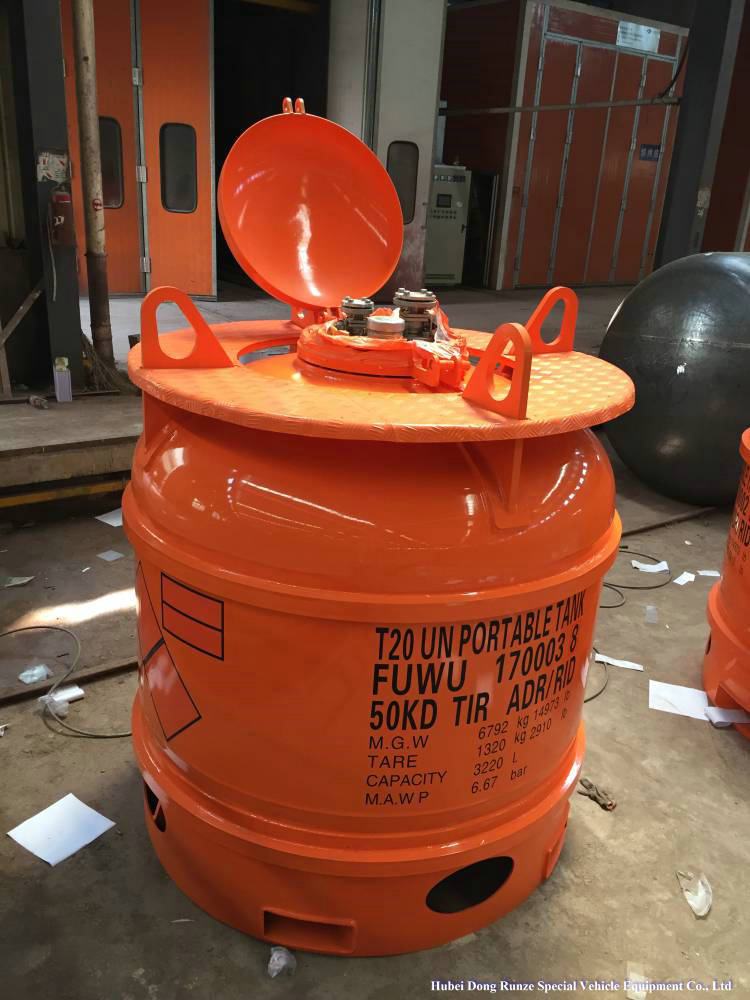

UN T20 Specification of titanium tetrachloride tank
Tank Code: UN T20
Weight and capacity: 3200 litre
Total weight: 6385 kg
Net weight of equipment: 1260kg
Load: 5125 kg
Dimension: 1716 * 1716 * 2200 mm
Tank size: Φ 1700 * 1866 * 8
Design pressure and temperature
Working pressure: 6.67 bar
Test pressure: 10 bar
External pressure: 0.41bar
Design temperature of vessel: - 40 ℃~ 65 ℃
Material of container
Specification: cylinder 0gr18ni9 (304)
Head 0gr18ni9 (304)
Thickness: nominal thickness of cylinder 8mm
Nominal thickness of head 8mm
Frame type: braced structure with skirt
X-ray detection: shell radiographic detection; head radiographic detection
Enclosure
Manhole: 1x450mm, 16 fixing bolts, stainless steel forging, gasket PTFE. (center of front head)
Safety valve: one 3 "safety valve with opening pressure of 7.3bar, equipped with bursting disc and sealing gasket PTFE.
Liquid phase valve: 1.5 "valve, gasket PTFE.
Gas phase valve: 1 "valve, gasket PTFE.
Standards adopted in design and production
1、ASME Ⅷ.1
2. IMDG code36-12 International Maritime Dangerous Goods Code of IMO;
Third party inspection and certificate: bv ASME u
FLAMMABLE LIQUID. TICL4 UN1838 PORTABLE TANKS
