Bulk Cement Tank Truck 8JS118 9JS119 PTO Dika KWT650G KWT750G Power Takeoff High Power Torque

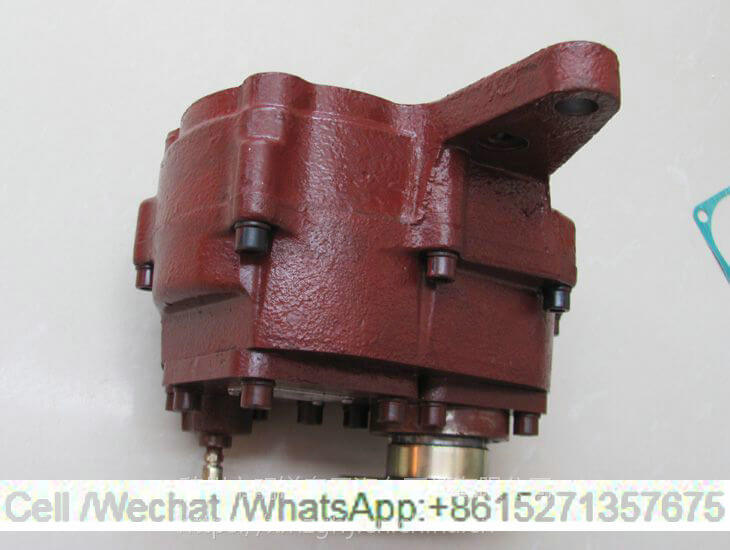

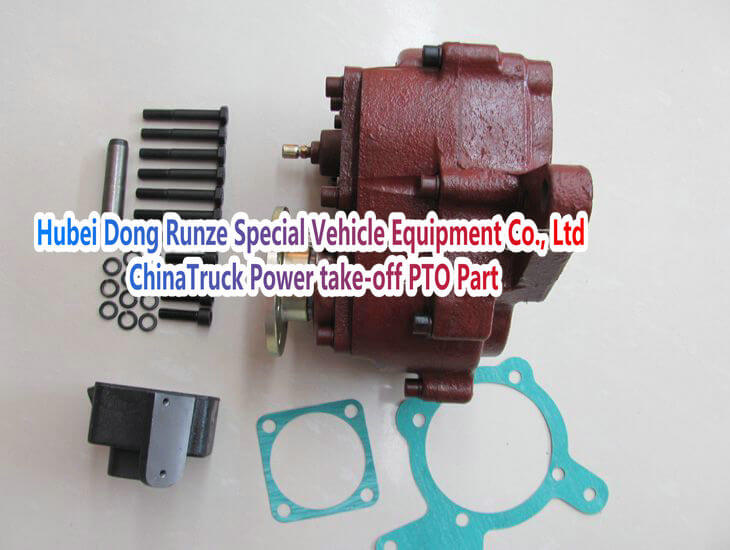

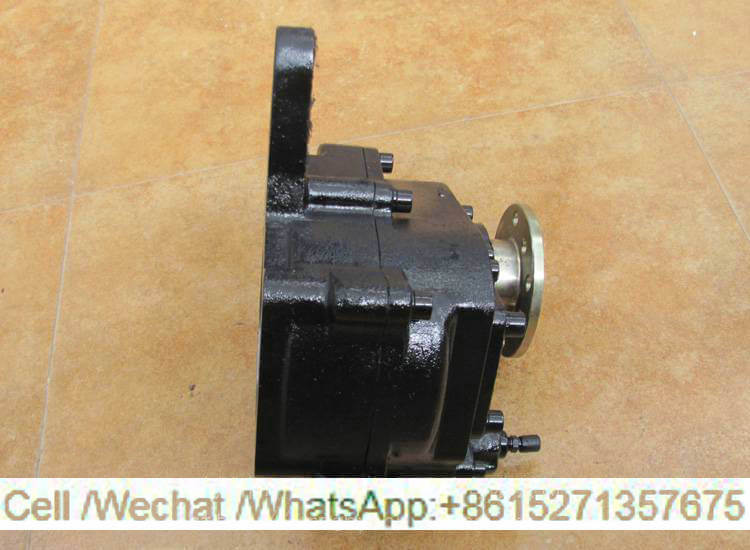

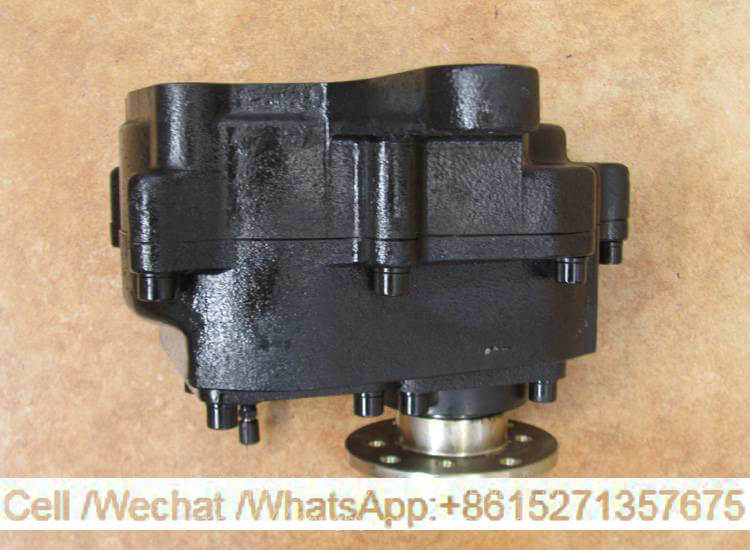

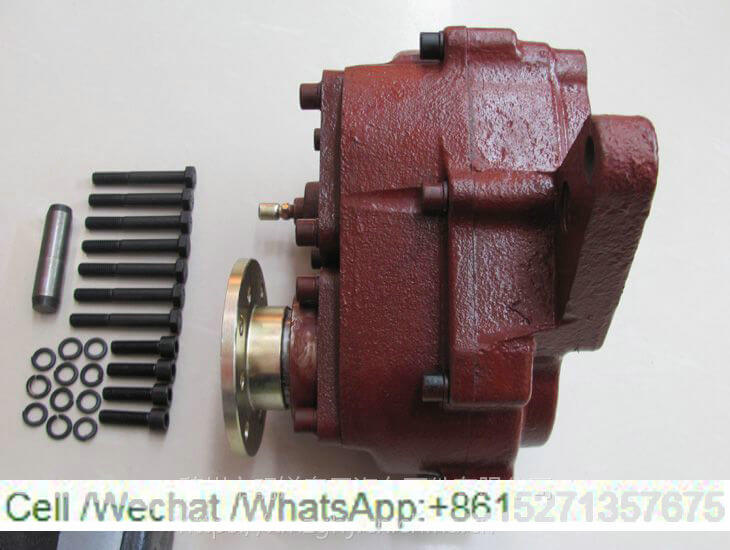

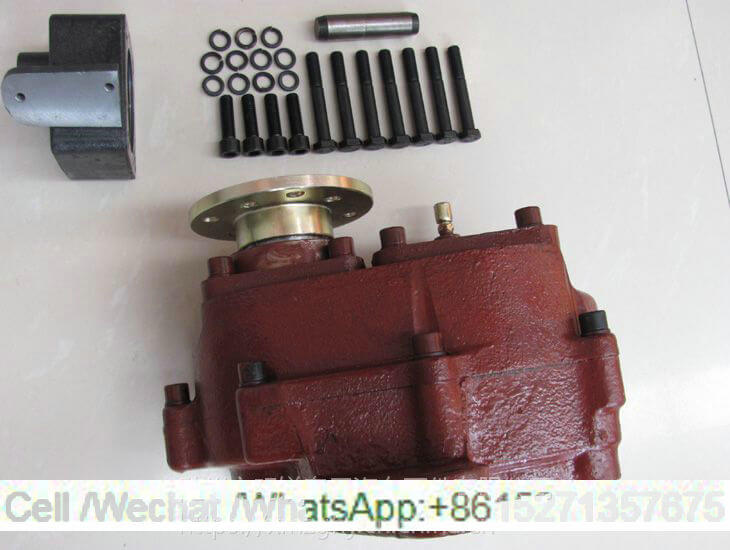

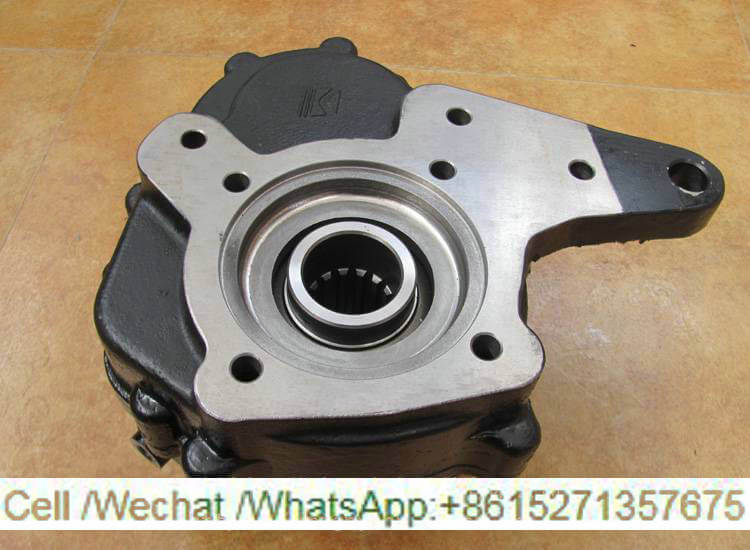

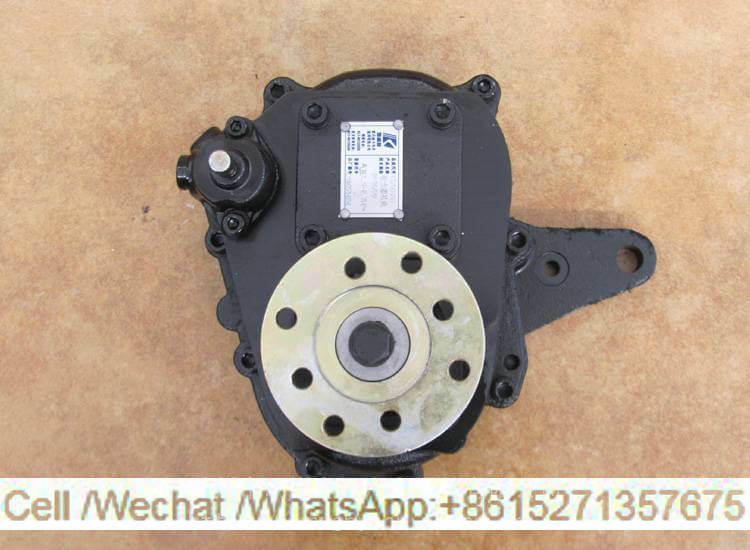

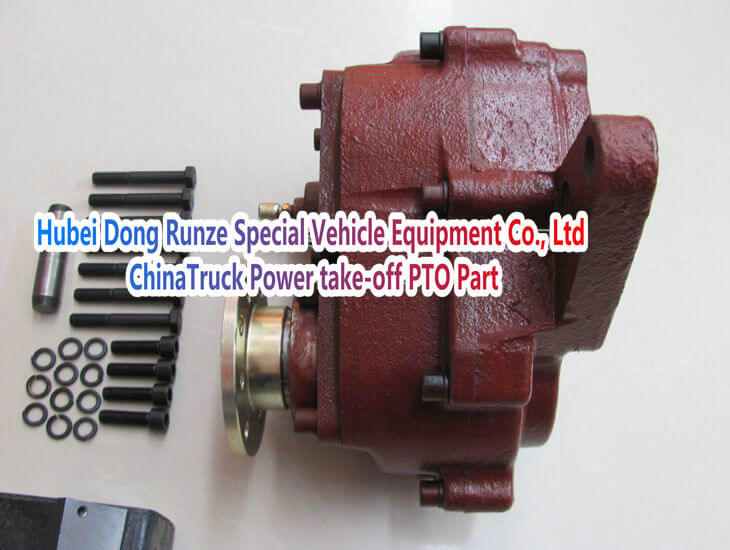

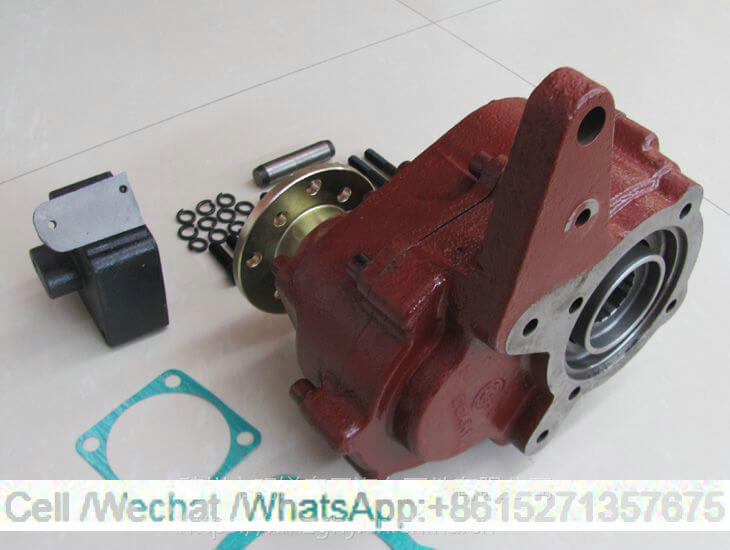

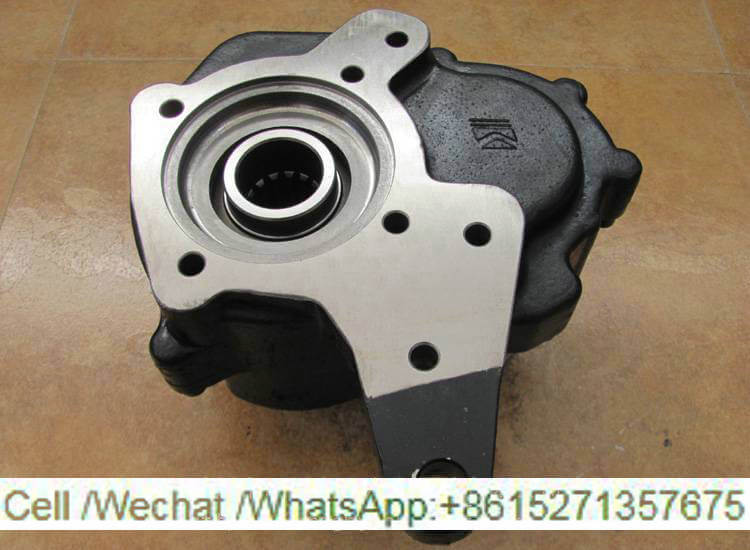

8JS118 9JS119 Transmission PTO Power Take Off
Kwt650g power take-off is mainly applicable to high-power torque models such as powder tank truck and bulk cement truck. Because of its fast speed, it can also be used for sprinkler (fashi extra large eighth gear and ninth gear) gearbox model 8js118 9js119, which can realize first gear watering.
Technical parameters of Chongqing Dika kwt650g power takeoff:
Brand: Chongqing Dika
Number of teeth of power takeoff: 16:29 teeth
Speed ratio of power takeoff: 0.55
Rotation direction of power takeoff: right rotation
Rated torque of power takeoff: 700n m
Control mode: Pneumatic
Matching gearbox models: 8js118ta, 9js119ta
Precautions for use:
1. During installation, the connection plane must be cleaned, the paper pad shall be coated with sealant (the glue connection line shall not be more), and the fastening bolt shall be coated with anaerobic non retreat glue. The green asbestos free paper pad can be installed directly without glue.
2. After installation, check the transmission gear oil and replenish it in time if it is missing!
3. During operation (the air pressure must exceed 6 pressures), depress the clutch to the bottom, select the appropriate gear (neutral or low-speed forward gear), turn on the power takeoff control switch, and slowly lift the clutch pedal. If you hear the sound of gear beating, you must depress the clutch immediately and lift it slowly again.
4. The engagement and separation of the power takeoff shall be operated repeatedly for many times, and then rotated for 20 minutes to test the seal. It must be engaged and separated flexibly without oil leakage. Otherwise, it is necessary to check the cause and reinstall or replace the power take-off.
5. In order to prevent accidental oil leakage of the power take-off from damaging the gearbox, check whether there is oil leakage after each use, and deal with it in time if any problem is found!
