Beiben off road 6x6 water foam fire truck RHD/ right hand drive 12Ton water,4Ton foam

Beiben off road 6x6 water foam fire truck , Beiben 2534 , RHD/ right hand drive 12Ton water,4Ton foam,
CB20.10/30.60 Fire pumps medium and low pressure pumper vehicles
Low-Pressure flow/pressure: 60L/S/1.0MPA
Medium pressure flow/pressure: 30L/S/2.0MPA

Price: $ 75000  -  90000
Discount Price: $ 72000  -  85000
FOB:
Quantity:
  • 2534
  • beiben
  • 8705309000

Beiben off road 6x6 water foam fire truck , Beiben 2534 , RHD/ right hand drive 12Ton water,4Ton foam,

CB20.10/30.60 Fire pumps  medium and low pressure pumper vehicles

Low-Pressure flow/pressure: 60L/S/1.0MPA

Medium pressure flow/pressure: 30L/S/2.0MPA

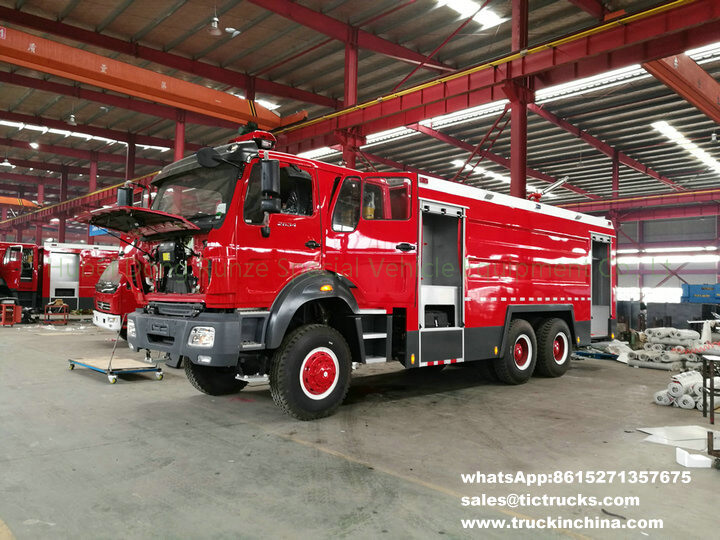

 Beiben 2534 RHD fire trucks -07T-offroad-6x6 allwheel drive.jpgBeiben 2534 RHD fire truck 07T-offroad-6x6 allwheel drive.jpg

Beiben 2534 RHD fire truck -07T-offroad-6x6 allwheel driveBeiben 2534 RHD fire truck -09T-offroad-6x6 allwheel driveBeiben 2534 RHD fire truck -16T-offroad-6x6 allwheel driveBeiben 2534 RHD fire truck -17T-offroad-6x6 allwheel driveBeiben 2534 RHD fire truck -21T-offroad-6x6 allwheel driveBeiben 2534 RHD fire truck -27T-offroad-6x6 allwheel drive

Various types of fire pumps and parameters
1, Fire pump Model: CB10/20
Flow: 20L/S, Pressure: 1.0Mpa
Fire gun Model: SP20, Range: 48m
Applicable tonnage: 2.5 tons of fire trucks
Applicable models: Dongfeng Small fighter fire truck, Jiangling Shun, Qing Ling, Chongqing Isuzu 4x2/6x4/4x4/6x6 fire truck


2, Fire pump Model: CB10/30
Medium Pressure pump: CB20.10/15.30
Low-Pressure flow/pressure: 30L/S/1.0MPA
Medium pressure flow/pressure: 15L/S/2.0MPA
Flow: 30L/S, Pressure: 1.0Mpa
Applicable tonnage: 3.5 tons of fire trucks
Applicable car: 4x2/6x4/4x4/6x6 fire truck


3, Fire pump Model: CB20.10/20.40


Low-Pressure flow/pressure: 40L/S/1.0MPA
Medium pressure flow/pressure: 20L/S/2.0MPA
Atmospheric pump: CB10/40
Flow/Pressure: 40L/S/1.0MPA
Applicable tonnage: 4 tons, 6 tons of fire trucks
Applicable model: 4x2/6x4/4x4/6x6 fire truck


4, Fire pump (atmospheric pump) Model: CB10/60
Flow: 60L/S, Pressure: 1.0Mpa
Fire gun Model: SP20, Range: 48m
Applicable tonnage: 8 tons of fire trucks
Applicable car: 6x4/6x6/8x4/8x8  fire truck


5, medium and low pressure pump: Model: CB20.10/30.60
Low-Pressure flow/pressure: 60L/S/1.0MPA
Medium pressure flow/pressure: 30L/S/2.0MPA
Applicable tonnage: 8 tons of fire trucks
Applicable car: 6x4/6x6/8x4/8x8 fire truck


6, Fire pump Model: CB20.10/30.60
Low-Pressure flow/pressure: 60L/S/1.0MPA
Medium pressure flow/pressure: 30L/S/2.0MPA
Applicable tonnage: 12 tons of fire trucks
Applicable model: 6x4/6x6/8x4/8x8 fire truck


7, Atmospheric pump model: CB10/60
Flow: 60L/S, Pressure: 1.0Mpa
Applicable tonnage: 12 tons of fire trucks
Applicable model: 6x4/6x6/8x4/8x8 fire truck


8, Fire pump Model: CB10/60
Flow: 60L/S, Pressure: 1.0Mpa
Applicable tonnage: 20 tons of fire trucks
Applicable car: Heavy-duty  6x4/6x6/8x4/8x8 fire engines


9, medium and low pressure pump: CB20.10/30.60
Low-Pressure flow/pressure: 60L/S/1.0MPA
Medium pressure flow/pressure: 30L/S/2.0MPA
Applicable tonnage: 20 tons of fire trucks
Applicable car: Heavy-duty 6x4/6x6/8x4/8x8 fire engines



Various types of fire guns and parameters
1, Jug fire gun Model: SP40
Flow: 40L/S, Pressure: 1.0MPA, Range: 55m
Foam Fire Truck Cannon: PL32, Flow: 32L/S, Pressure: 1.0Mpa, Range: water ≥ 50m, foam: ≥ 45m


2, Jug fire gun Model: SP30
Range: 55m
Foam Fire Truck Cannon: PL24, Flow: 24L/S, Pressure: 1.0Mpa, Range: water ≥ 45m, foam: ≥ 40m


3, Foam fire fighting gun: PP48
Flow: 48L/S/1.0MPA, water range: ≥ 60 meters, foam range: ≥ 55 meters
Pitcher Fire Gun: SP50, water range: ≥ 65 meters


4, Blister dual-purpose cannon: PL48
Flow: 48L/S/1.0MPA, water range: ≥ 60 meters, foam range: ≥ 55 meters
Tank fire Gun: SP80, Flow: 50L/S/1.0MPA, water range: ≥ 65 meters


Keywords:Beiben off road 6x6 water foam fire truck , Beiben 2534 ,RHD 6x6, Beiben 2534  right hand drive ,Beiben off road ,6x6 water foam fire truck ,Beiben off road water foam fire truck ,Beiben 6x6 foam fire truck ,Beiben RHD foam fire truck ,

Dimension

(Length*width*height) (mm)

10660×2500×3800(mm)

Chassis

Optional 2634/2635/2636x6

/ 2534 /2538  6x4

Track(front/rear) (mm)

1990/1800/1800

Approaching angle/

Departure angle(˚)

16/25(°)

Suspension(front/rear) (mm)

1410/2555(mm)

Min distance to the ground(mm)

399

Wheel distance(front/rear) (mm)

4450+1450(mm) ;5050+1450(mm)

GVW (KG)

25000kg,  26000kg

Kerb weight (kg)

15270kg

Configuration

6*6 /6*4

Front slope fully laden (%)

60

Turning Radius  (M)

20

Max speed     (km/h)

90

Ground Clearance (mm)

339

Engine option 340 HP;350HP; 380HP

WP10.336  WP10.375

 Diesel, water cooler, 4strokes direct injection with EVB, 6 cylinder in line, inter cooler turbocharger

 Characterized by strong power, high reliability, good economy and low noise

Clutch

GFX420 Dry single plate, hydraulic control booster GFX420

Gear box  RT11509C or 9JS Mechanism, 9 forward gears,1 reverse gear.

Optional:12JS Mechanism, 12 forward gears,2 reverse gear.

Brake

Service Brake

Brake gap can be adjusted automatically, double circulation air brake system

Assistant brake

Engine exhaust brake

Park brake

Spring loaded press on rear wheels

Steering

D50 circulating ball tooth fan power steering, hydraulic assisted ,

Vehicle Frame

Fish belly shape, variable width, variable section, side beam trapezium structure German Benz technology

Front axle

German Benz technology. Double hoof chip air brake,

Rear axle

German Benz technology. Double hoof chip air brake, hyperbola gear, driving axle, Edge reducer

Front overhang rack

German Benz technology. Longitudinal offset plate spring, with hydraulic shock absorber cavitation effect, transverse stabilizer

Rear overhang rack

German Benz technology .Longitudinal offset plate spring, with hydraulic shock absorber, transverse stabilizer

Tire size

12.00-20 ,

PTO

N71/1B



Electrical

Battery

2x12V/135Ah *

Generator

28V-35A

Starter

5.4KW/24V

Cab

JD1 Tilting forward65˚,driver's seat adjustable

German Benz technology



capacity of water and  foams

10,000-12000 liters water/2000L-4000L foam.


1627 NORTH BENZ fire TRUCK 4X2  WP10 engine 270HP Low-Pressure Fire Pump CB10/40Water 6000L, Foam 1770L

1630 NORTH BENZ fire TRUCK 4X2   WP10 engine 300HP Low-Pressure Fire Pump CB10/40 Water 6000L, Foam 1770L

1634 NORTH BENZ fire TRUCK 4X2   WP10 engine 340HP Low-Pressure Fire Pump CB10/40Water 6000L, Foam 1770L

1827 NORTH BENZ fire TRUCK 4X4   WP10 engine 270HP Low-Pressure Fire Pump CB10/40  Water 4100L, Foam 1700L

1830 NORTH BENZ fire TRUCK 4X4  WP10 engine 300HP Low-Pressure Fire Pump CB10/40 Water 4100L, Foam 1700L

1834 NORTH BENZ fire TRUCK 4X4  WP10 engine 340HP Low-Pressure Fire Pump CB10/40 Water 4100L, Foam 1700L

2534 NORTH BENZ fire TRUCK 6X4   WP10 engine 340HP   Low-Pressure Fire Pump CB10/60  Water 8500L, Foam 2660L

2538 NORTH BENZ fire TRUCK 6X4  WP10 engine 380HP  Low-Pressure Fire Pump CB10/60          Water 9000L, Foam 2660L

2634 NORTH BENZ fire TRUCK 6X6    WP10 engine 340HP     Low-Pressure Fire Pump CB10/60  Water 8500L, Foam 2660L

2638 NORTH BENZ fire TRUCK 6X6    WP10 engine 380HP   Low-Pressure Fire Pump CB10/60     Water 8500L, Foam 2660L

3138 NORTH BENZ fire TRUCK 8X4    WP10 engine 380HP      Low-Pressure Fire Pump CB10/60  Water 12000L, Foam 3000L

3138 NORTH BENZ fire TRUCK 8X8    WP10 engine 380HP      Low-Pressure Fire Pump CB10/60  Water 12000L, Foam 3000L

NORTH BENZ fire TRUCK Multifunctional equipment  optional:

rear Mounted folding Crane

4T SQZ086K2/SQ4ZK2                          Add    $14000USD ;

5 T folding Crane SQZ106K2 / SQ5ZK2       Add    $16000USD ;

6.3T folding Crane SQZ132K2/SQ6.3ZK2     Add$   19000USD ;

Front Winch   4T  Add $3000 .   or   Winch  5T  Add $3500
