Beiben off road 6x6 vacuum sewage tanker truck for sale

Views: 1453     Author: Dong Runze Special Vehicle     Publish Time: 2017-06-26      Origin: Dong Runze Special Vehicle

Beiben off road 6x6 vacuum sewage tanker truck for sale

2529/6x4 vacuum tanker truck unit price $52000

2534/6x4 vacuum truck   unit price $54000

2538/6x4  vacuum truck unit price $56000-$59000

2534/6x6  vacuum truck unit price $64000-$66600

2538/6x6  vacuum truck  unit price $65000-$73000

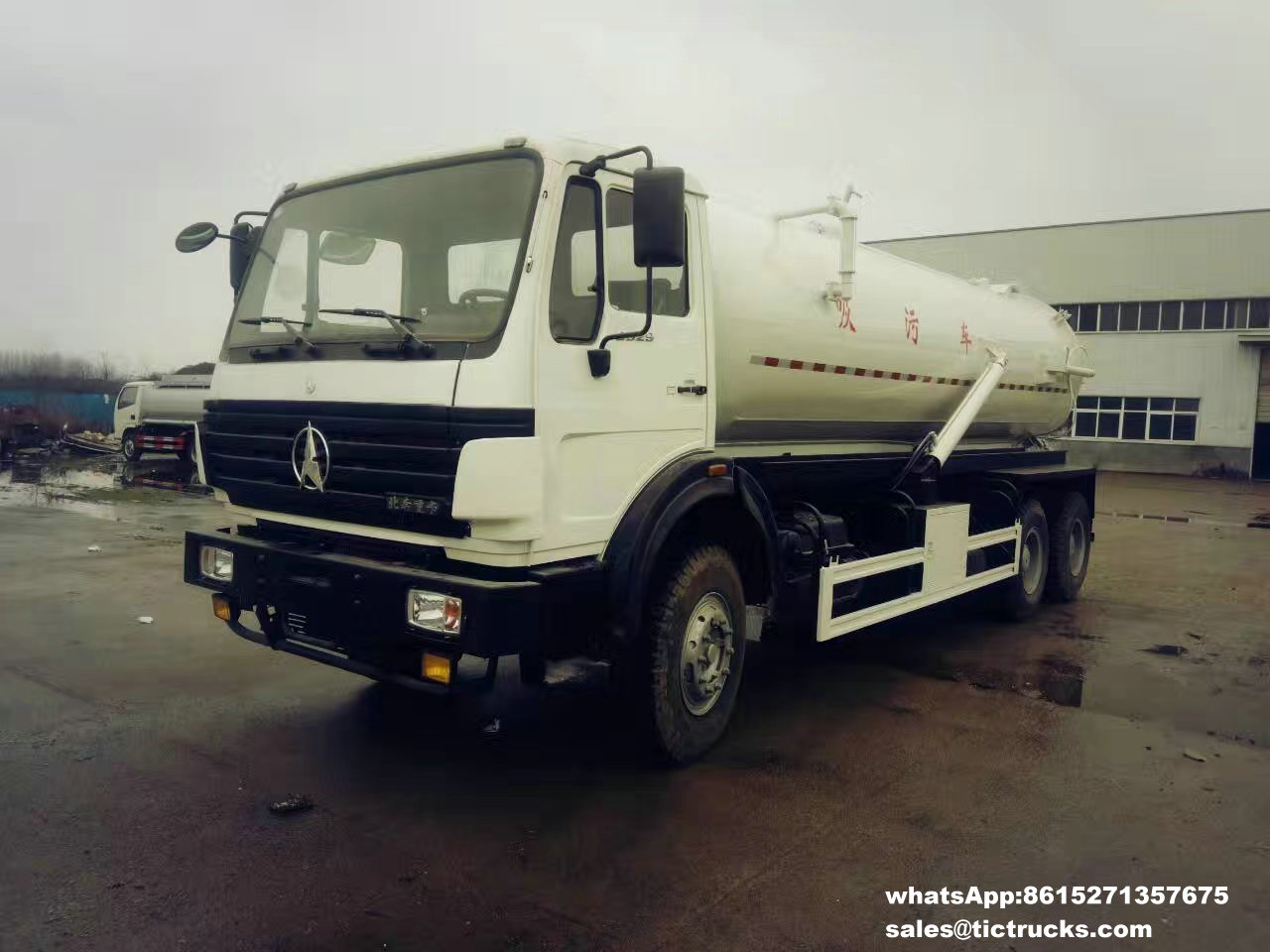

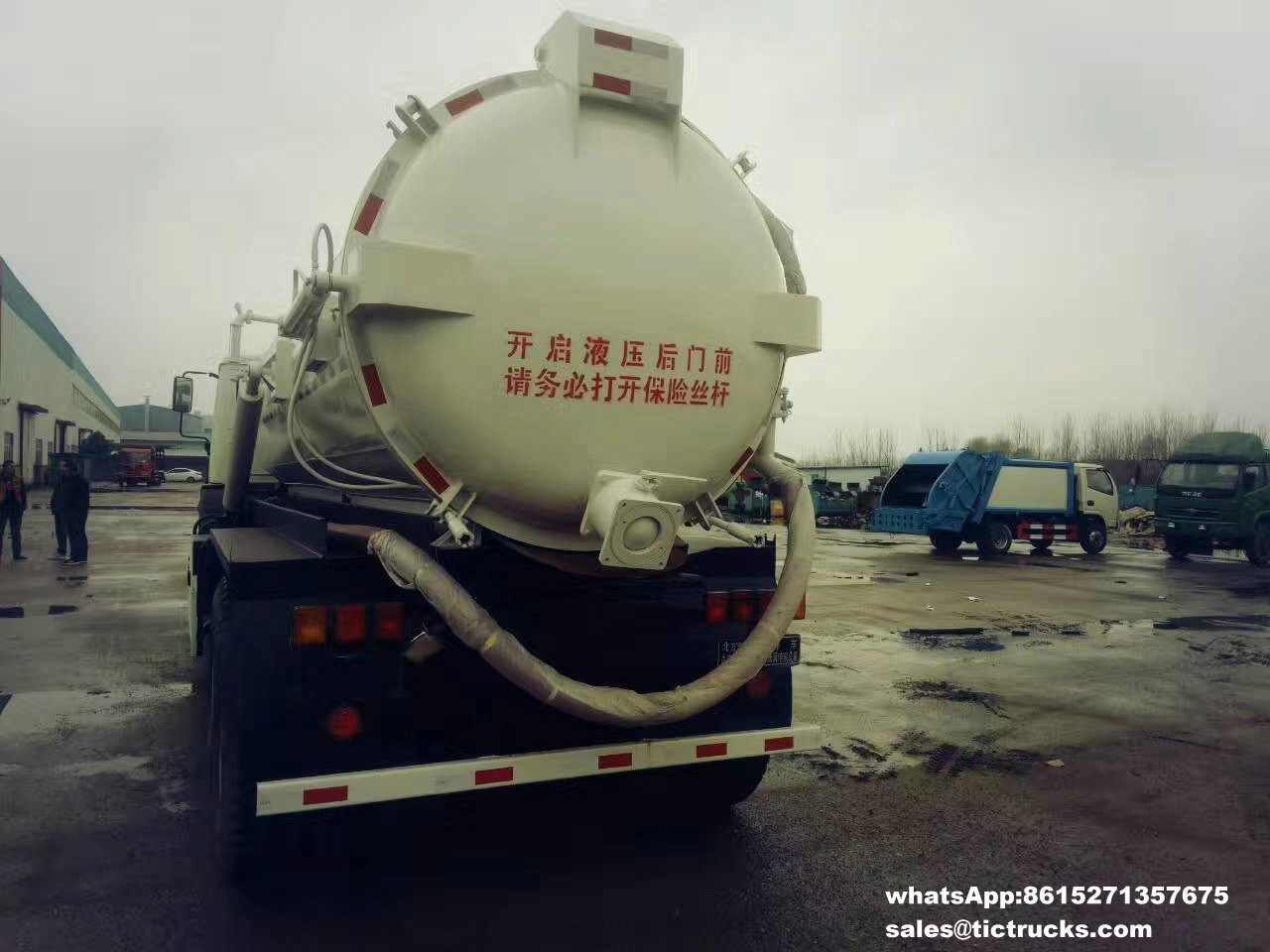

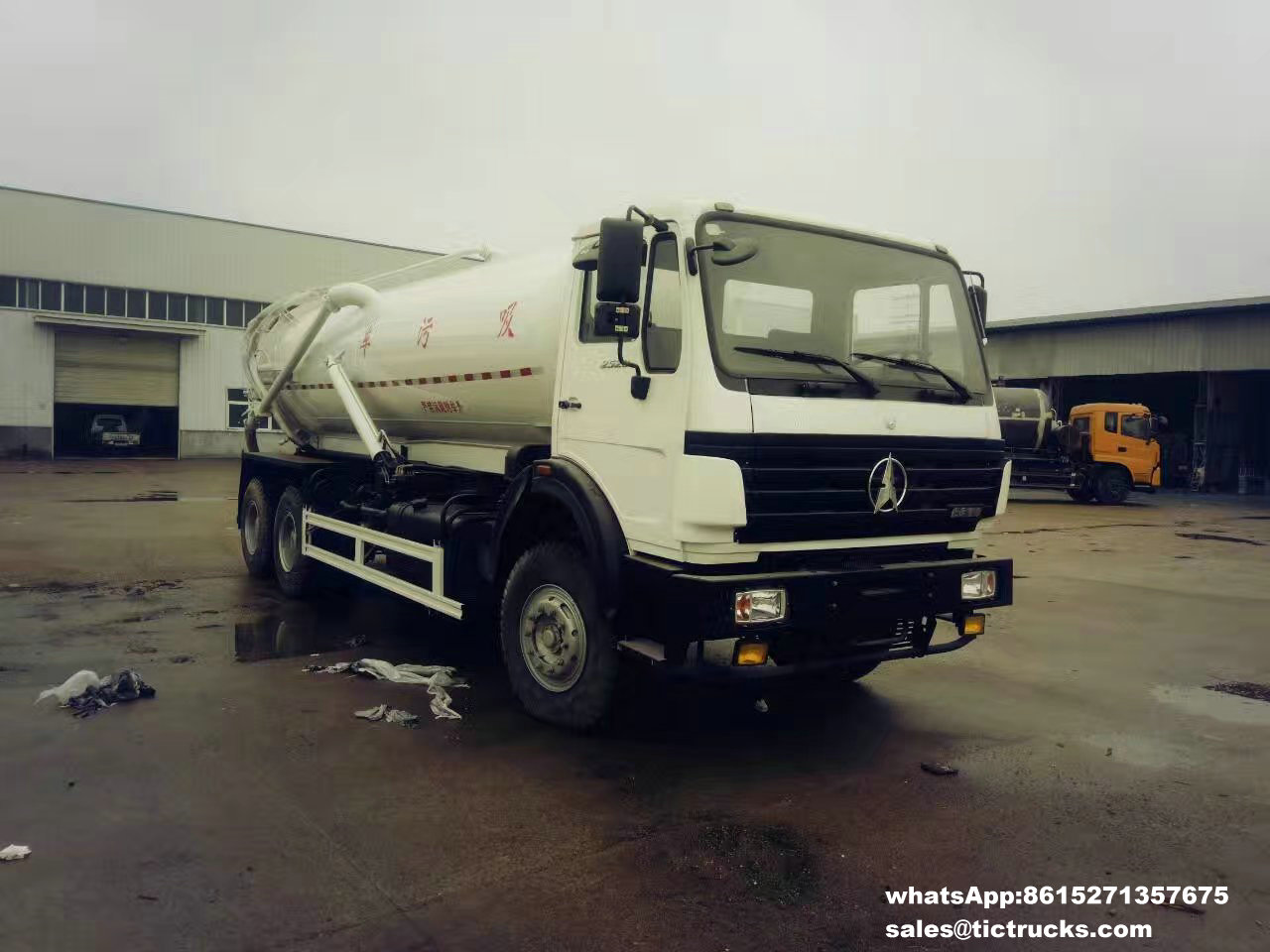

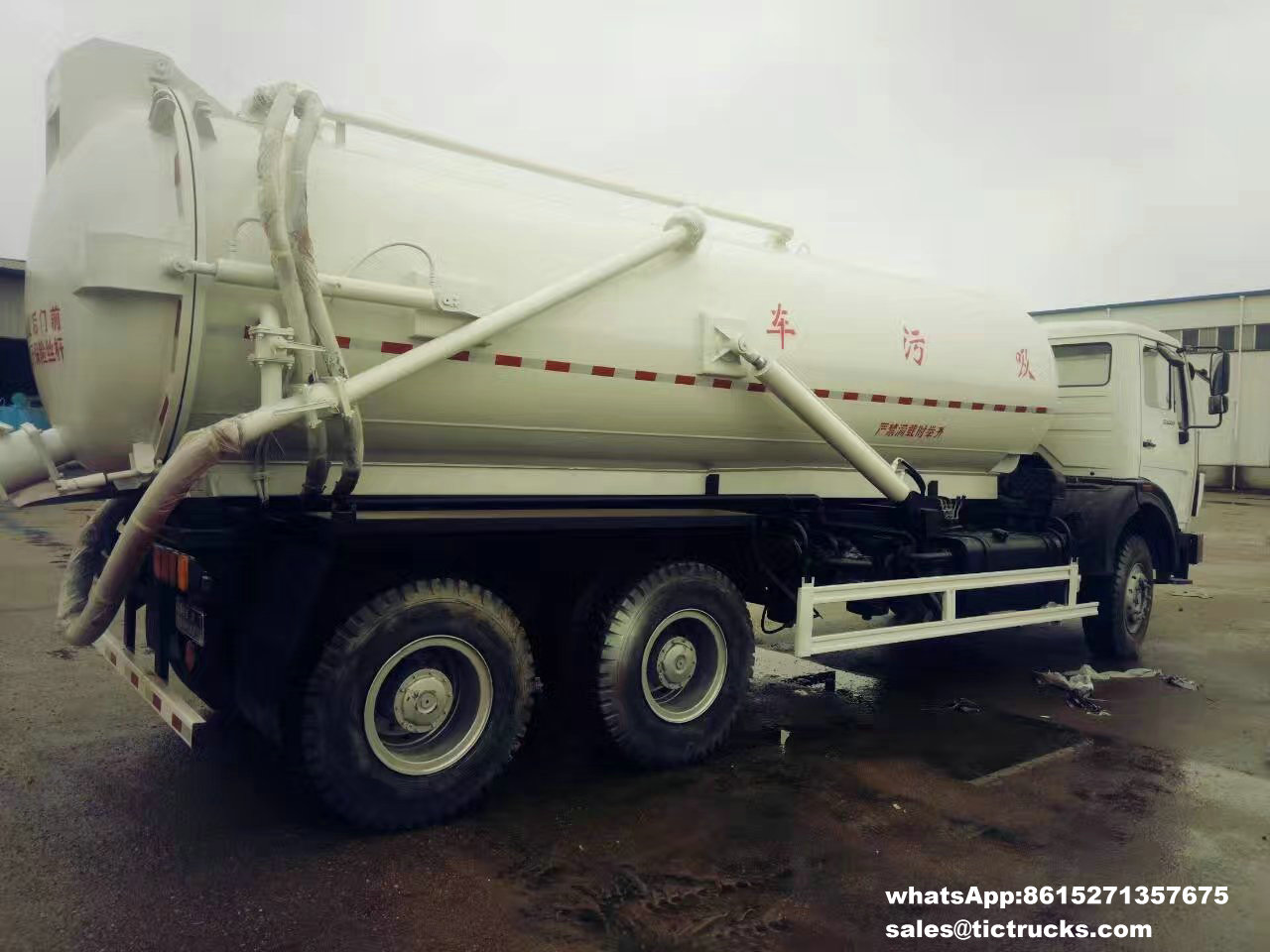

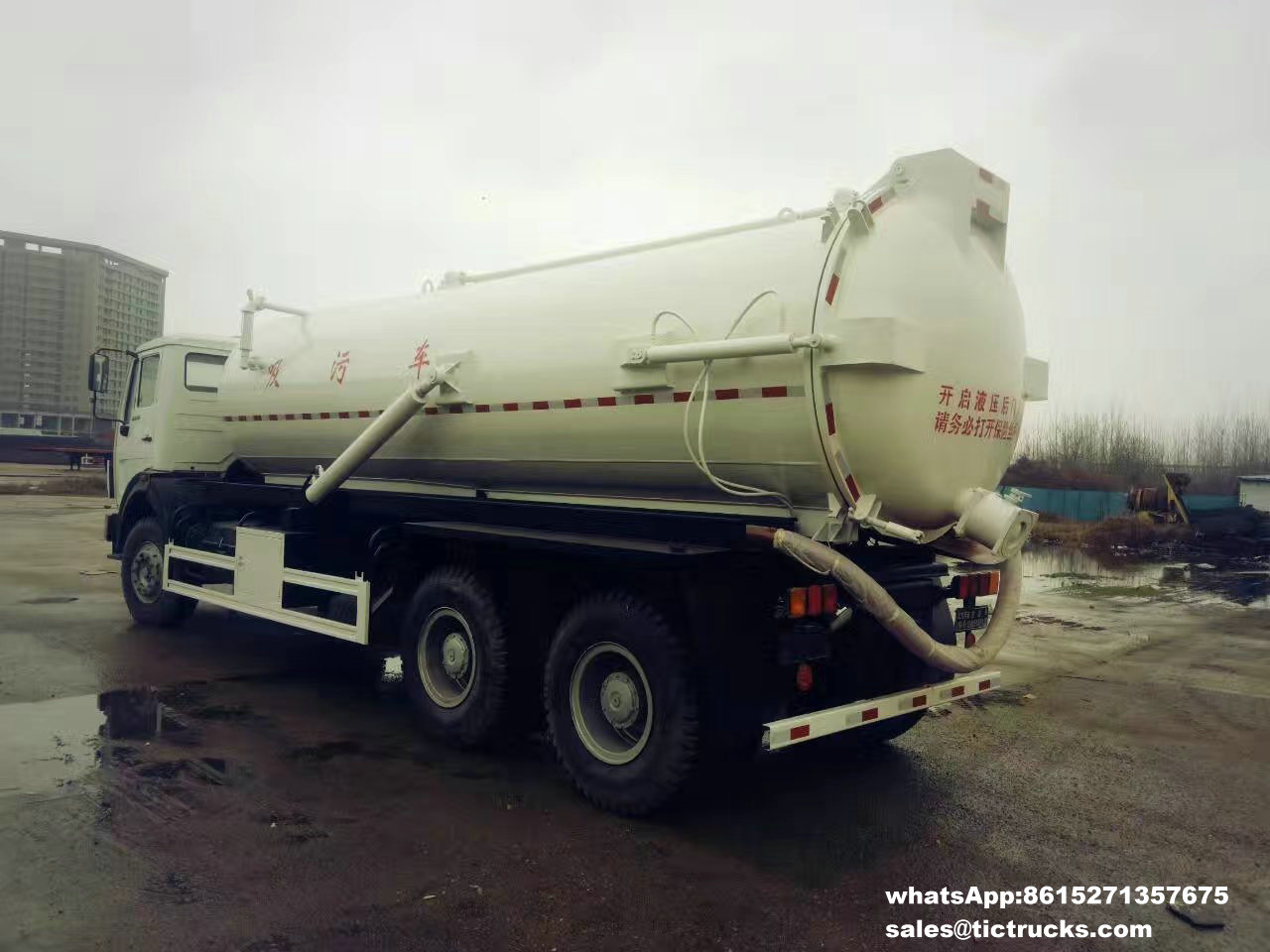

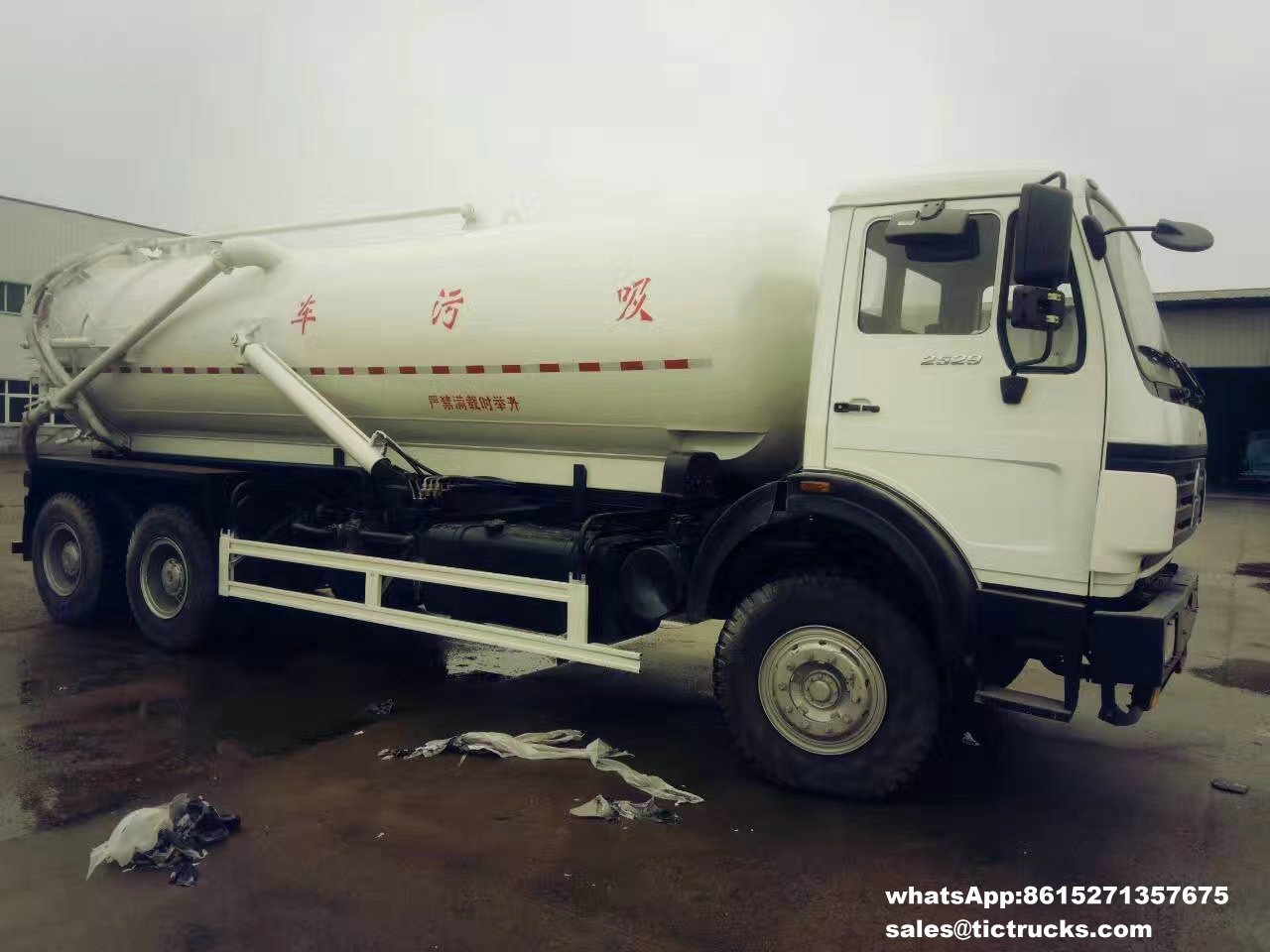

Beiben vaccum sewage truck -02_1.jpgBeiben vaccum sewage truck -03_1.jpgBeiben vaccum sewage truck -04_1.jpgBeiben vaccum sewage truck -05_1.jpgBeiben vaccum sewage truck -06_1.jpgBeiben vaccum sewage truck -07_1.jpgBeiben 6x6 vacuum septik tank truck off road 15000L-20000L

Customization  Vaccum Tank Parts  Sewage Tank,Septic Tank,

6*6 ND2251F44 4450+1450 WP10.336
ND1252F44J WP10.336
ND1250F44J WP10.375
ND1250F50J 5050+1450 WP10.336
WP10.375
8*8 ND2310G41J 1500+4150+1450 WP10.336
WP10.375
ND2310G50 1500+5050+1450 WP10.336
WP10.375

VACUUM Sewage TANK FOR TRUCK

TRUCK capacity :10000L,10800L,11790L......

Overall dimensions(L*W*H)

mm

 Customization

Tankdimensions(diameter*L)

mm

Customization

Rated Load

 L

Customization

Net weight

kg

Customization

Tank Structure


cabon steel 6mm Fully welded, Shell and Baffles

 1 x Manholes on top

  8” Discharge pipe

TANK

Tank is manufactured from thick sheet steel. Front end is covered with convex and dished plate and welded to the body both inside-outside.

There are baffle plates made from thick sheet steel and mounted inside the body on the reinforcing rings

TAILGATE

Full diameter tailgate is manufactured from thick convex plate with a fully flat steel ring welded around it to provide gasget face.

Tailgate is connected to the body with top hinges with bronze bushings. Tailgate is opened upwards by a hydraulic cylinder. There are four tightening handle around the tailgate to provide efficient sealing.

Inspection Fluid Level

Standard 2” Plexiglass, or Optional 4 Individual Viewing Plexiglass Windows

Hydraulic cylinder

1 hydraulic cylinder for tipping the tank at front.

2 hydraulic cylinder for opend the rear dish door,

SUBFRAME

There is a subframe is made from U profiles made from steel and is mounted to the chassis with mounting plates and regarding the technical procedures.

paint

Painted as customer need

Customization 15000L-20000L Beiben high pressure vacuum tanker truck Cesspit Emptier truck

    Beiben offroad 2534/2538 vacuum tanker
