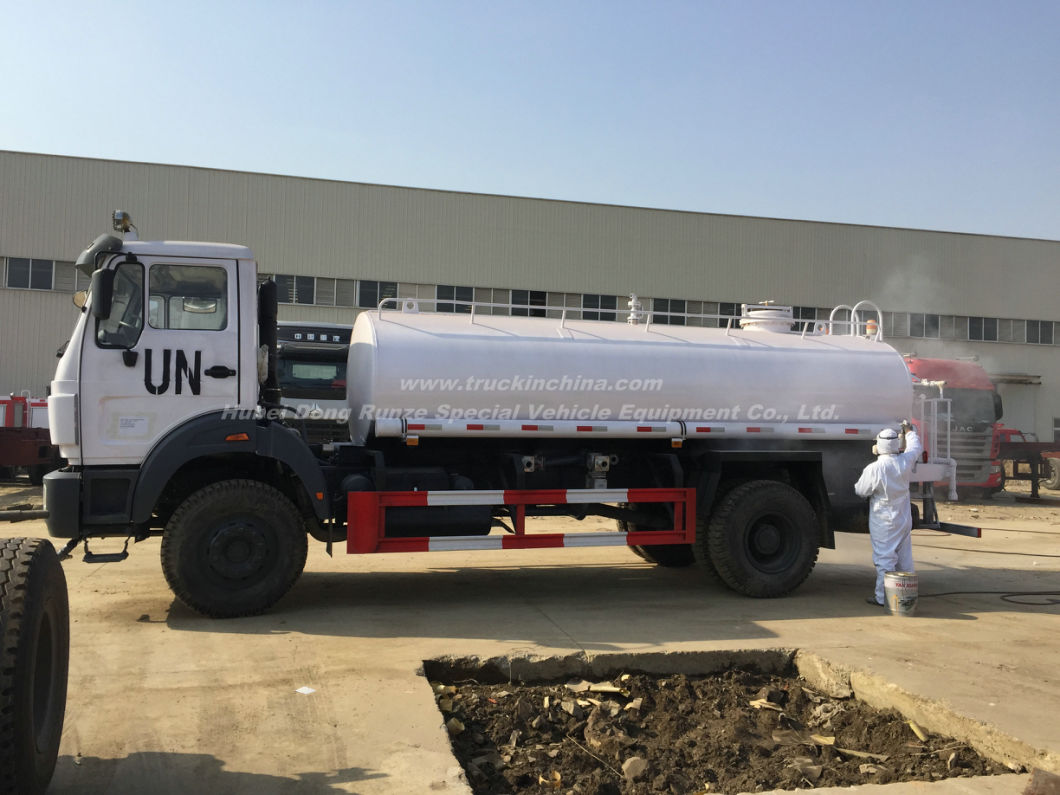

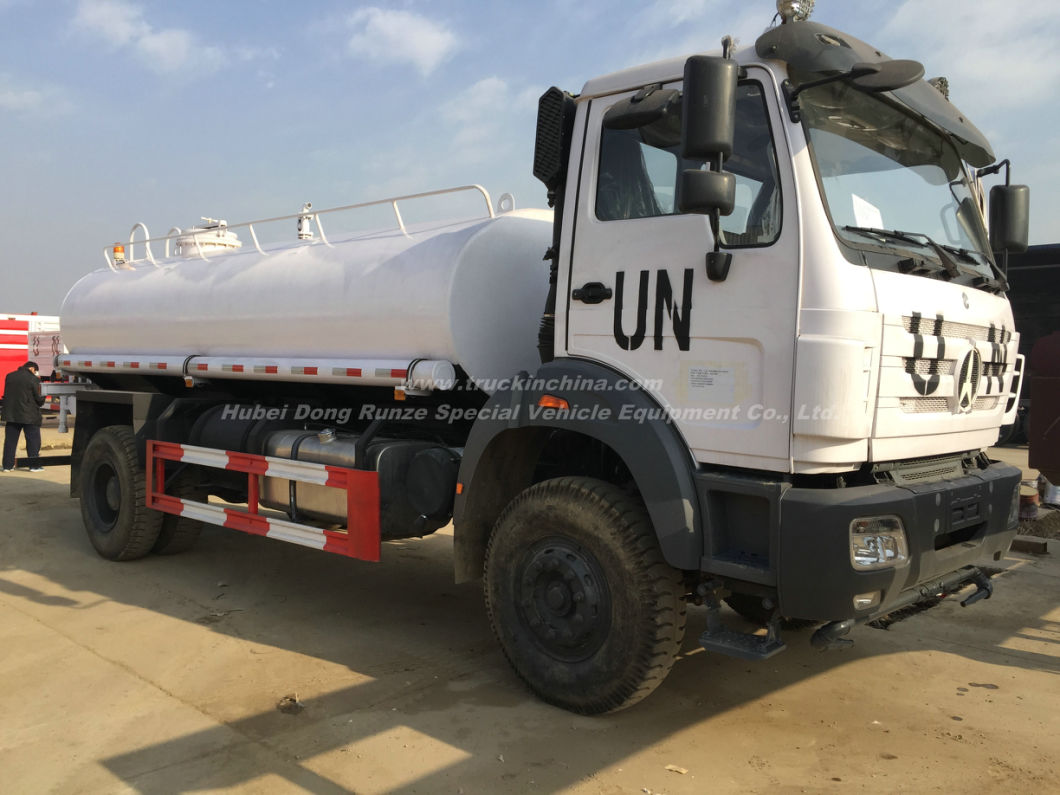

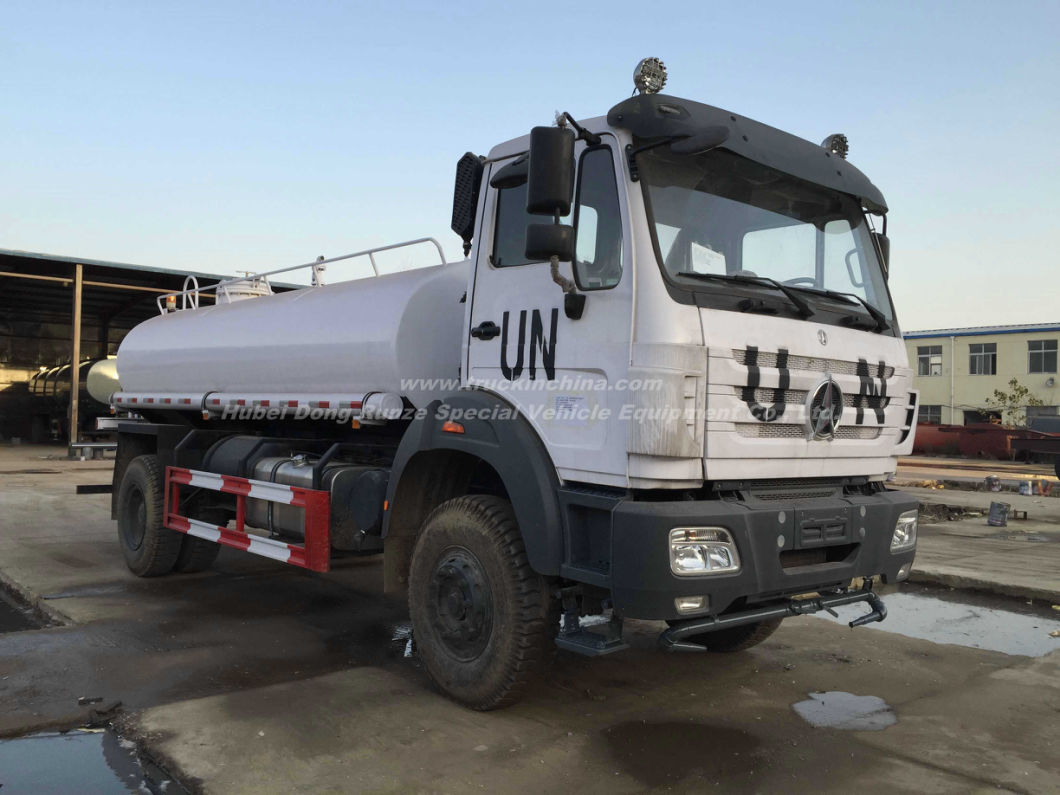

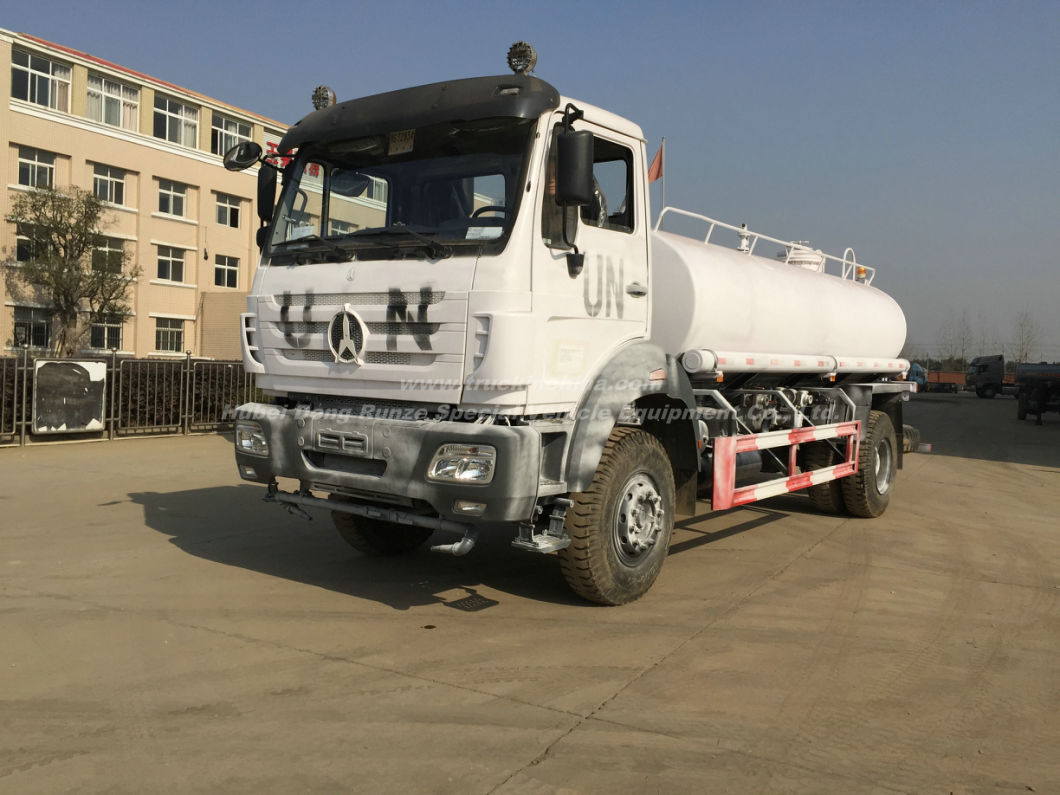

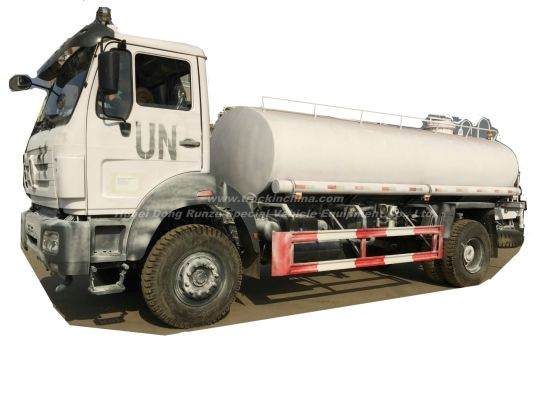

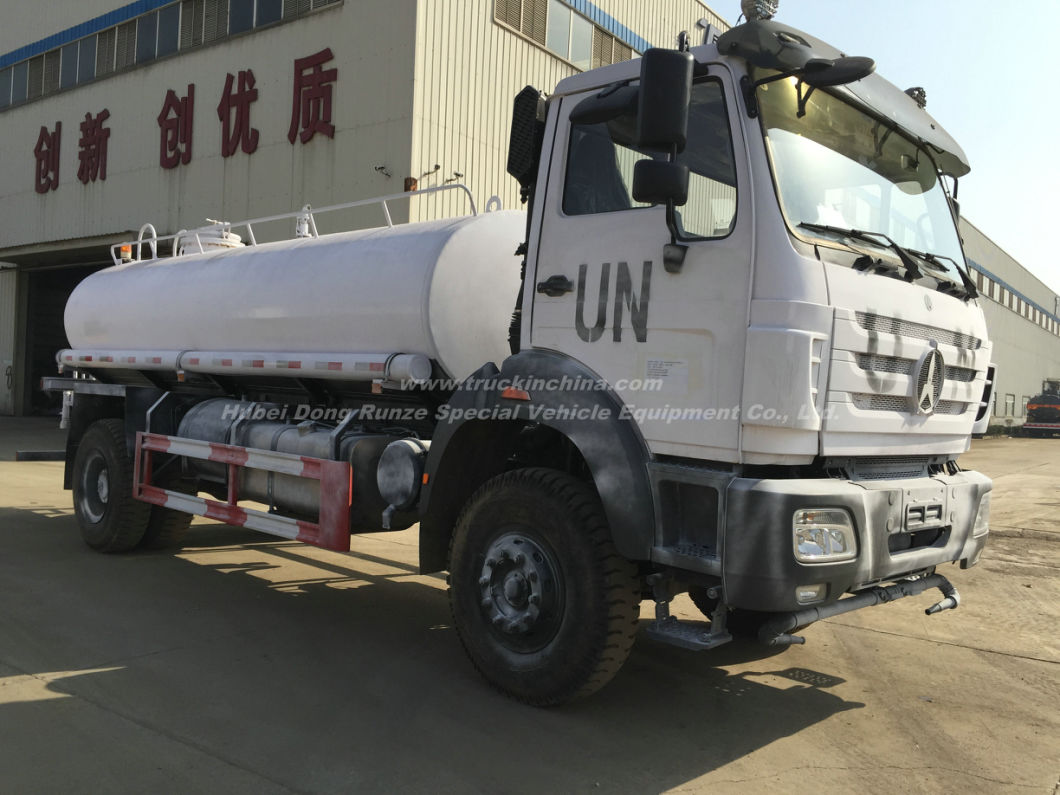

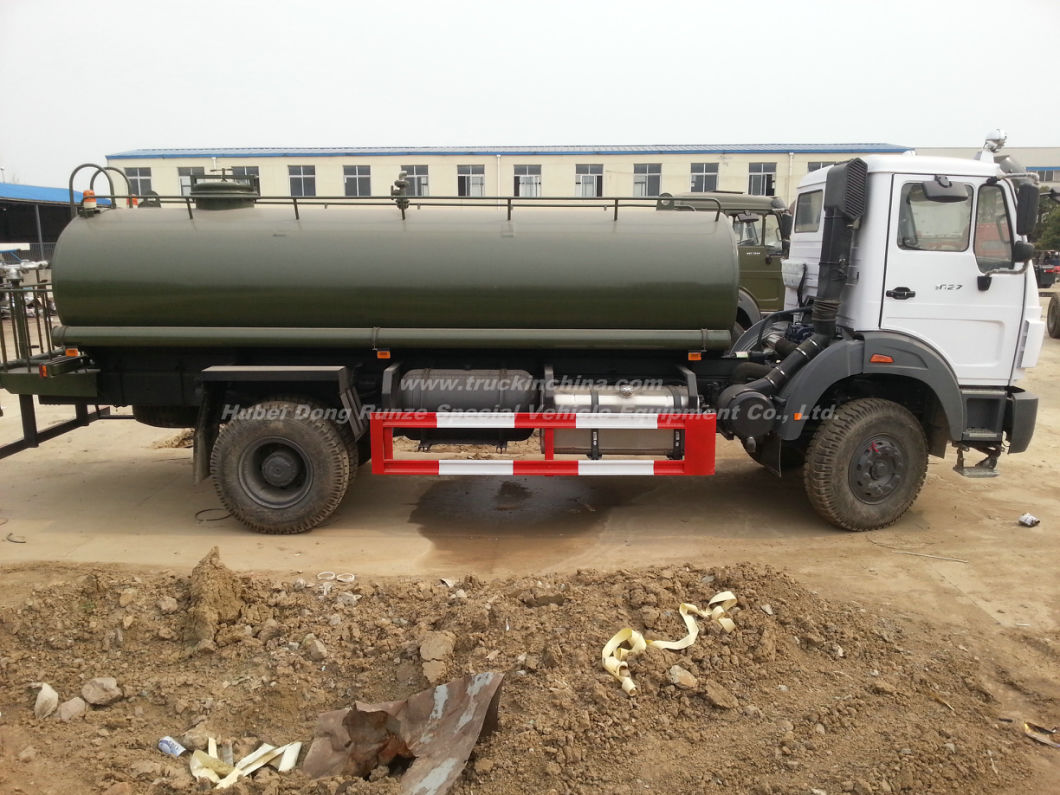

Beiben Truck 1629 Water Bowser Offroad Military 4x4 -4x2
4x2 /4x4 Military Truck Water Tanker (Water Bowser) Good for Rought Road Transport Drinking Water Steel Tank Inner Lined Plastic
8000 L-18000L( 2100 Gallons - 4700 Gallons) food grade steel tank inner lined Plastic
Ask for better price
Cell /+8615271357675 The pictures are for your reference only.
| Description of goods |
| 1627 NORTH BENZ water tanker TRUCK 4X2 WP10 engine 270HP capacity 15000L |
| 1630 NORTH BENZ water tanker TRUCK 4X2 WP10 engine 300HP Water capacity 15000L |
| 1634 NORTH BENZ water tanker truck 4X2 WP10 engine 340HP capacity 15000L |
| 1827 NORTH BENZ water tanker TRUCK 4X4 WP10 engine 270HP capacity 12000L |
| 1830 NORTH BENZ water tanker TRUCK 4X4 WP10 engine 300HP capacity 12000L |
| 1834 NORTH BENZ water tanker TRUCK 4X4 WP10 engine 340HP capacity 12000L |
| 2534 NORTH BENZ water tanker TRUCK 6X4 WP10 engine 340HP capacity 20000L |
| 2538 NORTH BENZ water tanker TRUCK 6X4 WP10 engine 380HP capacity 25000L |
| 2634 NORTH BENZ water tanker TRUCK 6X6 WP10 engine 340HP capacity 25000L |
| 2638 NORTH BENZ water tanker TRUCK 6X6 WP10 engine 380HP capacity 18000L |
| 3138 NORTH BENZwater tanker TRUCK 8X4 WP10 engine 380HP capacity 18000L |
| 3138 NORTH BENZ water tanker TRUCK 8X8 WP10 engine 380HP capacity 28000L |
Overall dimensions 8620X2490X3100mm Curb weight 7940kg
| | New product technical parameters of vehicles | |
| Dimension (Length*width*height) (mm) | 8150×2500×3550 |
| Chassis: | NORTH BENZ 1627 ,1630,1634,1827,1830,1834 |
| Track(front/rear) (mm) | 1995/1800 |
| Approaching angle/Departure angle(˚) | 23/15 |
| Suspension(front/rear) (mm) | 1410/2200 |
| Min distance to the ground(mm) | 399 |
| Wheel distance(front/rear) (mm) | 4500 /3800/4800 |
| GVW (KG) | 16000/18000 |
| Kerb weight (kg) | 7500 |
| Rated load(kg) | 10000 |
| Configuration | 4*2 /4*4 |
| Tank Volume (m³) | 10 |
| Front slope fully laden (%) | 60 |
| Turning Radius (M) | 20 |
| Max speed (km/h) | 90 |
| Ground Clearance (mm) | 339 |
| Engine | Diesel, water cooler, 4strokes direct injection, 6 cylinder in line, inter cooler turbocharger |
| Displacement(L) | 9.726 |
| Max power(kw/rpm) | 175/2200 |
| Max torque(N.m/rpm) | 1000/1400-1600 |
| Min Fuel consumption (g/kw.h) | 197 |
| Fuel tank (L) | 300 |
| Clutch | GFX420 Dry single plate, hydraulic control booster GFX420 |
| Gear box | Mechanism, 9 forward gears,1 reverse gear. Manual German ZF technology |
| Brake | Service Brake | Brake gap can be adjusted automatically, double circulation air brake system |
| Assistant brake | Engine exhaust brake |
| Park brake | Spring loaded press on rear wheels |
| Steering | ZF 8098 circulating ball tooth fan power steering, hydraulic assisted , German ZF products |
| Vehicle Frame | Fish belly shape, variable width, variable section, side beam trapezium structure German Benz technology |
| Front axle | German Benz technology. Double hoof chip air brake, |
| Rear axle | German Benz technology. Double hoof chip air brake, hyperbola gear, driving axle, Edge reducer |
| Front overhang rack | German Benz technology. Longitudinal offset plate spring, with hydraulic shock absorber cavitation effect, transverse stabilizer |
| Rear overhang rack | German Benz technology .Longitudinal offset plate spring, with hydraulic shock absorber, transverse stabilizer |
| Tire size | 12.00-20; or 14.00-20 |
| PTO | N71/1B |
Electrical | Battery | 2x12V/135Ah * |
| Generator | 28V-35A |
| Starter | 5.4KW/24V |
| Cab | Tilting forward65˚,driver's seat adjustable
German Benz technology (BC-001) |
| Tank body Q235 |
| capacity of water | 12,000~15000 liters |
| Main body material | Q235A/6MM |
| Coat color | |
| QHY005-2003standard |
| |
Chassis parameters
Chassis model SX1165UN461 Chassis brand SHACMAN
Overall dimensions 8290x2490x3020mm Wheel base 4600mm
Front/rear wheel track 1939/1800mm Front/rear suspension 1576/2114mm
Approach/departure angle 18/12° Maximum speed 99km/h
Chassis Manufacturer Shanxi Automobile Group Co., Ltd.
Cab Configuration Aolong medium a row and a half deluxe cab(with sleeping berth),allowable 3 passengers, manual windows shake machine, hydraulic main seat, traveling data recorder
Color White, other color is optional
Engine Model WP10.270E32
Emission Euro 3
Type 6 cylinders,in-line,4-stroke,water-cooled,turbo inter-cooling, exhaust valve brake, direct injection diesel engine
Rated power 270hp,rated power speed 2200rpm
Displacement 9726ml
Max.torque 1100N.m
Bore x stroke 126x130mm
Manufacturer Weichai Power Co., Ltd.
Tire Size 12.00R20 steel wire tire
Number 6+1 nos
Clutch φ430 domestic clutch
Frame 850 × 300 (8 + 5)mm
Fuel tank 380L iron oil tank
Front axle STR,6.5 tons
Rear axle STR,13.0 tons double level, main reduction ratio 4.8
Drive form 4X2
Suspension Multi leaf springs
Rated voltage 24V,DC
Transmissions gearbox 9JS119, 9 speed forward 1 reverse.
Steering device Power assisted steering, domestic steering machine
Steering wheel Left hand drive
Selective configuration Air conditioner, engine 290hp
If there is a slight change in the chassis parameters above, please take the actual product as the standard
Water tank structure
Tank dimensions 4600×2400×1445mm Tank volume 15000L
Tank material Carbon steel Tank thickness 5mm
Nozzle sprinkling width ≥14m Range of water cannon ≥28m
Suction height ≥7m Color and Logo Optional
Standard configuration Chassis, sub frame, carbon steel water tank, manhole, water pump, front/side/rear spray nozzle, rear working platform, water cannon, fire valve, water valve, filter gauze, water hose, climbing ladder.
Selective configuration Stainless steel/aluminum alloy water tank ,insulation layer for water tank, stainless steel water pump, fire pump, fire gun, pesticide plate, cabin gas control operated, Honda pumps, lights, crane, hanging basket, rear spraying device, barrel pesticide spraying device, gasoline pesticide machine, diesel pesticide machine, LED arrow lights
Extended model water transporting truck, thermal insulation water transporting truck, drinking water tank truck, liquid food truck, fire water tank truck, pesticide spraying truck, and etc.
Water Truck,Shacman 15000L Water Truck,Shacman 15000L Water Bowser,Shacman 15000L Spraying Truck,Shacman 15000L water tank lorry,Shacman 15000L Water Cart,Shacman 15000L Water Tanker, Shacman 15000L Water Wagon,Shacman 15000L Water Tanker Truck,Shacman 15000L Water Sprinkler Truck,Shacman 15000L Watering Vehicle,Shacman 15000L Watering Cart
water, suppressing dust, high and low spraying, pesticide spraying, rail and construction washing and other functions, but also has the function of water transport, milk transport, water drainage, emergency fire and so on.
Water truck is composed of automobile chassis, and out of the water system and tanker. According to the different use of the environment and the purpose of a variety of spraying and water transport function. Multifunctional sprinkler set a variety of functions as one, generally can be used by the user requirements of special restructuring.
Water Truck is suitable for various pavement washing, trees, green belt, green lawn, roads, construction of factories and mines, high-altitude construction flushing.
