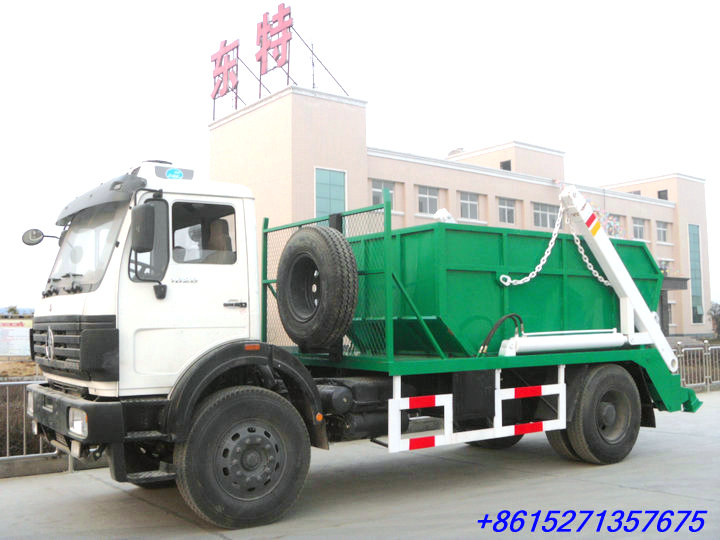

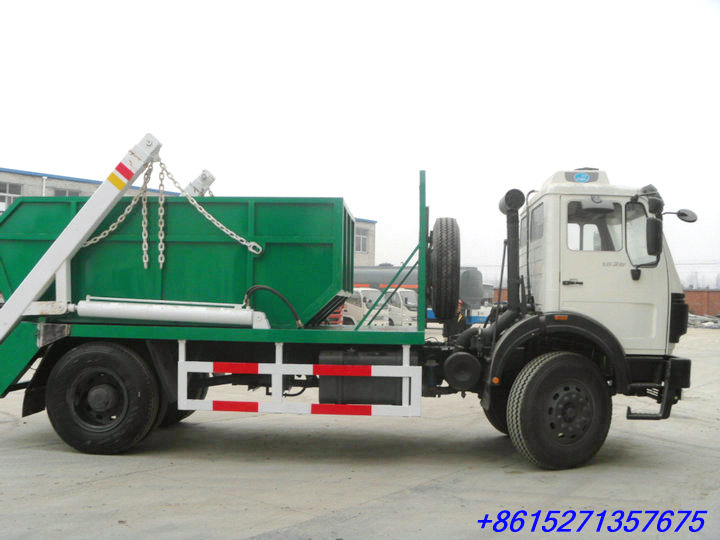

Beiben Telescopic Boom Skip Loader

Beiben Telescopic Boom Skip Loader
Quantity:

Beiben Skip Loader
Swing arm garbage truck
BEIBEN 1628 telescopic boom skip loader garbage truck dta truck manufacturer EDM test this truck

Beiben Skip Loader  telescopic boom Skip Loader

 Beiben Skip loader 4x2 Northbenz Garbage Truck  BEIBEN 1628 telescopic boom skip loader garbage truck dta truck manufacturer EDM test this truck


 Beiben Skip loader 4x2 Northbenz Garbage Truck



 Detailed description:

 1 The Garbage bucket is divided into different forms. It is respectively swing arm and the pit floor garbage bucket. It can be installed closures to prevent the disclosure of flying pollution.  In order to adapt to different environments use requirements. It uses leading technology and military enterprises accessories .reliable quality,By the manufacturer to provide users with the garbage bucket drawings,to help users design garbage Truck.



 2 Swing arm garbage trucks are widely applicable to the waste disposal and the city streets, schools, the application of national garbage bucket, can be a vehicle with more than one garbage bucket, each spam point to place more than one garbage bucket with the dump functions, hydraulically operated.



 3 It can be increased a unified matching with hydraulic lifting assembly. Through the left and right arms shipment to a unified national arm garbage bucket. A car with more than one bucket, additional dump functions, to achieve security and stability, reliable performance.






         Item




         unit




         Parameter




         Vehicle model









         waste collector truck




         Chassis model









         ND1160W241D




         Overall dimension




         mm




         8736×2500×2975









         Gross Weight




         kg




         16000




         Rated payload




         8000




         Curb weight




         7870




         Approach /departure angle




         °




         26/12




         Minimum turning diameter




         m




         20.4




         Carriage length




         mm




         6440×2350×590




         Horse power




         hp




         240




         Max speed




         km/h




         85




         Engine type




         WD615.58




         Tire specification




         12.00R24




         Axle No.




         2




         wheelbase




         4800




         Front tread




         1995/1800




         Axle load




         3970/7020




         Rear tread




         1995/1800




         Operation control system




         Electrically hydraulic control




         Passenger




         3




         Equipment




         1) Equipped with hermetic dustbin, hydraulic system and operating system.



         2) Automatic compress and uninstall, sewage can be collected by the dump tank.



         3) With large pressure, good leakproofness, convenient operation and dependable security.




         Clutch type




         GF 420, Hydraulic power,  Single dry friction clutch




         Transmission type




         8JS118, Gear box with 8-speeds+one rear, manual Transmission




         Emission standard




           GB3847-2005,GB17691-2005    Euro 3




         Warranty




         12 mouths, from the date of supply




         Skiploader 15 tons capacity with 4x2 Chassis 240 HP tires 12.00R24



         the skip to be hold by four Chains



         Skip loader: 12 m3, with a closed cover on the top of the skip.



         With sun shield and Aluminum fuel tank.



         TIC TRUCKS , www.truckinchina.com
