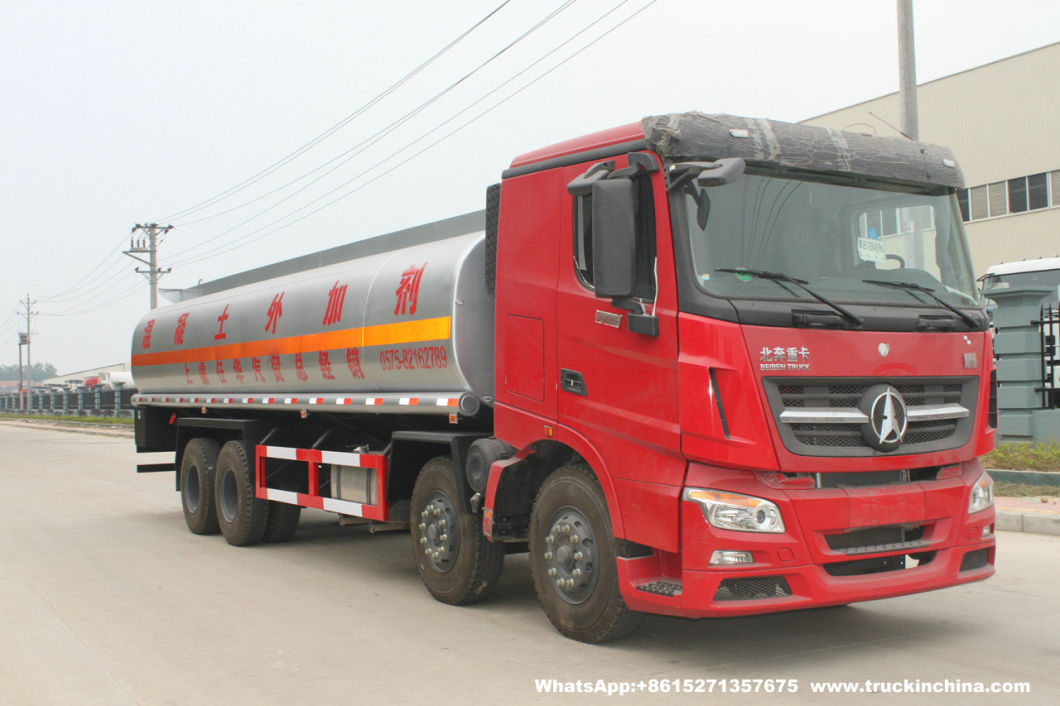

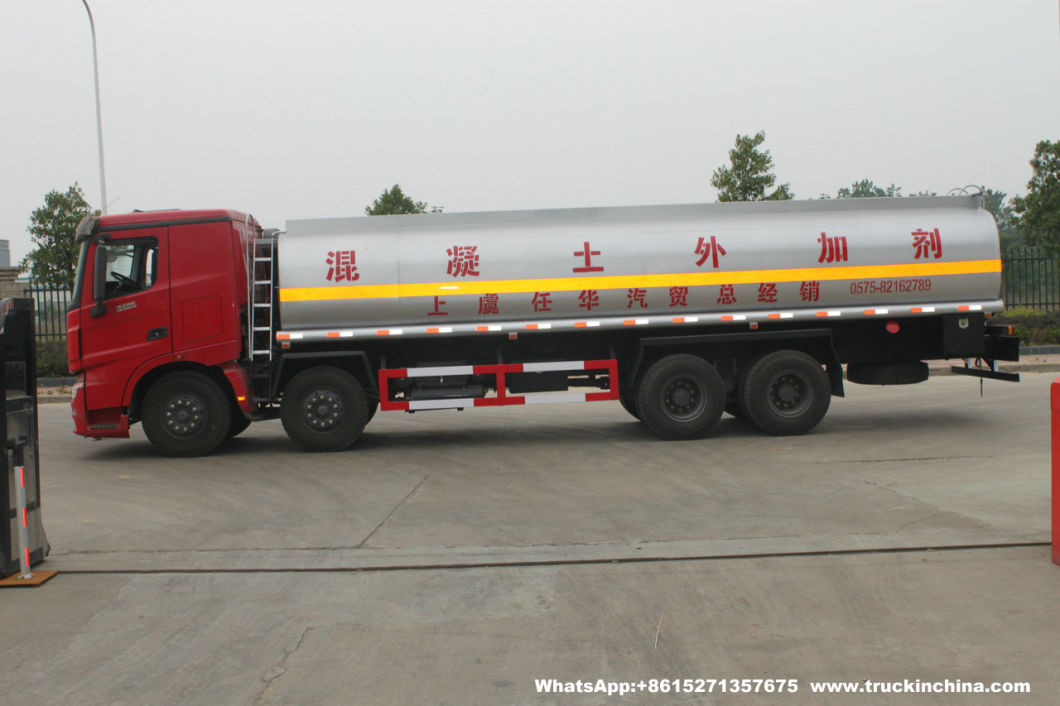

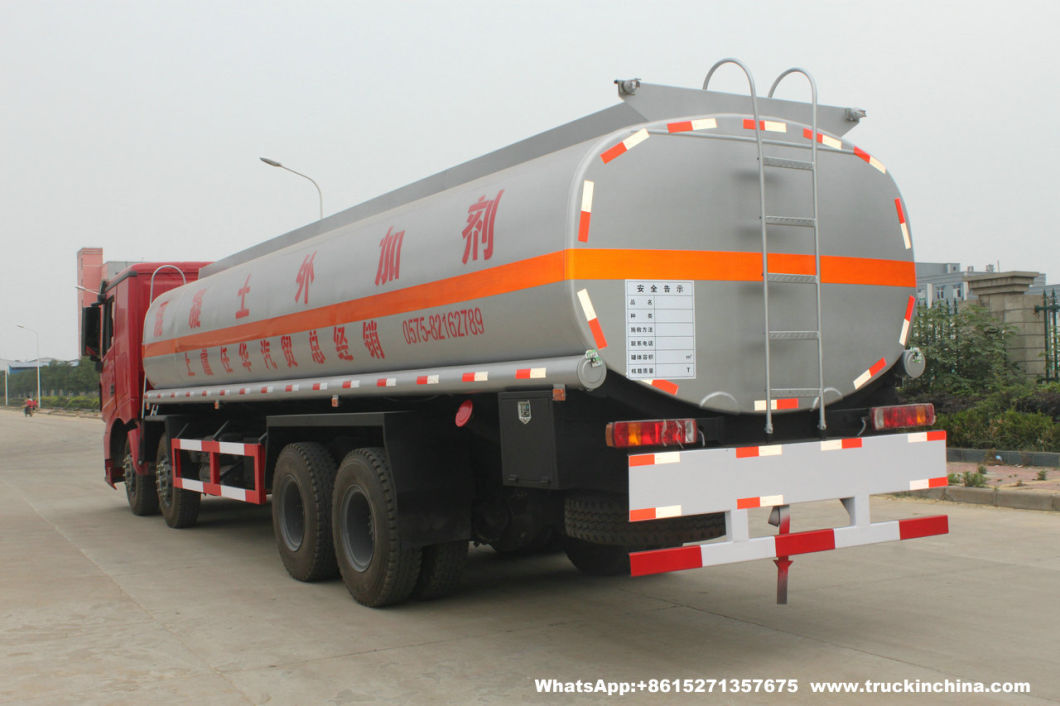

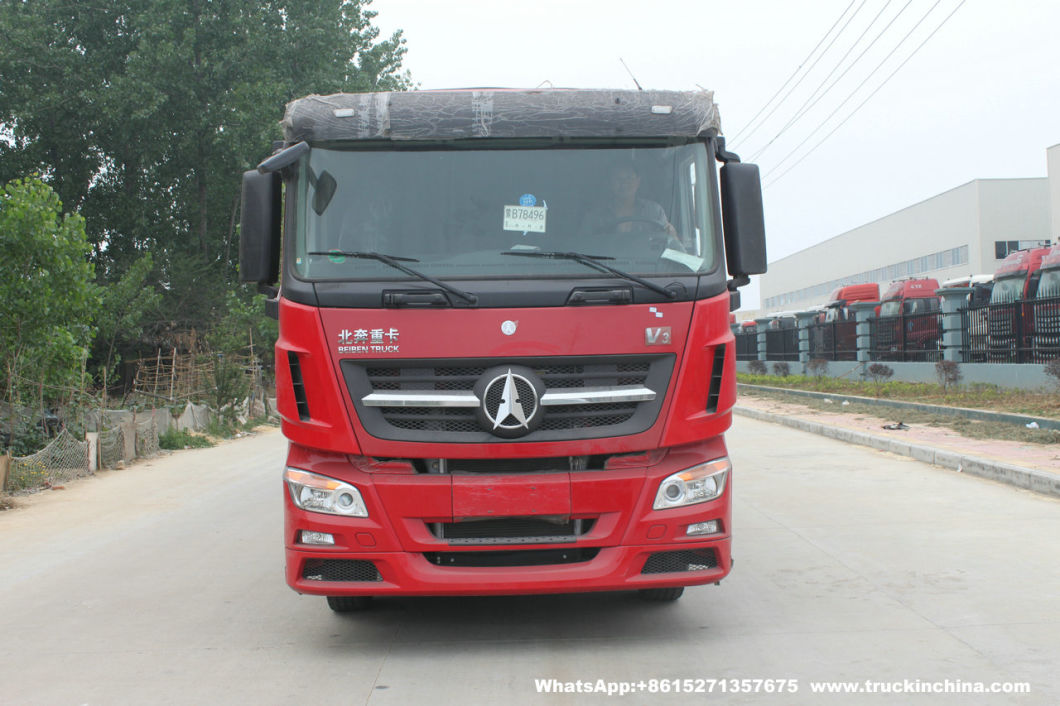

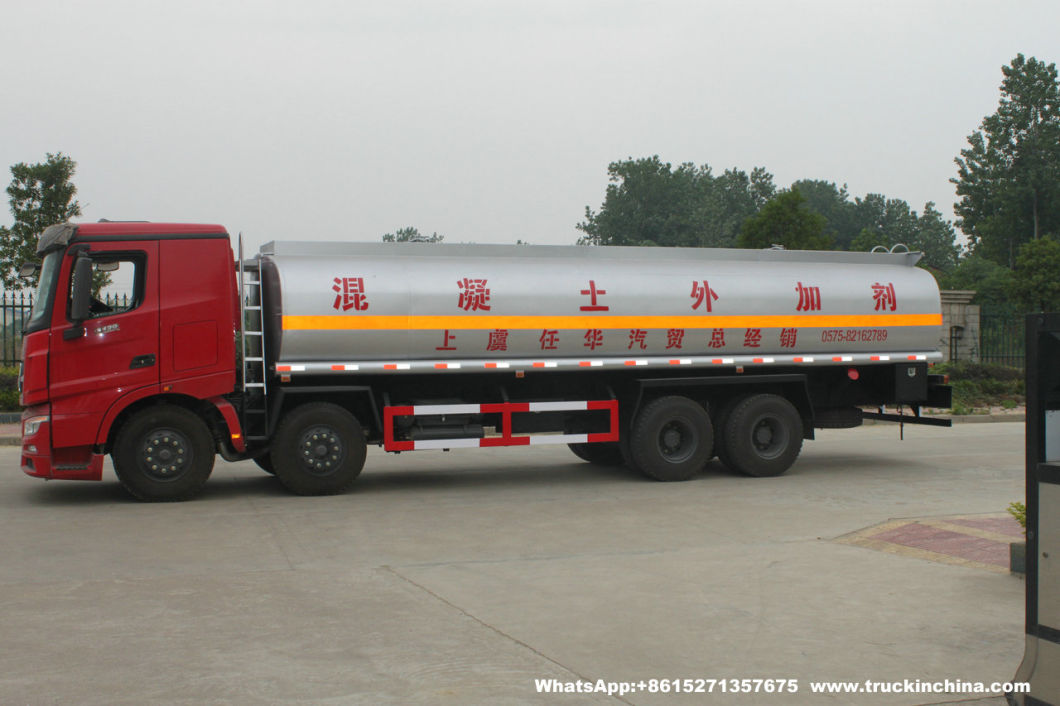

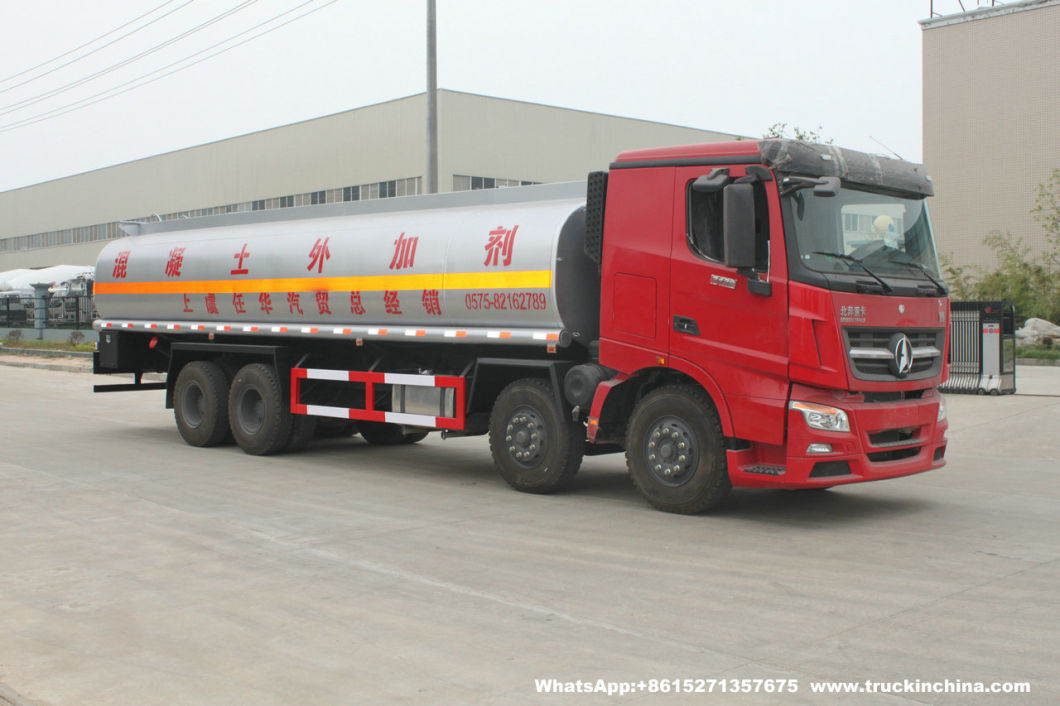

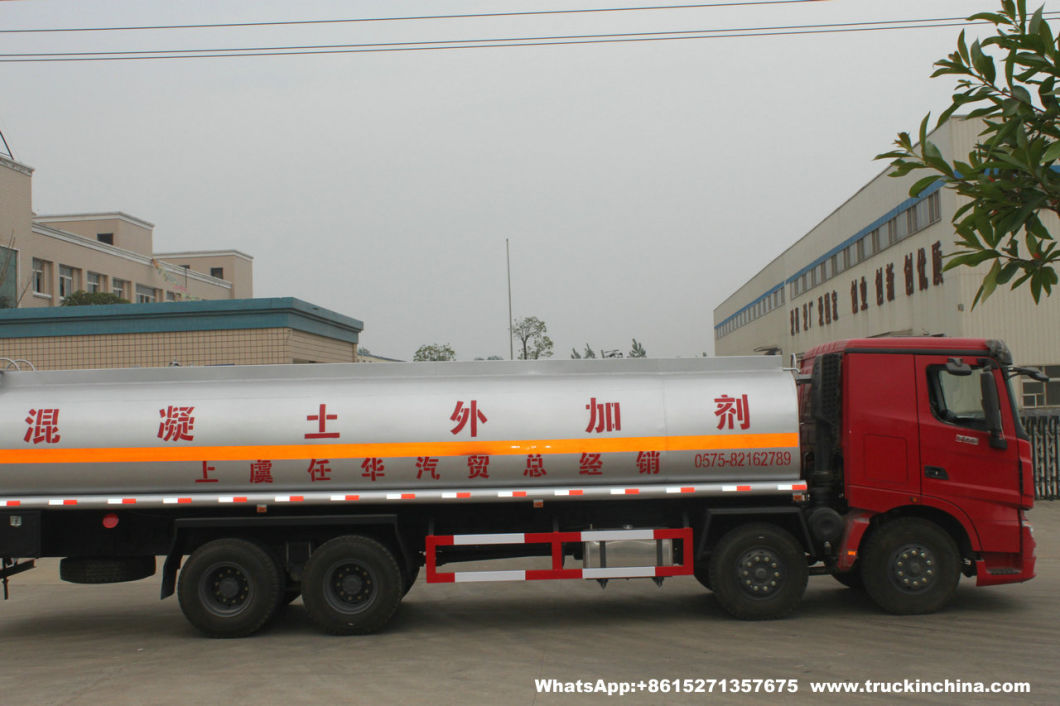

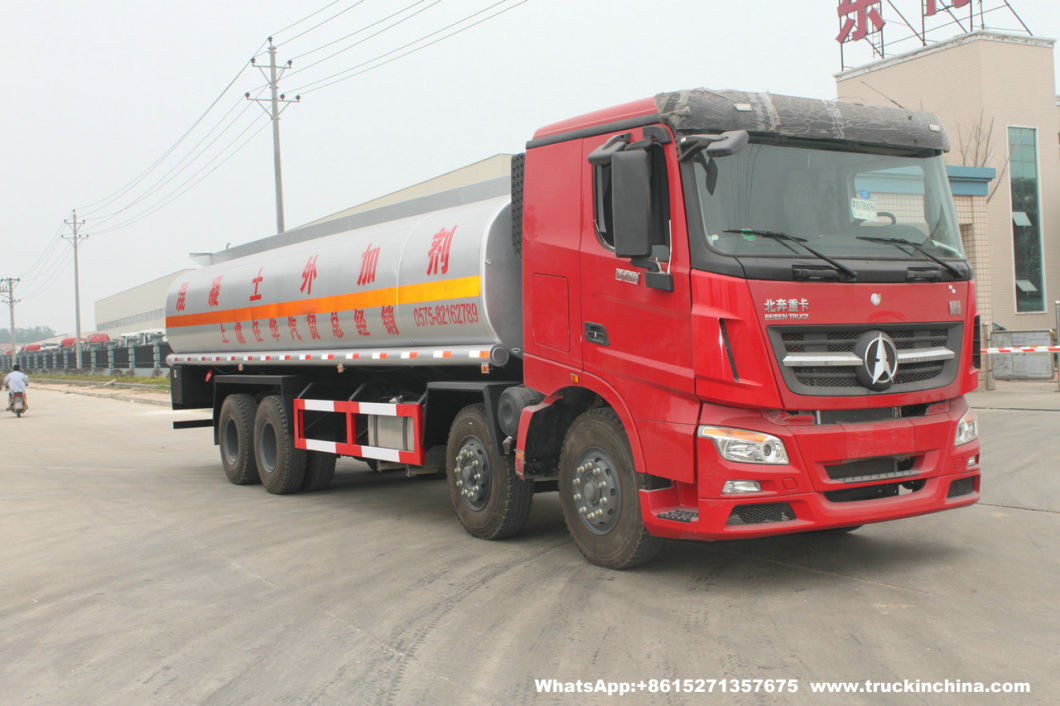

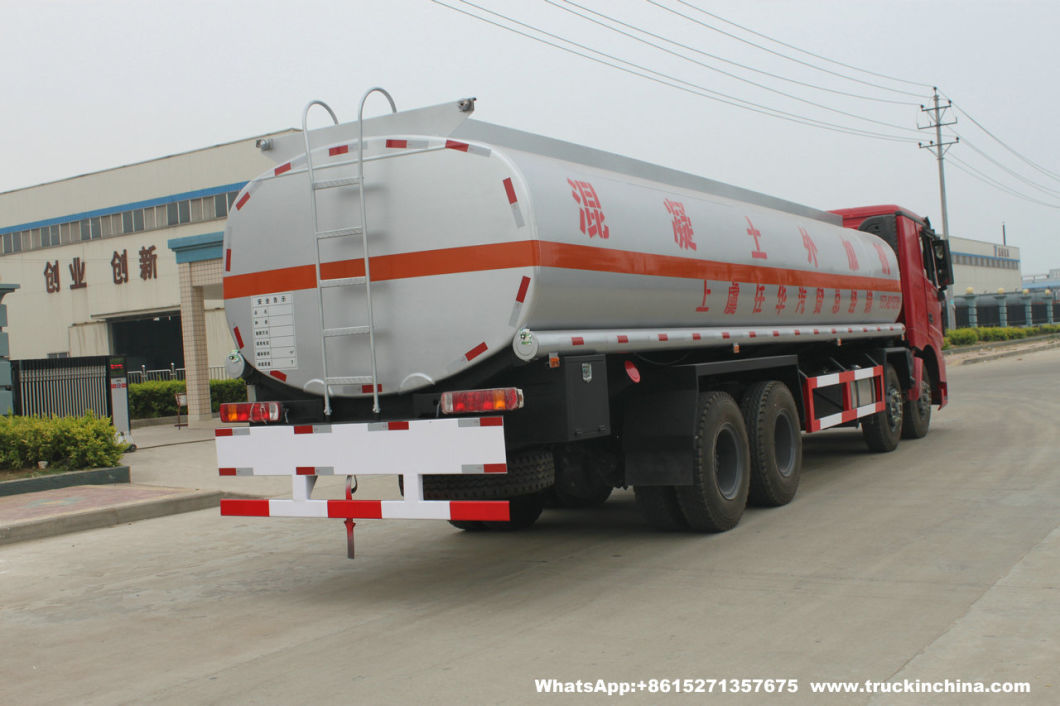

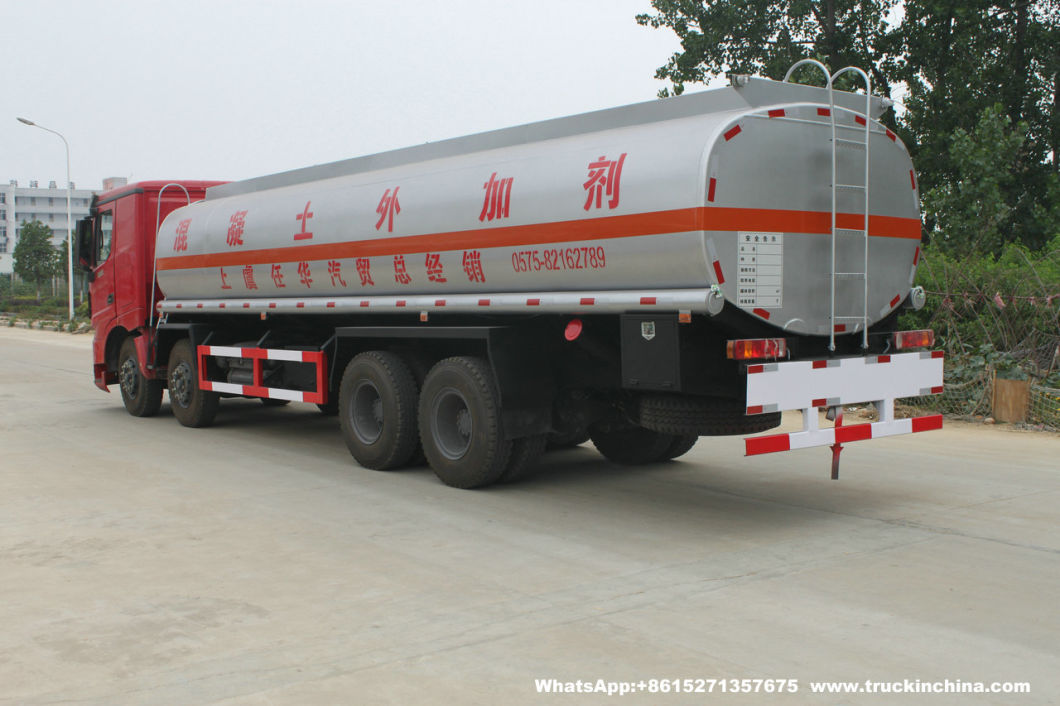

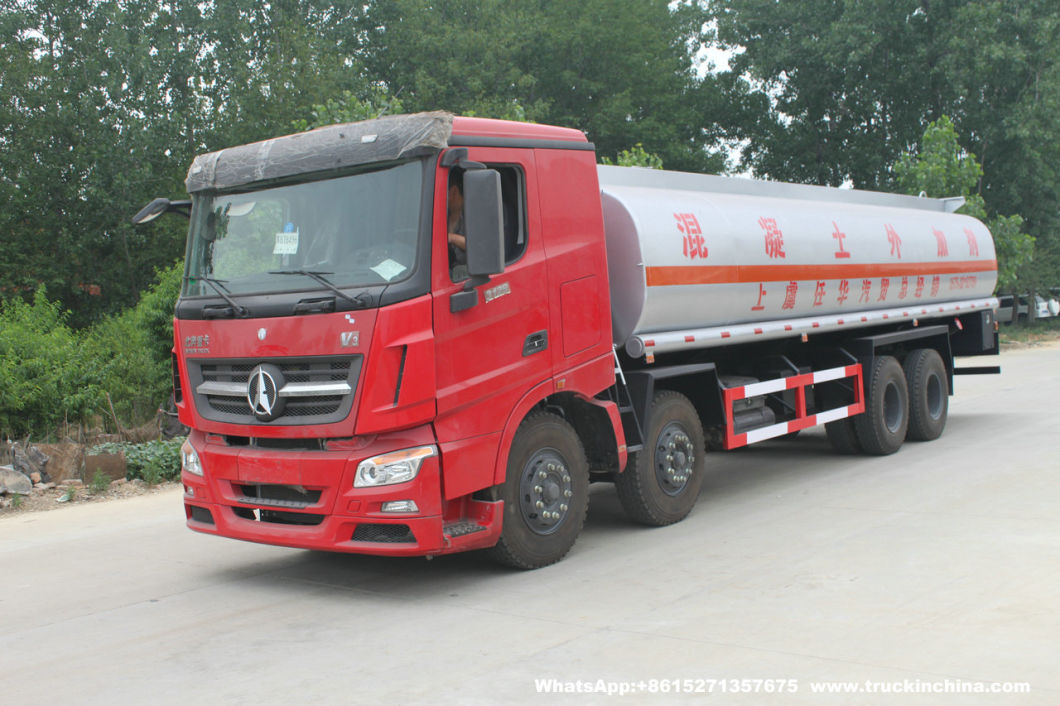

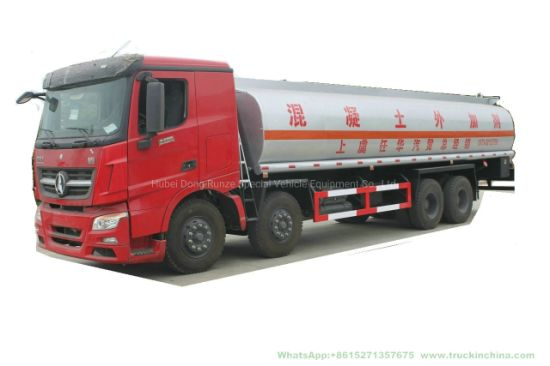

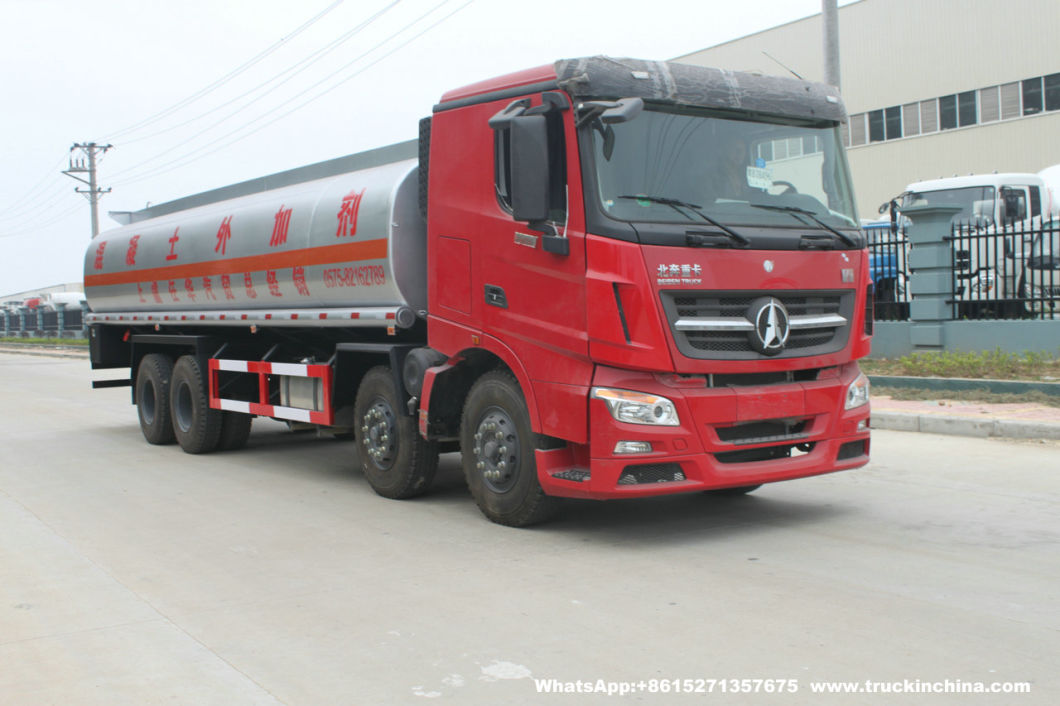

Beiben Stainless Steel Tanker Trucks V3 for Transport Concrete Water Reducing Admixture

Beiben Stainless Steel Tanker Trucks V3 for Transport Concrete Water Reducing Admixture
Availability:
Quantity:
  • Shanghai, China

  • 10000

  • T/T

Beiben Stainless Steel Tanker Trucks V3 for Transport Concrete Water Reducing Admixture

Beiben  Offroad Diesel Tanker For Concrete Admixtures (Additives)
Petroleum Oil ,Gasoline, Petrol, Diesel Transportation With PTO Pump  20,000L

What are concrete additives?
Types of Concrete Additives and Their Uses
Water Reducing.
Accelerating Additives.
Air-Entrainment.
Shrinkage Reducing.
Inhibits Corrosion.

Tank Capacity 18,000 Litres ( About 4,700 gallons )
Tank Material Stainless steel
North Benz / Beiben road tanker / 22000 liters tank truck
Beiben Stainless Steel Tanker Trucks V3 for Transport Concrete Water Reducing Admixture
Admixtures are added to concrete batch immediately before or duringmixing concrete. Concrete admixtures can improve concrete quality, manageability, acceleration or retardation of setting time among otherproperties that could be altered to get specific results
Beiben Stainless Steel Tanker Trucks V3 for Transport Concrete Water Reducing Admixture
Beiben Stainless Steel Tanker Trucks V3 for Transport Concrete Water Reducing Admixture
Beiben Stainless Steel Tanker Trucks V3 for Transport Concrete Water Reducing Admixture
Beiben Stainless Steel Tanker Trucks V3 for Transport Concrete Water Reducing Admixture
Beiben Stainless Steel Tanker Trucks V3 for Transport Concrete Water Reducing Admixture
Beiben Stainless Steel Tanker Trucks V3 for Transport Concrete Water Reducing Admixture
Beiben Stainless Steel Tanker Trucks V3 for Transport Concrete Water Reducing Admixture
Beiben Stainless Steel Tanker Trucks V3 for Transport Concrete Water Reducing Admixture
Beiben Stainless Steel Tanker Trucks V3 for Transport Concrete Water Reducing Admixture
Beiben Stainless Steel Tanker Trucks V3 for Transport Concrete Water Reducing Admixture
Beiben Stainless Steel Tanker Trucks V3 for Transport Concrete Water Reducing Admixture


Driving Type:  6*4  6*6 , AWD, off-road , 10 wheel ,

Capacity:  12000L, 15000L, 18000L, 20000L..

Steering Wheel: Left Hand Drive and Right Hand Drive


Dimension
(Length*width*height) (mm)
10660×2500×3800(mm)
Chassis: Optional 2634   6x6 /6*4
Track(front/rear) (mm) 1990/1800/1800
Approaching angle/
Departure angle(˚)
16/25(°)
Suspension(front/rear) (mm) 1410/2555(mm)
Min distance to the ground(mm) 399
Wheel distance(front/rear) (mm) 4450+1450(mm) ;5050+1450(mm) ;5650+1450(mm) ;5950+1450(mm)
GVW (KG) 25000kg, 26000kg
Kerb weight (kg) 15270kg
Configuration 6*6 /6x4
Front slope fully laden (%) 60
Turning Radius  (M) 20
Max speed    (km/h) 90
Ground Clearance (mm) 339
Engine option 340 HPWP10.336
Diesel, water cooler, 4strokes direct injection with EVB, 6 cylinder in line, inter cooler turbocharger
Characterized by strong power, high reliability, good economy and low noise
Clutch GFX420 Dry single plate, hydraulic control booster GFX420
Gear box RT11509C or 9JS Mechanism, 9 forward gears,1 reverse gear.
Optional:12JS Mechanism, 12 forward gears,2 reverse gear.
Brake Service Brake Brake gap can be adjusted automatically, double circulation air brake system
Assistant brake Engine exhaust brake
Park brake Spring loaded press on rear wheels
Steering D50 circulating ball tooth fan power steering, hydraulic assisted ,
Vehicle Frame Fish belly shape, variable width, variable section, side beam trapezium structure German Benz technology
Front axle German Benz technology. Double hoof chip air brake,
Rear axle German Benz technology. Double hoof chip air brake, hyperbola gear, driving axle, Edge reducer
Front overhang rack German Benz technology. Longitudinal offset plate spring, with hydraulic shock absorber cavitation effect, transverse stabilizer
Rear overhang rack German Benz technology .Longitudinal offset plate spring, with hydraulic shock absorber, transverse stabilizer
Tire size 12.00-20 ,
PTO N71/1B

Electrical
Battery 2x12V/135Ah *
Generator 28V-35A
Starter 5.4KW/24V
Cab JD1 Tilting forward65˚,driver's seat adjustable
German Benz technology




beiben 2527 fuel truck, beiben 2529 fuel truck,beiben 2534 fuel truck ,beiben  2538 fuel tanker truck,beiben 3132 fuel tankers.  north benz oil tankers
  The beiben fuel tanker from us can be beiben 4*2 fuel tanker, beiben 6*4 fuel tanker and beiben 8*4 fuel tankers. All the beiben fuel tanker trucks
CONTACT US

Website:  www.truckinchina.com
Specialize Custom Commercial Vehicle body building - semi trailer, full trailer-Spare parts
Euro 3,


6*4
ND1255B44 4450+1450 WP10.290
ND1252B44 WP10.336
6*4 ND1253B45J 4500+1350 WP7.270E30
8*4 ND13105D44J 1700+4425+1350 WP10.270

6x6 off road tanker

2527A/6*6/4450+1450/ WP10.270N/199 9T-160 TAS85 12.00-20 12.00R20
11.00-20
11.00R20
2527A/6*6/5050+1450/ WP10.270N/199 9T-160 TAS85 12.00-20 12.00R20
2530A/6*6/5050+1450/ WP10.300N/221 9T-160 11.00-20
11.00R20
2534A/6*6/5050+1450/ WP10.336/247 9T-160 TAS85 12.00-20 12.00R20
2538A/6*6/5050+1450/ WP10.375/276 RT11509C

Tanker
Material                  Steel
Thickness of shell     4mm 5mm /6mm / 8mm
Thickness of dish      5mm  /6mm / 8mm
Inside baffles            3mm /4mm / 5mm
Compartments          3 to 4 compartments
Volume                    15000L to 25000L+ 5% expansion
Tank Top Accessories
Ladders fixed on the front and rear; foldable handrail
Walkway with anti-slip material in the front of reach the manholes,
Not covering the complete length of the tank.
Tank Equipments (all API Standard)
Each compartment is equipped with :
Aluminum Manhole cover 16" or 20"
Aluminum Emergency Bottom valve 3" with Pneumatic switch in locker
Aluminum Spill Valve 3" or 4",
Discharging Nylon hose 6m
Discharge and loading
Gravity discharge,
Top loading.            Option: Bottom loading
Electric Installation
Complete 24V system in explosion proof installation
Rear lighting with rear, stop, parking, direction, fog, reverse lights, side lights
Painting
Exterior surface treatment by shot blasting
Painting by high solid primer directly on the surface
Painting inside special paint booth with the cargo cabin color or the color chosen by the customer
Accessories
Side protection, 2 Fire extinguisher, 1 Spare tire carrier.
1 Tool box with standard tools, Heavy duty tail bumper


Euro 4


6*4
4450+1450 ND12500B44J WP10.300E40 9JS150A
WP10.336E40
8*4 1950+3900+1450
1950+3700+1450
ND13101D39J WP10.336E40 12JS160T
WP10.375E40 12JS200T
8*8 1500+4150+1450 ND2311G41J WP10.336E40 12JS160T
6*4 5050+1450 ND12500B51J6Z00 WP10.270E40 9JS135
WP10.300E40 9JS150A
6*4 4450+1450 ND12501B45J7 WP10.336E40 9JS150A
8*4 1950+3100+1450 ND13103D31J7 WP10.336E40 12JS160T
WP12.375E40 12JS200T
8*4 1950+4600+1450
1950+4300+1450
ND13104D46J WP10.336E40 12JS160T
WP12.375E40 12JS200T
6*4 3800+1450 ND12505B38J WP10.336E40 12JS160T
WP12.375E40 12JS200T
6*6 3800+1450 ND2250F38J WP10.300E40 9JS150A
WP10.336E40 9JS180
8*4 1950+2800+1450 ND13103D28J WP10.336E40 12JS160T
WP12.375E40 12JS200T
8*4 1950+2800+1450 ND13101D28J7 WP10.336E40 12JS160T
WP12.375E40 12JS200T
6*4 5050+1450 ND12500B51J WP10.336E40 9JS150A
WP12.375E40 9JS180
8*4 3800+1450 ND12505B38J7 WP10.336E40 12JS160T
WP12.375E40 12JS200T
8*4 1500+4750+1450 ND13109D47J WP10.300E40 12JS160T
WP10.336E40 12JS160T
WP12.375E40 12JS200T
8*4 1950+3100+1450 ND13101D31J WP10.336E40 12JS160T
WP12.375E40 12JS200T


Our beiben   tanker trucks feature:

Total beiben tanker are portainted welded by automatically carbon dioxide welding. Nice surface without obvious welding line, safety and reliabiliy
* Beiben fuel tankers body could b oval or trapezoid, tank inside with subdivision board, oil baffle plate, ensure to lighten the shock in the process of transporting.
* Installed famous breath valve DN60, suitable and effective adjust the pressure in the north benz oil tankers.
*Static guiding equipment lap joint adhensive tape on the rear tank can efficiently protect static that arise in the transportation.

North-ben BeiBen 6x4 / 6x6 Off-road Fuel Oil Tanker Truck
General

Chassis Brand North Benz
Overall Dimension 9580 * 2500 * 3400 mm
GVW / Kerb Weight 25,000 kg / 12,400 kg
Cab Cab Capacity 2 persons allowed
Air Conditioner Air conditioner is equipped
Engine Fuel Type Diesel
Engine Brand Weichai engine(Chinese top brand)
Power 336 Ps (247 KW)
Displacement 9726 ml
Emission Standard Euro III
Chassis Drive Type 6X6, left hand drive
Transmission 9-speed front, 1 reverse
Wheelbase/No. of axle 4450+1450 mm / 3
Tyre Specification 12.00-20
Tyre Number 10 tyres and 1 spare tyre
Max Speed 85 km/h
Paint Metallic paint
Superstructure Tank Capacity 18,000 Litres ( About 4,700 gallons )
Tank Material Carbon steel
Pump Equipped for overhead delivery, 1000 litres / min
Suction Head 6 m
Hose High quality, wire strengthened hose, with cooper wire, anti-static
All standard accessories: manhole, ladder, anti-static belt, anti-slip walkway, handrail, fire extinguisher, inlet, discharge, reflective stickers.....
Optional ** Tank material could be carbon steel, stainless steel, aluminum (aluminum tanker)...
** It can be divided into many compartments.
** Devices can be equipped: fuel counter (flow gauge), fuel dispenser, hose reel, level gauge...
** Heat preservation & heating system could be added.
** Bottom loading system can be equipped.




FAQ
·MOQ:1 SET
·Delivery date:25 workdays after we received deposit.
