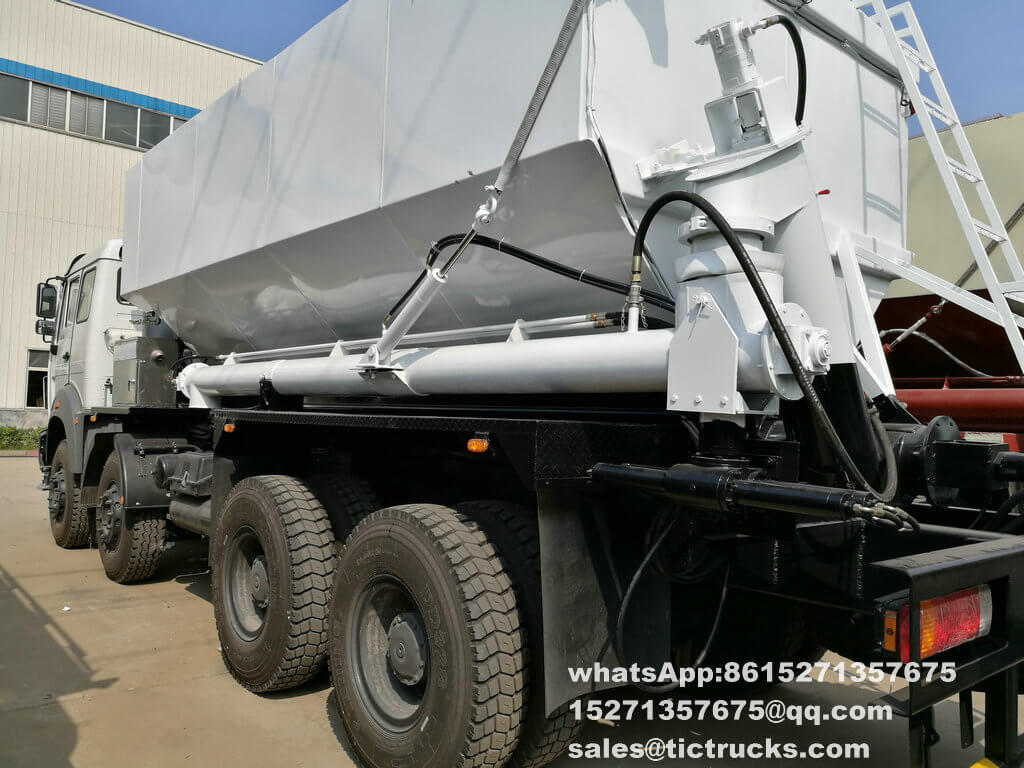

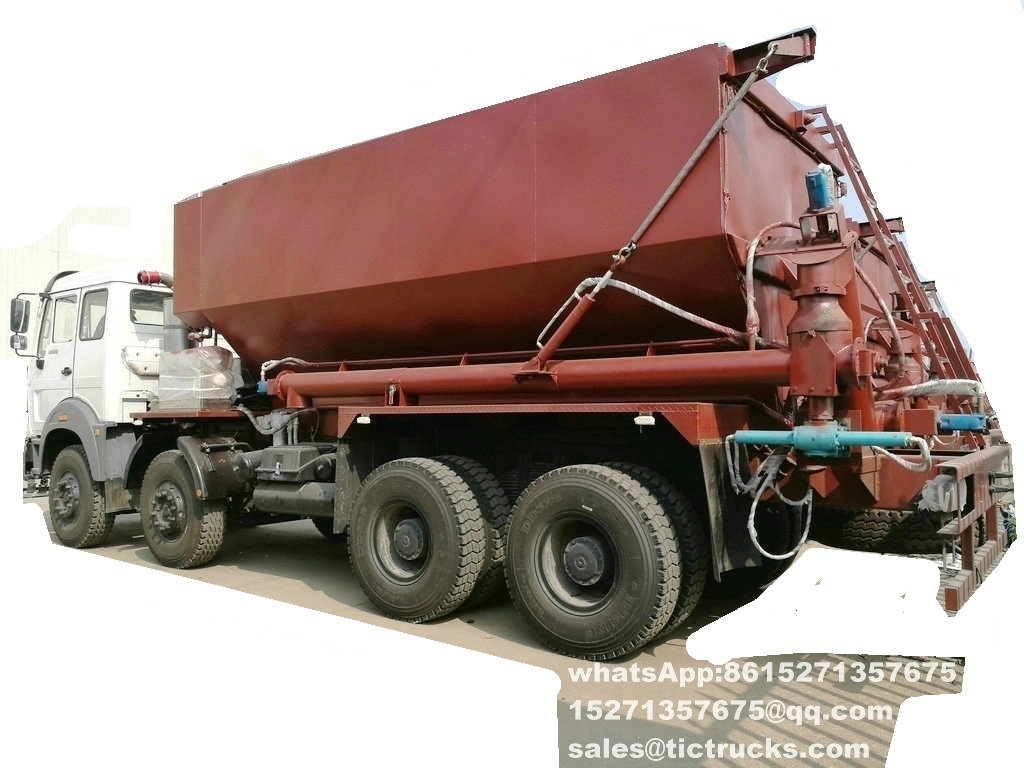

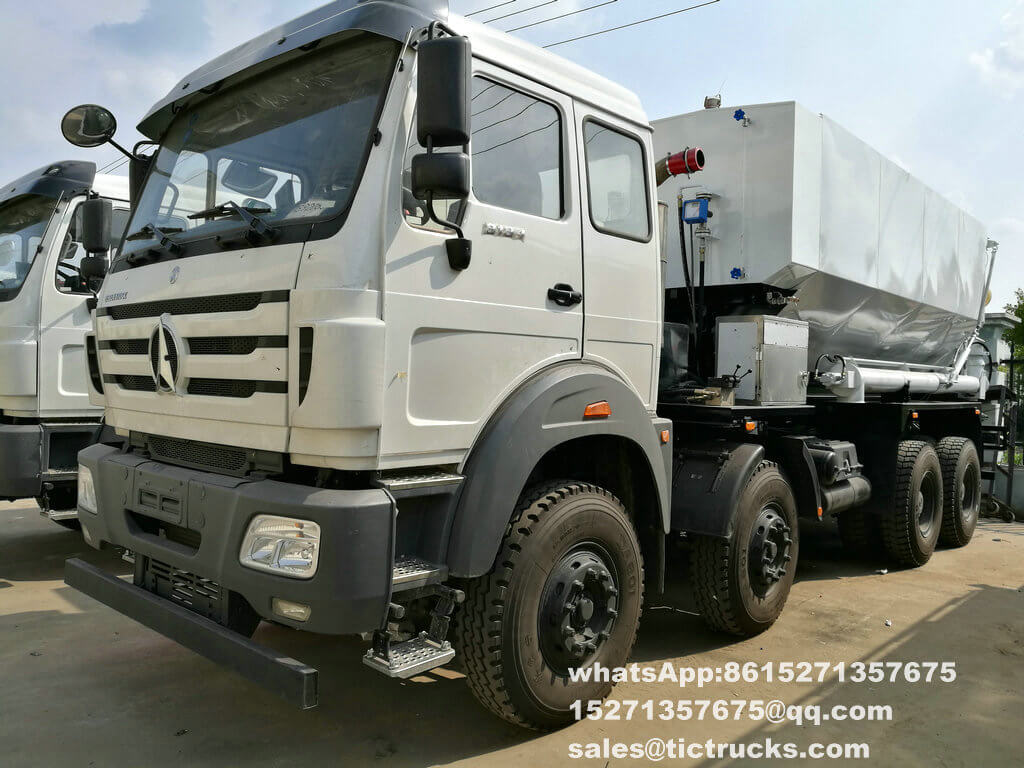

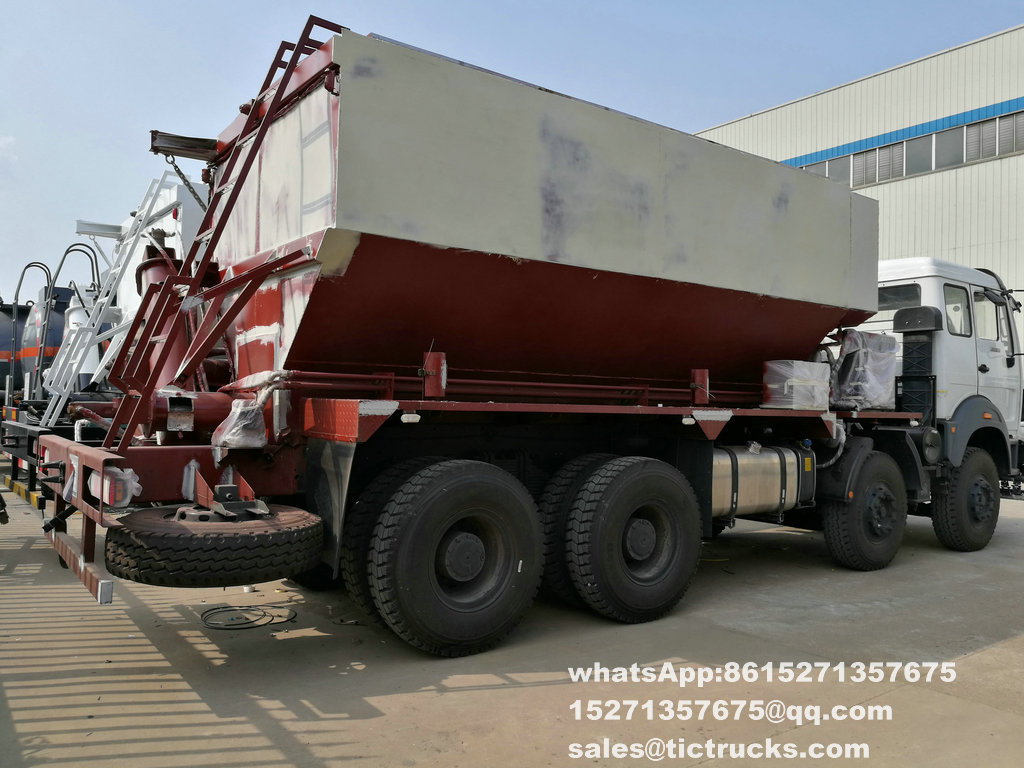

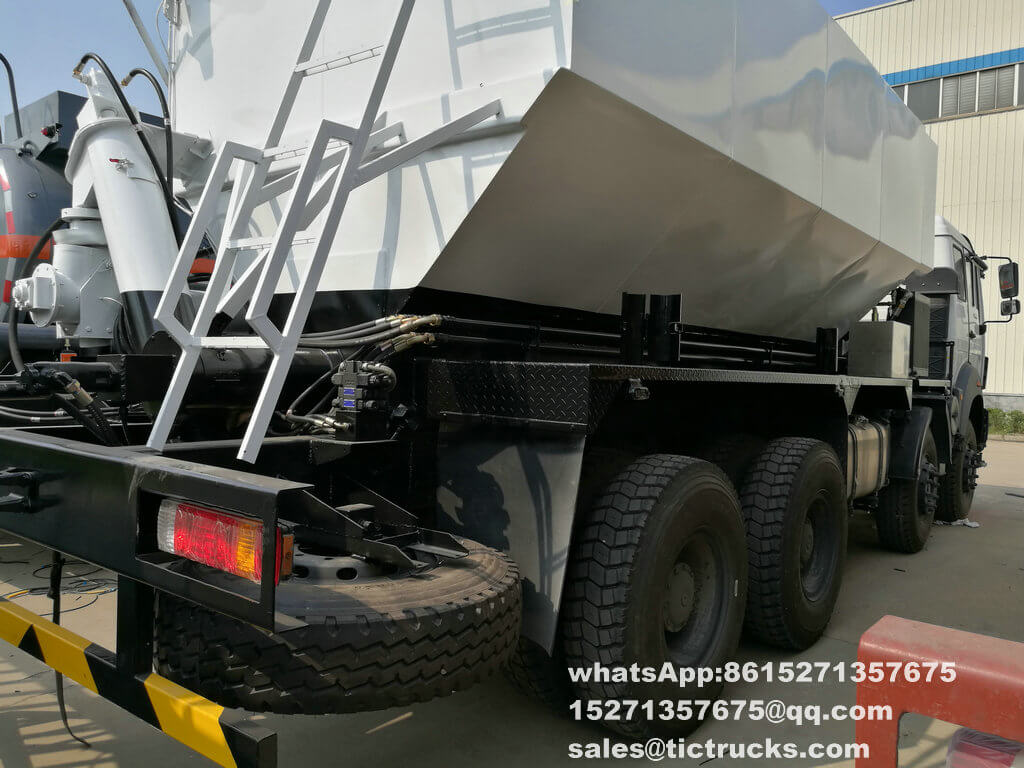

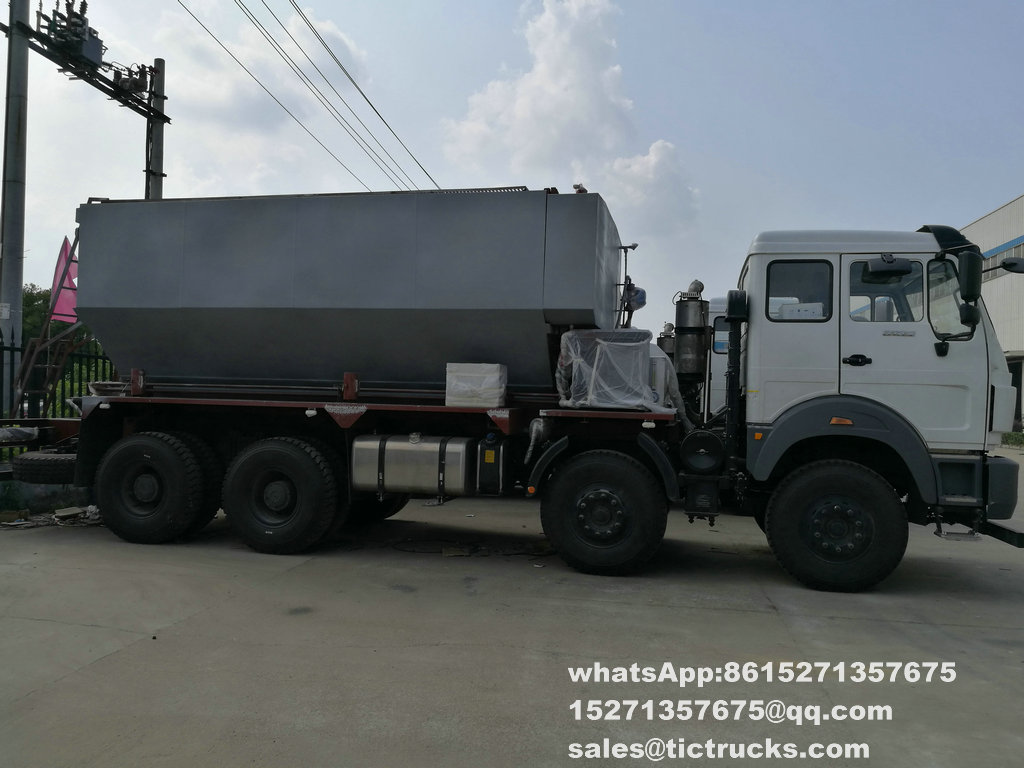

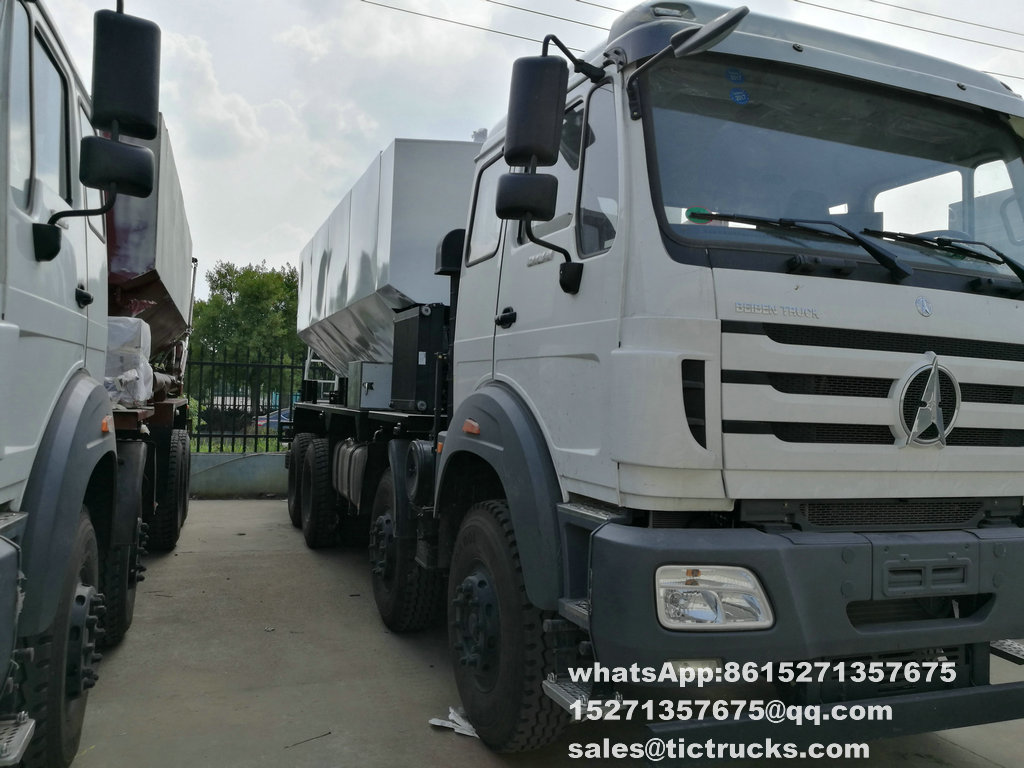

Beiben 8x4 Bulk explosive trucks mix explosives on site 3134

Beiben 8x4 Bulk explosive trucks mix explosives on site 3134
Mainly used for ammonium nitrate fuel oil mixture (ANFO) filling to no water blast hole for large/medium size open-pit blasting stopes, such as metallurgy, mining, chemicals, and building materials etc.

Price: $ 228000
Discount Price: $ 206000  -  225000
FOB:
Quantity:

  • DRZ5311THLC
  • Dong Run ze
  • 8705909990

Beiben 8x4 /8x8 Bulk explosive trucks mix explosives on site 3134

  • Mainly used for ammonium nitrate fuel oil mixture (ANFO) filling to no water blast hole for large/medium size open-pit blasting stopes, such as metallurgy, mining  , chemicals, and building materials etc.

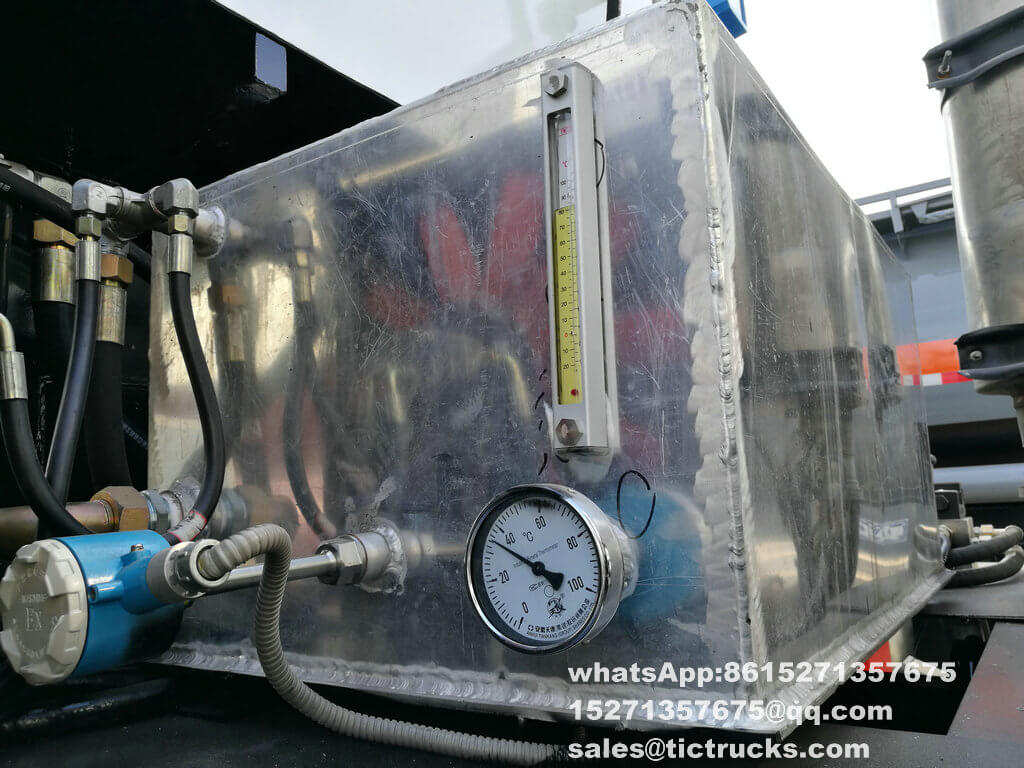

  • Before the operation, fill in diesel oil and porous granular ammonium nitrate in ground station.

  • When explosive loading truck comes to job site, start PTO, get conveying screw and blast hole in focus, input the charge of blast hole on counter, and press start button. Porous particulate nitrate is delivered to skewed helix through the screw on tank base, lifted in side helical stirrer by skewed helix. At this time, diesel oil is pumped into side helical stirrer to be mixed. The mixed detonator is transferred to blast hole by side helical stirrer. When the explosive charge of this blast hole reaches target volume, the control unit will order to halt, followed by the next hole for charging.

  • Charging effectiveness 200kg/min---450kg/min at first;

  • Measurement error ≤ 2%

  4T, 6T, 8T, 15T and 25T etc are available.

Mixed And Charged Emulsion Explosive Truck

 ANFO explosives, mainly used in open pit mining holes filled with explosives, with inclinometer spiral drug delivery systems, high efficiency, full computer control, efficiency of 450kg/min , With cutting down function, safe and reliable work.

 Site mixed particle ammonium explosives vehicles

 Main technical parameters

              Project

              Model

L-15

L-12

L-8

L-4

Charge weight (ton)

15

12



Charging efficiency (kg/min)

450

400



Measurement errors

2%

2%

2%

2%

Overall dimensions: length x width x height (mm)

10010 ×2500×3680

9105 ×2480×3470

7216 ×2450×3280

6728 ×2400×2670



Beiben explosive trucks ,Mixed explosive car, explosive mix and charge veihcle,Mixed And Charged Emulsion Explosive Truck, on site explosive Mixed trucks ,mixed and charged emulsion explosive truck,Beiben 8x4 Bulk explosive trucks,Beiben 8x8,Explosives truck,mixed explosive truck
