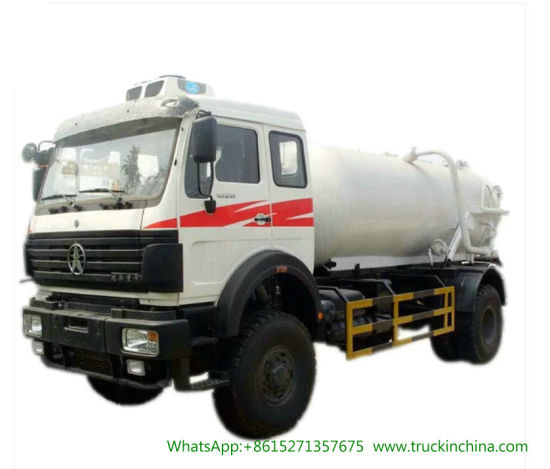

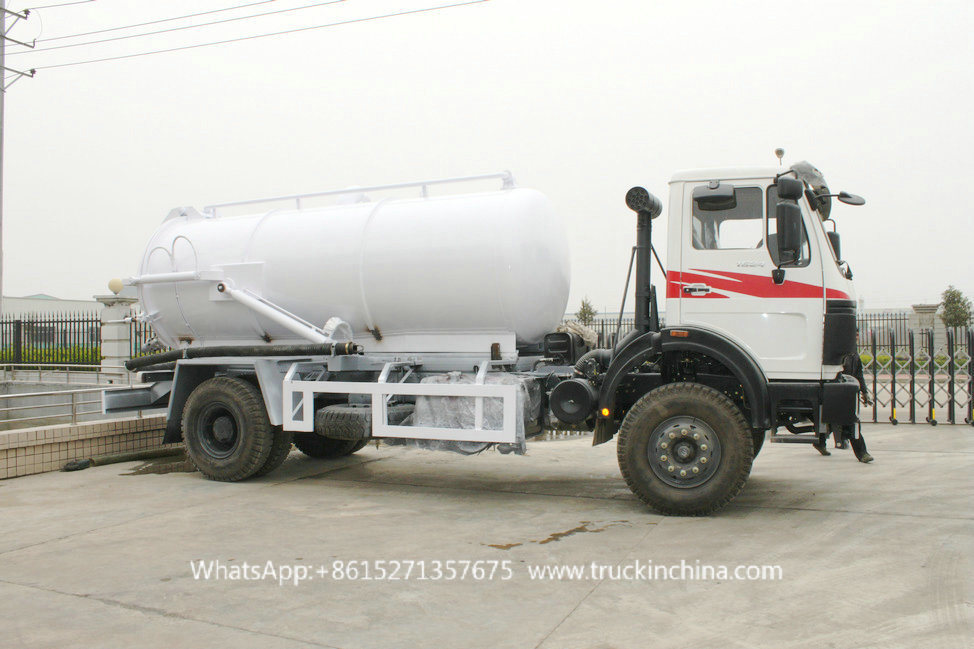

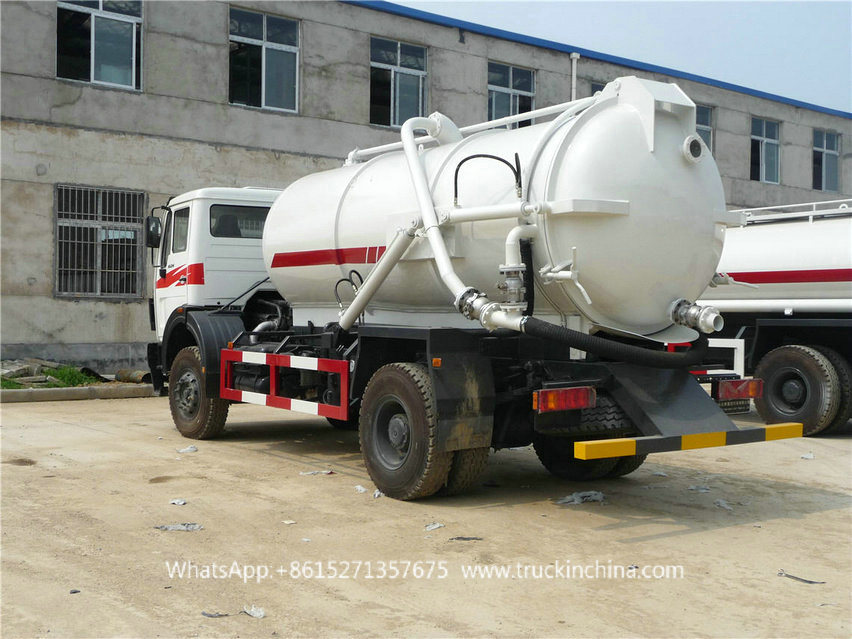

Beiben 4X4 off Road Vacuum Tanker Truck Sewage Pump Tanker
Beiben 4X4 off Road Vacuum Tanker Truck Sewage Pump Tanker
| Quantity: | |
|---|---|
-
1627/1629
-
BEIBEN
-
8705
-
Shanghai, China
-
1000
-
T/T, Western Union
Product Tags: Beiben 4x4 off road vacuum tanker truck sewage pump tanker Beiben vacuum tanker truck 4x4 north benz 4x4 tanker trucks
1.Beiben ND1160,ND2060 4 wheel drive sewage suction truck based on Mercedes Benz technology
2. Common rail engine, World famous weichai engine
3.FAST(Fuller) gearbox
4.Benz front axle and rear axle, for military using.
1.Beiben ND1160,ND2060 4 wheel drive sewage suction truck based on Mercedes Benz technology
2. Common rail engine, World famous weichai engine
3.FAST(Fuller) gearbox
4.Benz front axle and rear axle, for military using.
Euro 3, Euro 5-6 septik truck sewage tanker Cesspool Emptying Truck Septic tank Truck
| 4*2/4x4 | ND1160A41 | 4100 | WP6.180 |
| ND1163A48J | 4800 | WP10.270 WP10.290 |
| 4*4 | ND2161E48 | 4800 | WP10.270 |
| ND2162E48J | WP10.300N | ||
| ND21600E41J | 4500 | WP10.336 |
Model | ND2160E48J (4*4) |
Engine | 290 HP EURO II-V |
chassis | BeiBen 4x4 military chassis |
Outside dimension(mm) | 8826×2500×3355 |
volume of tank | 6000L~ 10000L |
Material of tank | Carbon steel |
Thickness | 6mm |
Total mass (kg) | 16000 |
Kerb mass (kg) | 7960 |
Rated payload(kg) | 7910 |
Wheelbase (mm) | 4800 |
Tread(front/rear) | 1995/1800 |
Approach/departure angle | 30/28 |
Front /rear suspension | 1410/2616 |
Minimum turning diameter | 20.4 |
Clutch type | GFX420, diaphragm spring clutch |
Gear box type | 9JS119,mechanical , 9 forwards, manual |
Tire type | 14.00R20 (6+1) |
Fuel tank capacity (L) | 300 |
Max.gradient | 60 |
Max. Speed(Km/h) | 85 |
Battery(V) | Electrical system storage battery 2X12V/135Ah |
generator | 28V-35A |
Starter | 5.4Kw/24V |
A/C | YES |
4x4
Specifications:
| Chassis | ND2161E48J | |
| Cubage | 7000 Liters to 10,000 Liters | |
Vehicle | Overall dimension (length/width/height) ( mm ) | 8826×2500×3355 |
| G V W ( kg ) | 16000 | |
| Payload ( kg ) | 7960 | |
| Curb mass ( kg ) | 7910 | |
| Fuel Type | Diesel | |
| Fuel consumption ( L/100km ) | 22 | |
| Top speed ( km/hr ) | 90 | |
| Engine | Model | WP10.270 |
Exhaust/Power ( kw ) | 9726cc/199 | |
| 270 HP | ||
| Type | 6-in-line water cool Turbo Charge engine | |
| Chassis | Drive type | 4×4 |
| Wheelbase ( mm ) | 4,800 | |
| Tread ( mm ) | 1995/1800. | |
| Front Bridge | 7.5T FRONT AXLE | |
| Number of spring axles | 9/9+6 | |
| Tire specification | 12.00-20 ; 12.00R20 | |
| Air condition | with | |
| Suction system | Suction pump | Single Stage Rotary Oil Seal Vacuum Pump |
Special parameter | Vertical suction height | ≥8 |
| working pressure | 8500 Pa | |
| rotation speed | 500 | |
| suction speed | 98 L/S | |
| power | 5.5 kw | |
| inlet diameter | 50 mm | |
| filling time | Less than 5 s | |
| discharge time | Less than 4 s | |

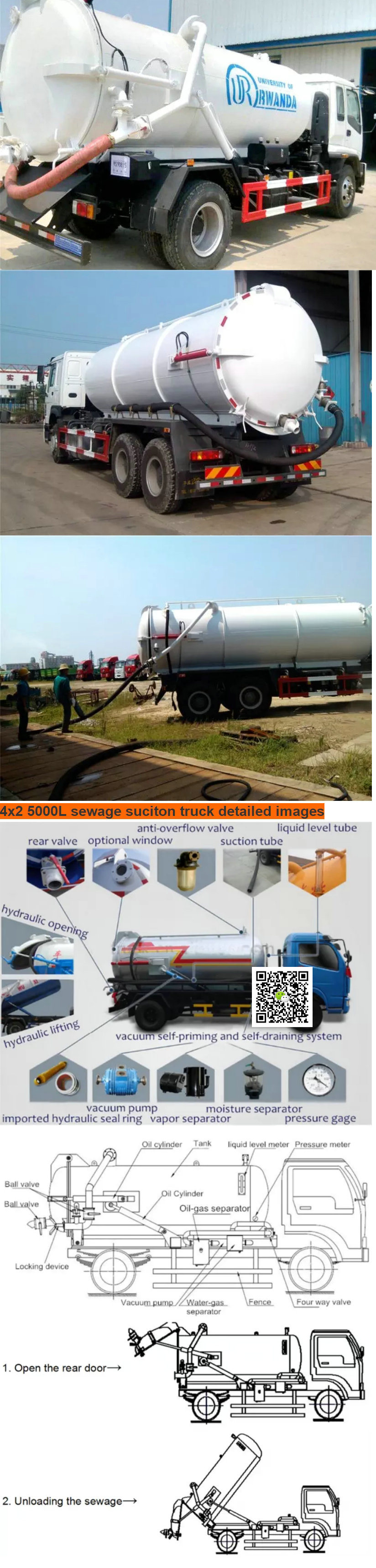

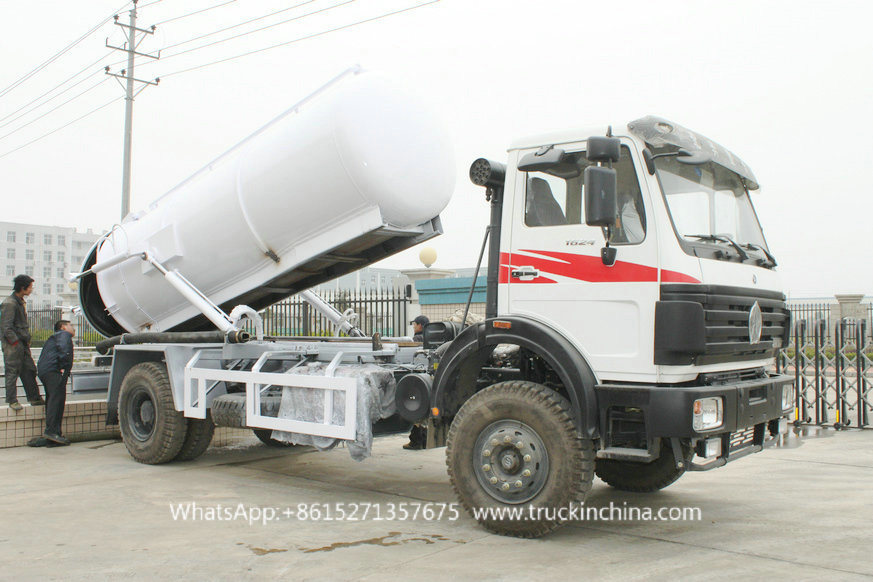

| Equipped with | The vacuum sewage suction truck is equipped with : 1.chassis truck 2.Vacuum tank( Back cover can be opened ) 3.power take off 4.transmission shaft 5.vacuum pump (rating rotate speed=1400 r/m,min rotate speed>800 r/m, max suction lift>6 m, vacuum>500 mmHg) 6.Pipe for sucking and discharging sewage( Time for full suction<5 min ) 7.fecal pipe for observing and cleanout equipment | |

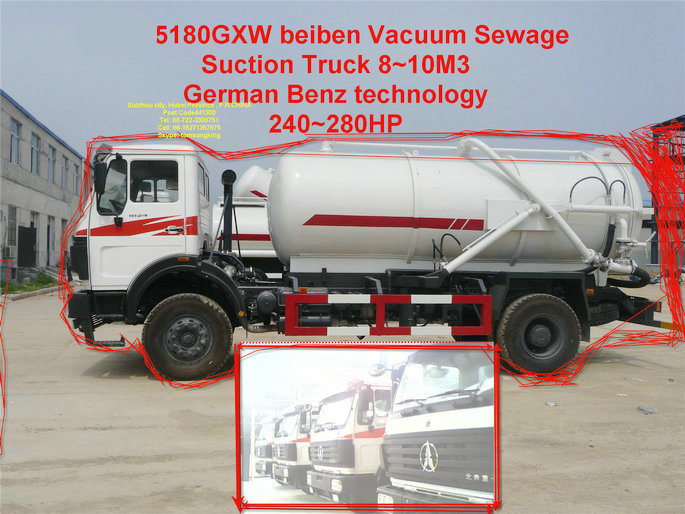

Beiben Vacuum Sewage Suction Tanker Truck 8cbm
Chassis | |
Model | ND11601A48J |
Traction type | 4X2 |
Driving type | LHD |
Driver's cab | Long cabin, A/C |
Dimensions in (mm) | Wheel base(mm): 4800 |
Overall size(mm): 8690x2500x3080 | |
Engine | Maker: WEICHAI |
Diesel 4 stroke direct injection diesel engine, 6 cylinder in-line with water cooling, turbo-charging & intercooling | |
Engine model: WP10.270E31 | |
Emission Standard: EUROIII EGR | |
Maximum output: 270HP /1900 rpm | |
Number of cylinder:6 | |
Displacement: 9.726L | |
Clutch | 430mm, hydraulically operating with air assistance |
Transmission | Fuller 9JS135 |
Steering | TAS85 |
Front Axle | Benz front axle 7.5 ton |
Rear Axle | Benz strengthened type 13T, double reduction drive axle Ratio: 5.263 |
Spring | 10/8+6 |
Types | 12.00-20 Bias tyre |
No. of tyre | 6+1(spare) |
Fuel tank | 400L Aluminium |
PTO | QH50 |
Electrics | Operating voltage: 24V, negative grounded |
Kerb weight(kg) | 6920 |
Body | |
Tank Volume | 8m3,9m3,10m3,12m3 |
Beiben vacuum tanker truck sewage pump tanker
1.Benz 290hp 6000~10000L vacuum tanker truck
2. Benz truck chassis
3. Powerful engine 270hp /300HP/336HP
4. Tank capacity 6000~10000L
5. 4x4 military chassis
Specifications:
Chassis model ND2160E48J
Outside dimension(mm) 8826×2500×3355
Tread(front/rear) 1995/1800
Approach/departure angle 30/28
Fron suspension /rear suspension 1410/2616
Minimum turning diameter 20.4
Wheelbase (mm) 4800
Max.speed (km/h) 85
Total mass 16000
Kerb mass 7960
Rated payload 7910
Max.gradient 60
Eigine Model 290HP-300HP
Emission level E 3
Fuel tank capacity 300
Clutch type GFX420, diaphragm spring clutch
Gear box type 9JS119,mechanical , 9 forwards, manual
Tyre 14.00-20 (4+1)
Driving type 4*4
Electrical system storage battery 2X12V/135Ah
generator 28V-35A
Starter 5.4Kw/24V
Aircondition Equip
voulme of tank 10CBM 10000L more or less
Material of tank Carbon steel. Thickness: 6mm
Sewage Tank,Sewer JettingTruck,Vacuum Suction tanker , vacuum suction truck ,vacuum truck,Sewer Jet Truck ,vacuum sewage suction truck ,Septic Tank Truck ,Cesspit Emptier
