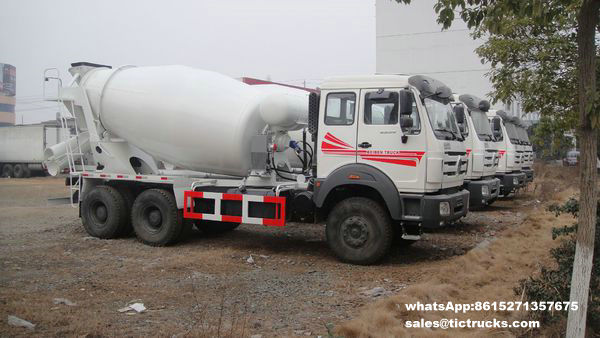

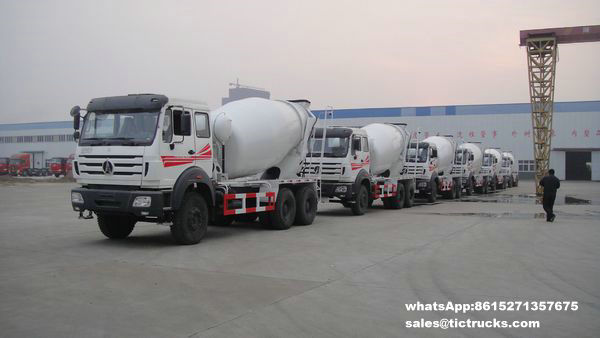

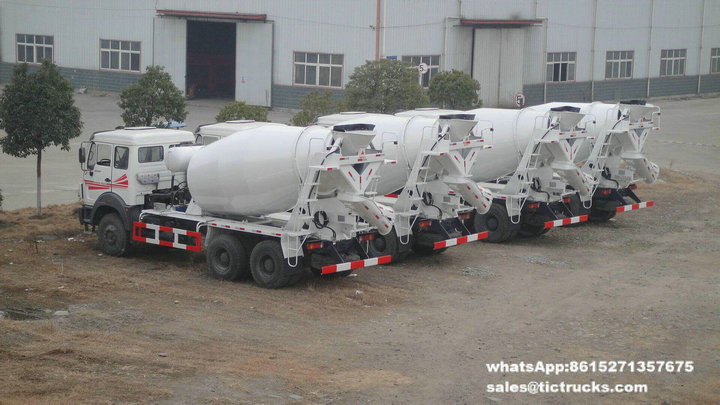

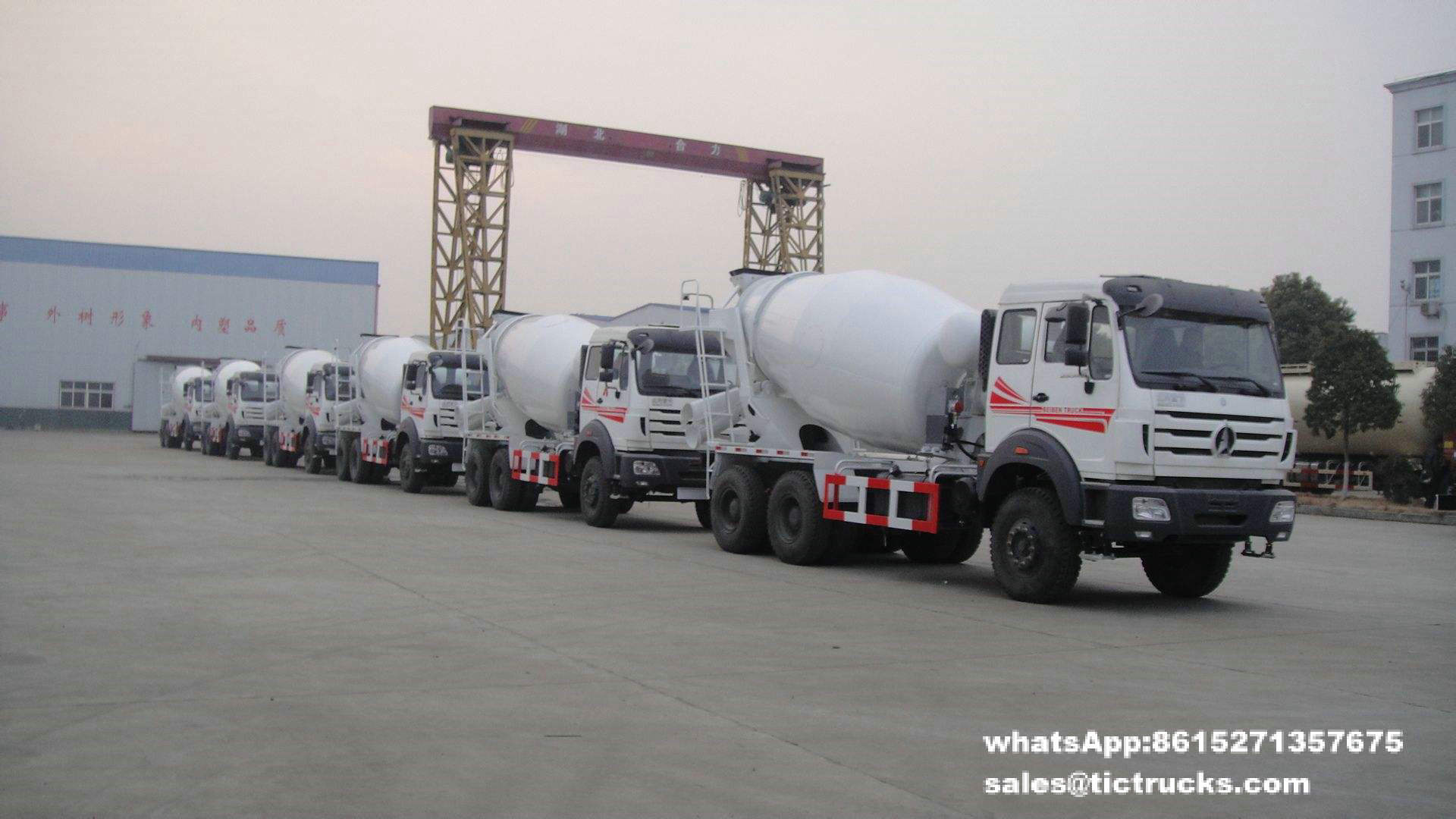

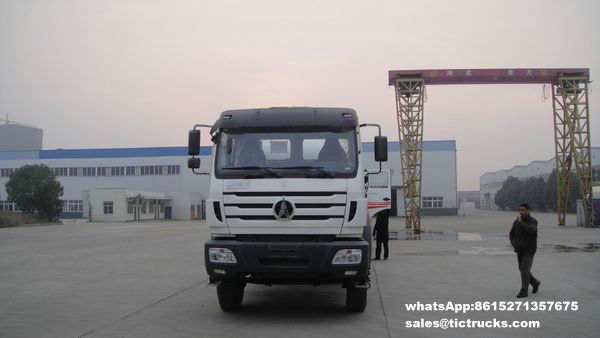

Beiben 2534 Mixer trucks 10 wheels 12cbm 6x4 for export

Beiben 2534 Mixer trucks  10 wheels 12cbm 6x4 for export

Truck mounted concrete mixers list 2.pdfDownload

ModelNorth Benz 2534B

Curb Weight(kg)12870

Max Speed（km/h）≥75

Wheelbase（mm）3800+1450

Engine ModelWP10.336

Engine Displacement(L)9.726L

Engine Max Power(kw)340(Ps/rpm)

Engine Max Torque(N.m)1250(N.m)

Transmission Model9JS150

Emission Standards EURO3

       6*4       ND5257GJBZ       3800+1450       WP10.340E32       10m3

       ND5256GJBZ       4100+1450       12m3

-  Emission Standards EURO4

       6*4       ND5250GJBZ15       3800+1450       WP10.336E40       10m3

       4100+1450       12m3

       8*4       ND5310GJBZ08       1950+3100+1450       WP10.336E40       14m3

       WP10.375E40

       8*4       ND5310GJBZ09       1950+3400+1450       WP10.336E40       16m3

 China best beiben 2534, 2538 cement mixer truck manufacturer can supply beiben 10CBM transit mixer truck for export

Vehicle modelChassis brandChassis modelLoadOverall dimensionsWheel baseEngine modelhp/standardTire FOB PriceCIFCIF *1.13

alibaba Bank Financing 0.036%per day

m3     mmmmUSD100%TT

30%+70% 30%TT+70%LC365days

DRZ5250GJBDDONGFENGDFL5250GJBA108800X2500X39303650+1350L340-30340/Euro 311.00R20353000$51920$57970$65506

DRZ5142GJBBFOTONBJ5142GJB-G146460X2480X34503400YCD4F22-110110/Euro 28.25-1611230016520$20500$23165

DRZ5142GJBB1FOTONBJ5142GJB-G156660X2480X34503600YCD4D130-33130/ Euro 28.25-2012930019020$23090$26090

DRZ5162GJBBFOTONBJ5162GJB-F176980X2490X37504200YC6J190-33190/Euro 210.00R20199500$29340$33930$38340

DRZ5252GJBBFOTONBJ5252GJB-S108930X2495X37903575+1350WP10.340E32340/Euro 311.00R20338900$49840$55820$63070

DRZ5253GJBBFOTONBJ5253GJB-S2129350X2495X39354100+1350WP10.340E32340/Euro 312.00R20357000$52500$59040$66715

DRZ5318GJBBFOTONBJ5318GJB-11410752X2495X39981800+3450+1350WP10.340E32340/Euro 312.00R20422200$6209069650$78700

DRZ5313GJBBFOTONBJ5313GJB-111811230X2495X39951800+3650+1350WP12.380E32380/Euro 312.00R20450300$66230$74140$83770

DRZ5250GJBQISUZUQL1250DAFZY1410050X2490X39004000+13006HK1-TCSG40280/Euro 411.00R2049640073000$80070$90470

DRZ5254GJBHTG384 SICA IVECO CQ3254HTG384 10 9125X2500X3950 3800+1400 C9.340 340/Euro 3 11.00R20 378000 $55590 $62030 $70090

DRZ5254GJBN North-Benz ND1254B38J 12 9300X2500X3900 3800+1450 WP10.340E32 340/Euro 3 12.00R20 369000 $54270 $60700 $68500

DRZ5316GJBN North-Benz ND1316D35J 16 10550X2500X3990 1500+3550+1450 WP12.375 375/Euro 3 12.00R20 443200 $65180 $65280 $73760

DRZ5255GJBFS364 SHACMAN SX5255GJBJR364 10 9130X2500X3900 3575+1400 WP10.340E32 340/Euro 3 12.00R20 344900 $50730 $57170 $64600

DRZ5255GJBFS424 SHACMAN SX5255GJBJR424 14 10050X2490X3900 4175+1400 WP10.340E32 340/Euro 3 12.00R20 353000 $51920 $58990 $66650

DRZ5315GJBFS326 SHACMAN SX5315GJBJT326 15 10870X2500X3900 1800+3175+1400 WP10.340E32 340/Euro 3 12.00R20 402100 $59140 $66750 $75420

DRZ5315GJBFS346 SHACMAN SX5315GJBJT346 16 10825X2500X3900 1800+3375+1400 WP10.340E32 340/Euro 3 12.00R20 405600 $59650 $67280 $76020

DRZ5315GJBFS386 SHACMAN SX5315GJBJT386 18 11800X2500X4000 1800+3775+1400 WP12.380E32 380/Euro 3 12.00R20 441700 $64960 $73220 $82730

DRZ5257GJBZ34 HOWO ZZ1257N4048W 12 9770X2500X3880 4025+1350 WD615.69 336/Euro 3 12.00-20 361800 $53205 $60040 $67840

DRZ5257GJBZ37 HOWO ZZ1257N4048W 12 9770X2500X3880 4025+1350 WD615.96 375/Euro 3 12.00-20 364800 $53640 $60470 $68330

DRZ317GJBZ416 HOWO Zz1317n3261W

16 10304*2496*3999 1800+3200+1350 WD615.47 371/Euro 3 12.00R22.5 418000 61470 68700 77630

Concrete mixer truck

Here the price is for standard configuration. Selective configuration and any change according to the buyer’s requirements please confirm the price with our company.

Standard configuration Less than 7m3:chassis,sub frame,mixer tank(main tank 5mm alloy steel wear resistant material,front tank head 6mm alloy steel wear resistant material),domestic reducer,hydraulic pump,hydraulic motor,radiator,water tank,cleaning hose,feed port, discharge port,climbing ladder,air pressure water supply device.

Selective configuration 1,American SALI56 hydraulic pump, SALI63 hydraulic motor

2,Italy P071 hydraulic pump, M063 hydraulic motor

3,A full set of imported parts (ZF3301 reducer)

Standard configuration chassis,sub frame,mixer tank,reducer, hydraulic pump,hydraulic motor, radiator,water tank,cleaning hose,feed port, discharge port,climbing ladder,air pressure water supply device.

8m3 Germany ZF3301 reducer,Germany REXROTH hydraulic pump,Germany REXROTH hydraulic motor,KAIPENG radiator,mixer tank(main tank 5mm alloy steel

wear resistant material,front tank head 8mm alloy steel wear resistant material)

9-10m3 Germany ZF5300 reducer,Germany REXROTH hydraulic pump,Germany REXROTH hydraulic motor,KAIPENG radiator,mixer tank(main tank 5mm alloy steel

wear resistant material,front tank head 8mm alloy steel wear resistant material)

11-14m3 Germany ZF7300 reducer,Germany REXROTH hydraulic pump,Germany REXROTH hydraulic motor,KAIPENG radiator,mixer tank(main tank 6mm alloy steel

wear resistant material,front tank head 8mm alloy steel wear resistant material)

15-20m3 Italy PMP reducer,Italy PMP hydraulic pump,Italy PMP hydraulic motor,KAIPENG radiator,mixer tank(main tank 6mm alloy steel wear resistant material,front

tank head 8mm alloy steel wear resistant material)

Selective configuration Emergency high pressure oil hose(4 pieces),12m emergency oil hose(Italy),water cannon,large tool box,electric water supplying system.

Italy Bonfiglioli/Italy PMP reducer,Italy PMP/Italy MESSOR/America EATON/America SAUER hydraulic pump,Italy PMP/America EATON/America SAUER hydraulic motor.

Concrete Mixer truck
