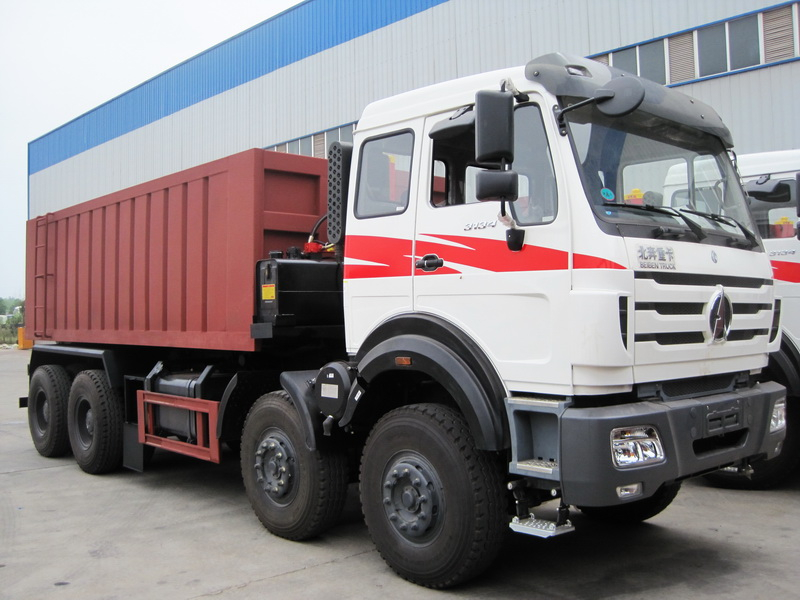

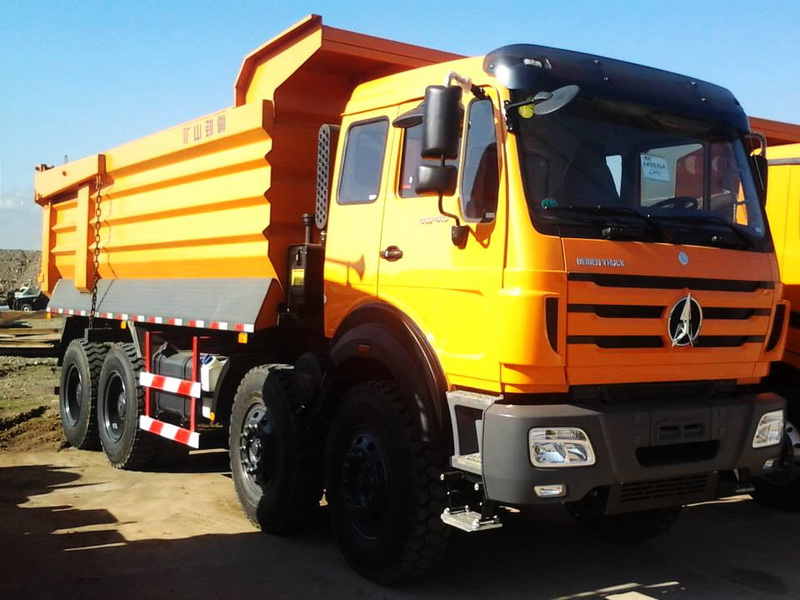

Beiben 12 Wheeler Dump Trucks NG80 Mercedes Benz Alxes
Quantity: | |
---|---|
Emission Standards EURO 4
6*4 | ND32501B38 | 3800+1450 | WP10.300E40 | 5800 |
ND32502B38 | WP10.336E40 | |||
ND32501B41 | 4100+1450 | WP10.336E40 | 6000 | |
8*4 | ND33100D31J | 1950+3750+1350 | WP10.300E40 | 7600 |
WP10.336E40 | ||||
8*4 | ND33101D39J | 1950+3700+1450 | WP10.336E40 | 7600 |
Model | Engine Model | Rated Power | Payload | Driving Mode |
Beiben 3314 | WP10.340 | 340 Hp | 45 Ton | 8*4 |
Beiben 3138 | WP10.380 | 380 Hp | 60 Ton | 8*4 |
Beiben 3146 | WP12.460 | 460 Hp | 70 Ton | 8*4 |
Beiben 3134 | WP10.340 | 340 Hp | 45 Ton | 8*4 |
Beiben 3142 | WP12.420 | 420 Hp | 50 Ton | 8*4 |
3450 | WP12.420E32 | 420 Hp | 50 Ton | 8x4 |
3360A | WP 10.420 | 420 hP | 50 T | 8x4 |
3310A | WP 10.380 | 380 Hp | 40 T | 8x4 |
Beiben 12 wheeers camions benne. best north benz camions benne manufacturer in china.
Overall dimension (mm) | 8730×2500×3484 |
Driving Model | 8x4 |
Wheel base (mm) | 1500+3550+1450 |
Curb weight (kg) | 12400 |
Engine Model | WD615.38,water-cooled,four strokes,6 cylinders straight in line,turbocharged |
Gearbox Model | 12JS200T, mechanical type,12 Forward speed gear |
Frame | Based on Germany Benz Technology |
Axle(Front, Middle and Rear) | Based on Mercedes Benz Technology |
Brake system | Safe(consist of Service brake, Assistant brake and Park brake) |
Steering system Model | ZF8098 |
Fuel tanker capacity (L) | 400 |
Clutch Model | 430,Hydraulic boosting |
Tire | 12.00R20 radial tire |
Electrical system | 2 Batteries (12V/135Ah each ) |
Safe Cab(driver die Zero record) | full steel skeleton structure, covered with double layer steel plate; |
Dimension for Upper body | 6800*2300*1500mm,Sand body |
beiben 3134,3138,3129,3142 dumpers. We can produce the common cargo box, heavy duty cargo box, reinforced cargo box based on beiben 8*4 trucks chassis. Our beien 8*4 tippers are enjoy great reputation in all over the world , such as CONGO, NIGERIA, ALGERIA, CHILE, ANGOLA, South africa and other countries.
Dump body | Mine cargo box |
Cubic volume (m3) | 30 |
Body length (mm) | 7800 |
Body width (mm) | 2300 |
Body height (mm) | 1500 |
Body type | All steel body with drop sides, Auto release body lockdown hook |
Front plate material | 8MM Q235A carbon steel by WISCO |
Deck plate material | 10MM Q235A carbon steel by WISCO |
Tipping type | Middle tipping type |
Engine |
|
Model | WP10.380E32 |
Type | Diesel ,4-cycle, 6 cylinder in line, Electronic unit pump injection, Turbocharger, Water cooled |
Max output power (kw/rpm) | 279 / 2200 |
Max torque (N.m/rpm) | 1350 |
Displacement (ml) | 9839 |
Emission standard | Euro 3 |
Transmission& Clutch |
|
Model | 12JS135B |
Type | 12 Forward and 1 Reverse Speed |
Gearshift | Manual (Mechanical) |
Clutch | Dry and Double Plate Clutch |
Front /Rear Axle |
|
Front | DONGFENG |
Rear | Benz reinforced, hub reducing axle |
Capacity (kg) | 9000 / 18000x2 |
Rear axle ratio | 5.92 |
Main Technical Specification |
|
Drive type | 8 x 4 |
Wheel base (mm) | 1850+3400+1350 |
Overall Length (mm) | 9990 |
Overall Width (mm) | 2500 |
Overall Height (mm) | 3450 |
N.V.W (kg) | 15000 |
Max. traveling speed (km/h) | 80 |
Front track | 2040/2040 |
Rear track | 1850/1850 |
Min. ground clearance (mm) | 315 |
Cab & Tire |
|
Type | |
Seat | 3 seats |
Tire size | 12.00-20 |
No. of Tire | 12 |
Steering system |
|
Type of steering gear | Recirculating ball and screw type with hydraulic power assistance |
Adjustment of wheel | Tilt and telescopic |
Steering wheel position | Left hand drive |
GENUINE ACCESSORY OPTIONS | |
Other dump bodies Car carries freezer Tool box ABS (Anti-lock braking system) travelling data recorder ASR (Anti-skid system) Global Positioning System GPS Paint colors Tire size |
