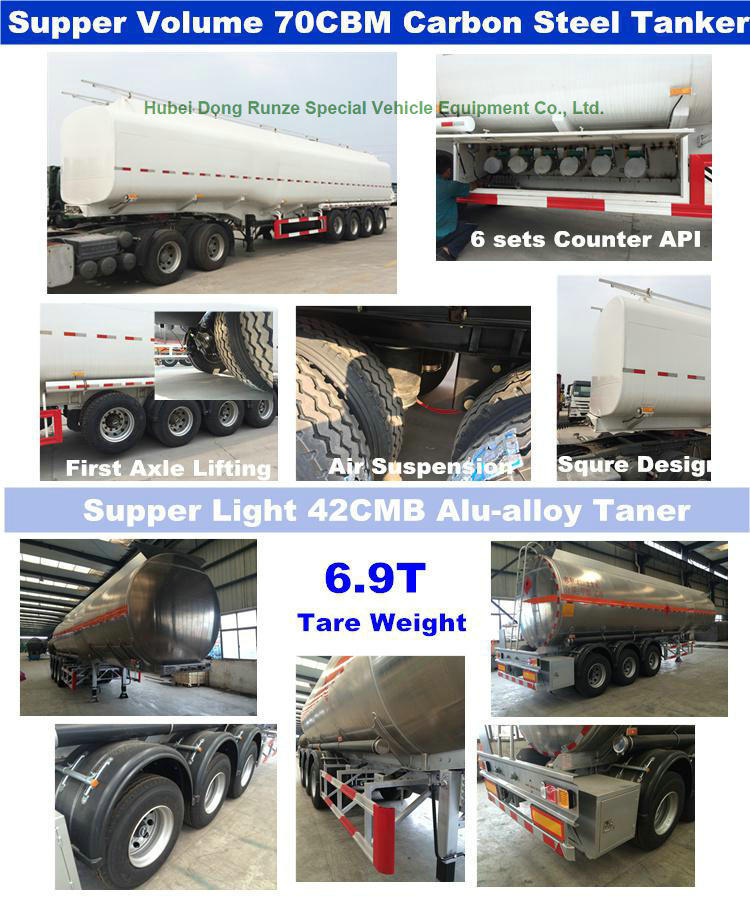

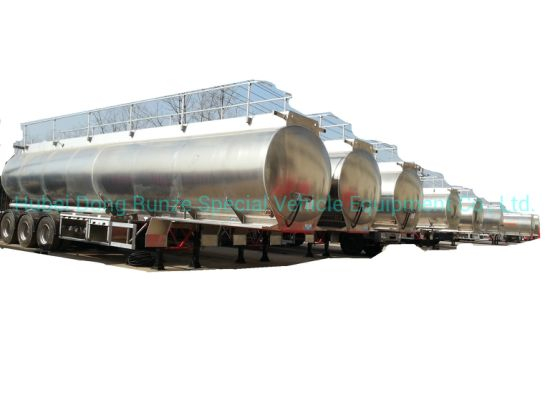

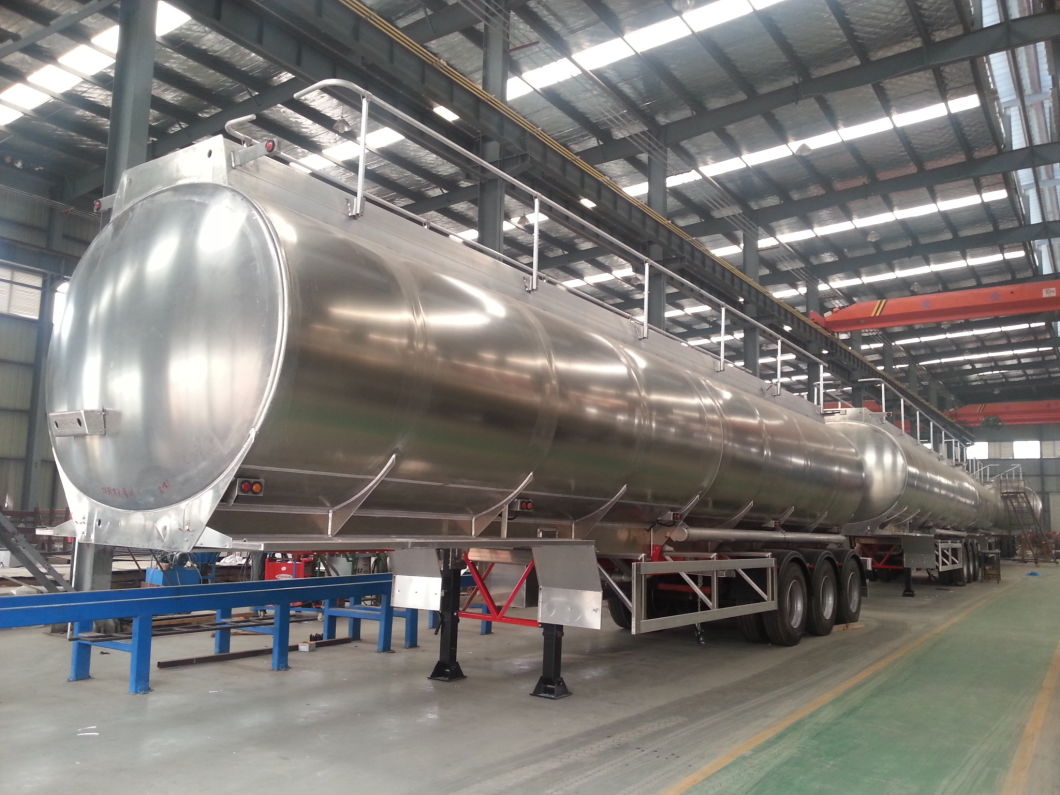

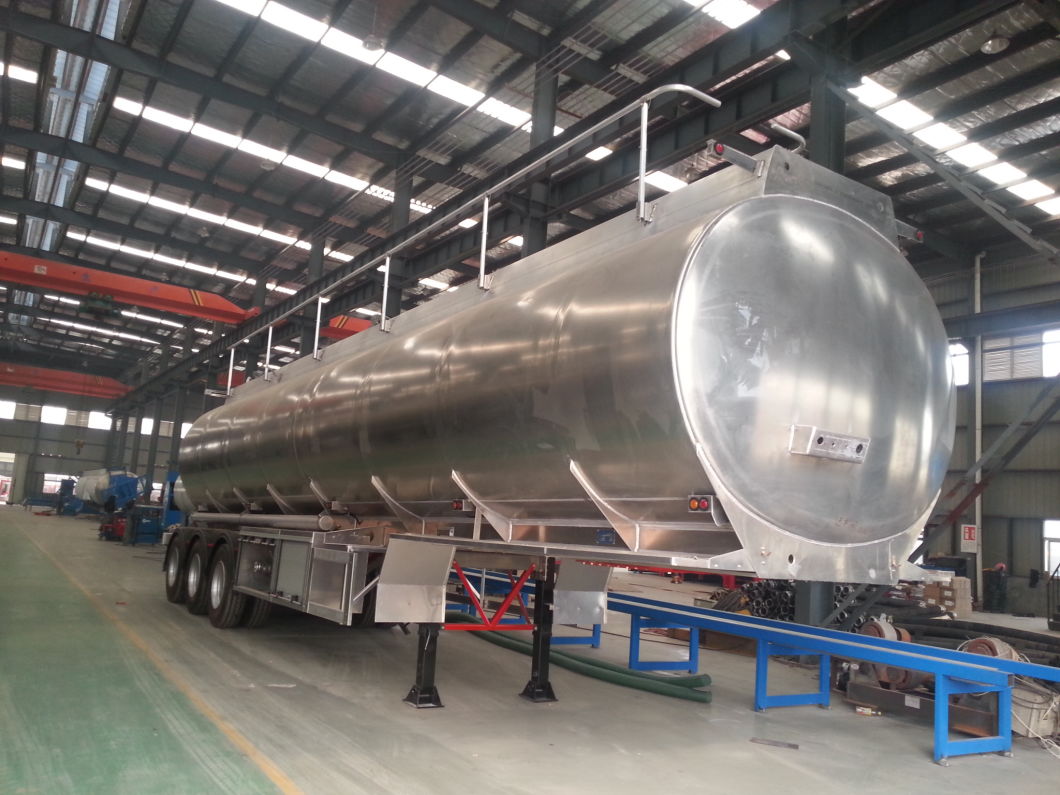

Aluminum Alloy Tanker Trailer 40kl for Diesel, Oil, Gasoline, Kerosene Road Transport with 3 BPW Axles
Quantity: | |
---|---|
Steel Fuel Tanker Semi-Trailer 3 Axles Oil Tank Capacity 42000L to 47000L ( Diesel ) With BPW Axles Air spring Single Tyer 385/65R22.5
Steel Fuel Tanker Semi-trailer 4 axles, 55000L,60000L,68000L,72000L Tank Trailer Manufacturers
Steel 4 Axle Tanker Semi-trailer
tanker semi trailer factory sale
Website: www.truckinchina.com
Tanker
Material Steel
Thickness of shell 5mm
Thickness of dish 6mm
Inside baffles 4mm
Compartments 4 to 7 compartments

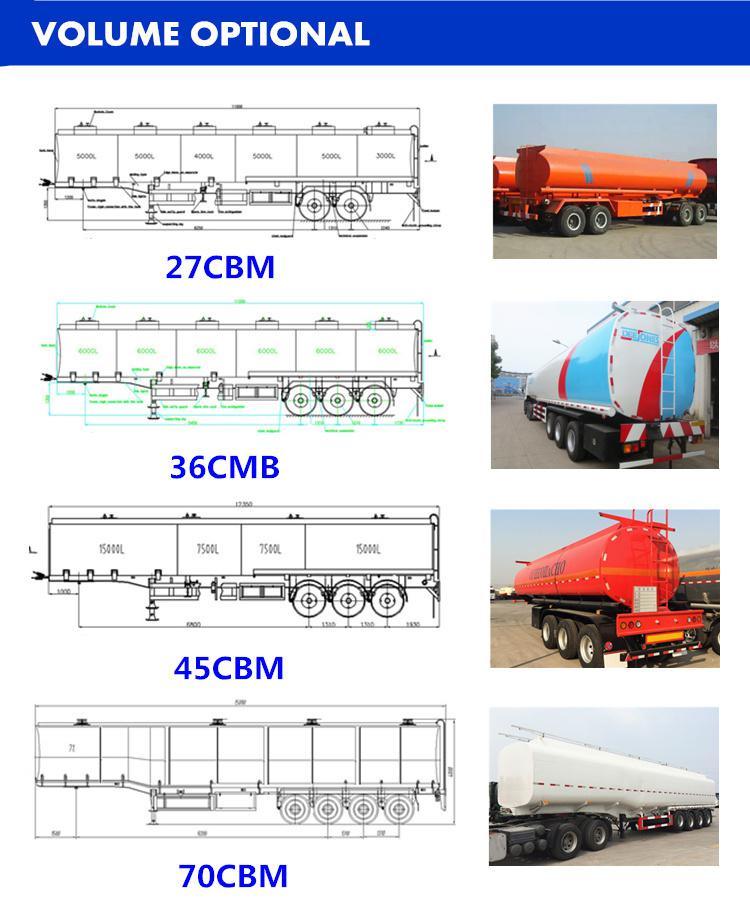

Volume 35000L to 72000L+ 6% expansion

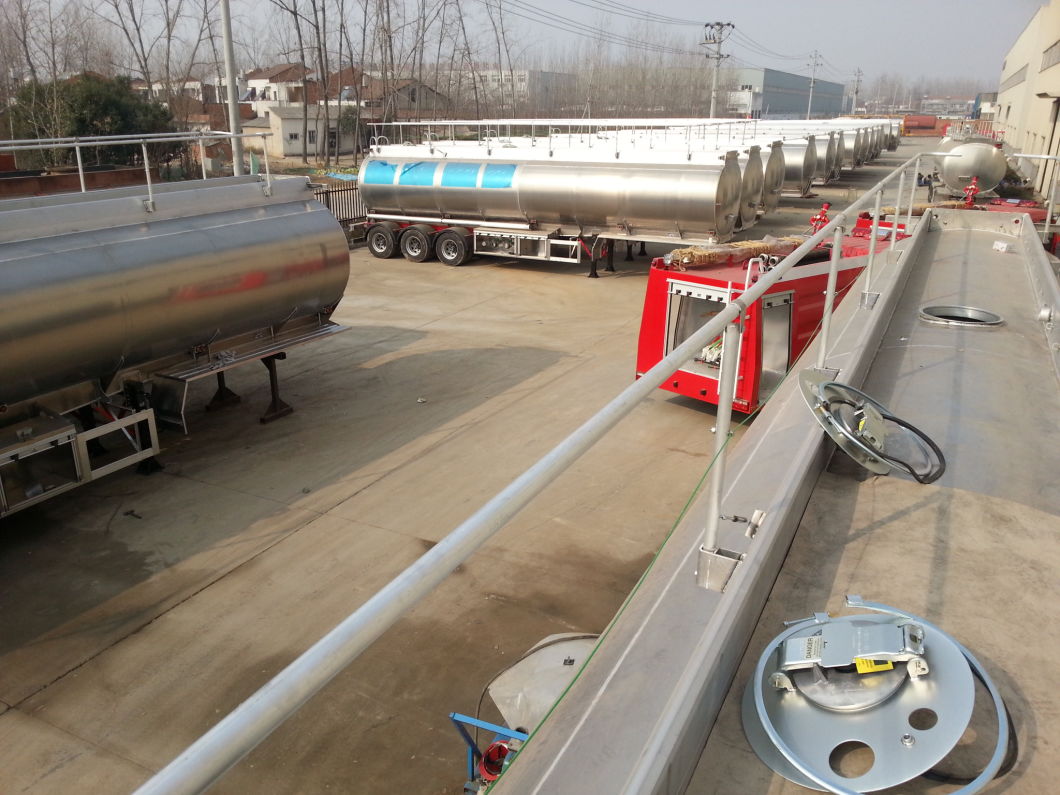

Tank Top Accessories
Ladders fixed on the front and rear; foldable handrail
Walkway with anti-slip material in the front of reach the manholes
Not covering the complete length of the tank.

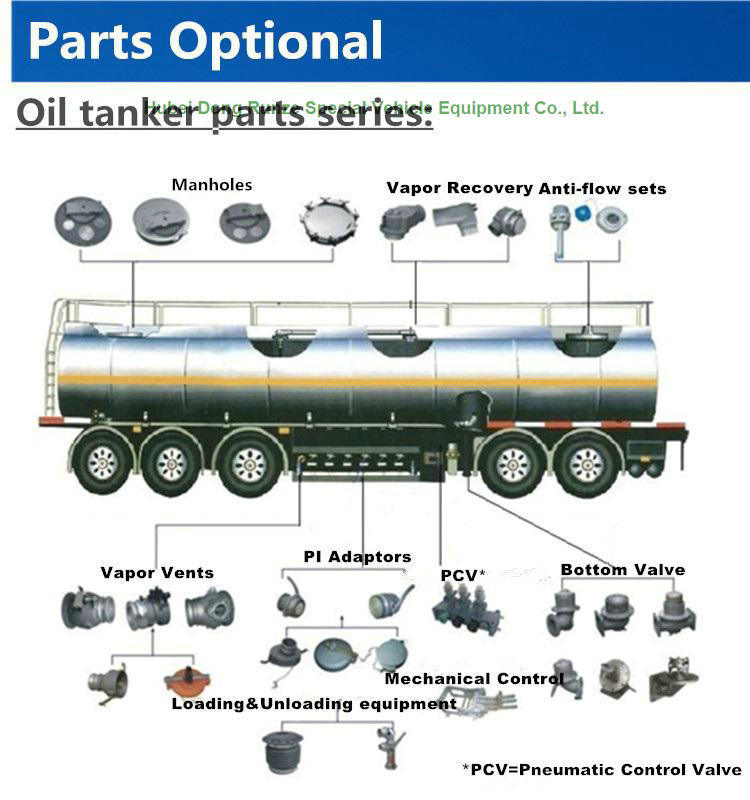

Tank Equipments (all API Standard)
Each compartment is equipped with
Aluminum Manhole cover 16" or 20"

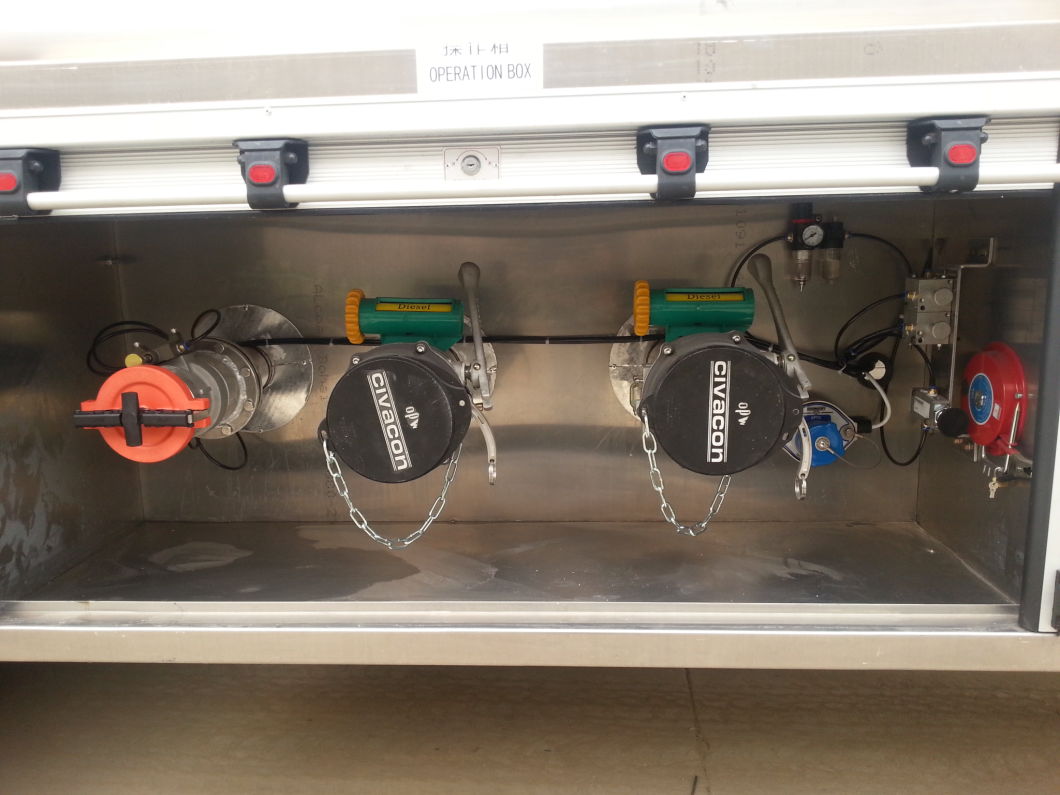

Aluminum Emergency Bottom valve 3" with Pneumatic switch in locker<
Aluminum Spill Valve 3" or 4",
Discharging Nylon hose 6m
Discharge and loading
Gravity discharge,
Top loading. Option: Bottom loading
Running Gear
FUWA axle 13T*4 Option: BPW axle 13T
Heavy duty spring suspension 18*16*9mm
16+1 pcs tires 315/80R22.5 Tire (9.0*R22.5 steel rims)
3.5" Jost kingpin Option: 2"
JOST 2-geared mechanical operated landing legs
Braking System
Double line air brakes Mechanical parking brake, WABCO brake valve
The first axle and the third axle with ABS System.
Electric Installation
Complete 24V system in explosion proof installation
Rear lighting with rear, stop, parking, direction, fog, reverse lights, side lights
Painting
Exterior surface treatment by shot blasting
Painting by high solid primer directly on the surface
Painting inside special paint booth with the cargo cabin color or the color chosen by the customer
Accessories
Plastic Mudguards, Side protection, 2 Fire extinguisher, 1 Spare tire carrier.
1 Tool box with standard tools, Heavy duty tail bumper
Contact to get the detail and price cell: (+86)15271357635
