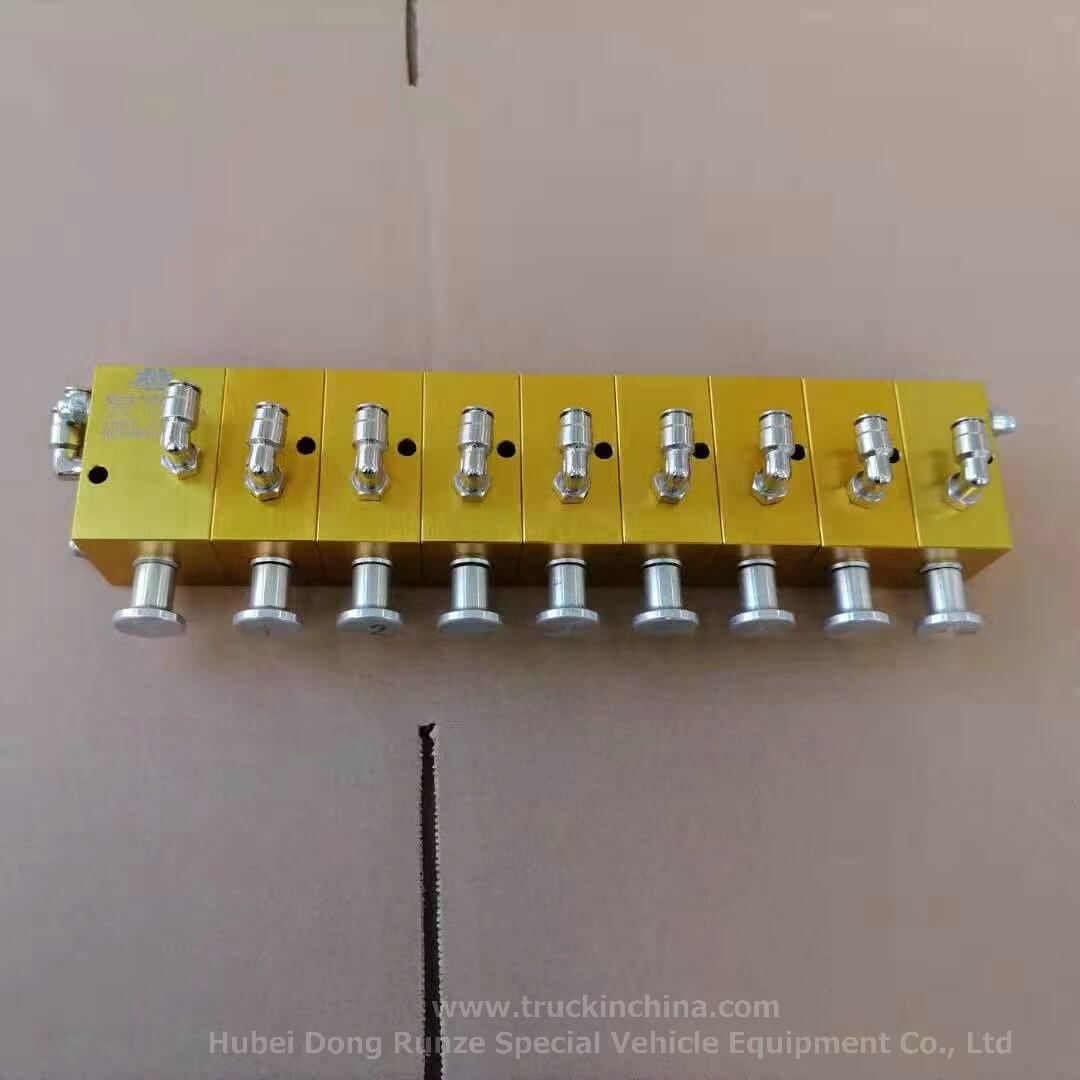

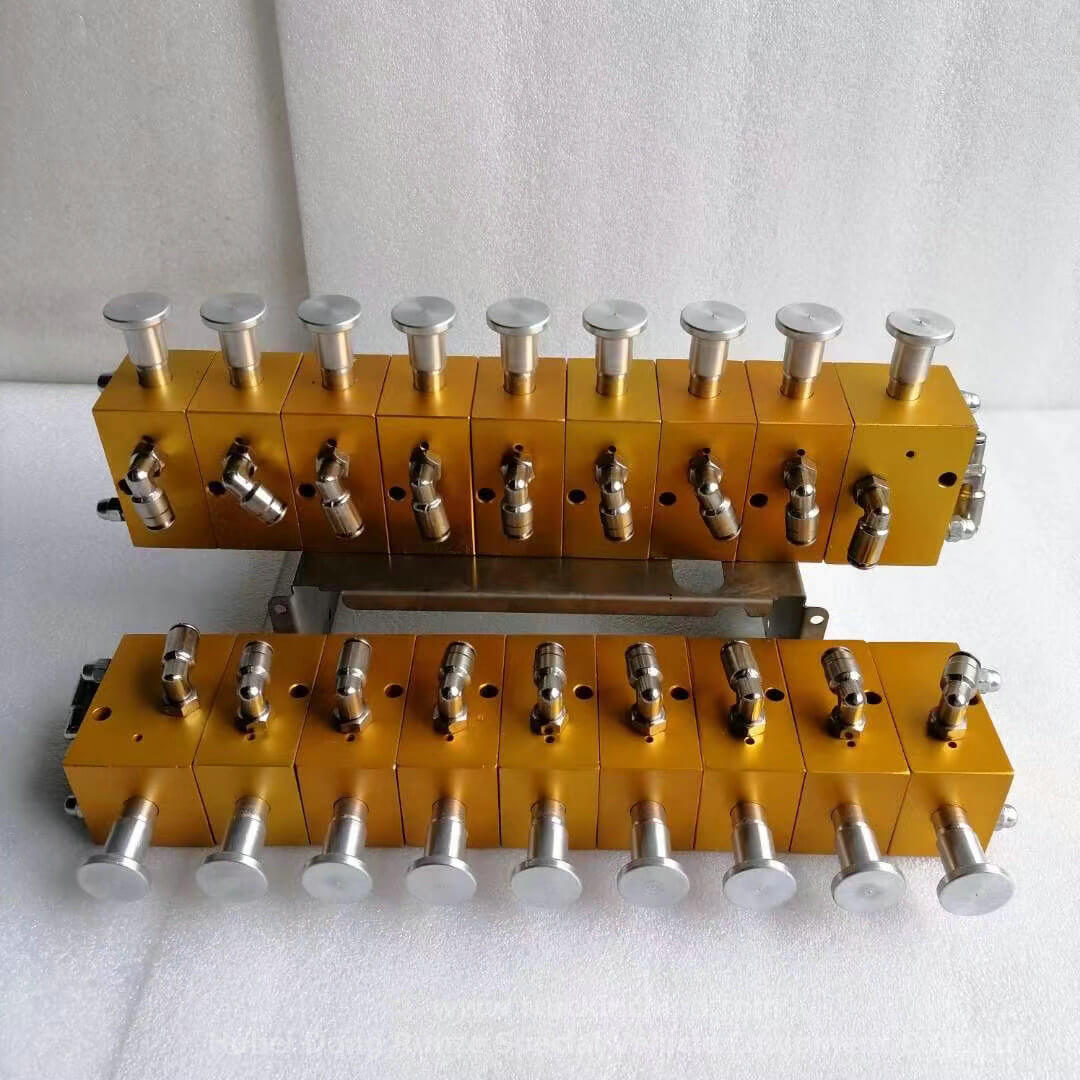

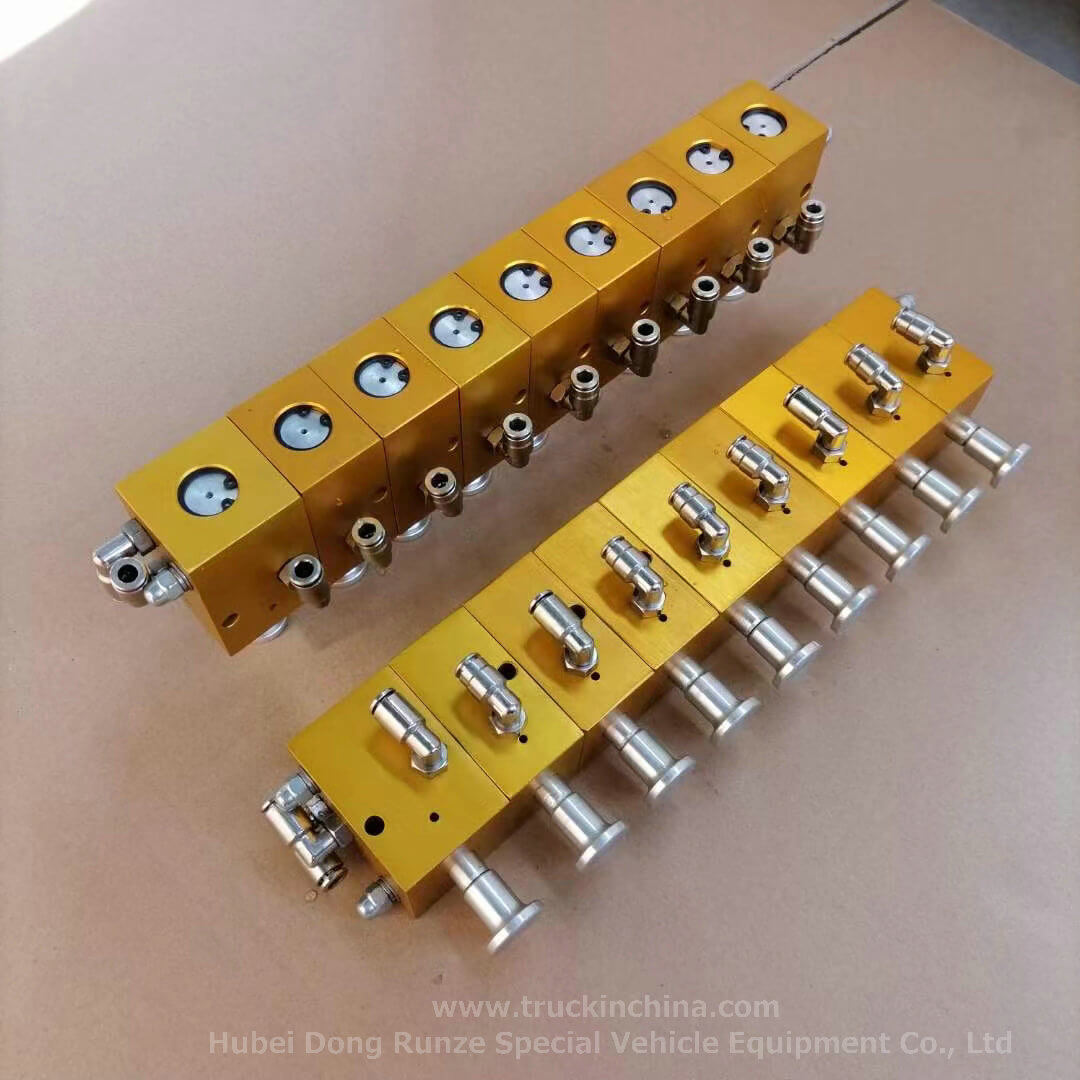

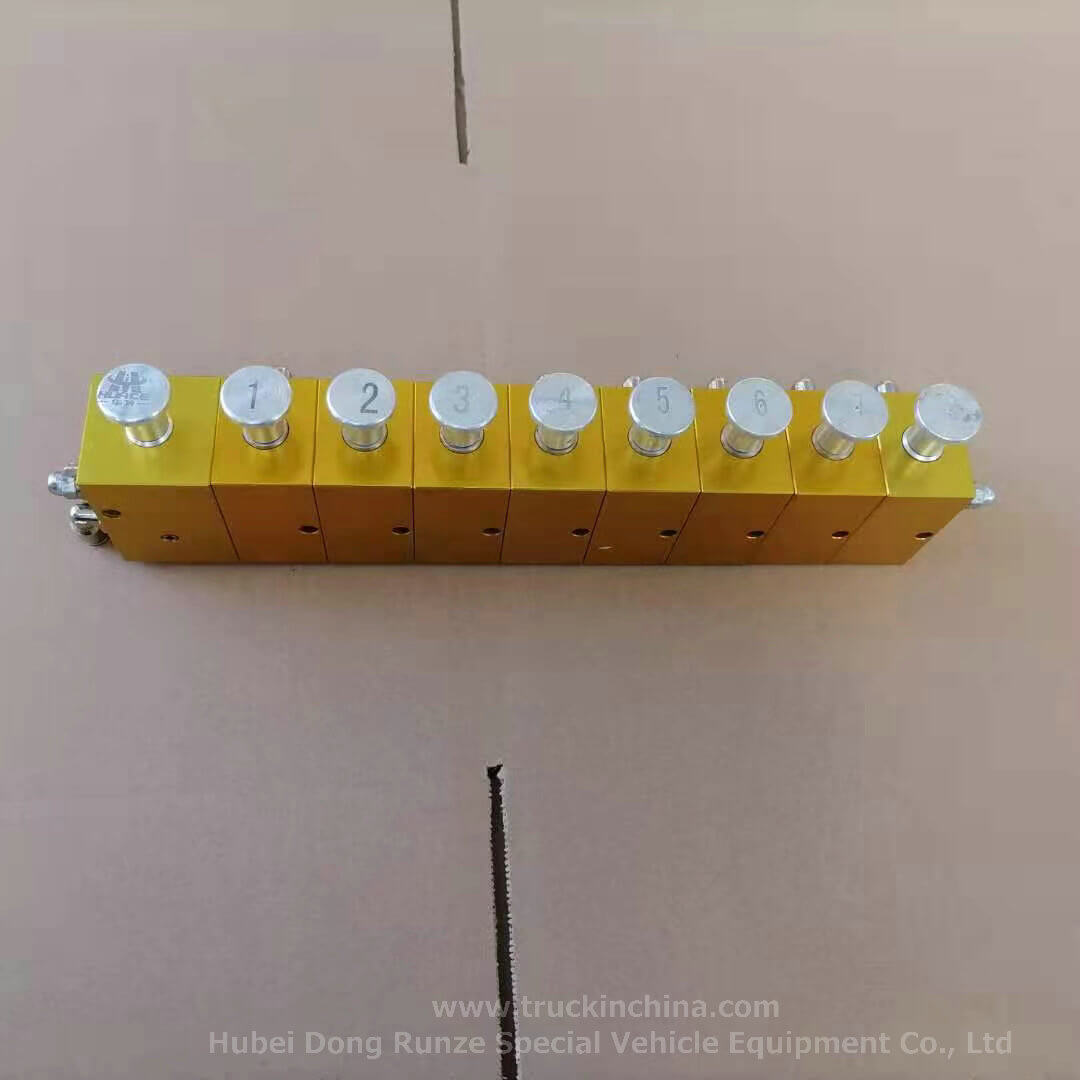

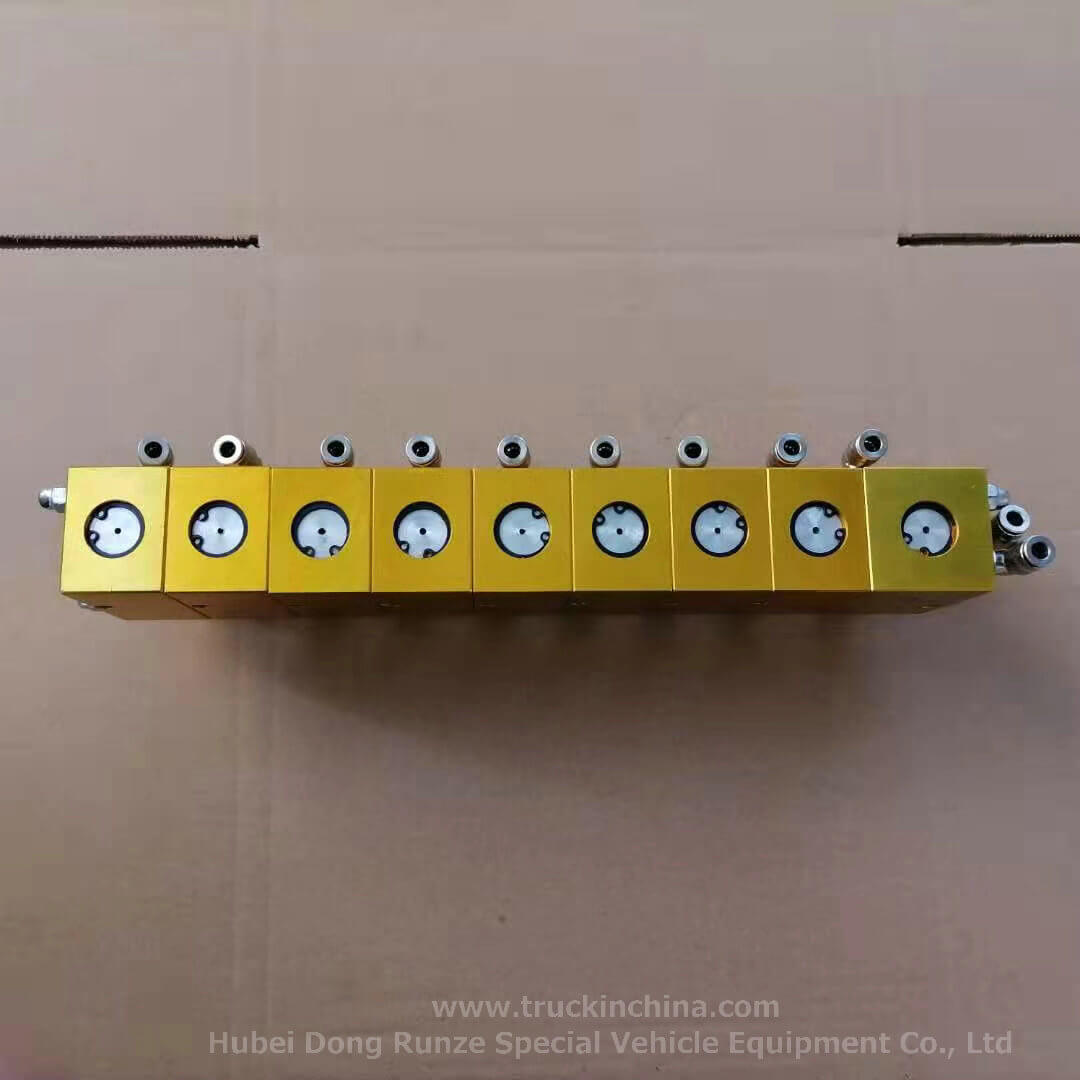

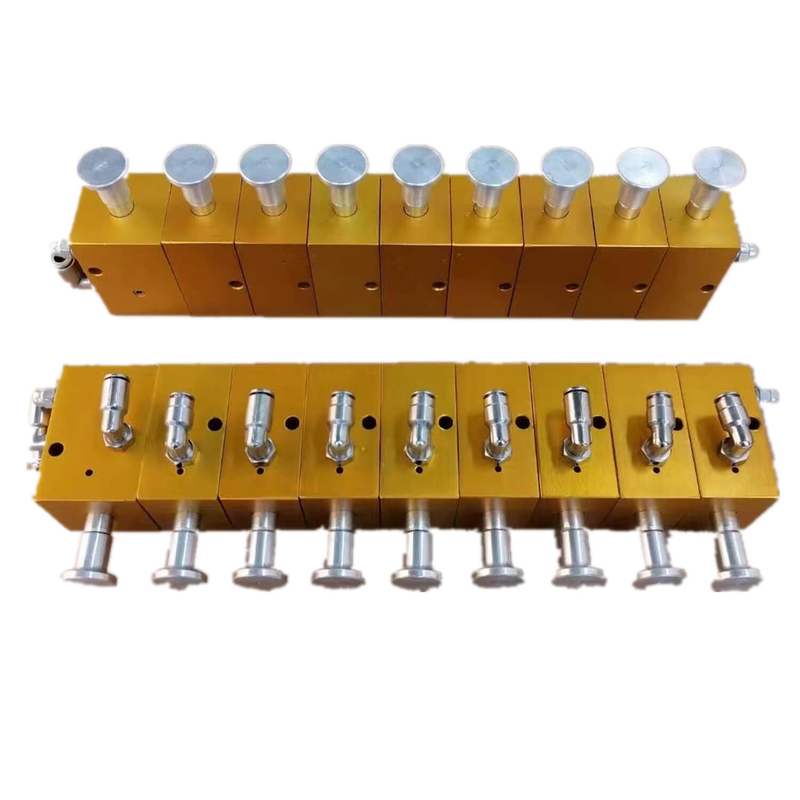

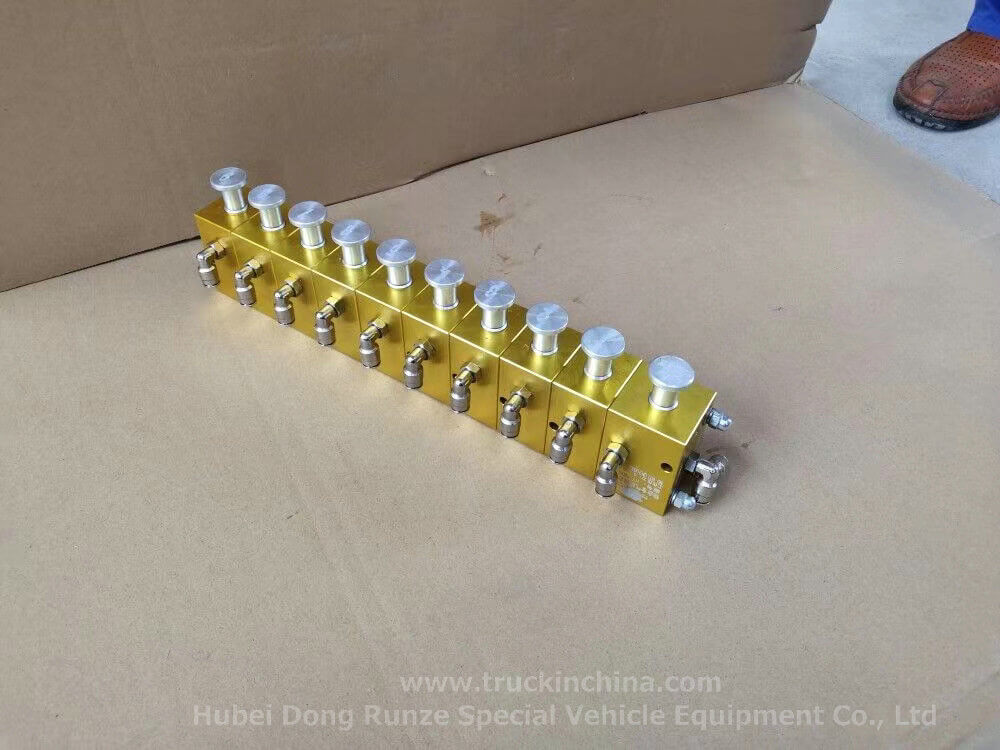

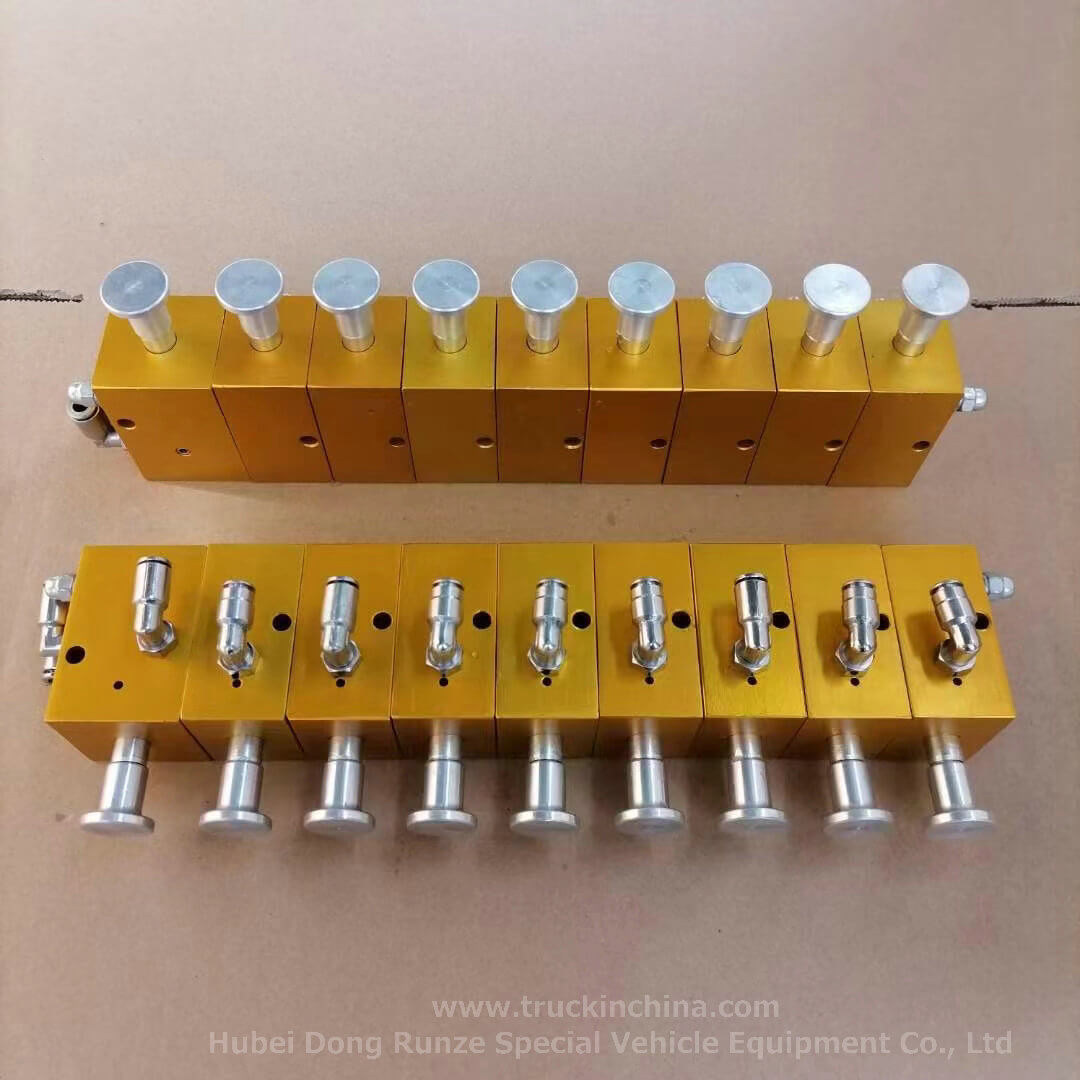

Aluminum Alloy Pneumatic Valve Emmergency Cut-off Controller For Fuel Tanker Qk01-8 With 8 Stop Buttons

Aluminum Alloy Pneumatic Valve Emmergency Cut-off Controller For Fuel Tanker Qk01-8 With 8 Stop Buttons
Price: $ 220  -  420
Discount Price: $ 180  -  380
QK01-6:
Availability:
Quantity:

  • QK -

  • HUATE

  • 8481901000

aluminum alloy pneumatic valve emmergency controller for fuel tanker (1)aluminum alloy pneumatic valve emmergency controller for fuel tanker (4)aluminum alloy pneumatic valve emmergency controller for fuel tanker (2)aluminum alloy pneumatic valve emmergency controller for fuel tanker (15)aluminum alloy pneumatic valve emmergency controller for fuel tanker (14)aluminum alloy pneumatic valve emmergency controller for fuel tanker (7)aluminum alloy pneumatic valve emmergency controller for fuel tanker (16)Pneumatic block   QK01-5  Pneumatic block QK01/02/03/04...08

 pneumatic switch controller YOJE
 pneumatic switch controller01-pneumatic switch


 pneumatic switch controller is central control system of the pneumatic components, can used to control API oil discharge valve,sea valve,

 oil recovery valve, oil recovery joint,oil recovery pipe control valve and some other components.

 It can control several pneumatic components or other things,it has compact structure and long service life.When connect with pneumatic emergency

 switch,it can has emergent shut-off function,that fit the oil truck's safe standard.





 Material:



 Body: POM plastic

 Shaft: brass

 Seal: FPW,NBR

 Spring: SS







         Production type




         Controller number




         YJ103-1/QK01-1




         1




         YJ103-2/QK01-2




         2




         YJ103-3/QK01-3




         3




         YJ103-4/QK01-4




         4




         YJ103-5/QK01-5




         5






Fuel Tanker Pneumatic Plastic Control Block

 Specifications

 1. Air hose dimeter :6 mm
 2. Working pressure : 0.5--0.8 MPa
 3. Temperature range:-20 -- +50



   1. Pneumatic Control Unit







       To be installed in the tanker to do the central control by pneumatic ,including the Vapor Vent Valve,Combing Valve,Bottom Valve,etc. It can do the quick open and close by Pneumatic Control Block to ensure the loading and unloading more reliable.







   2. Benefit and Feature







   * Central Control



     One set pneumatic control block can control several valves, it is very convenient for the users' operation.







   * Remote Control



     In any emergency cases, it can do the remote control to shut off the valves.






         Name              Model               A                 B                 C                  D               H                 Z-do
         Control System               Qk0X              46                 42                22                 10             120               4-φ6.5




Pneumatic block QK5

 Successful Cases

 Two pneumatic blocks for alloy oil tanker API discharge valve have been delivered to Maputo , Mozambique









 Pneumatic type control system Pneumatic Control Valves for Tank Truck Components

 Two pneumatic blocks for alloy oil tanker API discharge  valve have been delivered to Maputo , Mozambique

 Customize  Truck



       Cell: 0086 152 7 135 7635   ; 0086 152 7 135 7675
       WhatsApp: 8615271357675    tictrucks#gmail.com




Successful Cases



   Two pneumatic blocks for alloy oil tanker API discharge valve have been delivered to Maputo , Mozambique
